Magewell Pro Convert for NDI® to HDMI 4K

Pro Convert for NDI® to HDMI 4K

Converts a live NDI® stream into 4K HDMI signal

Connects baseband presentation or distribution equipment into IP-based media networks
Decodes Full NDI or NDI|HX into 4K HDMI at a super-low latency
Automatically optimizes output based on EDID characteristics of connected display

* Magewell offers accessories to mount this model on the 1RU rack. A module-type product of the same specification is also available for use with the Magewell Modator chassis for high-density deployment.

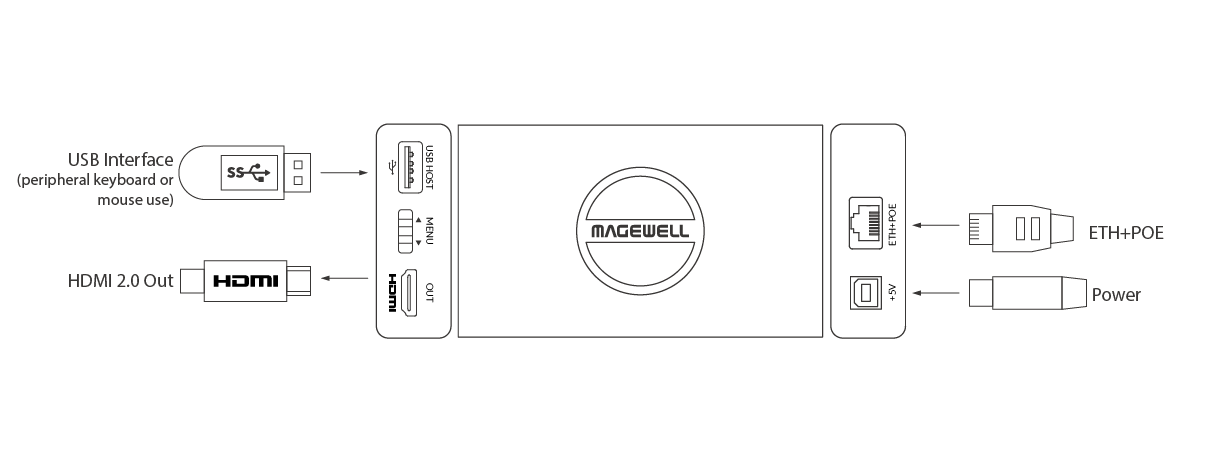

Interface

Specifications and Features

Features

Output Features

Support for up to 4096x2160 60fps HDMI output
Support for 96KHz, 16-bit 8-channel audio streams

Decoding Features

Support for decoding 4K 60fps NDI streams
Support for decoding full NDI® and NDI®|HX
Support for NDI 5.x
Discover NDI devices across network segments
Compatible with H.264/H.265 streams in additional protocols including RTSP, HTTP, HLS, RTMP
Pull/Push and MPEG-TS over UDP/SRT/RTP
Support for decoding alpha channel

Features & Advantages

Very low latency
Advanced configuration and device status through intuitive Web GUI, keyboard/mouse, or on-board controls
HTTP-based APIs for custom integration
Image flip for inverted projector installations and safe area controls
Automatic output optimization for target display with integrated up/down conversion
Provide Crestron Plugins
Provide Q-SYS Control Plugins

Details

Output Features	Max output: 4096x2160 60fps 4:4:4 8-bit Delivering video at the preferred video format according to the EDID of the connected monitor. Supported output formats include: 4096x2160p / 3840x2160p 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 2560x1440p 60 / 100 / 120 / 144 2560x1080p 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 1920x1080p 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 / 100 / 119.88 / 120 1920x1080i 50 / 59.94 / 60 1280x720p 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 720x576p50 720x576i50 720x480p59.94 / 60 720x480i59.94 / 60 Support 48KHz 8-channel audio output HDMI interface: HDMI 1.4 / 2.0
Decoding Features	Decoding up to 2Kp60 streams of Full NDI, NDI®\|HX, NDI®\|HX2, NDI®\|HX3, RTSP, HTTP, HLS, RTMP Pull / Push and MPEG-TS over UDP / SRT / RTP protocols H.264 / H.265 video decoders AAC / MP3 audio decoders Support NDI 5.x
Configuration Management	Registration with Control Hub Remote control via WebUI and Control Hub Provide comprehensive information regarding the device and decoded signals in real-time Allow to configure how a signal is decoded and output, including OSD settings, deinterlacing, resolutions, audio gain, sample rate, and channel mapping, as well as the network connection Support for updating firmware Support for USB RNDIS / ECM Support for IE / Edge / Firefox / Chrome / Safari / Opera web browsers Provision of HTTP APIs

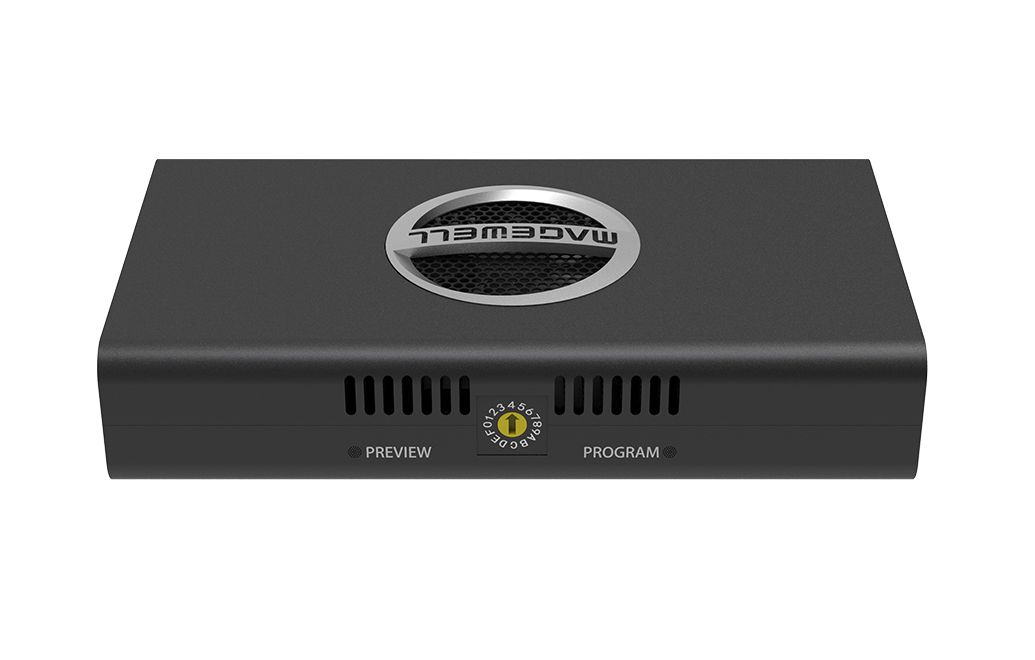

On-board Control Buttons	MENU: press to display the menu or select current parameter, or toggle the switch left and right to cycle through the options 16 Position Rotary DIP Switch: set board-index from 0 to F

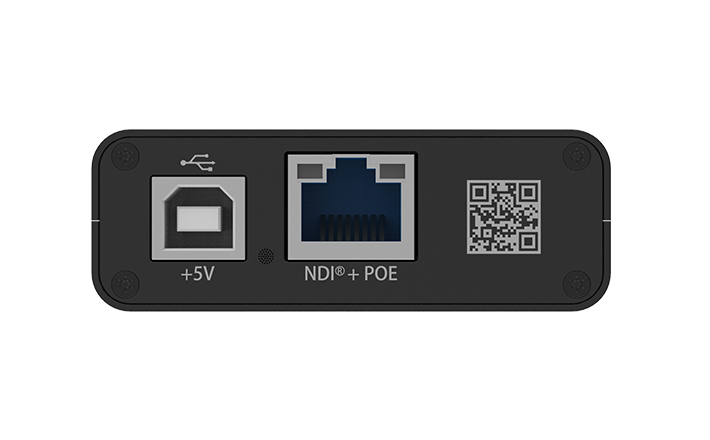

Network Interfaces	10 / 100 / 1000Mbps Ethernet IEEE 802.3af PoE

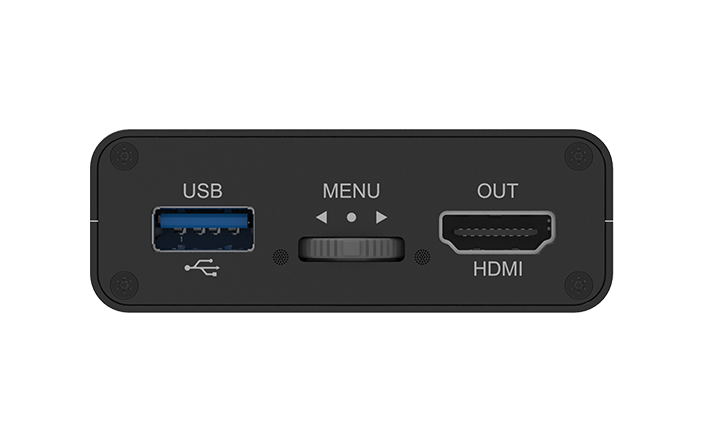

USB Interfaces	USB2.0 Type B 5V / 2.1A power supply USB RNDIS / ECM USB3.0 Type A Connecting peripherals (keyboard and / or mouse) to customize the video and audio settings
LED Indicators	Power LED status indicator On: power connected Off: power unconnected Decode LED status indicator On: decoding Blinks: decoding error Off: source unselected
Form Factor	117.5mm (L) x 66.7mm (W) x 23.4mm (H)
Accessories	USB 2.0 A to B cable 5V / 2.1A power adaptor L-bracket
Screw Mounting Hole	¼–20 threaded hole
Power Consumption	5V max current: ~ 1.6 A Max power consumption: ~ 7.2 W
Working Environment	Operating temperature: 0 to 40 deg C Storage temperature: –20 to 70 deg C Relative Humidity: 5% to 90% non-condensing

Accessory

Included

Power Adapter (US/EU/UK/AU/JP)x1
Part number: ACC08010

Power Adapter (KR) x1
Part number: ACC08015

USB Type A to Type B cable x1
Part number: ACC00065

L bracket x1
Part number: 92240

Two types of power adapters are provided as options to meet your need. Please choose the right part number when placing the order to our dealers. We recommend you always use the included accessories to avoid unnecessary damage to your device. Please note, the appearance of the power adapter may vary due to suppliers or batches. The images here are for reference only.
