Magewell Pro Convert for NDI® to SDI

Pro Convert for NDI® to SDI

Converts a live NDI® stream into SDI

Connects baseband presentation or distribution equipment into IP-based media networks
Supports NDI technology including full-bandwidth NDI and high-efficiency NDI|HX mode
Supports streaming protocols including SRT, RTSP, RTMP, UDP, RTP, HLS and HTTP

Interface

Specifications and Features

Features

Output Features

Support for up to 1920x1080 60fps SDI output
Support for 48KHz, 16-bit 8-channel audio streams

Decoding Features

Support for decoding up to 2K 60fps NDI streams
Support for decoding full NDI® and NDI®|HX
Support for NDI 6
Discover NDI devices across network segments
Compatible with H.264/H.265 streams in additional protocols including RTSP, HTTP, HLS, RTMP Pull/Push and MPEG-TS over UDP/SRT/RTP

Others

Very low latency
Advanced configuration and device status through intuitive Web GUI, keyboard/mouse, or on-board controls
HTTP-based APIs for custom integration
Image flip for inverted projector installations
Safe area controls
Provide Crestron Plugins
Provide Q-SYS Control Plugins

Details

Output Features	Max output: 1920x1080p60. Supported output formats are: 1920x1080p 23.98/24/25/29.97/30/50/59.94/60 1920x1080i 50/59.94/60 1280x720p 23.98/24/25/29.97/30/50/59.94/60 720x576i50 720x480i59.94 Support YUV BT.601, YUV BT.709 signals Support 48KHz 8-channel audio output SD/HD/3G-SDI BNC output Support SD (ST 259)/HD (ST 292)/3Ga (ST 425)/3Gb (ST 425)/3Gb-DL (ST 425)/3Gb-DS (ST 425) SDI standards Output 3G-SDI signal and transmitted distance greater than 100m (328ft)
Decoding Features	Decoding up to 2Kp60 streams of Full NDI, NDI®\|HX, NDI®\|HX2, NDI®\|HX3, RTSP, HTTP, HLS, RTMP Pull/Push and MPEG-TS over UDP/SRT/RTP protocols H.264/H.265 video decoders AAC/MP3 audio decoders Support NDI 5.x
Configuration Management	Registration with Control Hub Remote control via WebUI and Control Hub Provide comprehensive information regarding the device and decoded signals in real-time Allow to configure how a signal is decoded and output, including OSD settings, deinterlacing, resolutions, audio gain, sample rate, and channel mapping, as well as the network connection Support for updating firmware Support for USB RNDIS/ECM Support for IE/Edge/Firefox/Chrome/Safari/Opera web browsers Provision of HTTP APIs

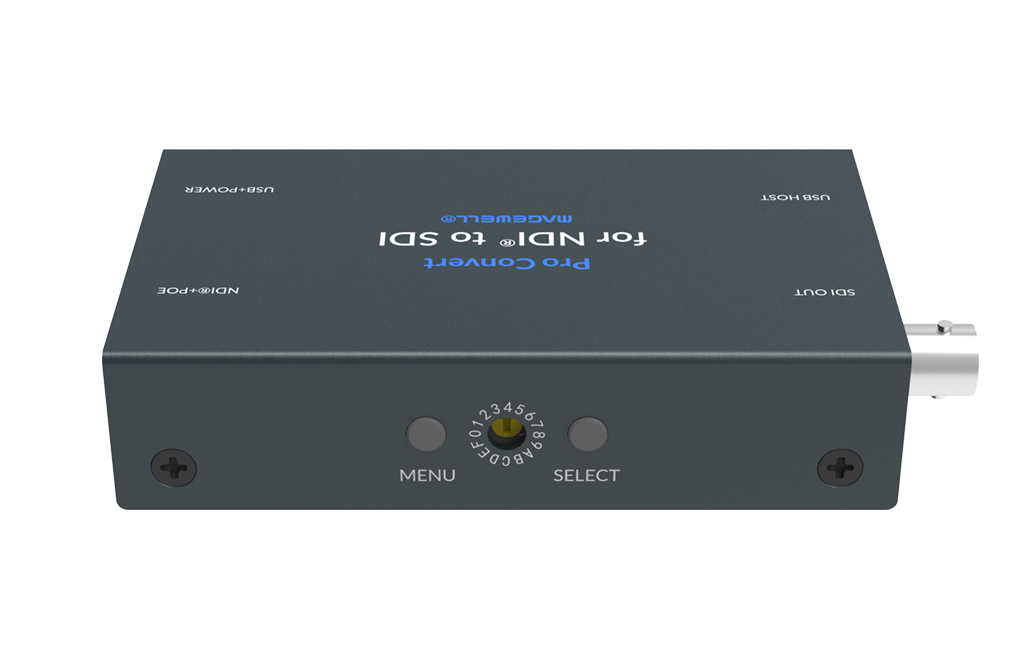

On-board Control Buttons	MENU: press to display the menu, or cycle through the options SELECT: press to display the menu, enter current option, or confirm the selection 16 Position Rotary DIP Switch: set board-index from 0 to F

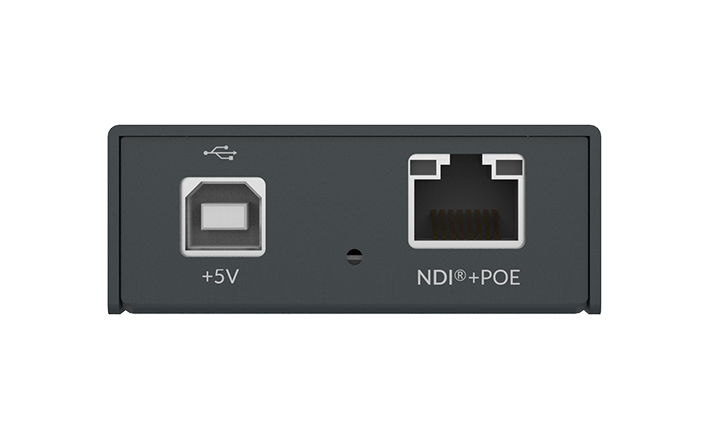

Network Interfaces	10/100/1000Mbps Ethernet IEEE 802.3af PoE

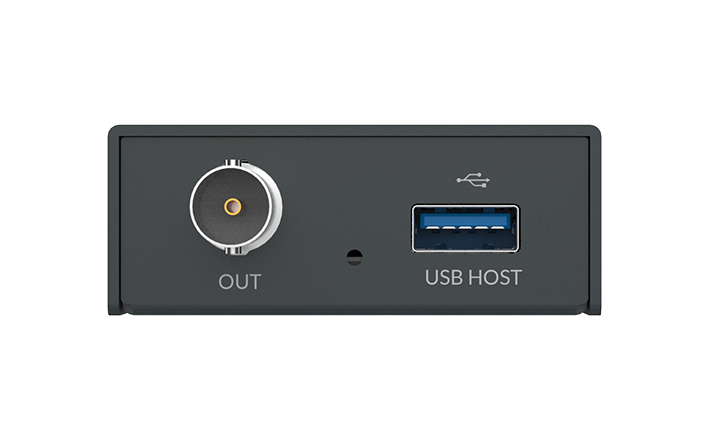

USB Interfaces	USB2.0 Type B 5V/2.1A power supply USB RNDIS/ECM USB3.0 Type A Connecting peripherals (keyboard and/or mouse) to set up device
LED Indicators	Power LED status indicator On: power connected Off: power unconnected Decode LED status indicator On: decoding Blinks: decoding error Off: source unselected
Form Factor	100.9mm (L) x 60.2mm (W) x 23.3mm (H)
Accessories	USB 2.0 A to B cable 5V/2.1A power adaptor L-bracket
Screw Mounting Hole	¼–20 threaded hole
Power Consumption	5V max current: ~ 1.05 A Max power consumption: ~ 5.5 W
Working Environment	Operating temperature: 0 to 40 deg C Storage temperature: –20 to 70 deg C Relative Humidity: 5% to 90% non-condensing

Accessory

Included

Power Adapter (US/EU/UK/AU/JP)x1
Part number: ACC08010

Power Adapter (KR) x1
Part number: ACC08015

USB Type A to Type B cable x1
Part number: ACC00065

L bracket x1
Part number: 92240

Two types of power adapters are provided as options to meet your need. Please choose the right part number when placing the order to our dealers. We recommend you always use the included accessories to avoid unnecessary damage to your device. Please note, the appearance of the power adapter may vary due to suppliers or batches. The images here are for reference only.
