Home / Brands / Magewell / Convert / NDI® Decoder / Magewell Pro Convert IP to USB

Pro Convert IP to HDMI

Pro Convert IP to USB is a plug-and-play device designed for conference rooms and production studios. It allows users to bring an NDI® feed or other IP stream into software over a USB interface.

Ensured High-Quality AV Performance

By offloading the decoding process to the device itself, Pro Convert IP to USB significantly reduces the burden on the host system's CPU or GPU, making high-quality IP video up to 1920x1080 at 60fps easily accessible in users’ software without affecting the overall system performance.

Versatile Remote Control

Pro Convert IP to USB can be used with Magewell’s optional Control Hub software, allowing systems integrators and IT administrators to achieve streamlined, centralized management. Additionally, Magewell offers comprehensive API support, enabling enhanced customization and integration capabilities.

Pro Convert IP to HDMI

Capture an NDI®, NDI® HX or streaming source into software via USB Type-C
  • Captures one network video source into software at resolutions up to 1080p60
  • Supports NDI® High Bandwidth, NDI® HX2, NDI® HX3 sources or H.264/H.265 streams
  • Supports DHCP for automatic network configuration

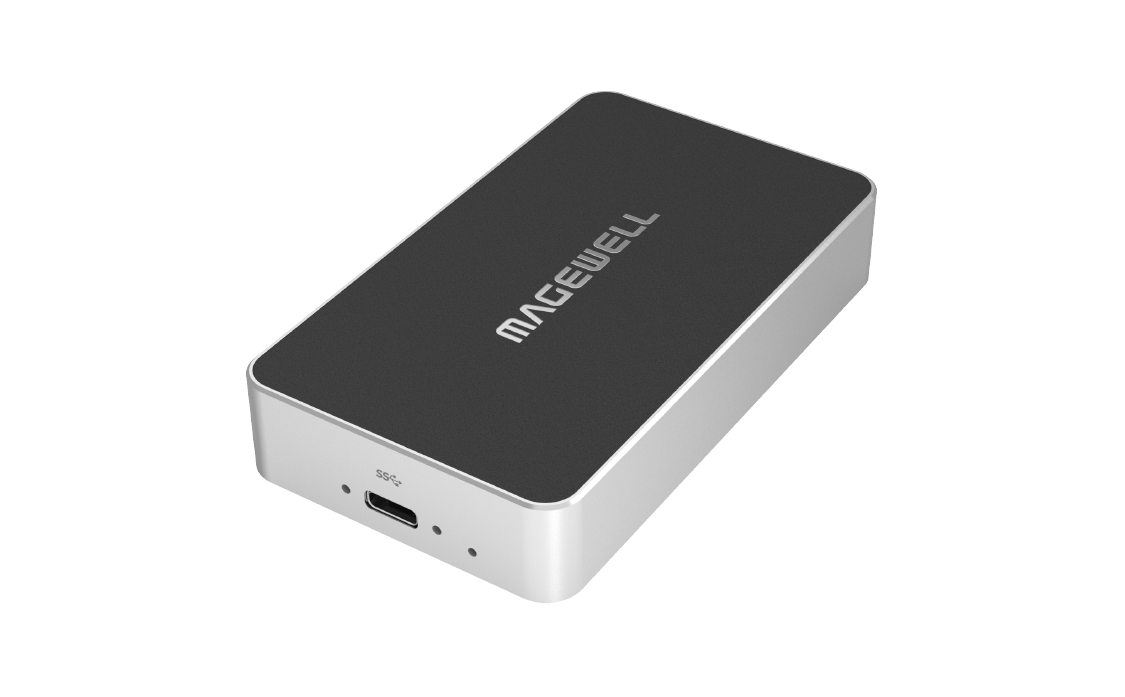

Pro Convert IP to USB

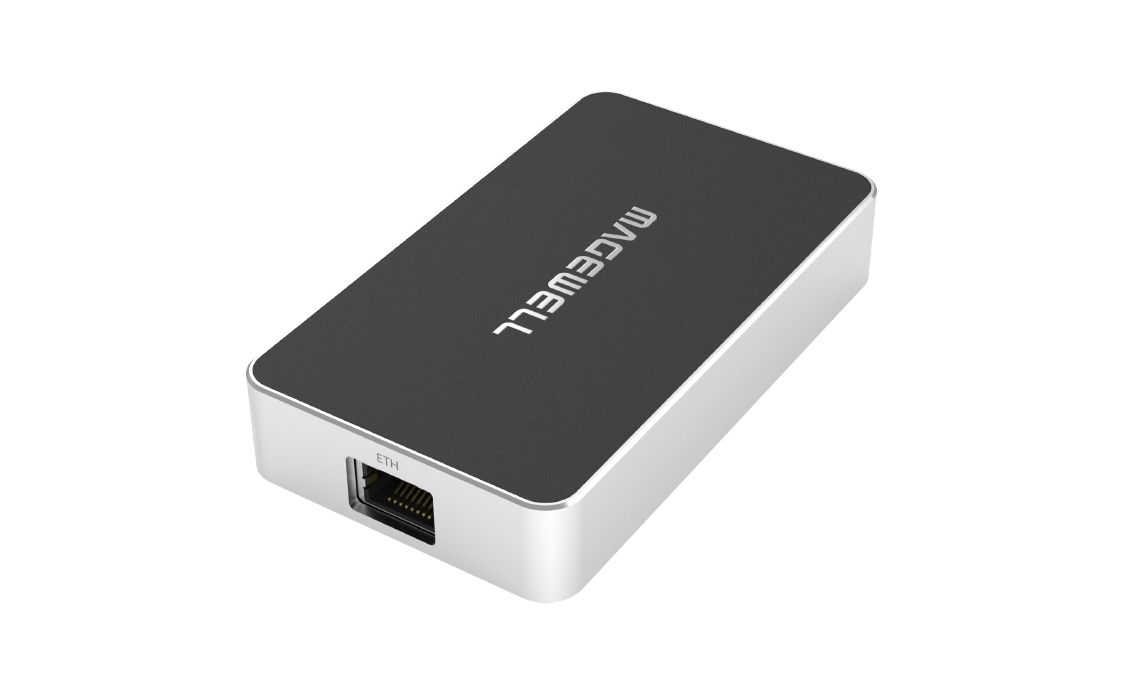

imgi_42_2

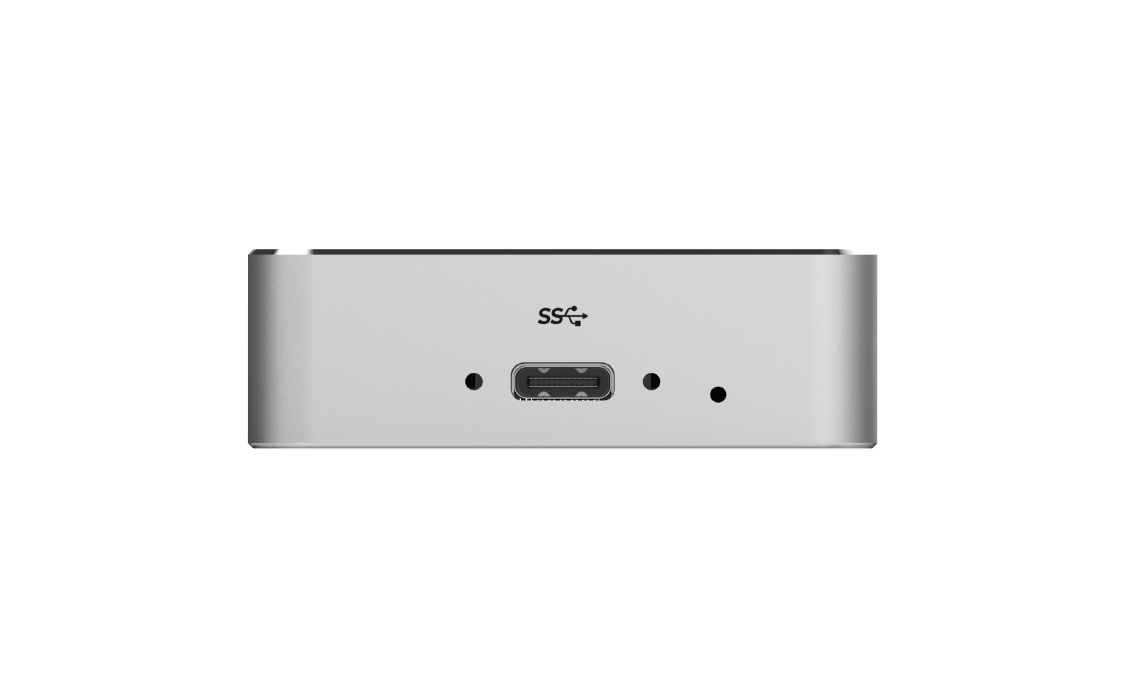

imgi_45_3

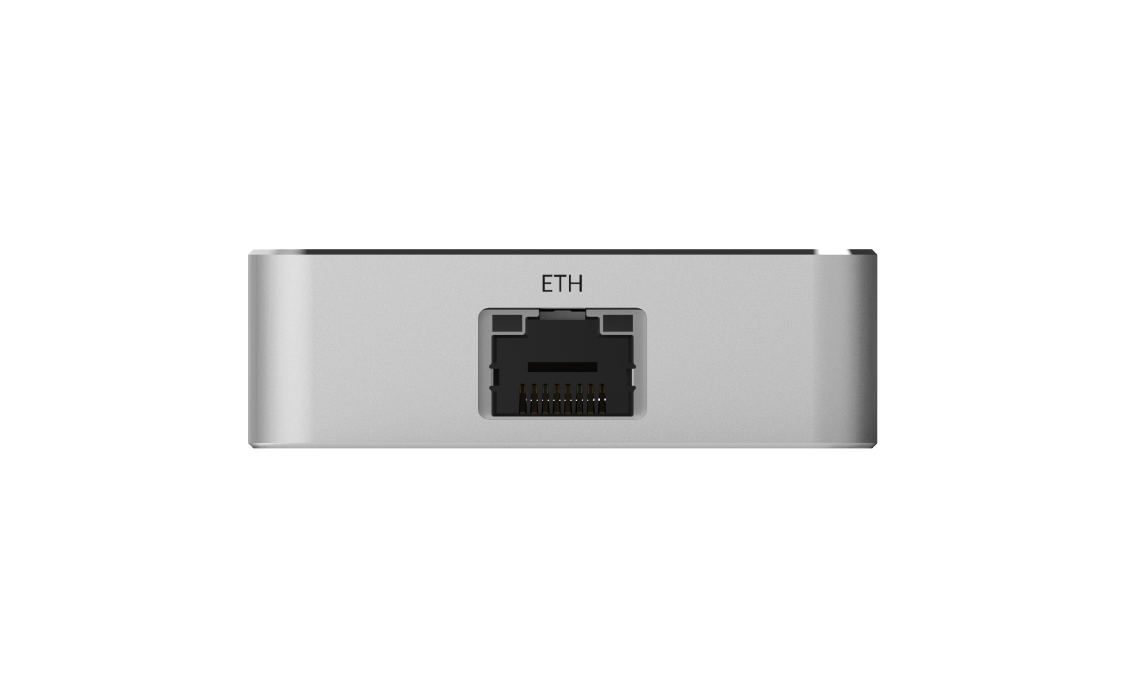

imgi_41_4

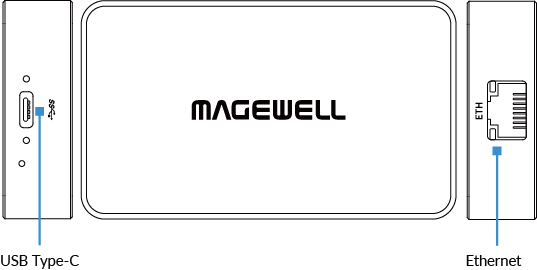

Interface

specifications

Features

Host Interface

  • USB 3.0 (5 Gbps) Type-C

Network Connections

  • Ethernet: 1x RJ45 port, 10/100/1000 Mbps Base-T

OS

  • Windows, Linux, Mac

Output Features

  • Max output UVC: 1080p60 YUY2/NV12 or 1080p30 MJPEG
  • UAC: 2-channel, 16 bit, 48KHz
Actual capture format will vary based on the host system USB interface, operating system and capture software.

Decoding Features

  • Decode one stream of NDI® High Bandwidth, NDI® HX2, NDI® HX3, RTMP, RTSP, RTP, UDP, SRT, HTTP at up to 1080p60
  • Decode H.264/H.265
  • Support NDI® 6

Others

  • Auto detection of input signal format
  • Web GUI for parameters setting, firmware upgrade and info export for troubleshooting
  • Register with Control Hub
  • Provide HTTP APIs
  • Support USB NET
  • LED status indicator
  • Form factor: 3.8622 in (L) × 2.2354 in (W) × 0.7087 in (H) (98.1 mm × 56.78 mm × 18 mm)
Output Features
  • Max output UVC: 1080p60 YUY2/NV12. Supported output formats include (Actual capture format will vary based on the host system USB interface, operating system and capture software.):
    • 1920x1080p
    • 1368x768p
    • 1280x1024p
    • 1280x720p
    • 720x640p
    • 720x480p
    • 640x480p 60/59.94/50/48/40/30/29.97/25/24/20/15
  • Max output UVC: 1080p30 MJPEG. Supported output formats include (Actual capture format will vary based on the host system USB interface, operating system and capture software.):
    • 1920x1080p
    • 1368x768p
    • 1280x1024p
    • 1280x720p
    • 720x640p
    • 720x480p
    • 640x480p 30/29.97/25/24/20/15
  • UAC: 2-channel, 16-bit, 48KHz
Decoding Capabilities
  • Decoding 1 stream of NDI High Bandwidth/NDI HX2/NDI HX3/RTMP/RTSP/RTP/UDP/SRT/HTTP at up to 1080p60
  • Decoding SpeedHQ/H.264/H.265
  • Supports NDI 6.2
Configuration Management
  • Register with Control Hub
  • Remote control via WebUI and Control Hub
  • Web UI enables users to easily check and set the process-and-capture parameters, upgrade firmware and export info for troubleshooting
  • Provide HTTP APIs
  • Support USB NET
Host Interface
  • USB 3.0 (5 Gbps) Type-C
    • 5V/1A power supply
    • USB NCM
Network Connections Ethernet: 1x RJ45 port, 10/100/1000 Mbps Base-T
Recommended OS
  • Windows 10/11/Server 2016/Server 2019/Server 2022 (x86 & x64) and above
  • Linux x86, x64 & ARM architecture, with 2.6.35 and above
  • Mac OS X 10.9 and above
  • macOS 10.12 and above
Supported Software
  • Zoom Rooms
  • Microsoft Teams
  • VLC
  • OBS Studio
  • XSplit
  • QuickTime Player
  • vMix
  • Any other software that can detect USB webcam
LED Indicators
  • Status LED indicates:
    • Power supply: on/off
Form Factor 3.8622 in (L) × 2.2354 in (W) × 0.7087 in (H) (98.1 mm × 56.78 mm × 18 mm)
Power Consumption
  • 5V maximum current: ~1.324A
  • 12V maximum current: ~0.555A
  • Max power consumption: ~6.62W
Working Temperature
  • Operating temperature: 0 to 50 deg C
  • Storage temperature: –20 to 70 deg C
  • Relative humidity: 5% to 90% non-condensing

Accessory

Included

Pro Convert IP to USB x1
Part number: 62300
USB Type-C to USB Type-A cable (80 cm) x1
Part number: ELE00113
USB Type-C to USB Type-C cable (80 cm) x1
Part number: ELE00114
