Pro Convert for NDI® to HDMI Module

Converts a live NDI® stream into HD HDMI signal

A hot-swappable module to be installed in Magewell Modator chassis
Decodes high-bandwidth NDI and NDI HX including earlier variants into HD HDMI
Centrally manageable via the Modator chassis and Magewell Control Hub

For standalone version with same specification.

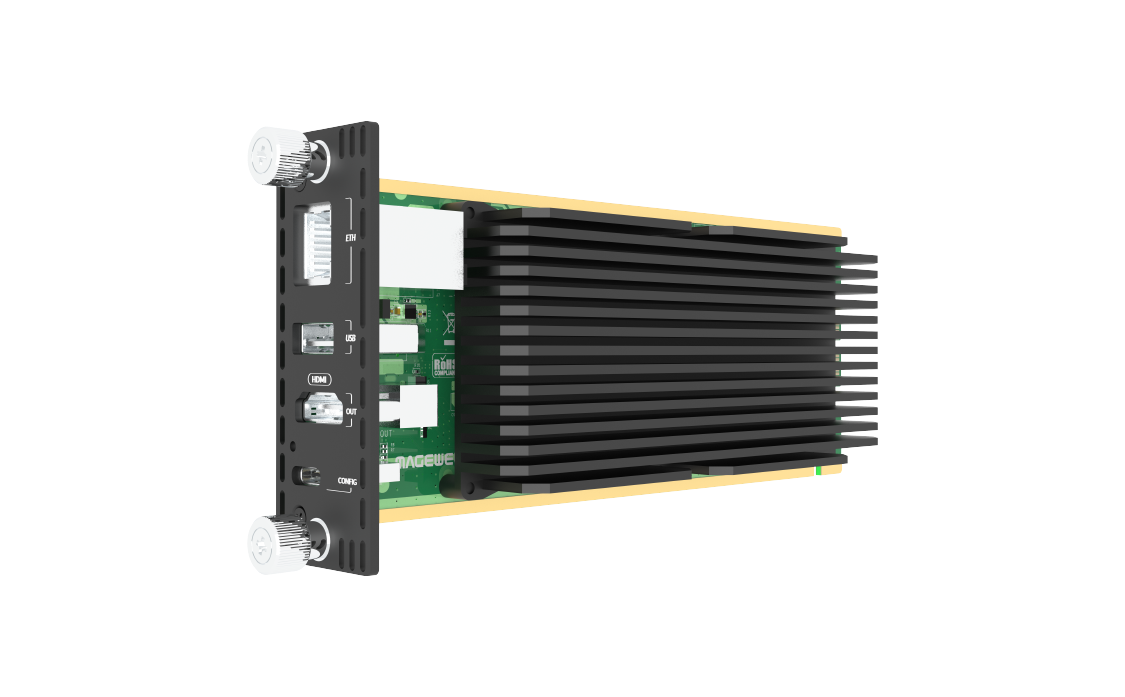

imgi_22_1

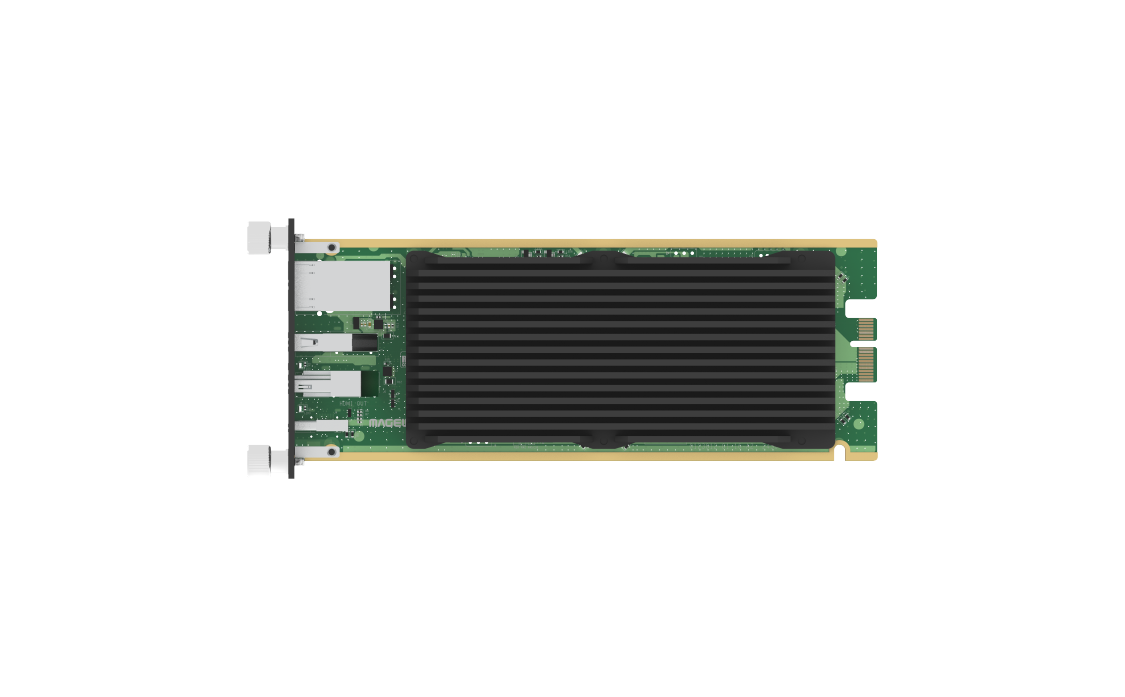

imgi_39_2

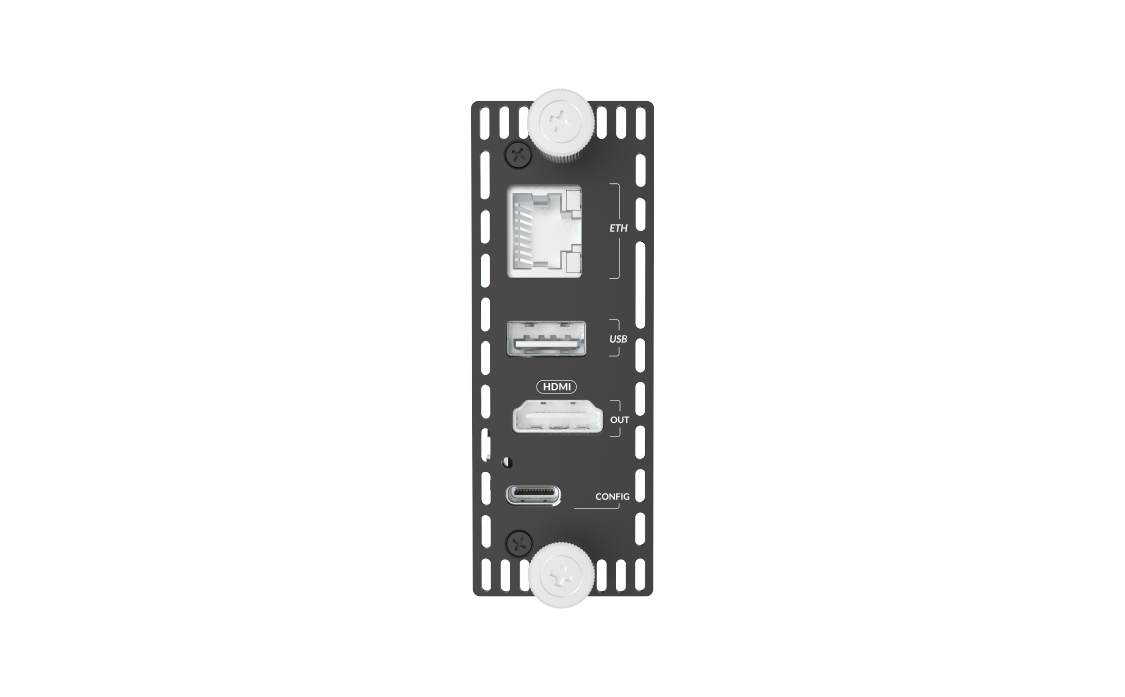

imgi_43_3

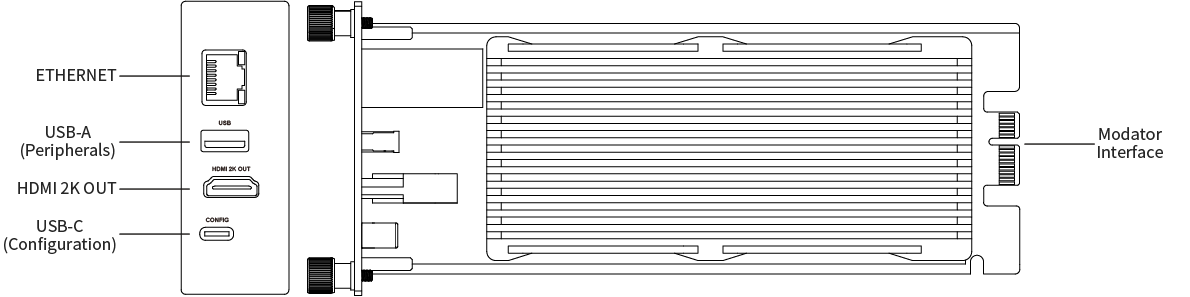

Interface

Specifications and Features

Features

Output Features

Support for up to 4096x2160 60fps HDMI output (integrated up-conversion from HD sources)
Supports 48KHz 8-channel audio output

Decoding Features

Support for decoding up to 2Kp60 NDI streams
Support for decoding high-bandwidth NDI and NDI HX
Discover NDI devices across network segments
Compatible with H.264/H.265 streams in additional protocols including RTSP, HTTP, HLS, RTMP Pull/Push, MPEG-TS over UDP/SRT/RTP and TVU
Supports NDI 5.x

Others

Very low latency
Configure through the touch screen of Magewell Modator chassis, Web GUI or Control Hub
HTTP-based APIs for custom integration
Image flip for inverted projector installations and safe area controls
Automatic output optimization for target display with integrated up/down conversion
2-year warranty

Details

Interfaces	1* RJ45 1000Mbps Ethernet port 1* USB Type-C port for configuration 1* USB Type-A 3.0 port for connecting peripherals 1* HDMI 2.0 output port 1* Modator interface for connecting to Modator 2U (hot-swappable)
Decoding Features	Decode up to 2Kp60 streams of Full NDI®, NDI® \|HX, NDI® \|HX2, NDI® \|HX3, RTSP, HTTP, HLS, RTMP Pull/Push, MPEG-TS over UDP/ SRT/ RTP, TVU protocols Decode H.264/H.265 video Decode AAC/MP3 audio Supports NDI® 5.x
Output Features	Max. output: 4096x2160 60fps 4:4:4 8-bit Deliver video at the preferred video format according to the EDID of the connected monitor. Supported output formats include: 4096 x 2160p/ 384 0 x2160p 23.98/ 24/ 25/ 29.97/ 30/ 50/ 59.94/ 60 2560x1440p 60/100 2560 x 1080p 23.98/ 24/ 25/ 29.97/ 30/ 50/ 59.94/ 60 1920 x 1080p 23.98/ 24/ 25/ 29.97/ 30/ 50/ 59.94/ 60/ 100/ 119.88/ 120 1920 x 1080i 50/ 59.94/ 60 1280 x 720p 23.98/ 24/ 25/ 29.97/ 30/ 50/ 59.94/ 60 720 x 576p50 720 x 576i50 720 x 480p59.94/ 60 720 x 480i59.94/60 Supports RGB, YUV444, and YUV422 signals Supports 48KHz 8-channel audio output
SDI Output Features	Max. output: 1920 x 1080p60. Supported output formats are: 1920 x 1080p 23.98/ 24/ 25/ 29.97/ 30/ 50/ 59.94/ 60 1920 x 1080i 50/ 59.94/ 60 1280 x 720p 24/ 25/ 29.97/ 30/ 50/ 59.94/ 60 720 x 576p50 720 x 576i50 720 x 480i59.94 Supports YUV BT.601/709 signals Supports 48KHz 8-channel audio output Supports SD (ST 259)/ HD (ST 292)/ 3Ga (ST 425)/ 3Gb (ST 425)/ 3Gb-DL (ST 425)/ 3Gb-DS (ST 425) standards Output 3G-SDI signal with a transmitted distance greater than 150m
Web UI	Register with Magewell Control Hub for remote centralized management Supports configuring and managing via Web UI Provides comprehensive information regarding the device and decoded signals in real-time Allow to configure how a signal is decoded and output, including OSD settings, deinterlacing, resolutions, audio gain, sample rate, and channel mapping, as well as the network connection Supports updating firmware Supports USB RNDIS/ ECM Supports IE/ Edge/ Firefox/ Chrome/ Safari/ Opera web browsers Provides HTTP APIs
LED Indicators	Decode status indicator On: decoding Blinks: decoding error Off: source unselected
Physical Specifications	Form factor: 184.4mm (L) x 30.0mm (W) x 81.5mm (H) Weight: ≈ 290g
Power Consumption	Max power consumption: 4.3W
Working Environment	Operating temperature: –10 to 45 deg C Storage temperature: –20 to 70 deg C Relative humidity: 5% to 90% non-condensing
