Decoding Features
|
-
Supports multiple output modes for decoding of different protocol signals.
-
Single Screen
-
Decoding Channels: 1
-
Supported Protocols: NDI High Bandwidth, NDI HX, NDI HX2, NDI HX3, MPEG-TS over RTP/UDP/SRT, RTMP, RTSP, HTTP, HLS and ZIXI
-
Formats: H.264, H.265, SpeedHQ, MPEG2
-
Resolution: Up to 2560x1440p60
-
Picture-in-Picture
-
Decoding Channels: 2
-
Supported Protocols: NDI High Bandwidth*, NDI HX, NDI HX2, NDI HX3, MPEG-TS over RTP/UDP/SRT, RTMP, RTSP, HTTP, HLS and ZIXI
-
Formats: H.264, H.265, SpeedHQ, MPEG2*
-
Resolution: Up to 1920x1080p60
*Note: Only one channel of either NDI High Bandwidth or MPEG2 format video is supported for decoding.
-
Quad Screen
-
Decoding Channels: 4
-
Supported Protocols: NDI HX, NDI HX2, NDI HX3, MPEG-TS over RTP/UDP/SRT, RTMP, RTSP, HTTP, HLS and ZIXI
-
Formats: H.264, H.265
-
Resolution: Up to 1920x1080p60
-
Supports decoding of audio formats including AAC, MP3, AC3, Opus and G.711.
-
Supports NDI 6.2.
|
|
Output Features
|
-
Max output: 2560x1440 60fps 4:4:4 10-bit
-
Delivering video at the preferred video format according to the capabilities of the connected monitor. Supported output formats include:
-
2560x1440p60
-
2560x1080p 23.98/24/25/29.97/30/50/59.94/60
-
1920x1080p 23.98/24/25/29.97/30/50/59.94/60
-
1920x1080i 50/59.94/60
-
1280x720p 23.98/24/25/29.97/30/50/59.94/60
-
720x576p50
-
720x576i50
-
720x480p59.94/60
-
720x480i59.94/60
-
Support color space: BT.601/BT.709/BT.2020
-
Support HDR10
-
Support 48/96KHz 8-channel audio output
-
HDMI interface: HDMI 2.0
|
|
Configuration Management
|
-
Support registration with Control Hub for remote centralized management
-
Provide WebUI tools
-
Provide comprehensive information regarding the device and decoded signals in real-time
-
Support preview of output images and PTZ control
-
Configure audio and video signal decoding and output parameters, including OSD, deinterlacing, video format, audio gain, sample rate, Ping test, security settings, configuration files import and export, and network connections
-
Support firmware upgrade
-
Support USB NET
-
Support Edge/Firefox/Chrome/Safari/Opera web browsers
-
Support HTTP APIs
|
|
On-board Control Buttons
|
-
Rotary encoder button:
-
Rotate: toggle options
-
Press: bring up menu, enter current option, or confirm the selection
|
|
Network Interfaces
|
-
10/100/1000Mbps Ethernet
-
Support IEEE 802.3af PoE and 802.3at PoE+
|
|

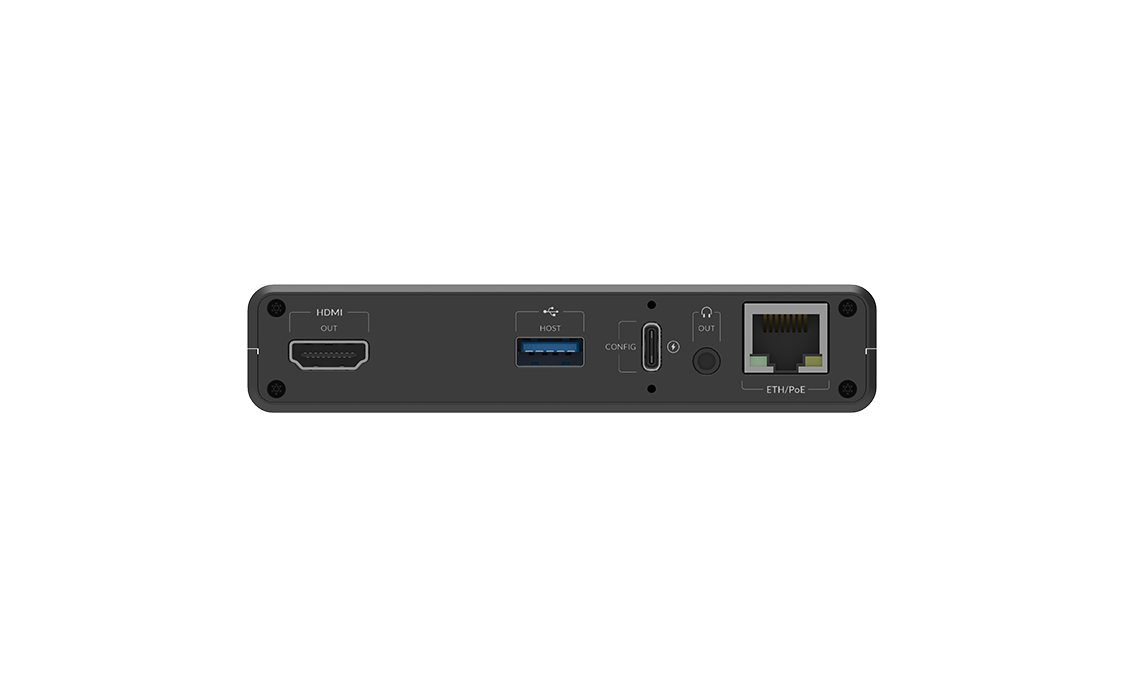

USB Interfaces
|
-
USB3.0 Type C
-
5V/12V 10W power supply
-
USB NET
-
USB3.0 Type A
-
Connecting peripherals (keyboard and/or mouse) to customize device settings
|
|

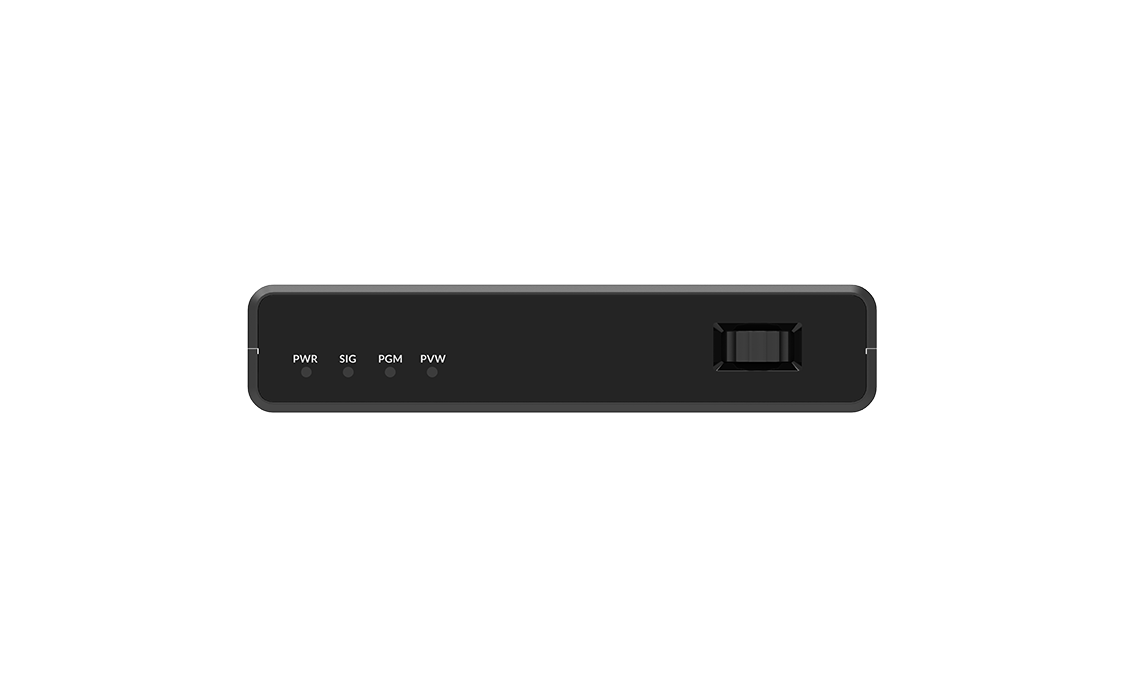

LED Indicators
|
-
Power Indicator (PWR)
-
On: Power connected
-
Off: Power disconnected
-
Decoding status Indicator (SIG)
-
Blue: All selected sources in single/multi-channel decoding are working normally
-
Red: All selected sources in single/multi-channel decoding are abnormal
-
Green: Both normal and abnormal decoding exist simultaneously in multi-channel decoding
-
Off: No sources selected in single/multi-channel decoding
-
Tally lights
-
Program Tally (PGM): The connected NDI source is live when illuminating red
-
Preview Tally (PVW): The connected NDI source is in preview when illuminating green
|
|
Form Factor
|
4.72“ (L) x 3.12” (W) x 0.96" (H) (as is 120 mm (L) x 79.3 mm (W) x 24.5 mm (H))
|
|
Screw Mounting Holes
|
¼–20 threaded hole
|
|
Power Consumption
|
-
5V maximum current: ~1.324A
-
12V maximum current: ~0.555A
-
Max power consumption: ~6.62W
|
|
Working Temperature
|
-
Operating temperature: 0 to 40 deg C
-
Storage temperature: –20 to 70 deg C
-
Relative humidity: 5% to 90% non-condensing
|
