Decoding Features
|
-
Supports multiple output modes for decoding of different protocol signals.
-
Single Screen
-
Decoding Channels: 1
-
Supported protocols: NDI High Bandwidth, NDI HX, NDI HX2, NDI HX3, MPEG-TS over RTP/UDP/SRT/RIST, RTMP, RTSP, HLS, HTTP, and ZIXI
-
Formats: H.264, H.265, SpeedHQ, MPEG2
-
Resolution: Up to 4096x2160p60
-
Picture-in-Picture
-
Decoding Channels: 2
-
Supported protocols: NDI High Bandwidth*, NDI HX, NDI HX2, NDI HX3, MPEG-TS over RTP/UDP/SRT/RIST, RTMP, RTSP, HLS, HTTP, and ZIXI
-
Formats: H.264, H.265, SpeedHQ, MPEG2*
-
Resolution: Up to 1920x1080p60
*Note: Only one channel of either NDI High Bandwidth or MPEG2 format video is supported for decoding.
-
Quad Screen
-
Decoding Channels: 4
-
Supported protocols: NDI HX, NDI HX2, NDI HX3, MPEG-TS over RTP/UDP/SRT/RIST, RTMP, RTSP, HLS, HTTP, and ZIXI
-
Formats: H.264, H.265
-
Resolution: Up to 1920x1080p60
-
Supports decoding of audio formats including AAC, MP3, AC3, Opus and G.711.
-
Supports NDI 6.3
|
|
HDMI Output Features
|
-
Max output: 4096x2160 60fps 4:4:4 8-bit, or 4096x2160 60fps 4:2:2 12-bit (transport depth 12-bit, video depth 10-bit)
-
Supported output formats include:
-
4096×2160p 23.98/24/25/29.97/30/50/59.94/60 256:135
-
3840×2160p 23.98/24/25/29.97/30/50/59.94/60 16:9
-
1920×1080p 24/25/29.97/30/59.94/60 16:9
-
1920×1080i 50/59.94/60 16:9
-
1280×720p 23.98/24/25/29.97/30/50/59.94/60 16:9
-
720×576i 50 16:9/4:3
-
720×480i 59.94 16:9/4:3
-
Support color space: BT.601/BT.709/BT.2020
-
Support HDR PQ/HLG
-
Support 48/96KHz 8-channel audio output
-
HDMI interface: HDMI 2.0
|
|
SDI Output Features
|
-
Maximum output: 4096x2160 60fps 4:2:2 10-bit
-
Supported output formats:
-
4096×2160p 23.98/24/25/29.97/30/50/59.94/60 256:135
-
3840×2160p 23.98/24/25/29.97/30/50/59.94/60 16:9
-
1920×1080p 24/25/29.97/30/59.94/60 16:9
-
1920×1080i 50/59.94/60 16:9
-
1280×720p 23.98/24/25/29.97/30/50/59.94/60 16:9
-
720×576i 50 16:9/4:3
-
720×480i 59.94 16:9/4:3
-
Output YUV BT.601/709/2020 signals
-
Audio output: 48KHz 8-channel
-
SD/HD/3G/6G/12G-SDI output interface
-
Support SD (ST 259)/HD (ST 292)/3Ga (ST 425)/3Gb (ST 425)/3Gb-DL (ST 425)/3Gb-DS (ST 425)/6G (ST 2081)/12G (ST 2082) standards
-
Support Closed Caption compliant with CEA–608 or CEA–708 embedded CEA–608 standards
-
Output HDR (PQ / HLG) through ANC metadata
-
Output 12G-SDI signals up to 55m, 6G-SDI signals up to 75m, and 3G-SDI signals up to 130m
|
|
Configuration Management
|
-
Support registration with Control Hub and ZIXI ZEN Master for remote centralized management
-
Provide WebUI tools
-
Provide comprehensive information regarding the device and decoded signals in real-time
-
Support preview of output images and PTZ control
-
Configure audio and video signal decoding and output parameters, including OSD, deinterlacing, video format, audio gain, sample rate, Ping test, security settings, configuration files import and export, and network connections
-
Support firmware upgrade
-
Support USB NET
-
Support Edge/Firefox/Chrome/Safari/Opera web browsers
-
Support HTTP APIs
|
|

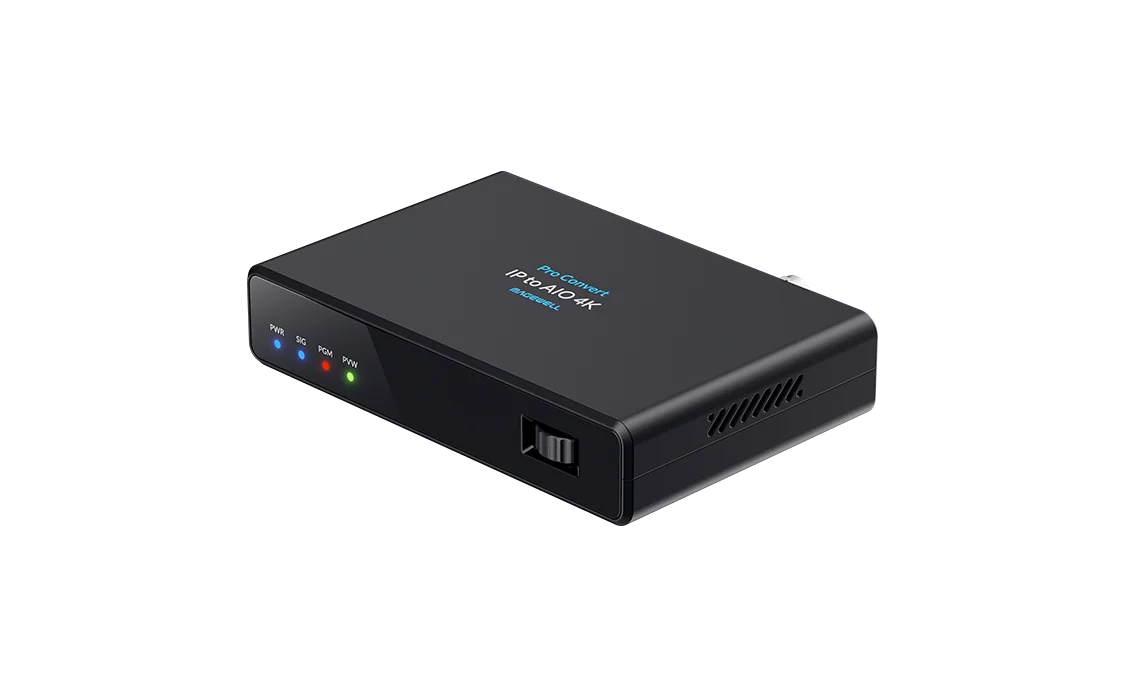

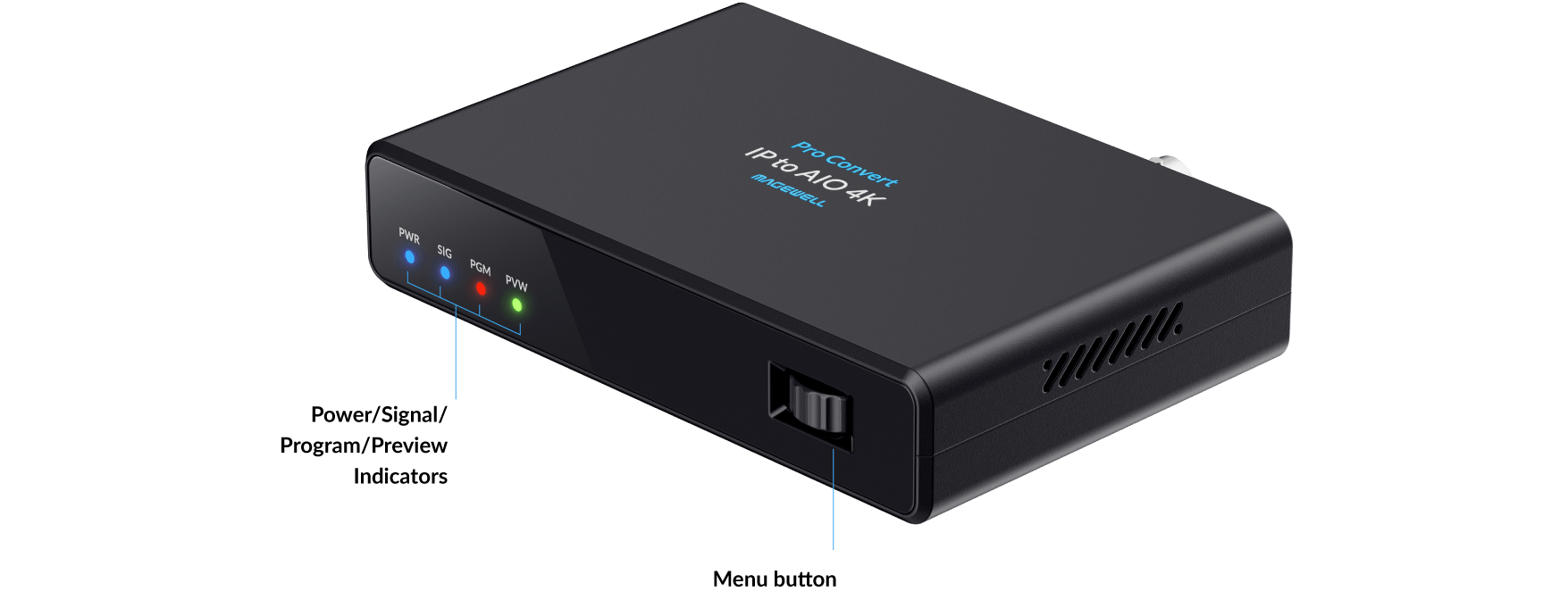

On-board Control Buttons
|
-
Rotary encoder button:
-
Rotate: toggle options
-
Press: bring up menu, enter current option, or confirm the selection
|
|

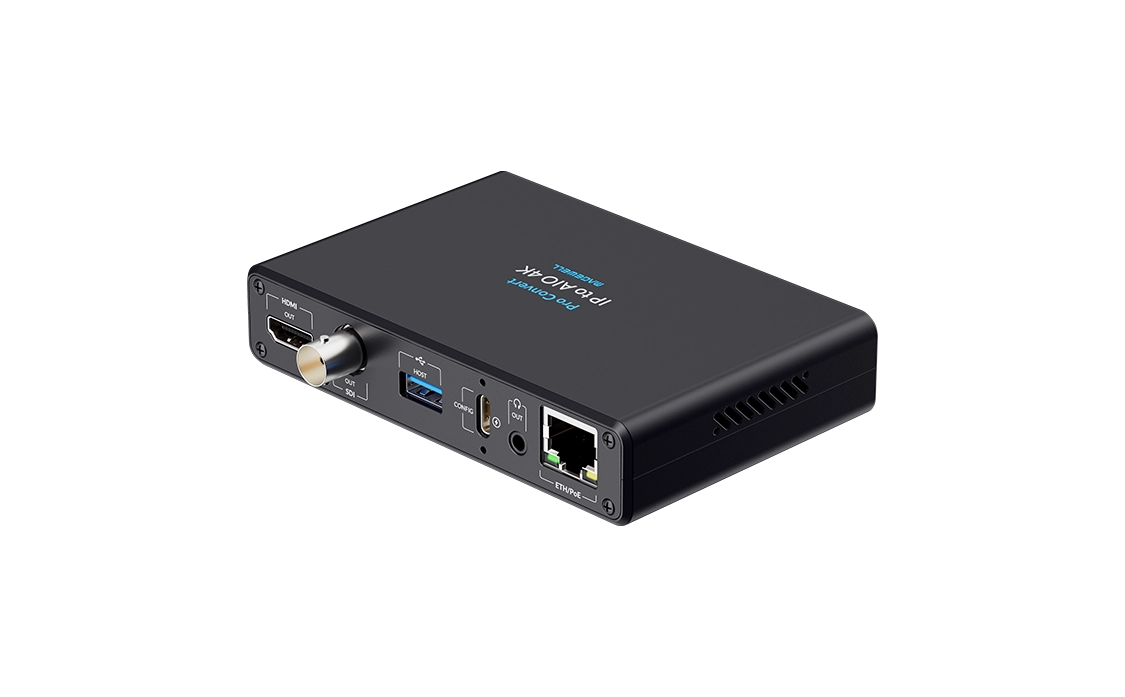

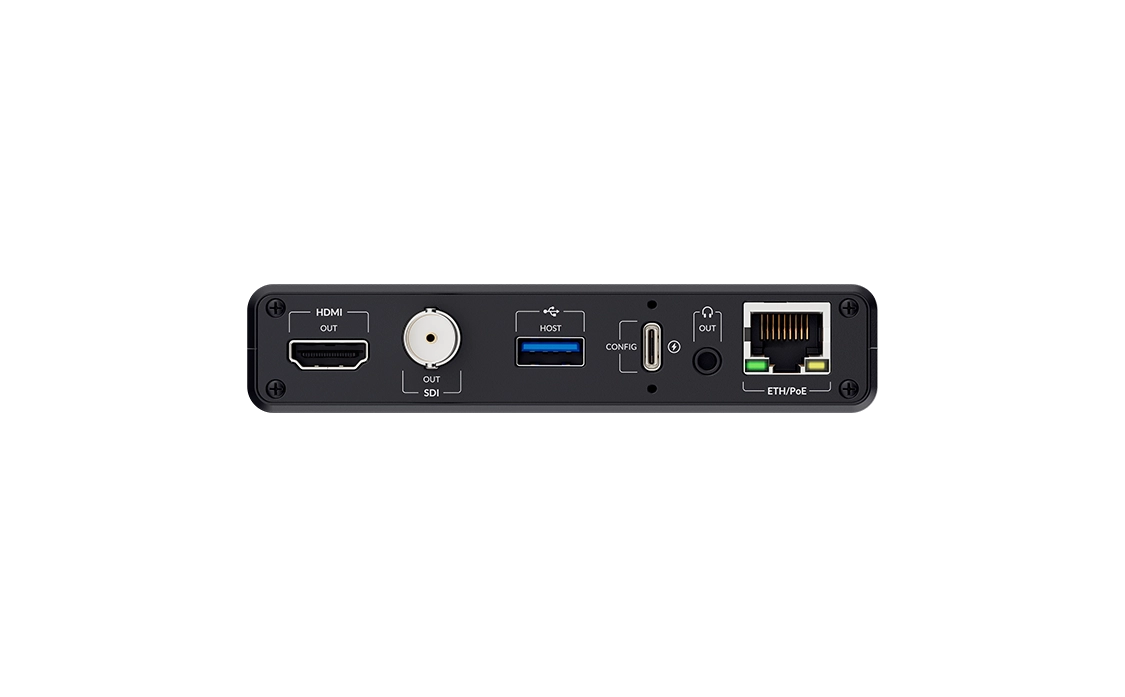

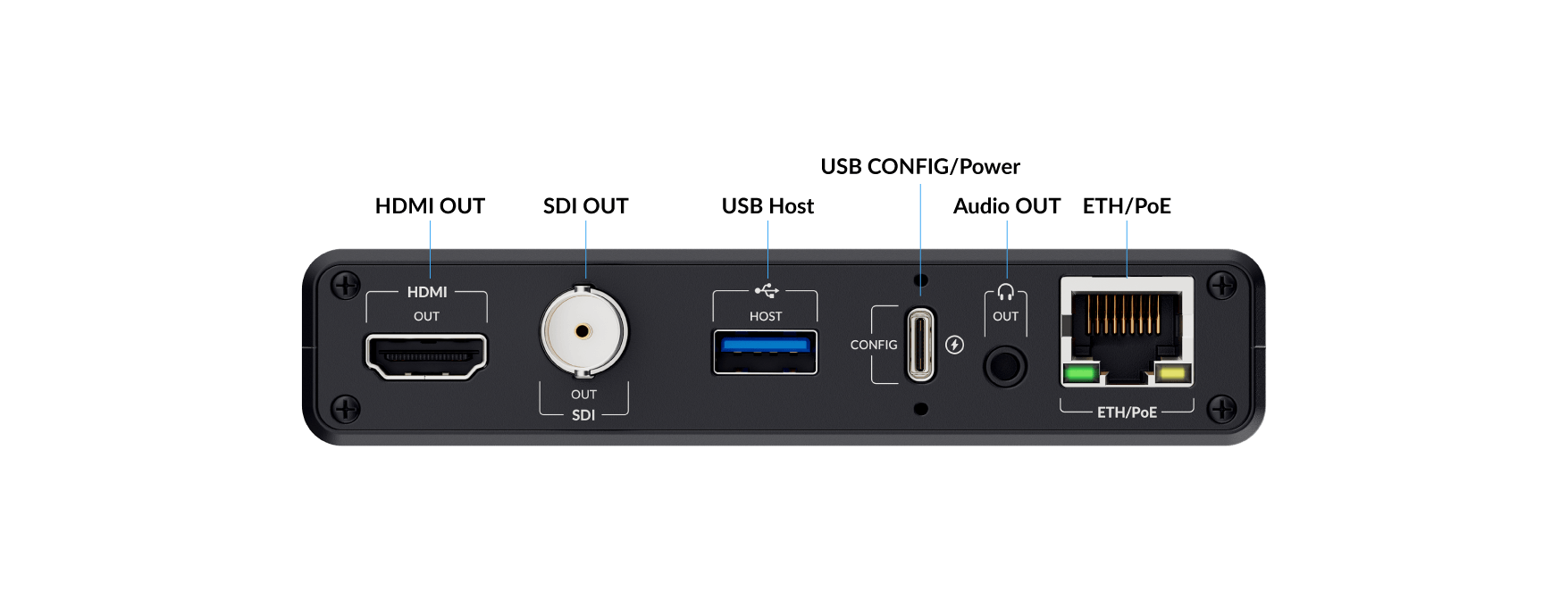

Network Interfaces
|
-
10/100/1000Mbps Ethernet
-
Support IEEE 802.3at PoE+
|
|
USB Interfaces
|
-
USB3.0 Type C
-
5V/12V 10W power supply
-
USB NET
-
USB3.0 Type A
-
Support connecting external keyboard and mouse for settings modification
|
|
Audio Interface
|
3.5mm LINE OUT
|
|

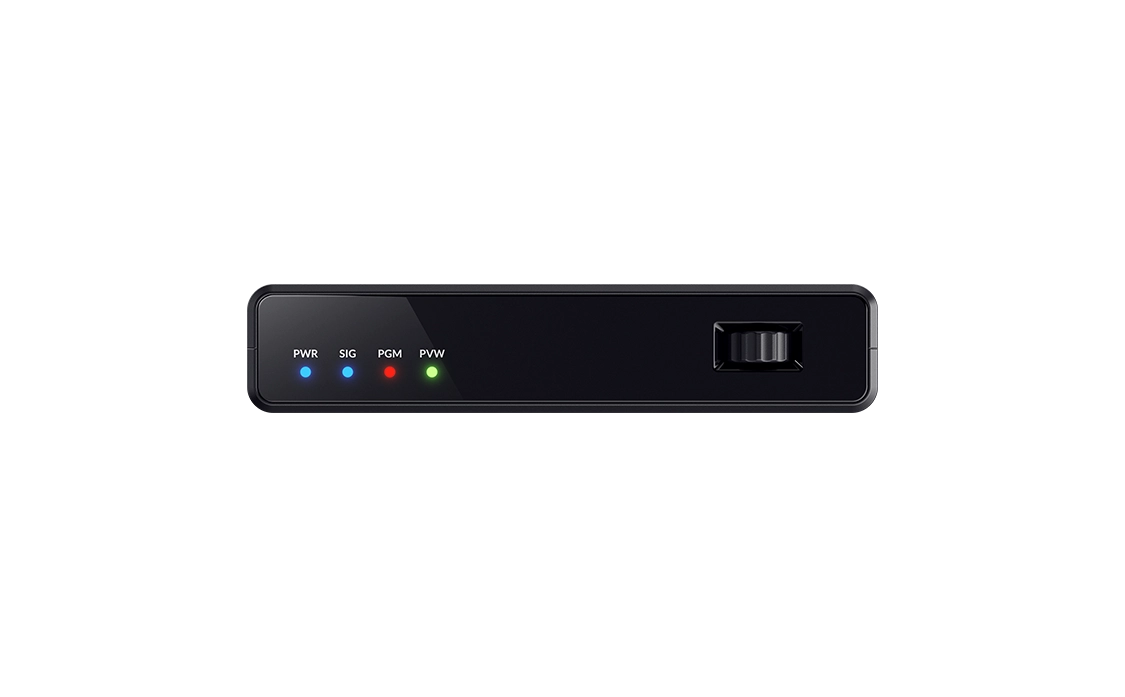

LED Indicators
|
-
Power Indicator (PWR)
-
On: Power connected
-
Off: Power disconnected
-
Decoding status Indicator (SIG)
-
Blue: All selected sources in single/multi-channel decoding are working normally
-
Red: All selected sources in single/multi-channel decoding are abnormal
-
Green: Both normal and abnormal decoding exist simultaneously in multi-channel decoding
-
Off: No sources selected in single/multi-channel decoding
-
Tally lights
-
Live (PGM): Red light indicates NDI signal source is live
-
Preview (PVW): Green light indicates NDI signal source is in preview
|
|
Form Factor
|
120 mm (L) x 79.3 mm (W) x 24.5 mm (H)
|
|
Screw Mounting Holes
|
Diameter: Φ6.5mm mounting holes
|
|
Power Consumption
|
-
Maximum current for 12V power supply: ~1.26 A
-
Maximum power consumption: ~15.1 W
|
|
Working Temperature
|
-
Operating temperature: 0 to 40 deg C
-
Storage temperature: –20 to 70 deg C
-
Relative humidity: 5% to 90% non-condensing
|
