Pro Convert for NDI® to AIO

Converts a live NDI® stream into HDMI and SDI
  • Connects baseband presentation or distribution equipment into IP-based media networks
  • Supports NDI technology including Full NDI and NDI|HX mode
  • Supports streaming protocols including SRT, RTSP, RTMP, UDP, RTP, HLS and HTTP

* Magewell offers accessories to mount this model on the 1RU rack. A module-type product of the same specification is also available for use with the Magewell Modator chassis for high-density deployment.

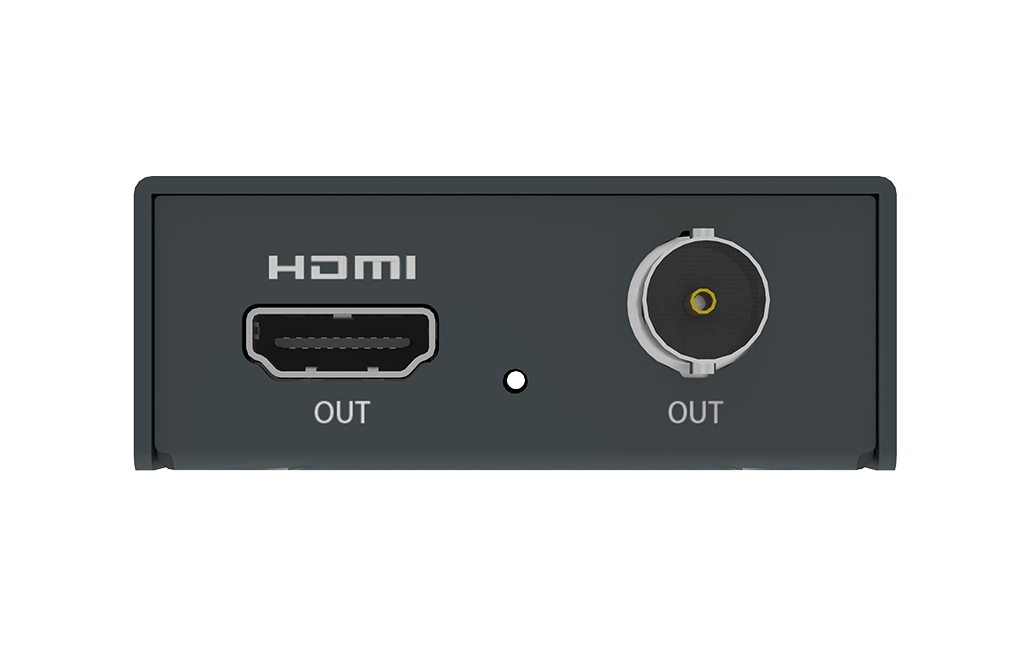

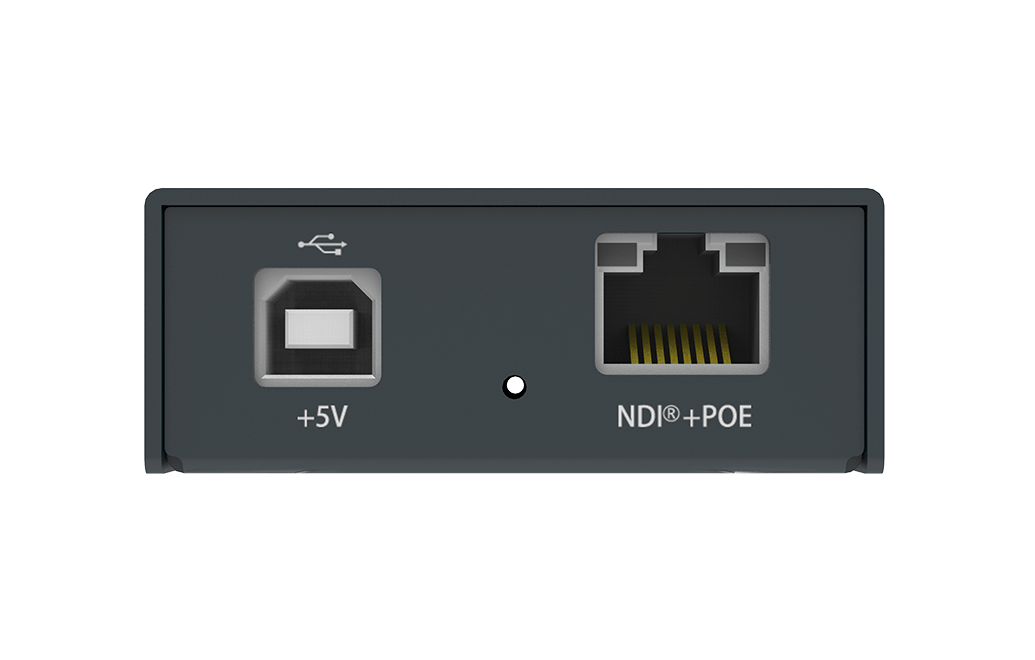

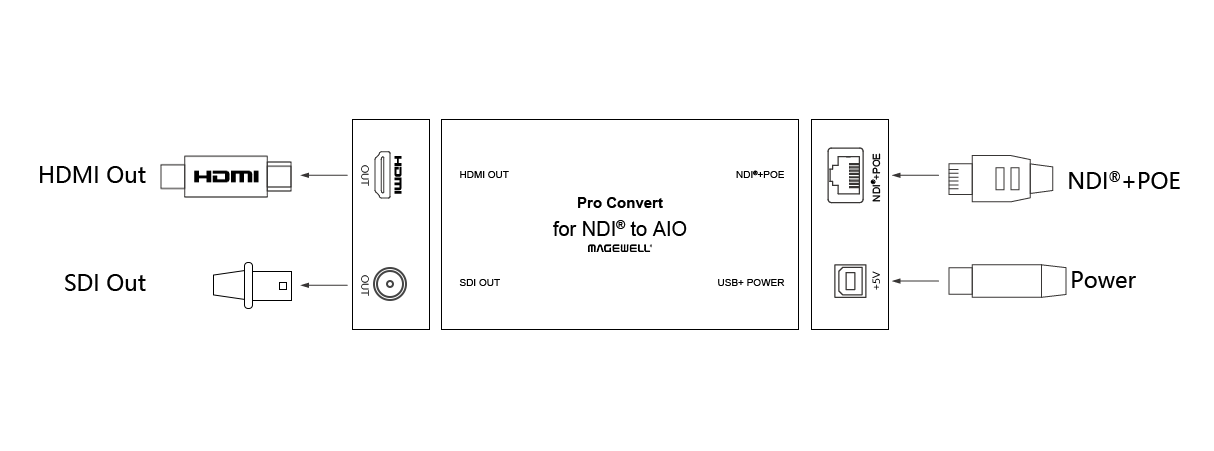

Interface

Specifications and Features

HDMI Output
  • Max output: 1920x1080p60
  • Delivery video within 2K at the preferred video format according to the EDID of the connected monitor
  • Support YUV BT.601, YUV BT.709 signal
  • Support 48KHz 8-channel audio output
  • HDMI interface: HDMI 1.4

SDI Output
  • Max output: 1920x1080p60. Supported output formats are:
    • 1920x1080p 23.98/24/25/29.97/30/50/59.94/60
    • 1920x1080i 50/59.94/60
    • 1280x720p 23.98/24/25/29.97/30/50/59.94/60
    • 720x576i50
    • 720x480i59.94
  • Support YUV BT.601/709 signal
  • Support 48KHz 8-channel audio output
  • SD/HD/3G-SDI BNC output
  • Support SD (ST 259)/HD (ST 292)/3Ga (ST 425)/3Gb (ST 425)/3Gb-DL (ST 425)/3Gb-DS (ST 425) SDI standards
  • Output 3G-SDI signal and transmitted distance at 130m (427ft)

Decoding Features
  • Decoding up to 2Kp60 streams of Full NDI, NDI®|HX, NDI®|HX2, NDI®|HX3, RTSP, HTTP, HLS, RTMP Pull/Push and MPEG-TS over UDP/SRT/RTP protocols
  • Simultaneously decode and output HDMI and SDI signals
  • H.264/H.265 video decoders
  • AAC/MP3 audio decoders
  • Support NDI 5.x

Configuration Management
  • Registration with Control Hub
  • Remote control via WebUI and Control Hub
  • Provide comprehensive information regarding the device and decoded signals in real-time
  • Allow to configure how a signal is decoded and output, including OSD settings, deinterlacing, resolutions, audio gain, sample rate, and channel mapping, as well as the network connection
  • Support for updating firmware
  • Support for USB RNDIS/ECM
  • Support for IE/Edge/Firefox/Chrome/Safari/Opera web browsers
  • Provision of HTTP APIs

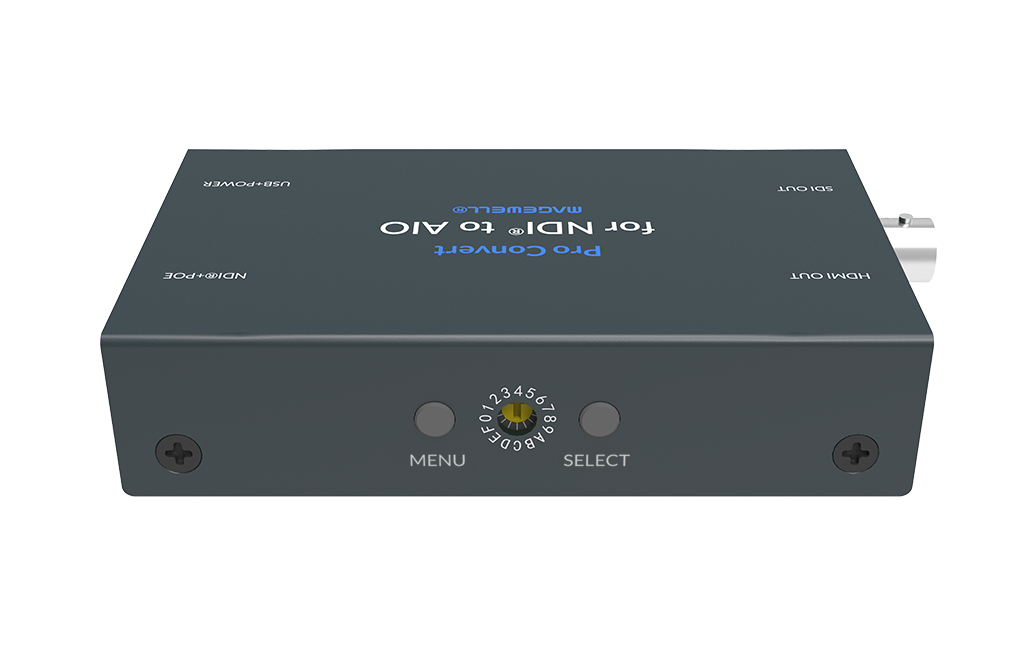

On-board Control Buttons
  • MENU: press to display the menu, or cycle through the options
  • SELECT: press to display the menu, enter current option, or confirm the selection
  • 16 Position Rotary DIP Switch: set board-index from 0 to F

Network Interfaces
  • 10/100/1000Mbps Ethernet
  • IEEE 802.3af PoE

USB Interfaces USB2.0 Type B
  • 5V/2.1A power supply
  • USB RNDIS/ECM

LED Indicators Power LED status indicator
  • On: power connected
  • Off: power unconnected
Decode LED status indicator
  • On: decoding
  • Blinks: decoding error
  • Off: source unselected

Form Factor 100.9mm (L) x 60.2mm (W) x 23.3mm (H)

Accessories
  • USB 2.0 A to B cable
  • 5V/2.1A power adaptor
  • L-bracket

Screw Mounting Hole ¼–20 threaded hole

Power Consumption
  • 5V max current: ~ 1.05 A
  • Max power consumption: ~ 5.5 W

Working Environment
  • Operating temperature: 0 to 40 deg C
  • Storage temperature: –20 to 70 deg C
  • Relative Humidity: 5% to 90% non-condensing

Accessory

Included

Power Adapter (US/EU/UK/AU/JP)x1
Part number: ACC08010
Power Adapter (KR) x1
Part number: ACC08015
USB Type A to Type B cable x1
Part number: ACC00065
L bracket x1
Part number: 92240

Two types of power adapters are provided as options to meet your need. Please choose the right part number when placing the order to our dealers. We recommend you always use the included accessories to avoid unnecessary damage to your device. Please note, the appearance of the power adapter may vary due to suppliers or batches. The images here are for reference only.
