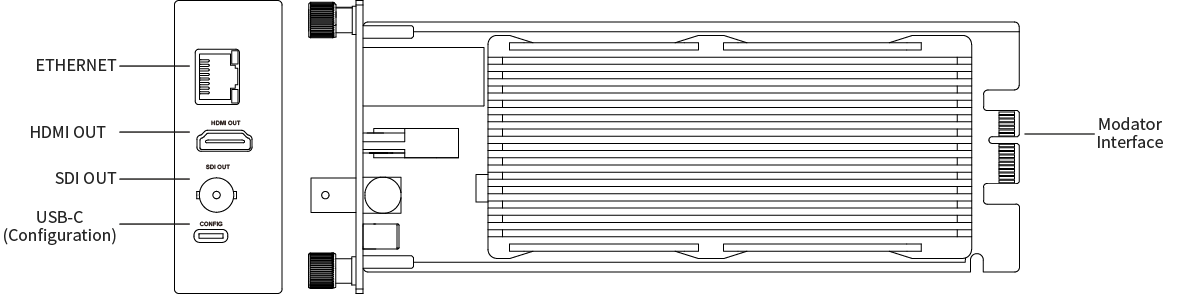

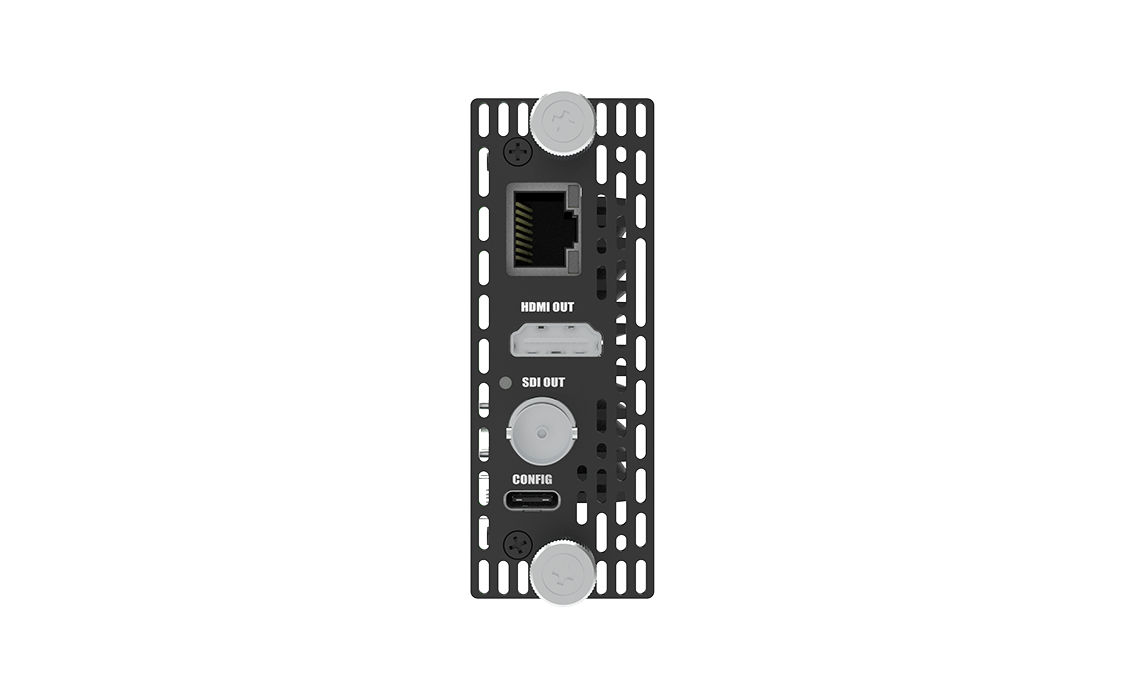

Interfaces
|
-
1* RJ45 1000Mbps Ethernet port
-
1* USB Type-C port for configuration
-
1* SDI output port
-
1* HDMI 1.4 output port
-

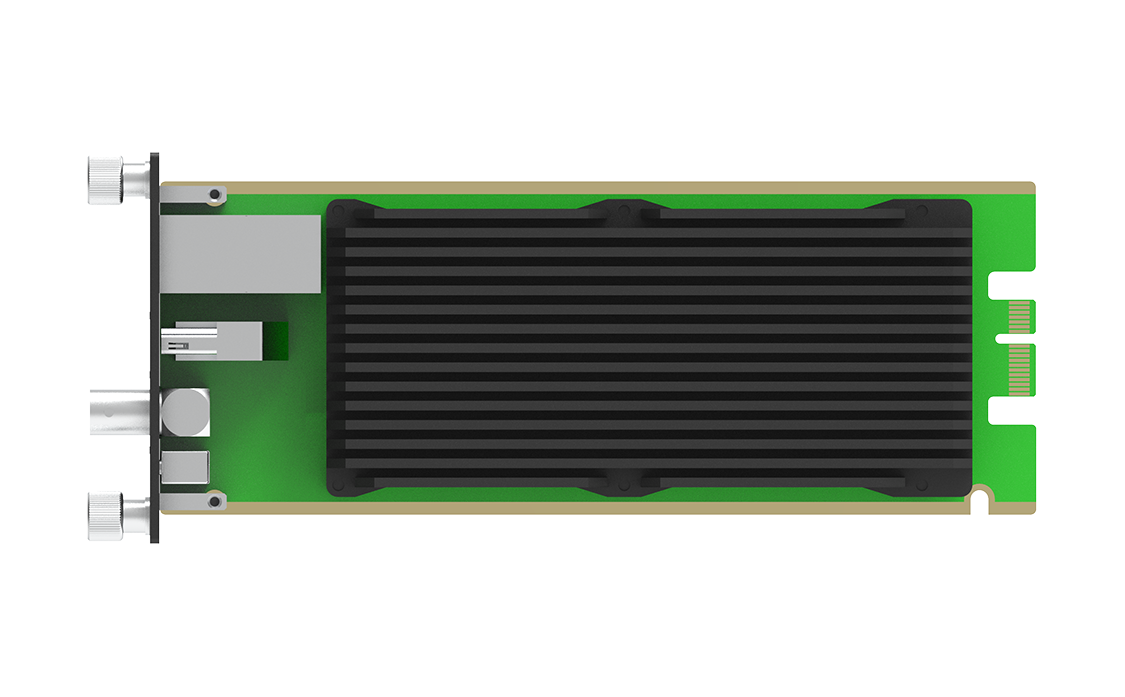

1* Modator interface for connecting to Modator 2U (hot-swappable)
|
|
Decoding Features
|
-
Decode up to 2Kp60 streams of Full NDI®, NDI®|HX, NDI®|HX2, NDI®|HX3, RTSP, HTTP, HLS, RTMP Pull/ Push, MPEG-TS over UDP/ SRT/ RTP, TVU protocols
-
Simultaneously decode and output HDMI and SDI signals
-
Decode H.264/H.265 video
-
Decode AAC/MP3 audio
-
Supports NDI® 5.x
|
|
HDMI Output Features
|
-
Max. output: 1920 x 1080p60
-
Supports YUV BT.601/ 709 signals
-
Supports 48KHz 8-channel audio output
|
|
SDI Output Features
|
-
Max. output: 1920 x 1080p60. Supported output formats are:
-
1920 x 1080p 23.98/ 24/ 25/ 29.97/ 30/ 50/ 59.94/ 60
-
1920 x 1080i 50/ 59.94/ 60
-
1280 x 720p 24/ 25/ 29.97/ 30/ 50/ 59.94/ 60
-
720 x 576p50
-
720 x 576i50
-
720 x 480i59.94
-
Supports YUV BT.601/709 signals
-
Supports 48KHz 8-channel audio output
-
Supports SD (ST 259)/ HD (ST 292)/ 3Ga (ST 425)/ 3Gb (ST 425)/ 3Gb-DL (ST 425)/ 3Gb-DS (ST 425) standards
-
Output 3G-SDI signal with a transmitted distance greater than 150m
|
|
Web UI
|
-
Register with Magewell Control Hub for remote centralized management
-
Supports configuring and managing via Web UI
-
Provides comprehensive information regarding the device and decoded signals in real-time
-
Allow to configure how a signal is decoded and output, including OSD settings, deinterlacing, resolutions, audio gain, sample rate, and channel mapping, as well as the network connection
-
Supports updating firmware
-
Supports USB RNDIS/ ECM
-
Supports IE/ Edge/ Firefox/ Chrome/ Safari/ Opera web browsers
-
Provides HTTP APIs
|
|
LED Indicators
|
Decode status indicator
-
On: decoding
-
Blinks: decoding error
-
Off: source unselected
|
|
Physical Specifications
|
-
Form factor: 184.4mm (L) x 30.0mm (W) x 81.5mm (H)
-
Weight: ≈ 300g
|
|
Power Consumption
|
Max power consumption: 5.2W
|
|
Working Environment
|
-
Operating temperature: –10 to 45 deg C
-
Storage temperature: –20 to 70 deg C
-
Relative humidity: 5% to 90% non-condensing
|
