Magewell’s USB Capture, USB Capture Plus and USB Capture Pro external capture devices are the easiest way to bring high-quality video and audio signals into market-leading software solutions for video conferencing, streaming, live production, lecture capture and more.
Featuring driver-free installation and automatic input detection for true plug-and-play operation, the USB Capture family supports Windows, Mac, Linux and Chrome operating systems and offers broad compatibility with popular third-party software.

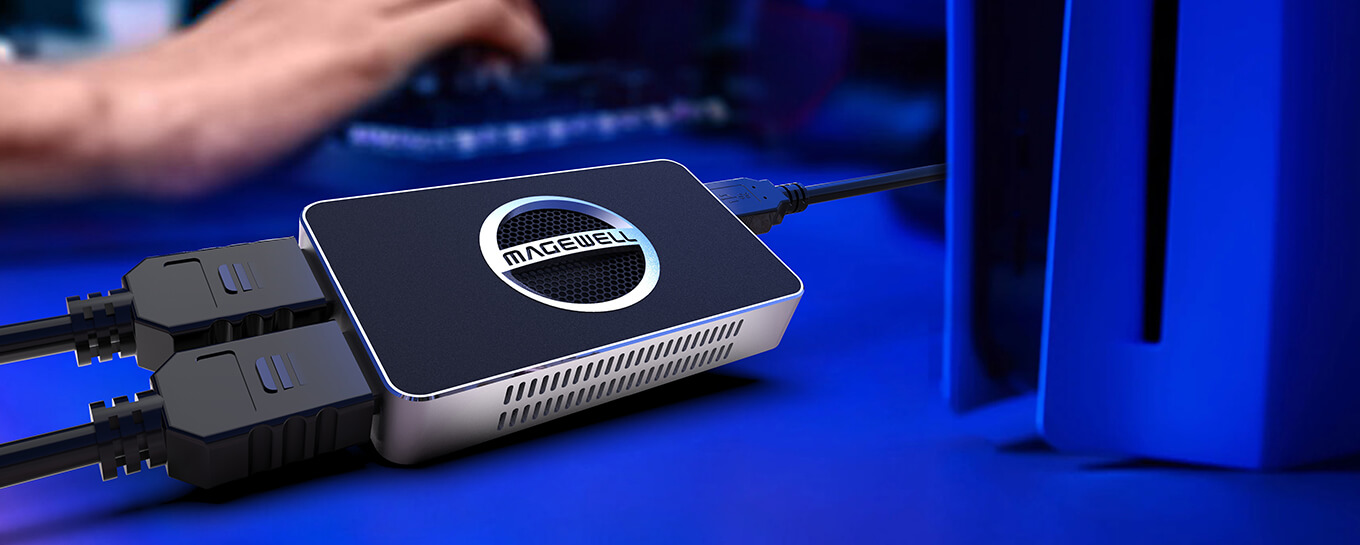

Our single-channel USB Capture devices enable all types of computers including laptops to capture HD or 4K signals through a standard USB interface, with no additional power source required.
Magewell’s USB Capture, USB Capture Plus and USB Capture Pro external capture devices are the easiest way to bring high-quality video and audio signals into market-leading software solutions for video conferencing, streaming, live production, lecture capture and more.

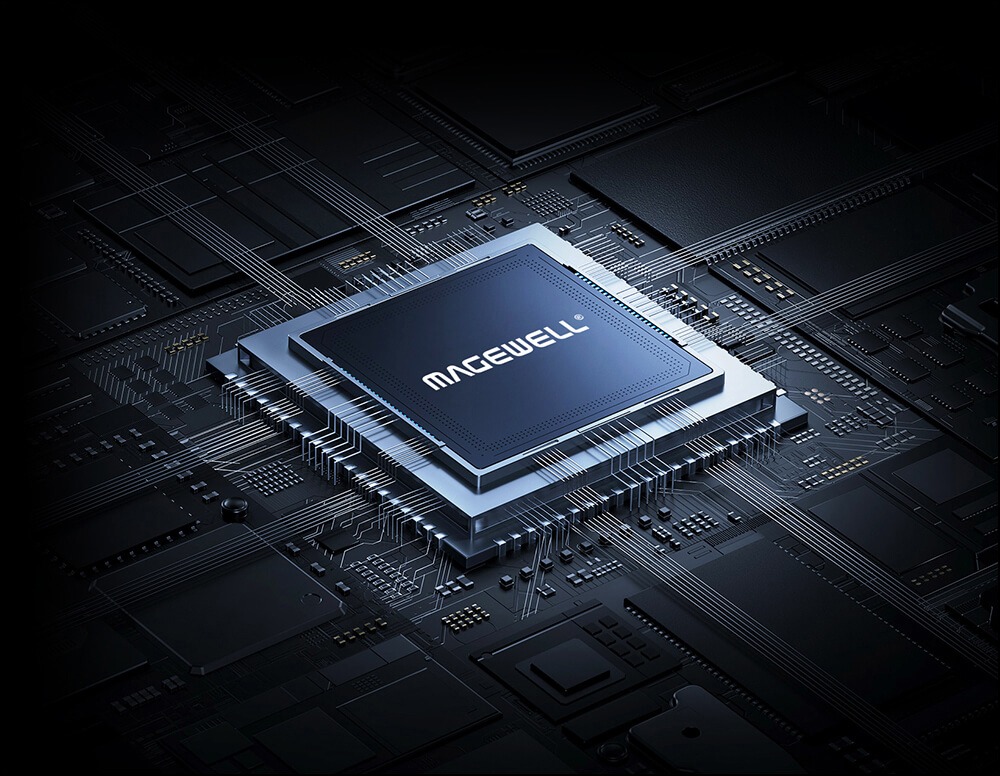

All models in the USB Capture family feature Magewell’s FPGA-based, zero-CPU-usage video processing, providing high-quality up/down conversion and image adjustments without consuming valuable host system processing power.

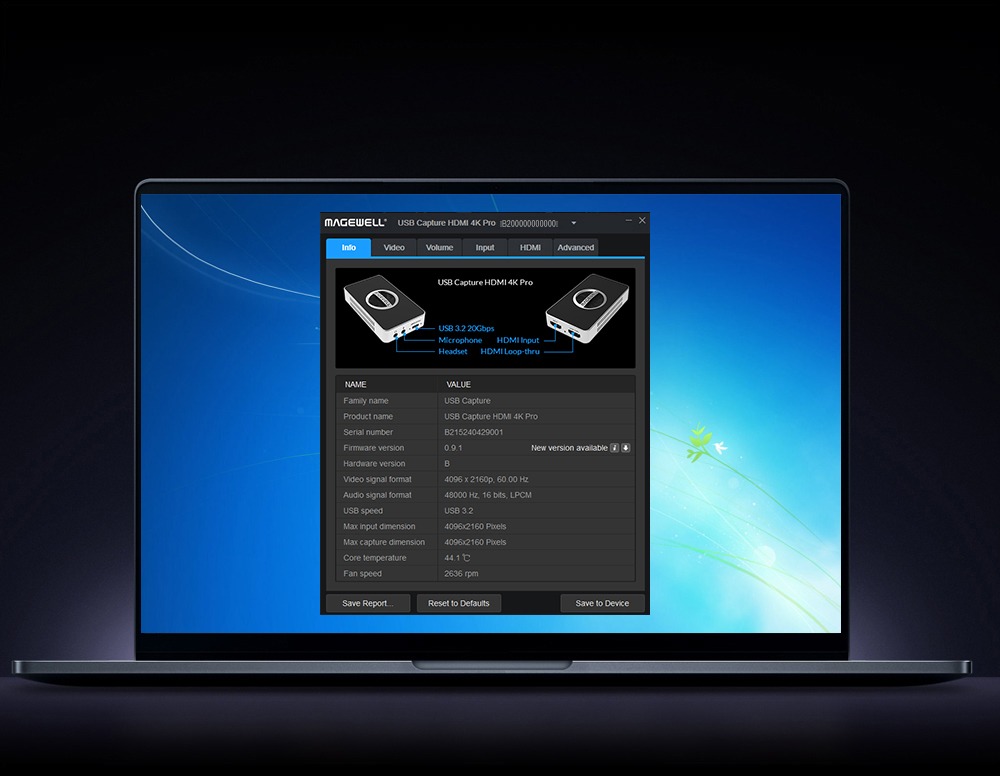

The free USB Capture Utility software lets users easily modify capture parameters, upgrade the device firmware, or export detailed info if needed for technical support.
The USB Capture family is available in a choice of models to meet your specific functionality and format requirements:
| USB Capture Family |
HDMI 4K Pro
|
SDI 4K Pro
|
HDMI 4K Plus
|
SDI 4K Plus
|
HDMI Plus
|
SDI Plus
|
DVI Plus
|
AIO
|
HDMI Gen 2
|
SDI Gen 2
|
|---|---|---|---|---|---|---|---|---|---|---|
| Video Channels | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Resolution/ Frame Rate | ||||||||||
| Input Signals up to |
4K60p
4:4:4 |
4K60p
4:2:2 |
4K60p
4:4:4 |
4K30p
4:2:2 |
4K60p
4:4:4 |
2048×1080
60fps 4:2:2 |
1920×1080
90fps 4:4:4 |
2048×1080
60fps 4:4:4 |
2048×1080
60fps 4:4:4 |
2048×1080
60fps 4:2:2 |
| Capture Signals up to |
4K60p
4:4:4 |
4K60p
4:2:2 |
4K30p
4:2:0 |
4K30p
4:2:0 |
1080p60
4:4:4 |
1080p60
4:4:4 |
1080p60
4:4:4 |
1080p60
4:4:4 |
1080p60
4:4:4 |
1080p60
4:4:4 |
| Output Interface | ||||||||||
| Loop-through Output | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Audio Output | 3.5mm Headphone Out | 3.5mm Line Out | 3.5mm Headphone Out | 3.5mm Line Out | 3.5mm Headphone Out | 3.5mm Line Out | 3.5mm Line Out | — | — | — |
| USB Transfer | USB 20Gbps | USB 20Gbps | USB 5Gbps | USB 5Gbps | USB 5Gbps | USB 5Gbps | USB 5Gbps | USB 5Gbps | USB 5Gbps | USB 5Gbps |
| Performance | ||||||||||
|
USB Host Interface
(for maximum performance) |
USB 3.2 Gen 2×2 | USB 3.2 Gen 2×2 | USB 3.0 | USB 3.0 | USB 3.0 | USB 3.0 | USB 3.0 | USB 3.0 | USB 3.0 | USB 3.0 |
