USB Capture SDI 4K Pro

One-channel 4Kp60 capture device

Capture SDI + embedded audio
Loop-through SDI signal
Audio input via Line in
Extract SDI embedded audio and output via Line out

USB Capture SDI 4K Plus

imgi_39_USBCaptureSDI4KPlus_2

imgi_40_USBCaptureSDI4KPlus_3

imgi_42_3 (1)

Interface

Specifications and Features

Features

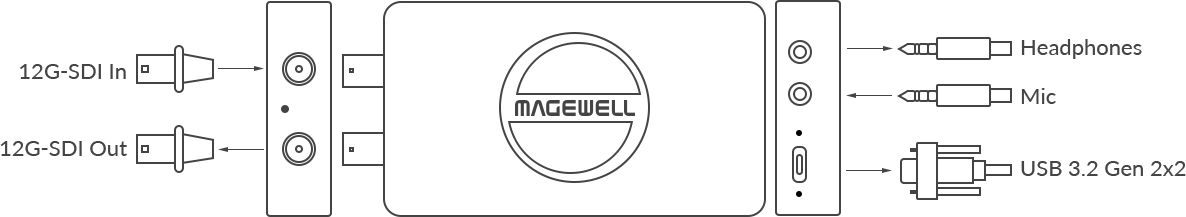

Interface

Input Interface

One SDI input + embedded audio
One SDI loop-through
Support input & loop-through resolution up to 4096x2160 60fps 4:2:2

Audio Input/Output Interface

3.5mm audio jack for Line In/ Line Out

Host Interface

USB 3.2 Gen 2x2 up to 20G throughput

OS

Windows, Linux, Mac, Chrome OS

Capture format

Support capture resolutions up to 4096x2160
Support capture frame rates up to 240fps
Capture 2-channel embedded audio or analog audio via 3.5mm unbalanced Line In interface

Included Software

USB Capture Utility, Capture Express, etc.

Others

Auto detection of input signal format
Windows, Linux and Mac SDK
Continuously work for 24hx7
LED status indicator
3-year warranty
Form factor: 4.35 in (L) x 2.24 in (W) x 0.71 in (H) (110.6 mm x 56.8 mm x 18 mm)

Details

Input Features	Max input & loop through signal at 12G 4096x2160 60fps 10Bit YUV4:2:2 Video format supports RGB/YUV 4:4:4 8/10/12-bit, YUV 4:2:2 12-bit, YUV 4:2:0 8/10/12-bit Up to 8 channels, 24-bit SDI embedded audio, with a sample rate of 192kHz Audio input through via 3.5mm line in supports 2-channel IEC60958 standard audio stream
Process and Capture Features	Video processing pipelines with ~700M pixels/s processing bandwidth Supported color depth for video capture is up to 10-bit Capture videos up to 4096x2160, frame rates up to 120fps. Outputs include (actual capture frame rate can be limited by the USB bandwidth and internal working frequency.): 4096x2160p/3840x2160p 23.98/24/25/29.97/30 2560x1440p60 1920x1080p/1280x720p 23.98/24/25/29.97/30/50/59.94/60/90 720x576p25 720x480p30 Output NV12/I420/YUYV/UYVY/RGB24/RGB32 videos Output audio of SDI signal via 3.5 mm line out Up to 2-channel IEC60958 audio streams
Included Software	USB Capture Utility enables users to easily check and set the capture-related parameters, upgrade firmware of the capture device and export info needed for troubleshooting
SDK & APIs	The MWCapture SDK provides functions including signal status extraction, capture configuration and real-time audio & video capture, etc Windows DirectShow/Wave API/DirectSound/WASAPI Linux V4L2/ALSA macOS AVCaptureSession/AudioUnit
Output Interfaces	USB 3.2 (20 Gbps) Type-C
Compatible Software	Zoom Rooms Microsoft Teams Skype for Business Google Hangouts GoToMeeting Gstreamer VLC OBS Studio XSplit QuickTime Player Any other DirectShow/V4L2/AVCaptureSession based encoding or streaming software
Recommended OS	Windows 10/11/Server 2016/Server 2019/Server 2022 (x86 & x64) and above Linux x86, x64 & ARM architecture, with 2.6.35 and above Mac OS X 10.9/macOS 10.12 and above Chrome OS
LED Indicator	Status LEDs indicate the working state of the device: Pulsing slowly: input signal unlocked On: input signal locked Double blinks: memory abnormal or FPGA configuration failed Off: firmware or power supply abnormal
Form Factor	4.35 inches (L) x 2.24 inches (W) x 0.71 inches (H) (110.6mm x 56.8mm x18mm)
Power Consumption	5V max current: ~1.439A Max power consumption: ~7.194W
Working Environment	Operating temperature: 0 to 45 deg C Storage temperature: –20 to 70 deg C Relative Humidity: 5% to 90% non-condensing

Accessory

Included

USB 3.2 Type C to Type C cable (up to 20Gbps) x1
Part number: ELE00053

USB 3.2 Type C to Type A cable (up to 10Gbps) x1
Part number: ELE00054
