USB Capture HDMI Plus

One-channel 2K capture device
  • Capture HDMI + embedded audio
  • Loop-through HDMI signal
  • Audio input via mic
  • Extract HDMI embedded audio output via headphones
  • Support 4Kp60 4:2:0 input. Capture from the newest game consoles such as PS4 Pro and XBOX One S. Automatically down scale to 2K for recording or streaming
USB Capture HDMI Plus
imgi_35_USBCaptureHDMIPlus_2
imgi_36_USBCaptureHDMIPlus_3
imgi_34_USBCaptureHDMIPlus_4

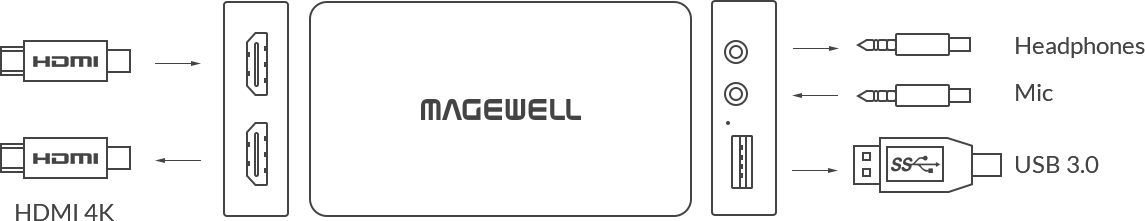

Interface

Specifications and Features

Features

Interface

Input Interface & Loop-through Interface

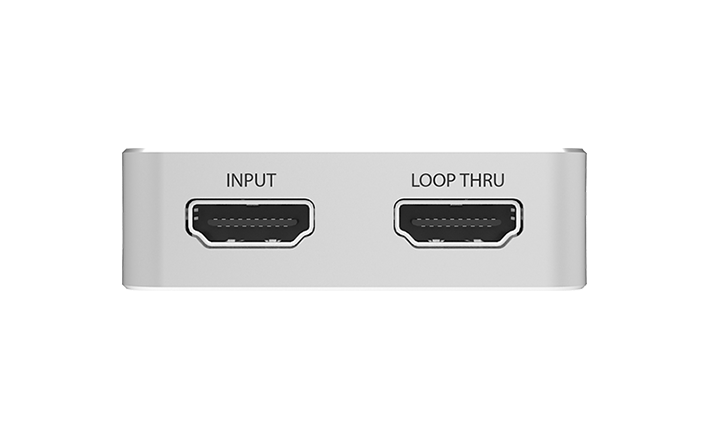

  • One HDMI input+ embedded audio
  • One HDMI loop-through
  • Support input & loop-through resolution up to 4096×2160 pixels

Audio Input/Output Interface

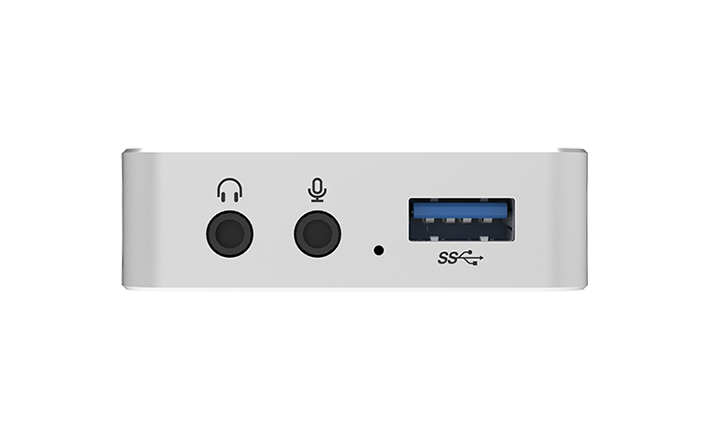

  • 3.5mm audio jack for microphone/ headphones

Host Interface

  • USB 3.0, compatible with USB 2.0

OS

  • Windows, Linux, Mac, Chrome OS

Capture format

  • Support capture resolutions up to 2048x2160
  • Support capture frame rates up to 120fps
  • Capture 2-channel embedded audio or analog audio via 3.5mm microphone interface

Included Software

  • USB Capture Utility, Capture Express, etc.

Compatible Software

  • Zoom Rooms, Microsoft Teams Rooms, Skype for Business, Google Hangouts, GoToMeeting, VLC, OBS Studio, XSplit, etc.

Others

  • Auto detection of input signal format
  • Integrate the functions of a USB audio card. Playback audio via 3.5mm headphones interface
  • Windows, Linux and Mac SDK
  • Continuously work for 24hx7
  • LED status indicator
  • 2-year warranty
  • Form factor: 92.2mm (L) x 40.2mm (W) x 12.3mm (H)
Input Features 297MHz HDMI receiver, max input & loop through video:
  • 4096x2160 30fps 4:4:4/4:2:2
  • 4096x2160 60fps 4:2:0
  • Custom EDID
  • Input RGB/YUV 4:4:4 8/10/12-bit, YUY 4:2:2 12-bit, YUV 4:2:0 8/10/12-bit
  • Up to 8-channel 24-bit HDMI-embedded audio at 192kHz
  • 2-channel IEC60958 audio streams via 3.5mm microphone interface
  • HDMI interfaces: HDMI 1.4, DVI-D
Process and Capture Features
  • Video processing pipelines with ~160M pixels/s processing bandwidth
  • Capture videos up to 2048x2160, frame rates up to 120fps. Outputs include (actual capture frame rate can be limited by the USB bandwidth and internal working frequency.):
    • 1920x1080p 23.98/24/25/29.97/30/50/59.94/60
    • 1280x720p 23.98/24/25/29.97/30/50/59.94/60/100/119.88/120
    • 720x576p25
    • 720x480p30
  • Output YUYV/UYVY/RGB24/RGB32 videos
  • Support video cropping, up/down scaling, de-interlacing, aspect ratio conversion, color format conversion, frame rate conversion, flip and mirror
  • Output audio of HDMI signal or hosting machine (the computer) via 3.5 mm headphone jack
  • Up to 2-channel IEC60958 audio streams
Included Software USB Capture Utility enables users to easily check and set the capture-related parameters, upgrade firmware of the capture device and export info needed for troubleshooting
SDK & APIs
  • The MWCapture SDK provides functions including signal status extraction, capture configuration and real-time audio & video capture, etc
  • Windows DirectShow/Wave API/DirectSound/WASAPI
  • Linux V4L2/ALSA
  • macOS AVCaptureSession/AudioUnit
Output Interfaces USB 3.0
  • compatible with USB 2.0
  • compatible with USB 3.1 Gen 1
Compatible Software
  • Zoom Rooms
  • Microsoft Teams
  • Skype for Business
  • Google Hangouts
  • GoToMeeting
  • Gstreamer
  • VLC
  • OBS Studio
  • XSplit
  • QuickTime Player
  • Any other DirectShow/V4L2/AVCaptureSession based encoding or streaming software
Recommended OS
  • Windows 7/8/8.1/10/11/Server 2008/Server 2008 R2/Server 2012/Server 2016 (x86 & x64) and above
  • Linux x86, x64 & ARM architecture, with 2.6.35 and above
  • Mac OS X 10.9/macOS 10.12 and above
  • Chrome OS
LED Indicator Status LEDs indicate the working state of the device:
  • Pulsing slowly: input signal unlocked
  • On: input signal locked
  • Double blinks: memory abnormal or FPGA configuration failed
  • Off: firmware or power supply abnormal
Form Factor 3.86 inch (L) x 2.24 inch (W) x 0.67 inch (H) (98.1mm x 56.8mm x 17mm)
Accessories 1 × USB 3.0 cable (63cm)
Power Consumption
  • 5V max current: ~900 mA
  • Max power consumption: ~4.5 W
Working Environment
  • Operating temperature: 0 to 45 deg C
  • Storage temperature: –20 to 70 deg C
  • Relative Humidity: 5% to 90% non-condensing

Accessory

Included

USB 3.0 Cable
Part number: ACC10001
