USB Capture SDI Gen 2

One-channel HD capture device

Captures SD/HD/3G/2K SDI + embedded audio

USB Capture SDI Gen 2

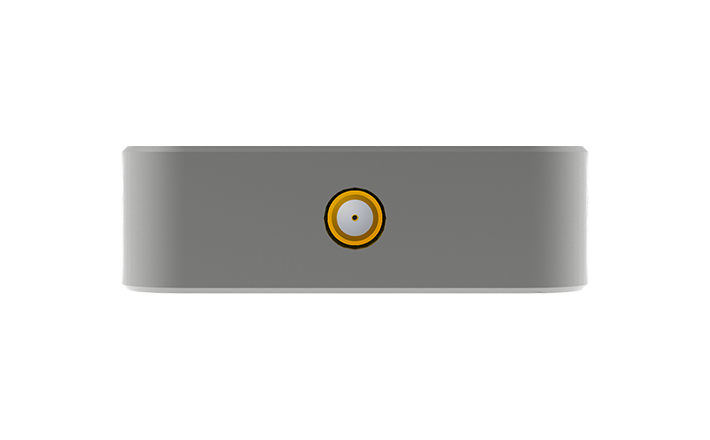

USBCaptureSDIGen2_2

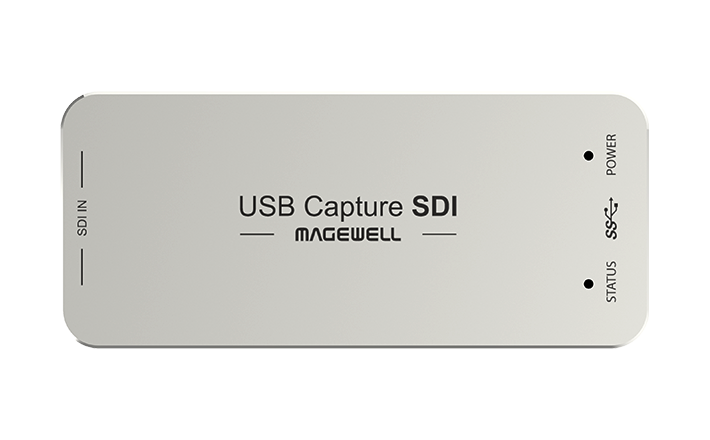

USBCaptureSDIGen2_3

imgi_43_USBCaptureHDMIGen2_4

Interface

Specifications and Features

Features

Interface

Input Interface

One SD/HD/3G SDI input + embedded audio
Support input resolution up to 2048×2160 pixels

Host Interface

USB 3.0, compatible with USB 2.0

OS

Windows, Linux, Mac, Chrome OS

Capture format

Support capture resolutions up to 2048x2160
Support capture frame rates up to 120fps
Support 2-channel audio streams
Capture SDI signals transmitted a long distance away: up to 150m for 3G-SDI signals

Included Software

USB Capture Utility, Capture Express, etc.

Compatible Software

Zoom Rooms, Microsoft Teams Rooms, Skype for Business, Google Hangouts, GoToMeeting, VLC, OBS Studio, XSplit, etc.

Others

Auto detection of input signal format
Windows, Linux and Mac SDK
Continuously work for 24hx7
LED status indicator
2-year warranty
Form factor: 92.2mm (L) x 40.2mm (W) x 12.3mm (H)

Details

Input Features	Max input: 2048x1080 60fps 4:2:2 10bit Up to 8-channel embedded audio SD/HD/3G-SDI BNC input SD (ST 259)/HD (ST 292)/3Ga (ST 425)/3Gb-DL (ST 425)/3Gb-DS (ST 425) standard Input RGB/YUV 4:4:4 10/12-bit, YUV 4:2:2 8/10/12-bit, RGBA/YUVA 4:4:4:4 10-bit Input SDI signals transmitted up to 150m for 3G-SDI signals
Process and Capture Features	Video processing pipeline up to 160M pixels/s. Capture videos up to 2048x1080, frame rates up to 120fps. Outputs include (actual capture frame rate can be limited by the USB bandwidth and internal working frequency.): 1920x1080p/1280x720p 23.98/24/25/29.97/30/50/59.94/60 720x576p25 720x480p30 Support for YUY2/UYVY/RGB24/RGB32 Support video cropping, up/down scaling, de-interlacing, aspect ratio conversion, color format conversion, frame rate conversion, flip and mirror Up to 2 audio channels at 48KHz
Included Software	USB Capture Utility enables users to easily check and set the capture-related parameters, upgrade firmware of the capture device and export info needed for troubleshooting
SDK & APIs	The MWCapture SDK provides functions including signal status extraction, capture configuration and real-time audio & video capture, etc Windows DirectShow/Wave API/DirectSound/WASAPI Linux V4L2/ALSA macOS AVCaptureSession/AudioUnit
Output Interfaces	USB 3.0 compatible with USB 2.0 compatible with USB 3.1 Gen 1
Compatible Software	Zoom Rooms Microsoft Teams Skype for Business Google Hangouts GoToMeeting Gstreamer VLC OBS Studio XSplit QuickTime Player Any other DirectShow/V4L2/AVCaptureSession based encoding or streaming software
Recommended OS	Windows 7/8/8.1/10/11/Server 2008/Server 2008 R2/Server 2012/Server 2016 (x86 & x64) and above Linux x86, x64 & ARM architecture, with 2.6.35 and above Mac OS X 10.9/macOS 10.12 and above Chrome OS
LED Indicator	Status LEDs indicate the working state of the device: Pulsing slowly: input signal unlocked On: input signal locked Double blinks: memory abnormal or FPGA configuration failed Off: firmware or power supply abnormal
Form Factor	92.2mm (L) x 40.2mm (W) x 12.3mm (H)
Accessories	1 × USB 3.0 cable (63cm) 1 × MCX to BNC cable (33cm)
Power Consumption	5V max current: ~0.5 A Max power consumption: ~2.5 W
Working Environment	Operating temperature: 0 to 50 deg C Storage temperature: –20 to 70 deg C Relative Humidity: 5% to 90% non-condensing

Accessory

Included

USB 3.0 Cable
Part number: ACC10001

MCX to SDI cable
Part number: ACC00050
