Pro Convert AES67

Single channel 4Kp60 capture card

Offers a seamless bridge between analog audio, software and IP standards including AES67, NDI®, SRT and more
Provides a flexible, virtual audio matrix to allow routing or mixing of any analog or IP-based input channel to any output
Enables mixed-technology local and remote production workflows and ProAV installations

Specifications and Features

Receiving/Input Features

Support for sample rates of 96/48/44.1 KHz, and 16/24bit sample depth
1 x 2-channel 3.5mm TRS unbalanced in (5k Ohm)
1 x 2-channel 4.4mm TRRRS balanced in (20k Ohm)
1 x 4-channel 24-bit/48k USB Audio Class in
Receiving 4 x 8-channel 24-bit AES67 (compatible with SMPTE ST 2110–30) streams both multicasted and unicasted
Receiving 1 x 4-channel 16-bit Network audio stream with Icecast, SRT, or NDI protocol, via Ethernet
Frequency Response 20Hz ~ 20kHz (-/+0.5dB)
Dynamic range > 100dB
Signal to noise ratio > 100dB
Total harmonic distortion < 0.01% @ +4dBu
Support for PTP master/slave
Max signal level: unbalanced at 12dBu, balanced at 24dBu
Device buffer at 0.125 ~ 64 ms (controlled via WebUI, 1 to 16 packets with packet time at 0.125/0.25/0.333/1/4 ms)

Sending/Output Features

Support for sample rates of 96/48/44.1 KHz, and 16/24bit sample depth
1 x 2-channel 3.5mm TRS unbalanced out (10 Ohm)
1 x 2-channel 4.4mm TRRRS balanced out (150 Ohm)
1 x 4-channel 24-bit/48k UAC out
Multicast (IGMPv2) and unicast up to 8 x 8-channel 24-bit AES67 (SMPTE ST 2110–30 compliant) streams
Encoding and transmitting 1 x 4-channel 16-bit audio stream with Icecast, SRT, and NDI protocol
Support for PTP master/slave Total harmonic distortion < 0.01% @ +4dBu
Frequency Response 20Hz ~ 20kHz (-/+0.5dB)
Dynamic range > 100dB
Signal to noise ratio > 100dB
Max signal level: unbalanced at 12dBu, balanced at 18dBu

Configuration Management

Registration with Control Hub Remote control via WebUI and Control Hub
Provision of comprehensive information regarding the device and signals in real-time
Configuration of how an input is processed and encoded, including sampling, packets, PTPv2(IEEE 1588–2008), channel adjustment, audio mixing, buffer, as well as the network connection
Support for updating firmware
Support for USB RNDIS/ECM
Support for IE/Edge/Firefox/Chrome/Safari/Opera web browsers
Provision of HTTP APIs

Interfaces

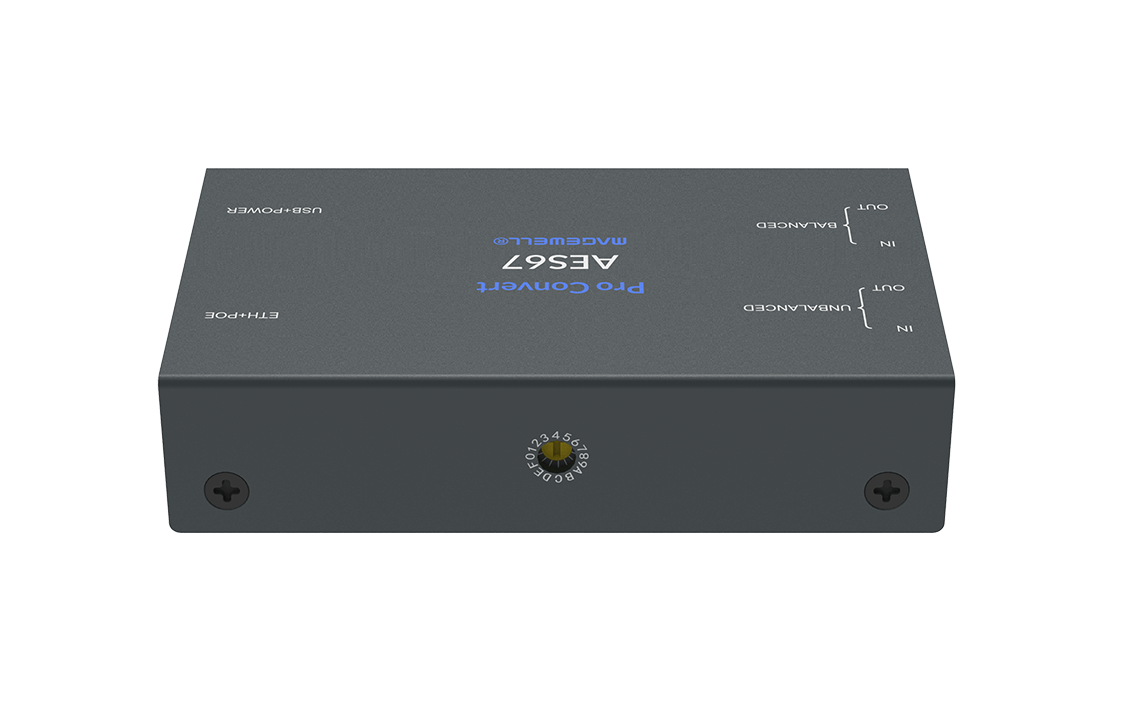

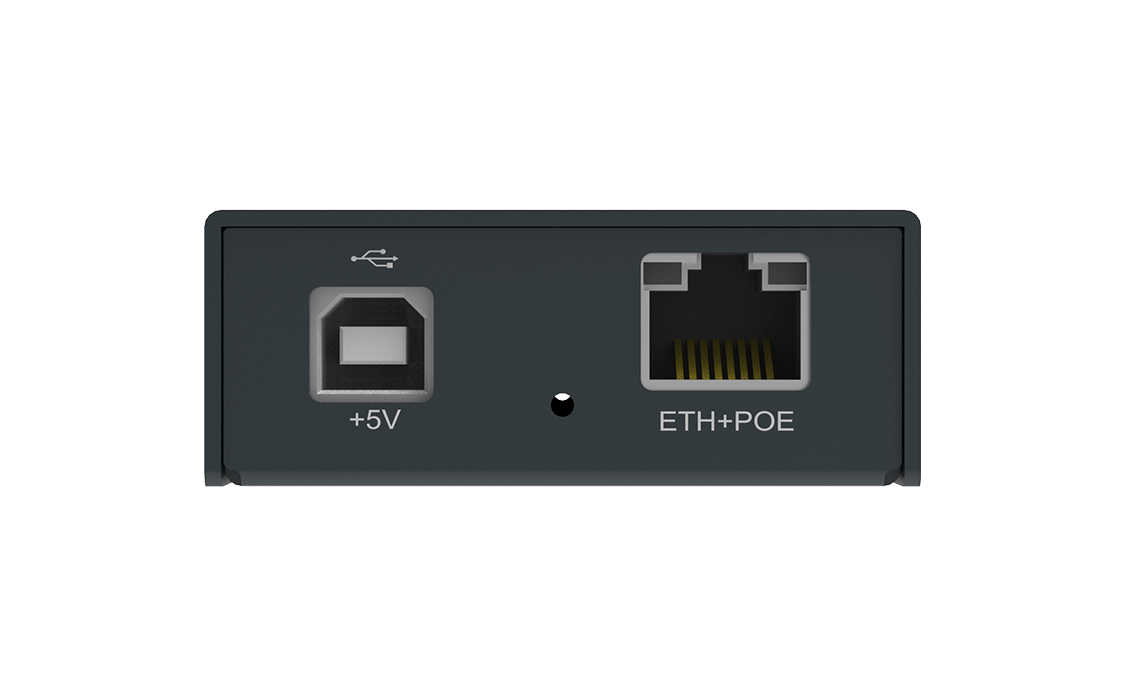

10/100/1000Mbps with PoE (IEEE 802.3af)
USB2.0 Type B
- 5V/2.1A power supply
- USB NET

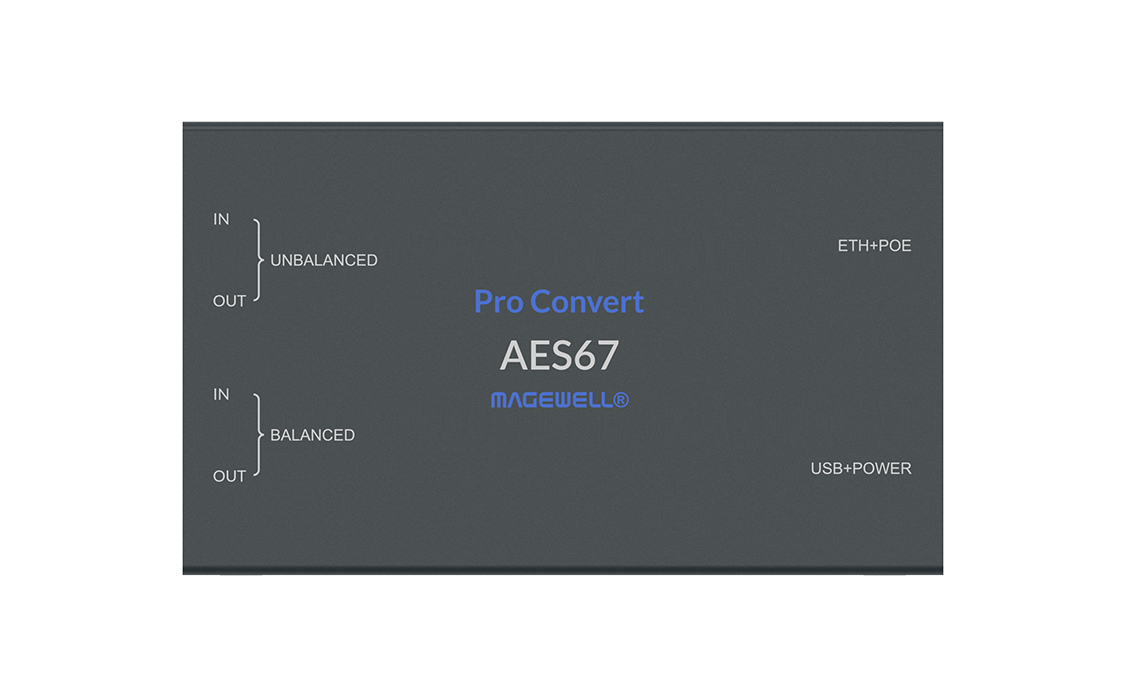

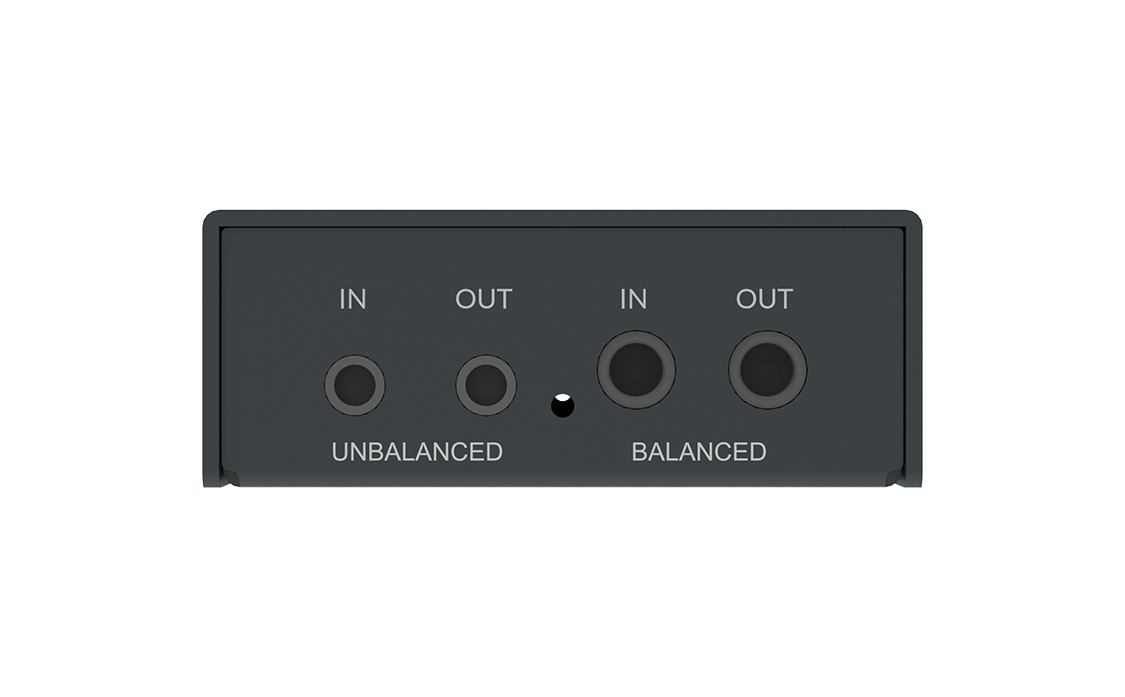

3.5mm TRS unbalanced IN/OUT
4.4mm TRRRS balanced IN/OUT

LED Indicators

Power LED indications:

on: power on
off: power off

PTP LED indications:

on: synced
off: not synced
blinking: syncing

Form Factor

100.9smm (L) x 60.2mm (W) x 23.3mm (H)

Accessories

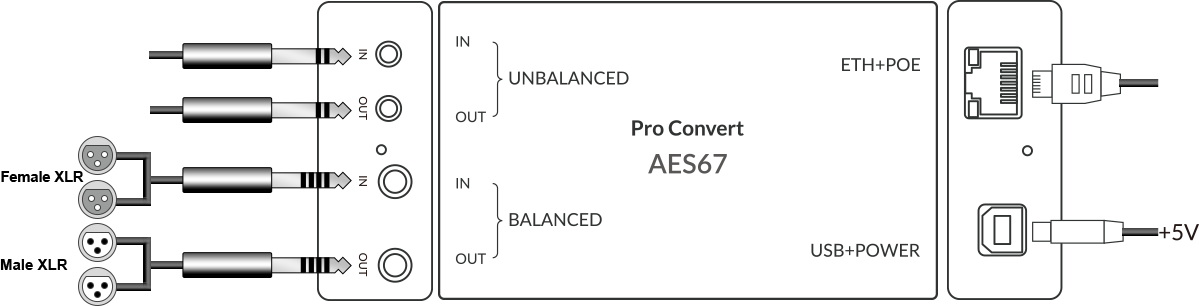

4.4mm to Dual XLR Male Cable
4.4mm to Dual XLR Female Cable
USB 2.0 cable (Type A to Type B)
Universal power adapter
L bracket

On-board Control Buttons

16 Position Rotary DIP Switch: sets board-index from 0 to F

Screw Mounting Hole

¼–20 threaded hole

Power Consumption

5V max current: ~ 1 A
Max power consumption: ~ 5 W

Working Environment

Operating temperature: 0 to 40 deg C
Storage temperature: –20 to 70 deg C
Relative Humidity: 5% to 90% non-condensing

Accessory

Included

Power Adapter (US/EU/UK/AU/JP)x1
Part number: ACC08010

Power Adapter (KR) x1
Part number: ACC08015

USB Type A to Type B cable x1
Part number: ACC00065

L bracket x1
Part number: 92240

4.4mm to Dual XLR Male Cable x1
Part number: ACC10008

4.4mm to Dual XLR Female Cable x1
Part number: ACC10009

Two types of power adapters are provided as options to meet your need. Please choose the right part number when placing the order to our dealers. We recommend you always use the included accessories to avoid unnecessary damage to your device. Please note, the appearance of the power adapter may vary due to suppliers or batches. The images here are for reference only.
