Eco Capture HDMI 4K Plus M.2

Single channel 4K60p capture card

Captures one-channel HDMI + embedded audio
High throughout for capture and supports higher frame rates
M.2 2280 standard size for small or portable systems

Eco Capture HDMI 4K Plus M.2

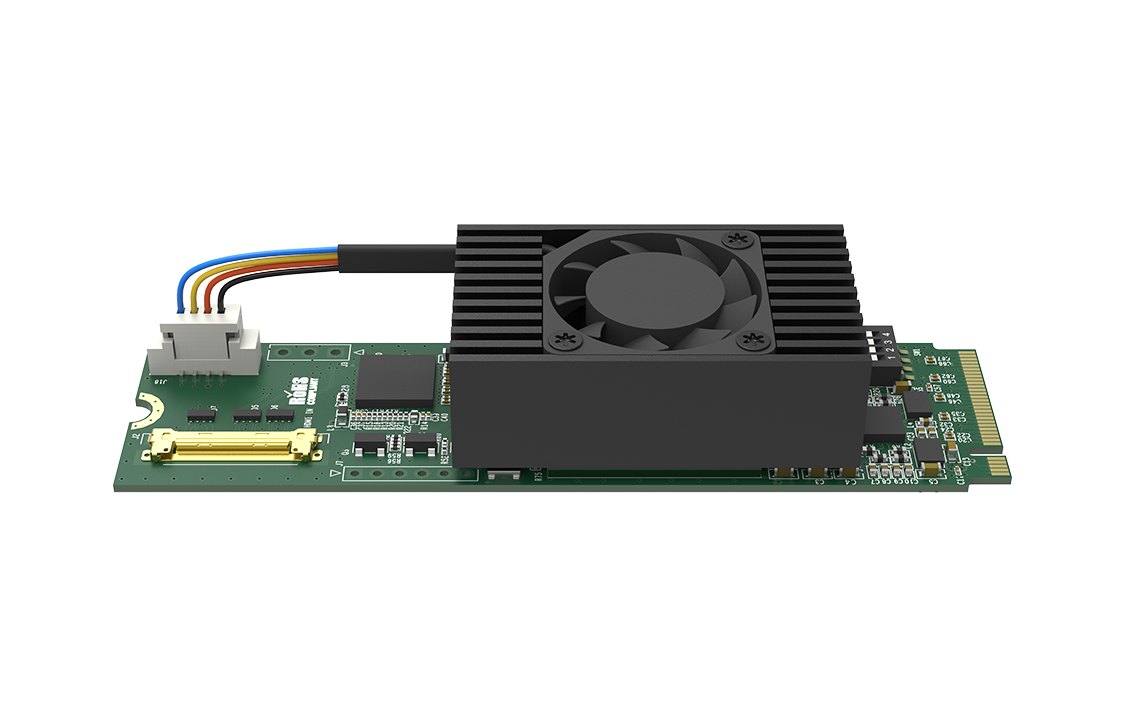

1 (4)

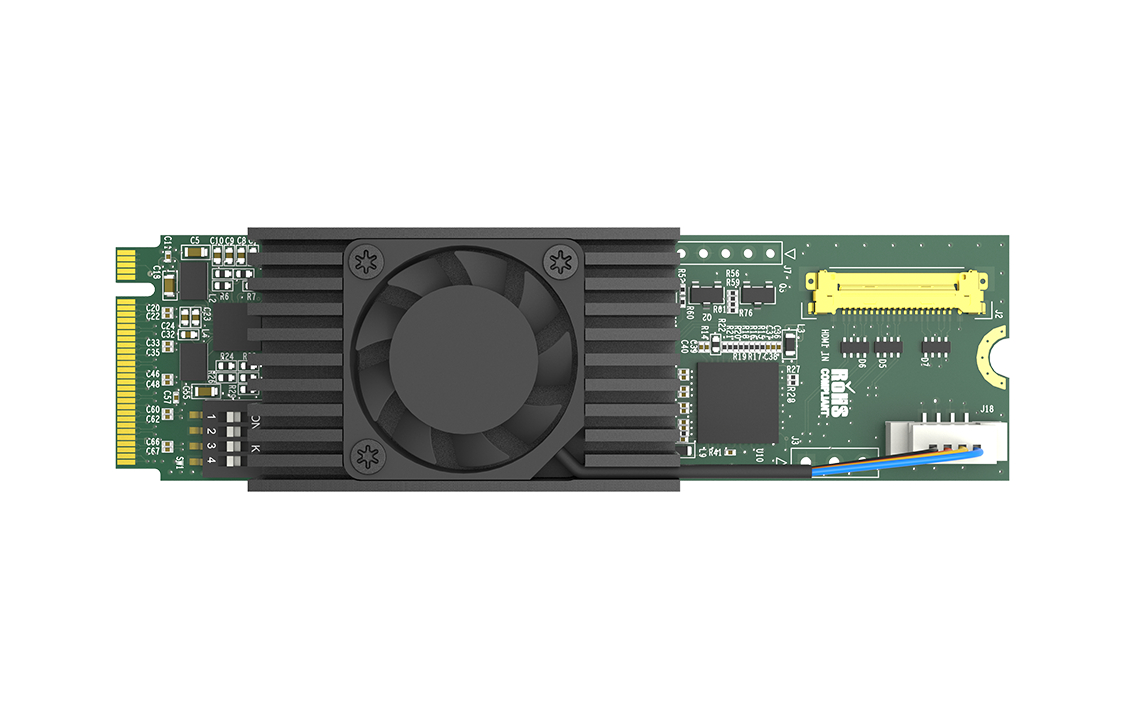

2 (5)

0 (2)

1 (6)

2 (7)

Interface

en-1

en-2

Specifications and Features

Features

Interface

Input Interface
- HDMI x1
- Support input resolution up to 4096x2160 30fps
Host Interface
- M.2 (PCIe Gen3 x4)

Encoding Features

Auto detection of input signal format
Color formats conversion
Low latency mode
SG-DMA transmission mode
Multiple replicated capture streams

Software

Window & Linux driver and SDK
Upgradable firmware
Compatible with Capture Express , Magewell Bridge for NDI® , Plugin for Premiere®

Others

2-year warranty
Continuously work for 24hx7
LED status indicator
Multiple devices on one host
On-board dip switch to set card number

Details

Input Features	594MHz HDMI receiver, max input video: 4096x2160 4:4:4 60fps Max input audio: 8-Channel, 24-bit HDMI embedded audio, 192kHz sample rate Support input RGB / YUV 4:4:4 8-bit, YUV 4:2:2 12-bit, or RGB / YUV 4:4:4 10 / 12-bit signals up to 594MHz pixel clock Support up to 8-channel IEC60958 / IEC61937 audio streams via SDK Support HDR10 HDMI input interface: LVDS 0.5PH 20-Pin to DVI-D 1.0, HDMI 2.0
Process and Capture Features	~2400MB / s per channel DMA bandwidth in PCIe 3.x system ~1600MB / s per channel DMA bandwidth in PCIe 2.x system ~800MB / s per channel DMA bandwidth in PCIe 1.x system Video processing pipelines with ~360Mpixels / s processing bandwidth Capture videos up to 4096x2160, frame rates up to 240fps. Typical outputs include (actual capture frame rate can be limited by the PCIe bandwidth and internal working frequency.): 4096x2160p 5 / 10 / 15 / 25 / 29.97 / 30 / 50 / 60 3840x2160p 5 / 10 / 15 / 25 / 29.97 / 30 / 50 / 60 1920x1080p 5 / 10 / 15 / 25 / 29.97 / 30 / 50 / 60 / 120 1280x720p 5 / 10 / 15 / 25 / 29.97 / 30 / 50 / 60 / 120 etc. Output NV12 / I420 / YUYV / UYVY / RGB24 / RGB32 videos Support custom output formats using Magewell Capture SDK Support custom EDID, video scaling, de-interlacing, color format conversion and frame rate conversion Support multiple replicated capture streams, and unlimited capture streams for any one input channel with the same format Support timestamp & A / V synchronization Hardware based 100ns high resolution clock Audio frames (192 audio samples) & video frames are stamped with hardware clock Hardware clock can be synchronized across cards via SDK Support firmware upgrade
SDK & APIs	The MWCapture SDK provides functions including signal status extraction, capture configuration and real-time audio & video capture, etc Windows DirectShow / DirectKS / Wave API / DirectSound / WASAPI Linux V4L2 / ALSA
Suported OS	Windows 10 / 11 / Server 2016 (x86 & x64) and above Linux (x86, x64 & ARM architecture)
Input Interfaces	LVDS 0.5PH 20-Pin (Part number: 11580) DVI-D 1.0 HDMI 2.0
Host Interface	M.2 2280 Type M (PCIe Gen3 x4)
Input Features	Support for input video resolutions up to 4096x2160 pixels
Supported Softwares	VLC VirtualDub OBS XSplit vMix VidBlaster Wirecast Microsoft Media Encoder Adobe Flash Media Encoder Any other DirectShow / V4L2 encoding / streaming software
LED Indicator	Status LEDs indicate the working state of the device: Pulsing slowly: input signal unlocked On: input signal locked Double blinks: memory abnormal or FPGA configuration failed Off: firmware or power supply abnormal
Form Factor	M.2 2280 standard size (22mm x 80mm)
Accessories	LVDS 0.5PH 20-Pin cable (Part number: 11580) LVDS 0.5PH 20-Pin to HDMI adapter (Part number: 11580) (20.5cm)
Power Consumption	Max current at 3.3V: ~ 2 A Max power consumption: ~6.6 W
Working Environment	Operating temperature: 0 to 40 deg C Storage temperature: –20 to 70 deg C Relative Humidity: 5% to 90% non-condensing

Accessory

Included

1 x LVDS 0.5PH 20-Pin cable
Part number: ACC00160

1 x LVDS 0.5PH 20-Pin to HDMI adapter
Part number: 99192

Optional

Mini Repeater 4K HDMI
