| Supported OS |
Windows
- Windows 7 / 8 / 8.1 / 10 / 11 / Server 2008 / Server 2008 R2 / Server 2012 / Server 2016 (x86
& x64)
and above
Linux (support x86, x64 & ARM architecture)
- Ubuntu 12.04 / 14.04 / 16.04 / 17.04 / 17.10 / 18.04 (x86 & x64) and above
- CentOS 6.5 / 7 (x86 & x64) and above
- Fedora 25 / 26 / 27 (x86 & x64) and above
- Red hat 6.5 (x86 & x64) and above
- Other Linux OS with kernel version 2.6.35 and above
|
| Recommended OS (tested) |
Windows
- Windows 7 Ultimate / 8.1 Enterprise / 10 Enterprise / Server 2008 R2 DataCenter / Server 2012 R2
DataCenter / Server 2016 R2 DataCenter (x86 & x64)
Linux
- Ubuntu 12.04 / 14.04 / 16.04 (x86 & x64)
- Ubuntu 17.04 / 17.10 / 18.04 (x64)
- CentOS 6.5 / 7.2 (x86 & x64)
- Fedora 25 / 26 (x64)
- Red hat 6.5 (x86 & x64)
|
| Supported APIs |
Windows
- DirectShow
- DirectKS
- Wave API / DirectSound / WASAPI
Linux
|
| Suported Software |
- VLC
- VirtualDub
- OBS
- XSplit
- vMix
- VidBlaster
- Wirecast
- Microsoft Media Encoder
- Any other DirectShow / V4L2 / AVCaptureSession based encoding or streaming software
|

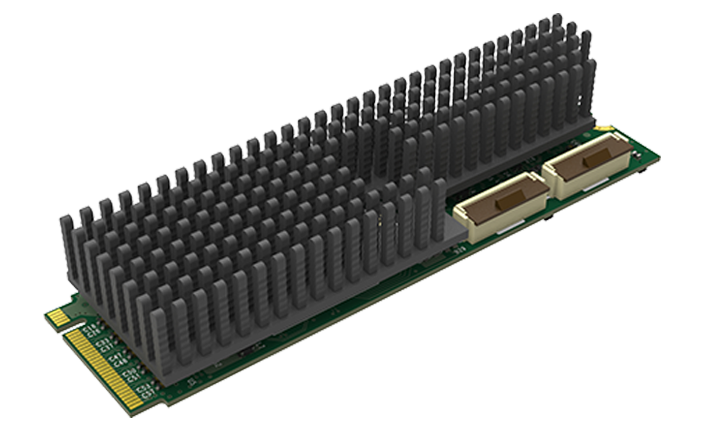

| Input Interfaces |
2x JST SHD 20-Pin socket (Part number: 11510)
2x FPC 20-Pin socket (Part number: 11514)
|
| Host Interface |
M.2 2280 Type M (PCIe Gen2 x4) |
| Input Features |
Support for input video resolutions up to 2048x2160 pixels |
| HDMI Specific Features |
- 165MHz HDMI receiver
- Adaptive HDMI equalizer, the HDMI transmission distance can be up to 30 meters
- Support for customized EDID
- Support for extraction of AVI / Audio / SPD / MS / VS / ACP / ISRC1 / ISRC2 / Gamut InfoFrames
- Full colorimetry support
- Support for 8 / 10 / 12-bit color depths
- Support for RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling
- Support for up to 8-channel IEC60958 / IEC61937 audio streams via SDK
- Support for extraction of audio formation information & channel status data
- Support for extraction of video timing information
- Support for extraction of 3D format information
- Support for extraction of Sony / Canon DSLR time code
- Support for Side-by-Side Half, Top-and-Bottom, Frame Packing 3D mode
|
| Video Capture Formats |
- Support for capture image resolutions up to 2048x2160 pixels
- Support for capture frame rates up to 144fps (Actual capture frame rate can be limited by PCIe
bandwidth. For the resolution of 1280x1024 and higher, the actual frame rate may be limited by
the
onboard video processing hardware pixel clock. For example, the maximum frame rate of 1920x1080
resolution can be up to 80fps.)
- Support for 4:2:0 8-bit capture formats: NV12, I420, YV12
- Support for 4:2:2 8-bit capture formats: YUY2, YUYV, UYVY
- Support for 4:4:4 8-bit capture formats: V308, IYU2, V408, BGR24, BGR32
- More capture formats are supported via SDK
|
| Video Processing Features |
- Video processing pipelines with ~180Mpixels / s processing bandwidth
- 8-bit 4:4:4 video processing
- Video scaling
- Video de-interlacing
- Weave
- Blend top & bottom field
- Video color format conversion
- Auto or manual selection of input color format & quantization range
- Auto or manual selection of capture color format, quantization range & saturation
range
- Support for RGB, YCbCr 601, YCbCr 709, YCbCr 2020 color formats
- Support for Limited or Full quantization range
- Support for Limited, Full & ‘Extended gamut’ saturation range
- Video frame rate conversion
|
| Multiple Cards per System |
- Support for multiple cards plugged to one system

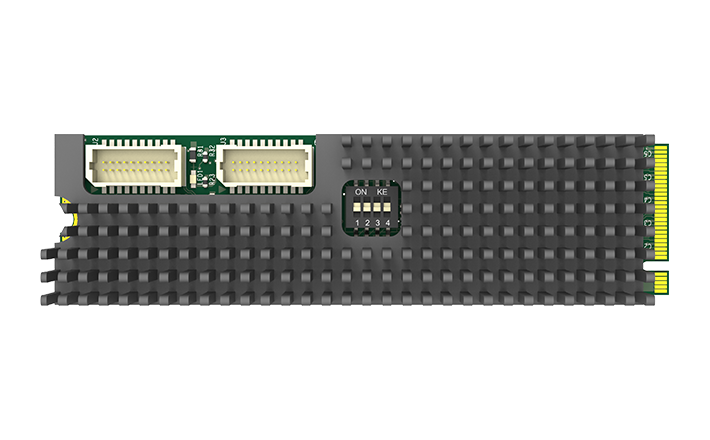

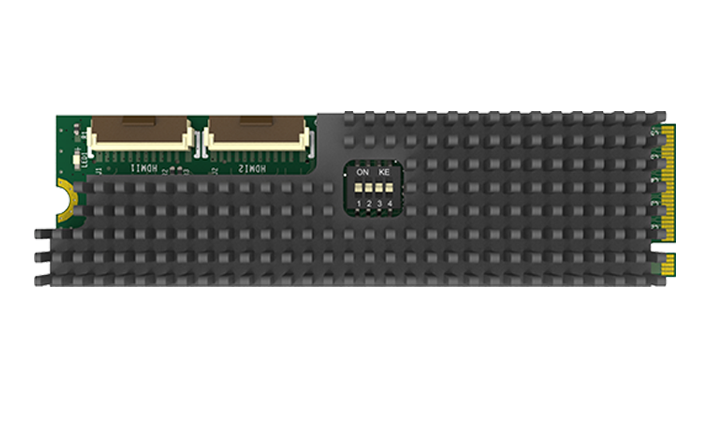

- On-board dip switch to set card number with 16 positions
- System hardware device tree will display “01: Eco Capture Dual HDMI M.2” when dip switch is set
to 0001,
and so on
- The video and audio device names displayed in your software will include the card number (set by
the dip
switch)
|
| Multiple Replicated Capture Streams |
Unlimited capture streams for any one input channel, but the capture streams should be in the same
capture
format. |
| Timestamp & A / V Synchronization |
- Hardware based 100ns high resolution clock
- Audio frames (192 audio samples) & video frames are stamped with hardware clock
- Hardware clock can be synchronized across cards (via SDK)
|
| Video Capture SG-DMA |
- ~700MB / s per channel DMA bandwidth in PCIe 2.x system
- ~400MB / s per channel DMA bandwidth in PCIe 1.x system
- Support for auto detection of Intel tiled GPU surface
- Support for DirectGMA for AMD video adapter chipsets
- Support for GPUDirect for Nvidia video adapter chipsets
|
| SDK |
- Magewell Capture SDK for DirectShow (Windows) or V4L2 (Linux) for easy integration
- Magewell Capture SDK for DirectKS (Windows) or ioctl (Linux) for maximum flexibility &
performance
|
| Windows Driver Tweaks |
- All options can be controlled by three levels of registry key: global level, product level and
device
level
- Video, Audio, Crossbar filter names can be customized via registry keys
|
| Firmware Upgrade |
- Multiple cards in one system can be upgraded simultaneously
- Cards can be upgraded without a system power shutdown (In most cases, even a reboot is not
needed)
- Safe upgrade. If power off or system break down occur when the firmware is being upgraded, it
will
automatically restore to the initial version. This function is only available for firmware
version 1.21
and above.
|
| LED Indicator |
Status LEDs indicate the working state of the device:
- Pulsing slowly: input signal unlocked
- On: input signal locked
- Double blinks: memory abnormal or FPGA configuration failed
- Off: firmware or power supply abnormal
|

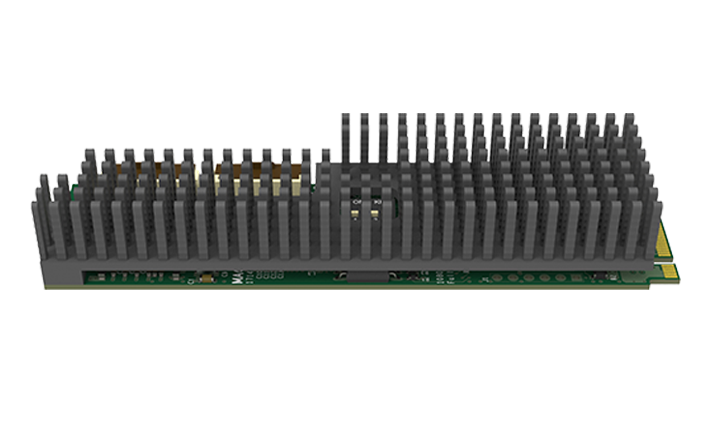

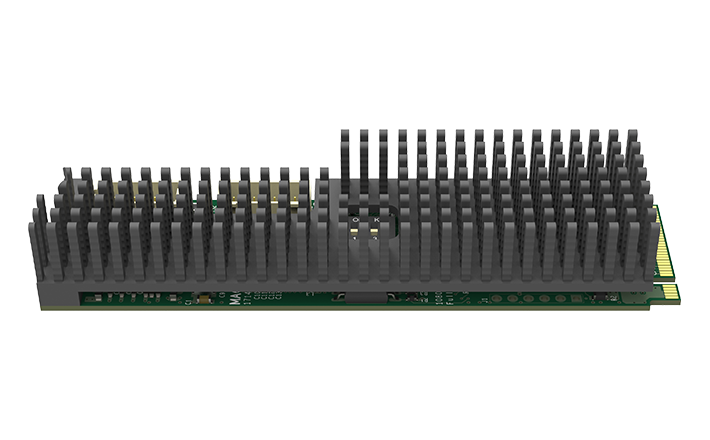

| Form Factor |
M.2 2280 standard size |
| Accessories |
- 2 X SHD to HDMI type A cables (31cm) (Part number: 11510)
- 2 X FPC ribbon cables (Part number: 11514)
- 2 X FPC to HDMI type A adapters (Part number: 11514)
|
| Power Consumption |
- Max current at 3.3V: ~ 1.25 A
- Max power consumption: ~4.17 W
|
| Working Environment |
- Operating temperature: 0 to 40 deg C
- Storage temperature: –20 to 70 deg C
- Relative Humidity: 5% to 90% non-condensing
|
