Eco Capture 12G SDI 4K Plus M.2

Single channel 4Kp60 capture card

Captures 1-channel single-link 12G SDI or quad-link 3G SDI + embedded audio
High throughout for capture and supports higher frame rates
M.2 2280 standard size for small or portable systems

Eco Capture 12G SDI 4K Plus M.2

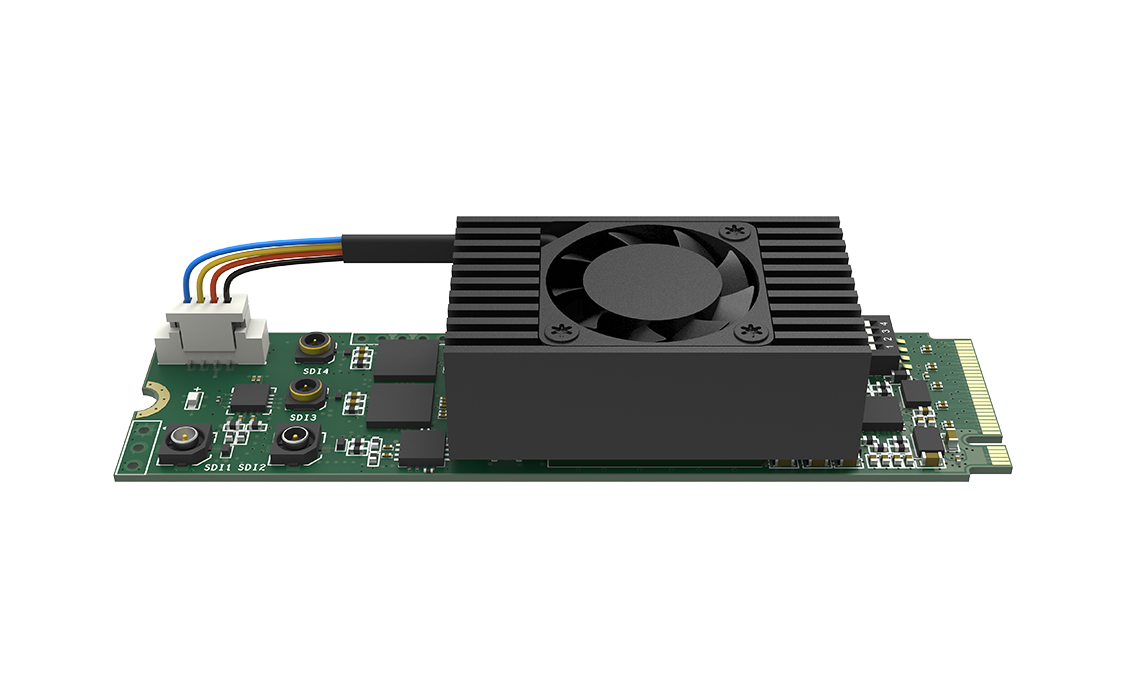

1 (7)

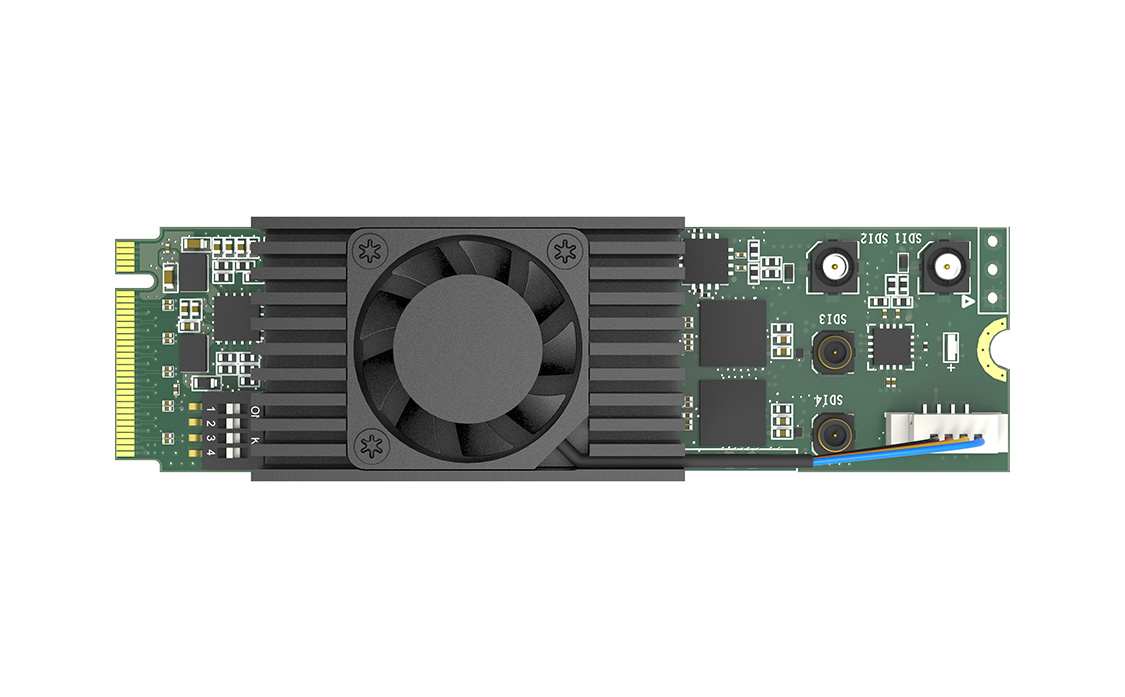

2 (8)

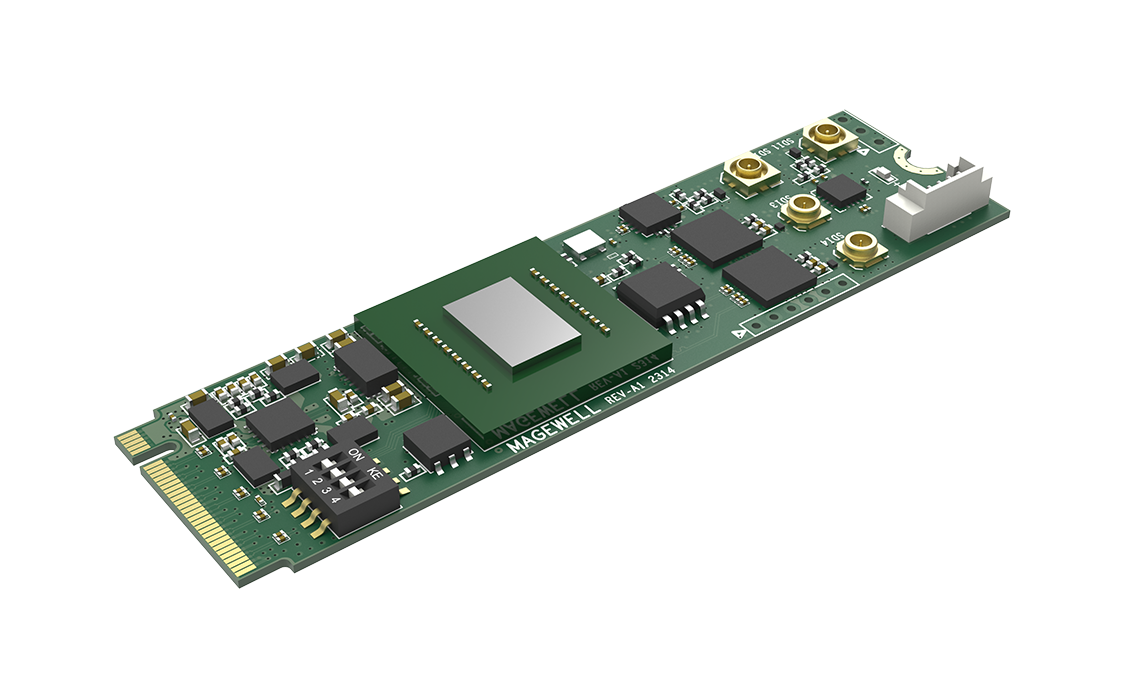

0 (2)

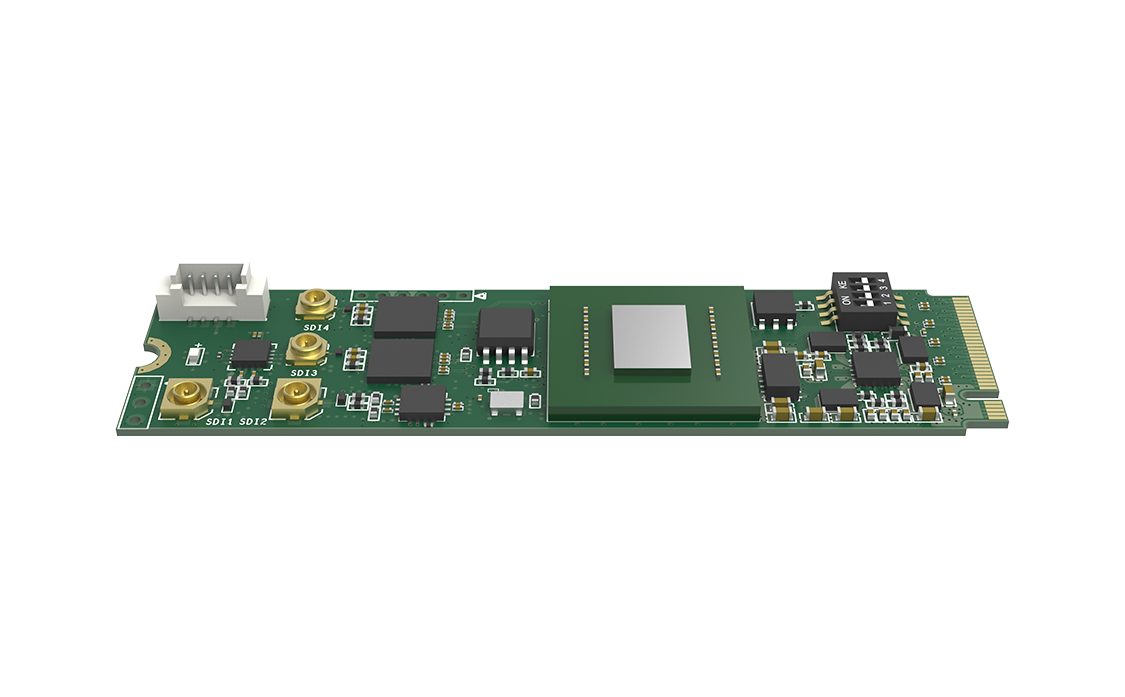

1 (6)

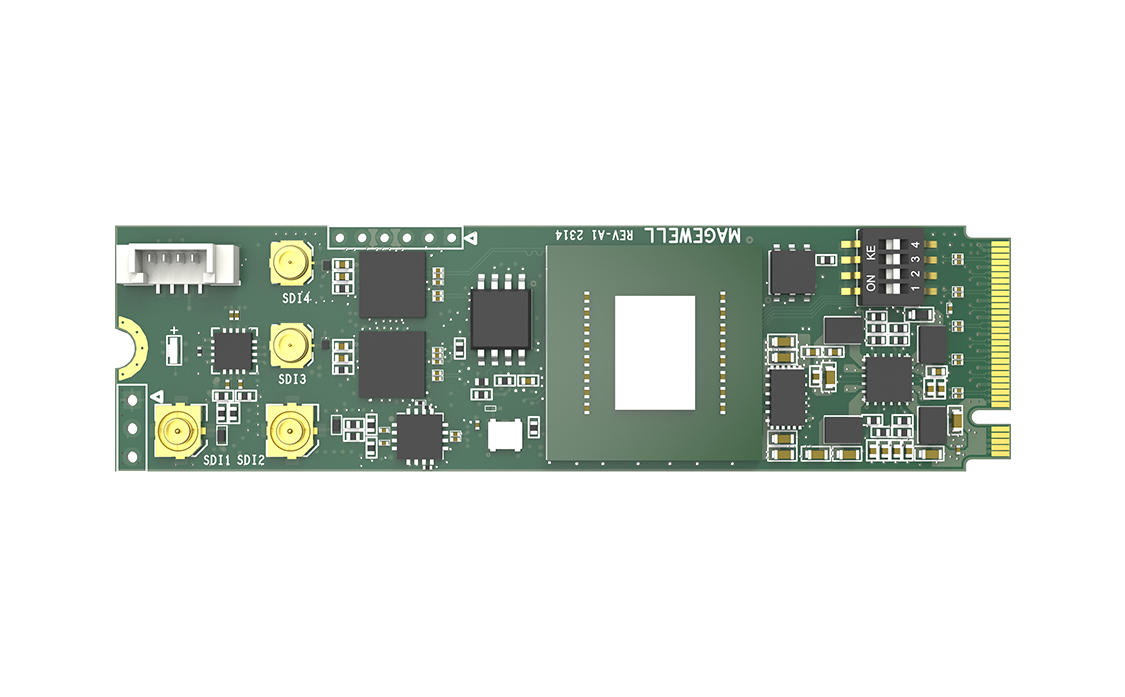

2 (7)

Interface

Specifications and Features

Features

Interface

Input Interface
- SD/HD/3G/6G/12G SDI
- Supports input resolution up to 4096x2160 60fps
Host Interface
- M.2 2280 Type M (PCIe Gen3 x4)

Encoding Features

Auto detection of input signal format
Color formats conversion
Low latency mode
SG-DMA transmission mode
Multiple replicated capture streams
Closed caption (SDK required)

Software

Window & Linux driver and SDK
Upgradable firmware
Compatible with Capture Express , Magewell Bridge for NDI® , Plugin for Premiere®

Others

2-year warranty
Continuously work for 24hx7
LED status indicator
Multiple devices on one host
On-board dip switch to set card number

Details

Input Features	Max input at 4096x2160 60fps 4:2:2 10-bit Input single SD / HD / 3G / 6G / 12G SDI, dual 6G-SDI to 12G-SDI , or quad 3G-SDI to 12G-SDI SD (ST 259) / HD (ST 292) / 3Ga (ST 425) / 3Gb-DL (ST 425) / 3Gb-DS (ST 425) / 6G (ST 2081) / 12G (ST 2082) standard Support for 4K (4096x2160) mode Up to 8-channel 48KHz embedded audio Input SDI signals transmitted up to 75m for 12G-SDI, 80m for 6G-SDI, 200m for 3G-SDI, 430m for SD signal Support for Closed Caption via SDK
Process and Capture Features	Video processing pipelines with ~700Mpixels/s processing bandwidth ~2400MB / s per channel DMA bandwidth in PCIe 3.x system ~1600MB / s per channel DMA bandwidth in PCIe 2.x system ~800MB / s per channel DMA bandwidth in PCIe 1.x system Capture videos up to 4096x2160, frame rates up to 240fps. Typical outputs include (actual capture frame rate can be limited by the PCIe bandwidth and internal working frequency.): 4096x2160p 5 / 10 / 15 / 25 / 29.97 / 30 / 50 / 60 3840x2160p 5 / 10 / 15 / 25 / 29.97 / 30 / 50 / 60 1920x1080p 5 / 10 / 15 / 25 / 29.97 / 30 / 50 / 60 / 120 1280x720p 5 / 10 / 15 / 25 / 29.97 / 30 / 50 / 60 / 120 etc. Output NV12 / I420 / YUYV / UYVY / RGB24 / RGB32 videos Support custom output formats using Magewell Capture SDK Support custom EDID, up / down scaling, de-interlacing, color space conversion and frame rate conversion Multiple capture streams, unlimited capture streams for any one input channel Support timestamp & A/V synchronization Hardware based 100ns high resolution clock Audio frames (192 audio samples) & video frames are stamped with hardware clock Hardware clock can be synchronized across cards (via SDK) Support extraction of SMPTE timecode using SDK Support extracting ANC metadata for custom DID / SDID Support firmware upgrade
SDK & APIs	The MWCapture SDK provides functions including signal status extraction, capture configuration and real-time audio & video capture, etc Windows DirectShow / DirectKS / Wave API / DirectSound / WASAPI Linux V4L2 / ALSA
Supported OS	Windows 10 / 11 / Server 2016 (x86 & x64) and above Linux (x86, x64 & ARM architecture)
Input Interfaces	2 x SD / HD / 3G-SDI 2 x SD / HD / 3G / 6G / 12G-SDI
Host Interfaces	M.2 2280 Type M (PCIe Gen3 x4)
Suported Software	VLC VirtualDub OBS XSplit vMix VidBlaster Wirecast Microsoft Media Encoder Any other DirectShow / V4L2 / AVCaptureSession based encoding or streaming software
LED Indicator	Status LEDs indicate the working state of the device: Pulsing slowly: input signal unlocked On: input signal locked Double blinks: memory abnormal or FPGA configuration failed Off: firmware or power supply abnormal
Form Factor	M.2 2280 standard size (22 x 80 mm)
Accessories	2 x 3G BNC (Part number: ELE00018) 2 x 3G H.FL75–2LPG–084N2-A–140 (14cm) (Part number: ELE00019) 2 x 12G DFL75–2LPP–084N9D-A–140 (14cm) (Part number: ACC10020) 2 x 12G BNC (Part number: ACC10021)
Power Consumption	Max current at 3.3V: ~ 1.96 A Max power consumption: ~6.5 W
Working Environment	Operating temperature: 0 to 40 deg C Storage temperature: –20 to 70 deg C Relative Humidity: 5% to 90% non-condensing

Accessory

Included

2 x 3G BNC Connector
Part number: ELE00018

2 x 3G SDI Cable
Part number: ELE00019

2 x 12G SDI Cable
Part number: ACC10020

2 x 12G BNC Connector
Part number: ACC10021
