Eco Capture AIO M.2

One-channel 2K capture card for all-in-one interfaces

Support one-channel 2K HDMI/SDI input with embedded audio
M.2 2280 standard size for small or portable chassis

Eco Capture AIO M.2

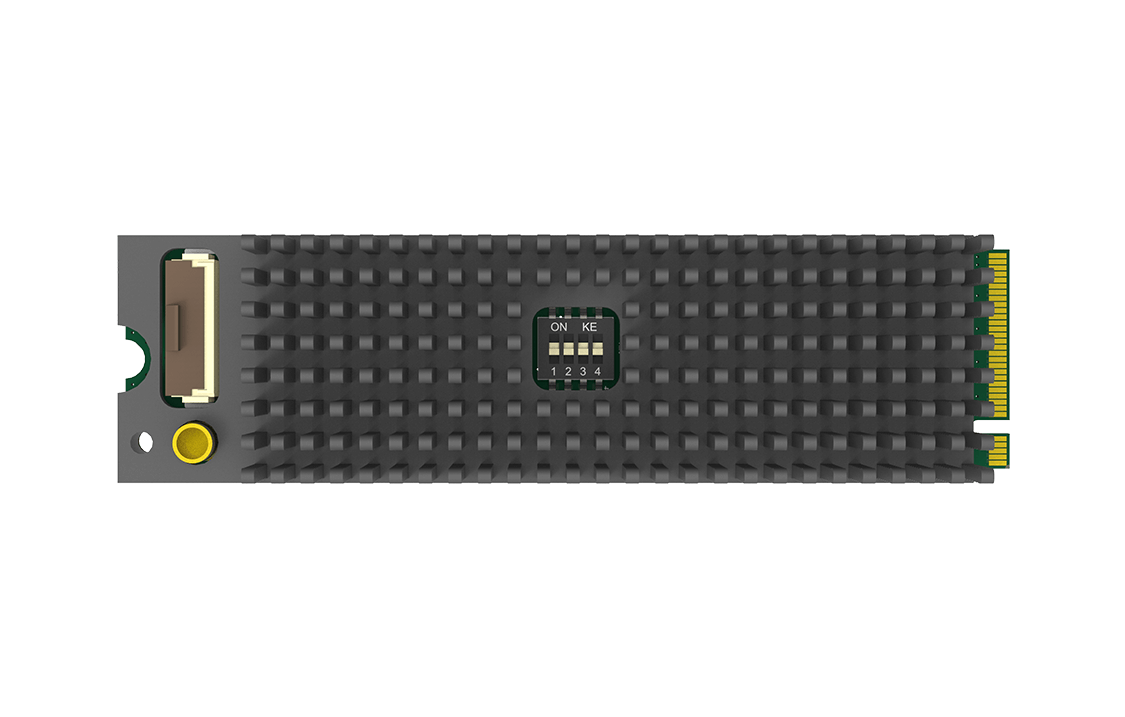

eco_capture_aio_m2_2

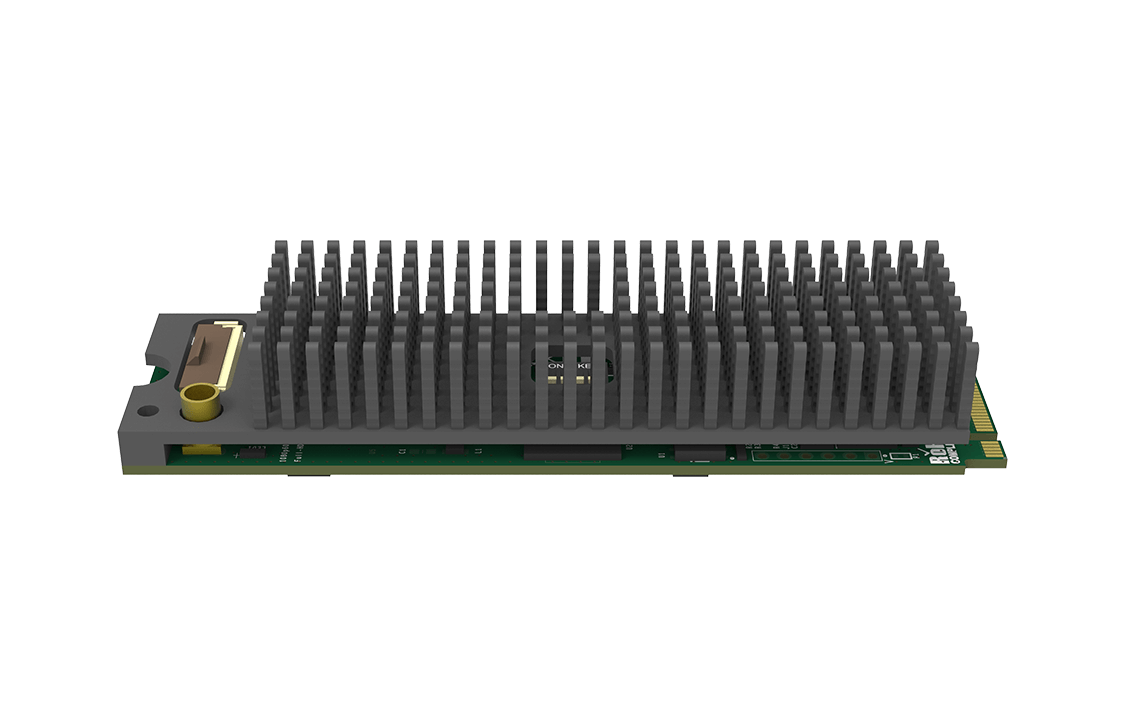

eco_capture_aio_m2_4

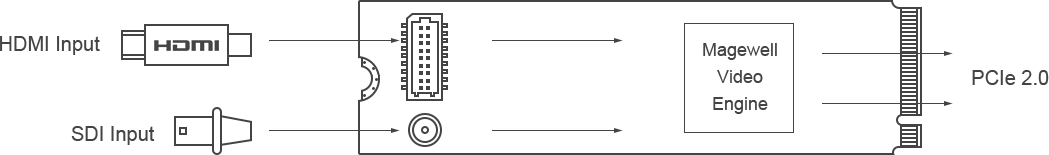

Interface

Specifications and Features

Features

Interface

Input Interface
- HDMI x1, with input resolution up to 2048 x 1080 pixels
- SD/HD/3G/2K SDI x1, with input resolution up to 2048 x 1080 pixels
Host Interface
- M.2 2280 Type M (PCIe Gen2 x2)

Encoding Features

Auto detection of input signal format
Color formats conversion
Low latency mode
SG-DMA transmission mode
Multiple replicated capture streams
Closed caption (SDK required)

Software

Window & Linux driver and SDK
Upgradable firmware
Compatible with Capture Express , Magewell Bridge for NDI® , Plugin for Premiere®

Others

2-year warranty
Continuously work for 24hx7
LED status indicator
Multiple devices on one host
On-board dip switch to set card number

Details

Input Signal	HDMI 1.4a (via an accessory cable) SD / HD / 3G SDI (via an accessory cable)
HDMI Input Features	165MHz HDMI receiver, max input: 2048x1080 60fps 4:4:4 Custom EDID Input RGB / YCbCr 4:4:4 8 / 10 / 12-bit, YCbCr 4:2:2 8 / 10 / 12-bit Up to 8-channel 24-bit HDMI-embedded audio at 192kHz HDMI interface: HDMI 1.4a
SDI Input Features	Max input: 2048x1080 60fps 4:2:2 10bit Up to 8-channel 48KHz embedded audio SD (ST 259) / HD (ST 292) / 3Ga (ST 425) / 3Gb-DL (ST 425) / 3Gb-DS (ST 425) standard Input RGB 4:4:4 / YCbCr 4:4:4 / YCbCr 4:2:2 10 / 12-bit Input SDI signals transmitted up to 110m for 3G-SDI signals Support Closed Caption via SDK
CVBS Input Features	12-bit ADC Support NTSC, PAL and SECAM standard Auto-detect input signal
Process and Capture Features	~700MB / s per channel DMA bandwidth in PCIe 2.x system ~400MB / s per channel DMA bandwidth in PCIe 1.x system Video processing pipelines with ~180Mpixels/s processing bandwidth Capture videos up to 2048x1080, frame rates up to 144fps HDMI outputs include (actual capture frame rate can be limited by the PCIe bandwidth and internal working frequency.): 2048x1080p60 1920x1080p 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 / 75 1280x720p 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 / 100 / 119.88 / 120 720x576p25 720x480p30 SDI outputs include (actual capture frame rate can be limited by the PCIe bandwidth and internal working frequency.): 2048x1080p60 1920x1080p / 1280x720p 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 720x576p25 720x480p30 Support for RGB / YCbCr 601 / YCbCr 709 / YCbCr 2020 Support video scaling, de-interlacing, color format conversion, frame rate conversion Output videos at 8-bit 4:4:4 100ns high-resolution clock based on hardware implementation Hardware clock synchronization across cards via SDK
SDK & APIs	The MWCapture SDK provides functions including signal status extraction, capture configuration and real-time audio & video capture, etc Windows DirectShow / Wave API / DirectSound / WASAPI Linux V4L2 / ALSA
Output Interfaces	M.2 2280 Type M (PCIe Gen2 x2)
Recommended OS	Windows 7 Ultimate / 8.1 Enterprise / 10 Enterprise / Server 2008 R2 DataCenter / Server 2012 R2 DataCenter / Server 2016 R2 DataCenter (x86 & x64) and above Linux x86, x64 & ARM architecture, with 2.6.35 and above
Compatible Software	VLC VirtualDub OBS XSplit vMix VidBlaster Wirecast Microsoft Media Encoder Any other DirectShow / V4L2 / AVCaptureSession based encoding or streaming software
LED Indicator	Status LEDs indicate the working state of the device: Pulsing slowly: input signal unlocked On: input signal locked Double blinks: memory abnormal or FPGA configuration failed Off: firmware or power supply abnormal
Form Factor	M.2 Type–2280 (22 x 80 mm)
Accessories	1 x FPC ribbon cables (Part number: 11514) 1 x FPC to HDMI type A adapter (Part number: 11514) 1 x MMCX to BNC cable
Power Consumption	5V max current: ~0.89 mA Max power consumption: ~2.94 W
Working Environment	Operating temperature: 0 to 40 deg C Storage temperature: –20 to 70 deg C Relative Humidity: 5% to 90% non-condensing

Accessory

Included

1 x FPC to HDMI type A adapter
Part number: 90092

1 x FPC ribbon cable (20 cm)
Part number: ACC00093

1 x MMCX to SDI breakout
Part number: ACC00052
