1080p60 high-definition image
12x/20x optical zoom
USB & HDMI simultaneously output
Power via USB-C
Easy deployment and easy control
1080p60 high-definition image
12x/20x optical zoom
USB & HDMI simultaneously output
Power via USB-C
Easy deployment and easy control
The Meet+ 12/20 integrates advanced image processing technology and cutting-edge algorithms to deliver exceptional clarity. It features a Panasonic 1/2.8-inch sensor, which captures vibrant and detailed visuals. Coupled with a high-quality lens, this camera outputs stunning 1080p60 Full HD resolution, ensuring every video is sharp and true-to-life.
Simultaneous USB and HDMI output allows you to connect to multiple devices at once, providing seamless integration into diverse setups. Whether in a boardroom, classroom, or live production environment, this dual output capability enhances your workflow and expands your presentation capabilities.
The Meet+ 12/20 powers directly via a USB-C port, eliminating the need for a power supply adaptor. This simplifies deployment with a single cable for power, video, and control.
With a 20X optical zoom lens and a 60-degree field of view, the Drive+ SE ensures rapid, accurate focus with its proprietary algorithm. Capture every detail effortlessly, whether zooming in or panning.
The Meet+ 12/20 webcam features USB 2.0 video output for smooth visuals and fast plug-and-play functionality. No need to fiddle with drivers or software – simply connect it to your computer’s USB port, and it will be automatically recognized as your video and audio source for virtual meetings. Enjoy seamless video conferencing right out of the box.

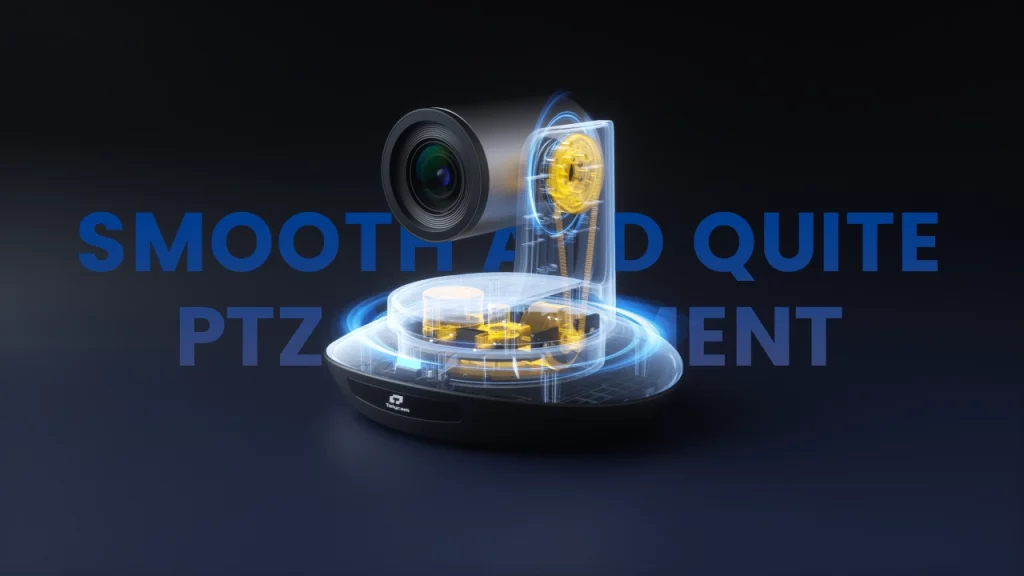

Thanks to the compact and sophisticated mechanism design, and accurate driven algorithms, Meet+ 12/20 can move very smoothly without noise at variable pan/tilt/zoom speed.
The Meet+ 12/20 webcam features USB 2.0 video output for smooth visuals and fast plug-and-play functionality. No need to fiddle with drivers or software – simply connect it to your computer’s USB port, and it will be automatically recognized as your video and audio source for virtual meetings. Enjoy seamless video conferencing right out of the box.
| Meet+ 12 | |
| Part NO. | TLC-300-HU2-12 |
| Sensor | 1/2.8 inch, 2.4MP CMOS sensor |
| Zoom | 12X optical zoom + 12X digital zoom |
| Lens | f = 3.92~47.32mm, F1.8-2.8 |
| Horizontal View Angle | 72.5° (wide) ~ 6.3° (tele) |
| Vertical View Angle | 42.72° ~ 3.66° |
| Diagonal View Angle | 78.58° ~ 7.42° |
| Minimum Working Distance |
|
| S/N Ratio | ≥50dB |
| Meet+ 20 | |
| Part NO. | TLC-300-HU2-20 |
| Sensor | 1/2.8 inch, 2.4MP CMOS sensor |
| Zoom | 20X optical zoom + 12X digital zoom |
| Lens | f = 4.9~98mm, F1.5-3.0 |
| Horizontal View Angle | 60° (wide) ~ 3.2° (tele) |
| Vertical View Angle | 32.2° ~ 1.8° |
| Diagonal View Angle | 61° ~ 3.64° |
| Minimum Working Distance |
|
| S/N Ratio | ≥50dB |
| Image Parameters | |
| Noise Reduction | 2D&3D |
| Minimum lux | 0.7 Lux (50 IRE Max AGC, 1/30, F1.8) |
| White Balance | Auto / Manual / Indoor / Outdoor / C.T. / PUSH |
| Exposure | Auto / Manual / Shutter Priority / Iris Priority / Brightness Priority |
| Anti-flicker | OFF, 50Hz, 60Hz |
| Image Flip/Mirroring | Supported |
| Focus/Iris/Electronic-shutter | Auto / Manual |
| Gamma | Supported |
| WDR | Supported |
| Video Format | |
| HDMI |
|
| USB 2.0 Type-C |
MJPG
YUY2
|
| Pan/Tile Movement | |
| Preset |
|
| Pan Rotation Angle | -170°~+170° |
| Tilt Rotation Angle | -30°~+90° |
| Pan Rotation Speed | 0.1°~120°/s |
| Tilt Rotation Speed | 0.1°~80°/s |
| General | |
| Input Voltage |
|
| Power Consumption | DC: 12V 2A (Pmax = 8W) |
| Operating Temperature | -10°C ~ 50°C |
| Operating Humidity | ≤80% |
| Dimension (L×W×H) | 220mm x 190mm x 173mm |
| Net Weight | 1.25kg (2.8LBS) |
| Color | Silver |
| Accessory |
|
