4K60 UHD resolution
20x optical zoom
Dual Smart Tracking Modes
Local Recording via microSD
Built-in tally lights
3.5mm line-in & Mini XLR with phantom power
NDI®HX3/HDMI/USB 2.0 Available
Power over Ethernet
4K60 UHD resolution
20x optical zoom
Dual Smart Tracking Modes
Local Recording via microSD
Built-in tally lights
3.5mm line-in & Mini XLR with phantom power
NDI®HX3/HDMI/USB 2.0 Available
Power over Ethernet
Equipped with cutting-edge image processor, Vision+ 4KZ outputs 4Kp60/59.94 video for clear, sharp, lifelike images even in low-light environments.

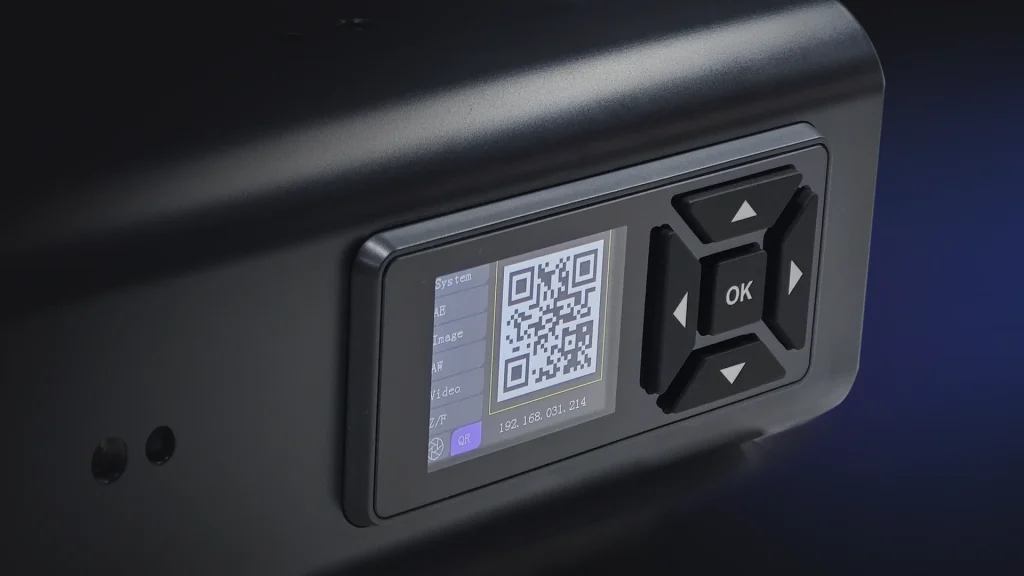

Quickly access and adjust essential image parameters and view the IP address directly on the camera’s side panel, streamlining your workflow.
When outputting at 1080P or lower resolutions, the IP sub-stream (supporting RTSP/RTMP/SRT/NDI protocols) enables CROP output, allowing seamless switching between panoramic and CROP views via HDMI/USB interfaces.
In CROP mode, two intelligent tracking options are available: Auto Framing and Auto Tracking. Auto Framing dynamically adjusts the frame to keep the subject perfectly centered. Auto Tracking uses advanced AI algorithms to identify and follow the subject even in complex environments.

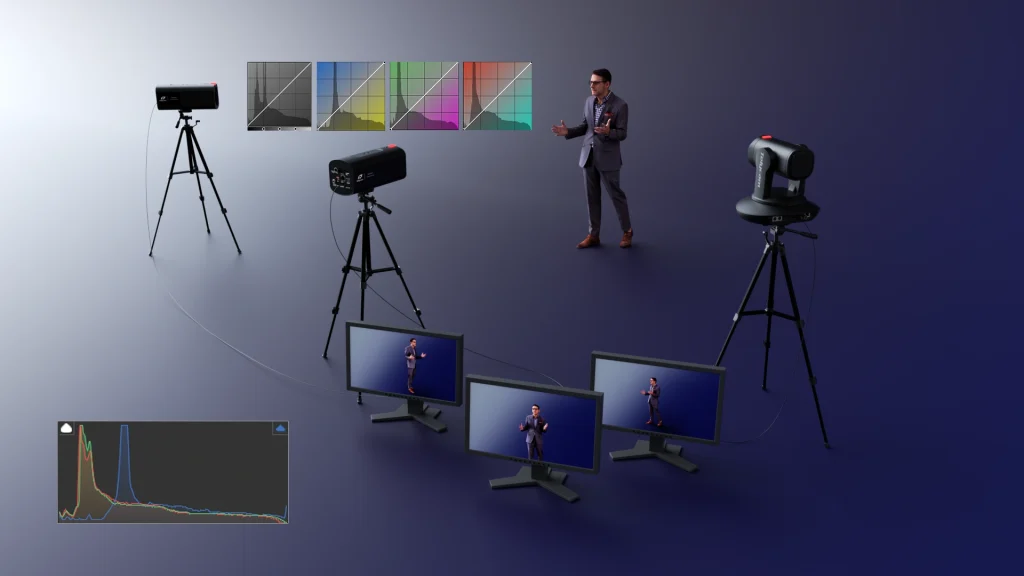

The Vision+ 4KZ box camera is designed to solve a common challenge in multi-camera productions—color and visual inconsistency when switching between cameras. By using the same high-quality lens, sensor, and image processor as the Vision+ 4KN 20x PTZ camera, the Vision+ 4KZ ensures seamless color matching and a consistent look across both fixed and PTZ setups.
The Vision+ 4KZ offers 20X optical zoom options with FOV of 60°. Its advanced focusing algorithm ensures rapid and accurate focus even during zoom or movement.

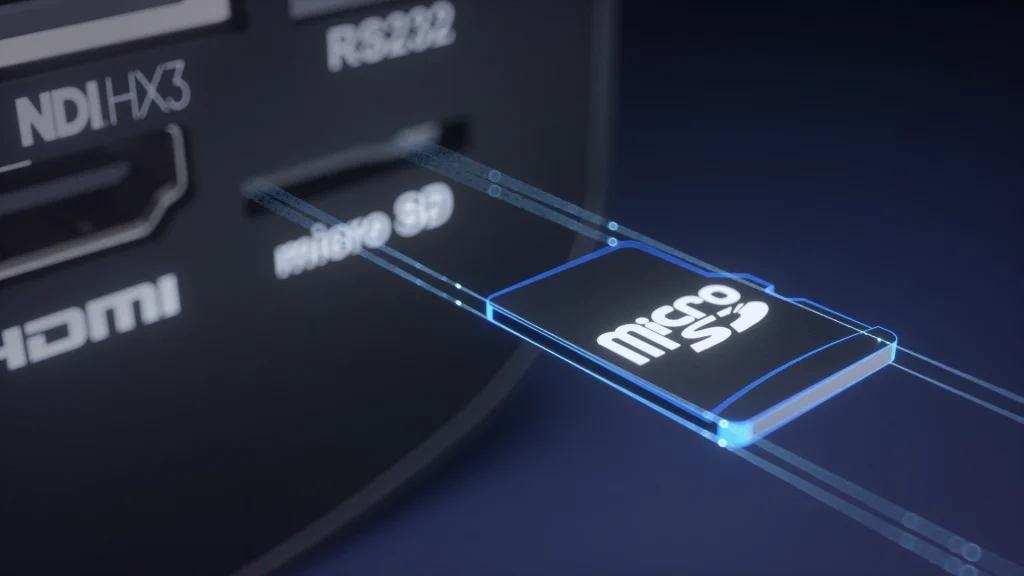

Vision+ 4KZ empowers you with in-camera recording via a microSD card slot. Simply insert a Micro SD Card for local recording, providing instant backup during network issues, quick access for event review, and readily available files for upload to your preferred cloud platform. This versatile recording solution ensures peace of mind and streamlines your cloud production process.

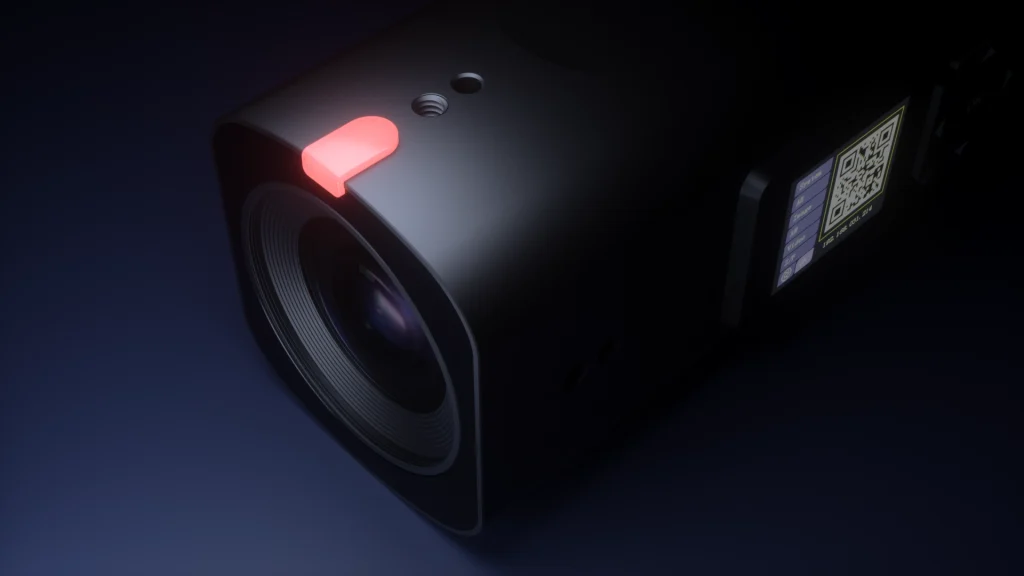

Tally light, a visible indicator typically in red LED, illuminates to signal when the camera is live and actively feeding its image output.
Vision+ 4KZ features built-in tally lights that work with NDI. This intuitive feature receives signals directly from NDI, without the need for separate tally control systems. A bright LED illuminates to clearly indicate which camera is currently on-air (“Program”) and which is lined up for the next transition (“Preview”).

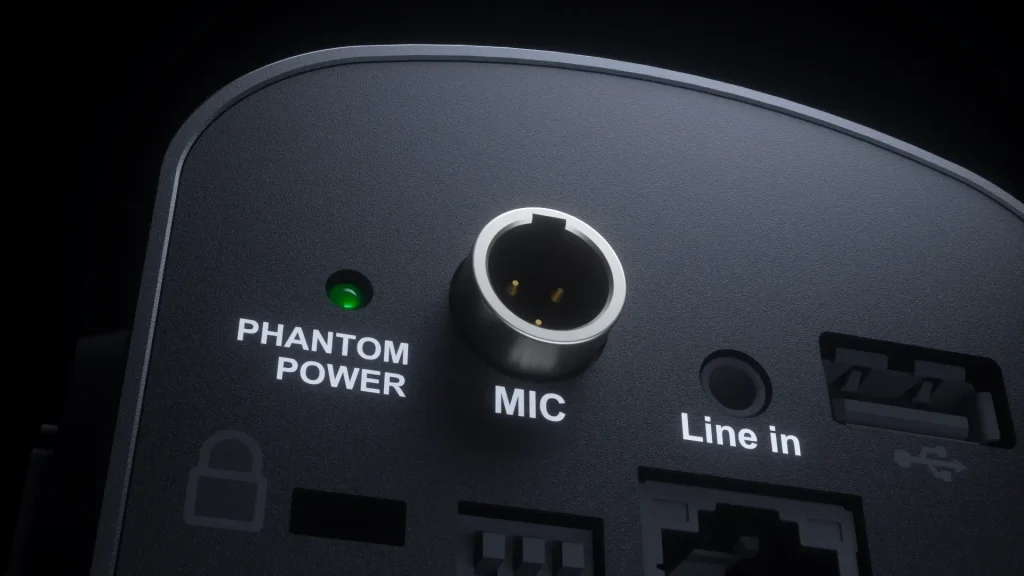

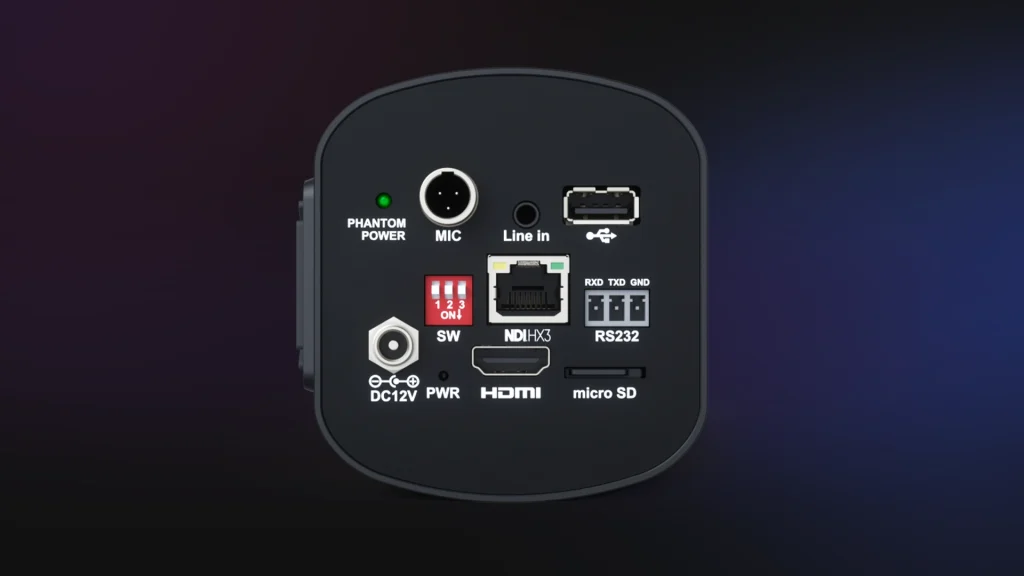

The Vision+ 4KZ features 3.5mm line-in and Mini XLR with Phantom power, providing compatibility with various microphones and audio equipment.
In addition to NDI®HX3, Vision+ 4KZ simultaneously outputs images via HDMI, and USB 2.0. HDMI is for transitional video production, while the USB output can function as a high-end webcam.
Setting up your Telycam PTZ camera has never been easier, thanks to SSDP integration. This feature streamlines the process of finding your camera’s IP address, especially under multi-camera streaming, eliminating the need for complicated searches or additional tools. Simply connect your camera with an Ethernet cable, ensuring it’s on the same local network with your computer.
| Camera | |
| Part NO. | TLC-600-IP-20-4K(NDI)-AB |
| Sensor | 1/1.8-inch, 9MP UHD CMOS sensor |
| Zoom | 20X optical zoom |
| Lens | f = 6.25mm ~ 112.5mm, F1.58 ~ F3.96 |
| Horizontal View Angle | 61° (Wide) ~ 3.5° (Tele) |
| Vertical View Angle | 34.1° ~ 1.9° |
| Diagonal View Angle | 60.7°~3.5° |
| Minimum Working Distance | 1.0m |
| S/N Ratio | ≥50dB |
| Image Parameters | |
| Noise Reduction | 2D&3D |
| Minimum lux | 0.5 Lux (50 IRE Max AGC, 1/30, F1.8) |
| White Balance | Auto / Manual / Auto tracking / Push / Indoor / Outdoor / Color Temperature |
| Exposure | Auto / Manual / Shutter Priority / Iris Priority / Brightness Priority |
| Anti-flicker | OFF, 50Hz, 60Hz |
| Image Flip/Mirroring | Supported |
| Focus/Iris/Electronic-shutter | Auto / Manual |
| Gamma | Supported |
| Backlight Compensation | Supported |
| Video Format | |
| HDMI 2.0 |
|
| NDI®HX3 |
Main Stream
Sub Stream (Crop)
|
| USB Type-C |
NV12
YUYV
MJPG
|
| IP Streaming | |
| Video Encoding | H.264/H.265 |
| Bitrate control | Variable bitrate(VBR), Constant bitrate(CBR) |
| Bitrate Range | 1024Kbps~122800Kbps |
| Network Port Speed | 1000M |
| Protocol | NDI®HX3, SRT, HTTP, RTSP, RTMP, ONVIF, VISCA over IP (TCP&UDP), VISCA, PELCO P/D, SSDP, NTP, RTP Multicast, WebRTC |
| I/O Interface | |
| Control Port | RS232 (RS485), RJ45 |
| Video Port | NDI®HX3, HDMI2.0, USB Type-C |
| Audio Port | Stereo 3.5mm linear inputs, mini XLR |
| Tally | Supported |
| POE+ | Supported |
| General | |
| Input Voltage | DC12V, POE+(IEEE802.3bt) |
| Operating Temperature | -10°C ~ 50°C |
| Operating Humidity | ≤80% |
| Dimension (L×W×H) | 82mm × 85.3mm × 186.5mm |
| Net Weight | 0.95kg (2.09LBS) |
| Color | Black |
