4K60 video resolution
12x optical zoom
Enhanced Reality with FreeD
Built-in auto tracking function
NDI®|HX / 3G-SDI / USB-C video interface
Intuitive Tally System
Power over Ethernet
4K60 video resolution
12x optical zoom
Enhanced Reality with FreeD
Built-in auto tracking function
NDI®|HX / 3G-SDI / USB-C video interface
Intuitive Tally System
Power over Ethernet

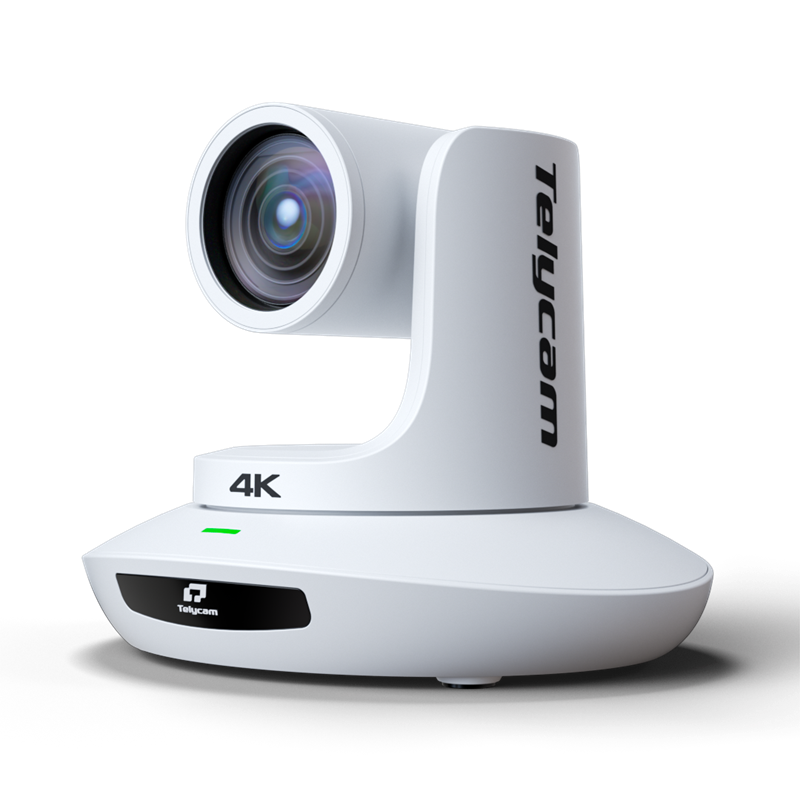

Equipped with cutting-edge image processor, Vision+ SE outputs 4Kp60/59.94 video for clear, sharp, lifelike images even in low-light environments.

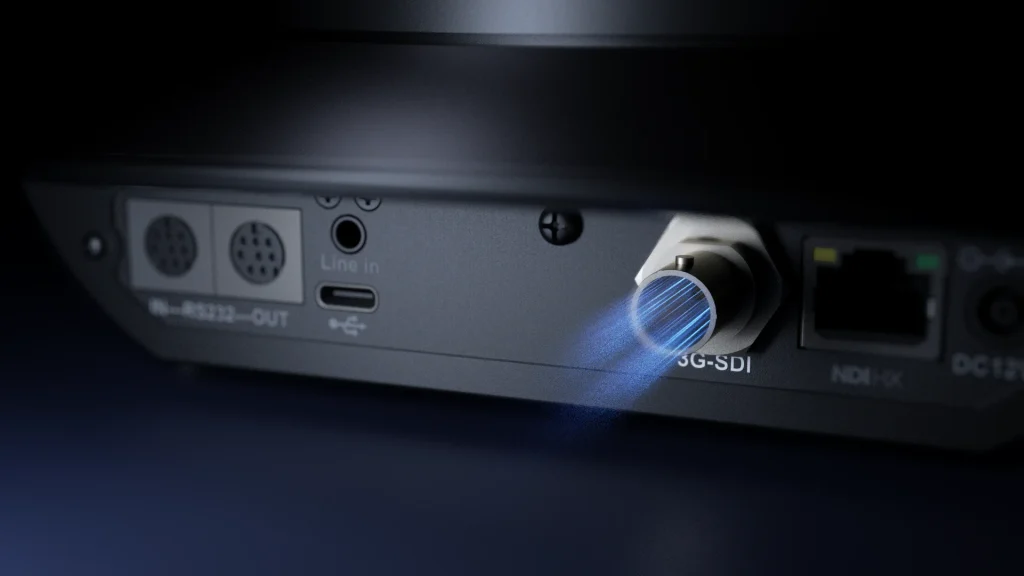

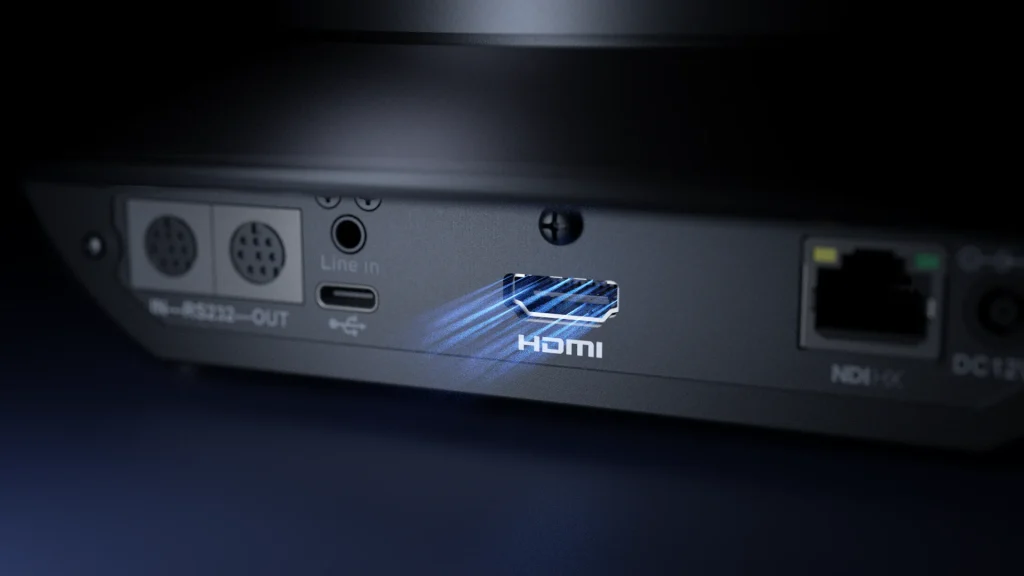

Vision+ SE is available with a choice of 3G-SDI or HDMI output for seamless integration while keeping your budget in mind. 3G-SDI offers uncompressed, high-bandwidth video, while HDMI allows for convenient connection to various display devices. Choose the connection that best suits your existing infrastructure without compromising on high-quality video capture.
The Vision+ SE’s NDI®HX connectivity simplifies setup, enables centralized control, and ensures compatibility with various equipment. This streamlines production workflows and reduces costs.
With a 4K 12X optical zoom and an expansive 80.5-degree FOV, coupled with a custom focusing algorithm, every zoom and pan translates to a journey through intricate details.
FreeD is a protocol that enables precise transmission of Pan, Tilt, Zoom, and Focus (PTZF) data directly from the camera to tracking system. Widely supported by most virtual set systems, FreeD makes virtual productions easier than ever. The Vision+ SE seamlessly integrates FreeD technology, empowering users to explore dynamic shooting angles and perspectives, ideal for versatile real-world and virtual-world applications. Vision+ SE’s broad compatibility with industry-leading virtual set systems like Brainstorm, Vizrt, Zero Density, Aximmetry, Unreal Engine, and VSet3D ensures a smooth workflow for all your virtual production needs.
Tally light, a visible indicator typically in red LED, illuminates to signal when the camera is live and actively feeding its image output.
Vision+ SE series features built-in tally lights that work with NDI. This intuitive feature receives signals directly from NDI, without the need for separate tally control systems. A bright LED illuminates to clearly indicate which camera is currently on-air (“Program”) and which is lined up for the next transition (“Preview”).
The Vision+ 4KN features a 3.5mm stereo line-in audio interface, allowing for direct connection of external audio sources. This ensures high-quality, synchronized audio alongside your video feed, enhancing overall production quality. The line-in supports various audio devices, providing flexibility and convenience for professional broadcasting and video production.
Setting up your Telycam PTZ camera has never been easier, thanks to SSDP integration. This feature streamlines the process of finding your camera’s IP address, especially under multi-camera streaming, eliminating the need for complicated searches or additional tools. Simply connect your camera with an Ethernet cable, ensuring it’s on the same local network with your computer.
The Vision+ SE features AI-based auto-tracking, automatically following subjects to enhance ease of use and capture the moments flawlessly.
| Camera | |
| Part NO. |
|
| Sensor | 1/2.8 inch, 9MP UHD CMOS sensor |
| Zoom | 12X optical zoom |
| Lens | f = 3.4mm~40.3 mm, F1.8~F3.6 |
| Horizontal View Angle | 80.5° (Wide) ~ 7.6° (Tele) |
| Vertical View Angle | 50.0° ~ 4.4° |
| Diagonal View Angle | 88.9° ~ 8.7° |
| Minimum Working Distance |
|
| S/N Ratio | ≥50dB |
| Image Parameters | |
| Noise Reduction | 2D&3D |
| Minimum lux | 0.5 Lux (50 IRE Max AGC, 1/30, F1.8) |
| White Balance | Auto / Manual / ATW / Push / Indoor / Outdoor / Color Temperature |
| Exposure | Auto / Manual / Shutter Priority / Iris Priority / Brightness Priority |
| Anti-flicker | OFF, 50Hz, 60Hz |
| Image Flip/Mirroring | Supported |
| Focus/Iris/Electronic-shutter | Auto / Manual |
| Gamma | Supported |
| Backlight Compensation | Supported |
| Video Format | |
| NDI®HX3 |
Main Stream
Sub Stream
|
| 3G-SDI |
|
| HDMI |
|
| USB Type-C |
NV12
YUYV
MJPG
H264/H265
|
| IP Streaming | |
| Video Encoding | H.264/H.265 |
| Bitrate control | Variable bitrate(VBR), Constant bitrate(CBR) |
| Bitrate Range | 1024Kbps~122800Kbps |
| Network Port Speed | 1000M |
| Protocol | NDI®HX3, SRT, HTTP, RTSP, RTMP, ONVIF, VISCA over IP(TCP&UDP), VISCA, PELCO P/D, SSDP, FreeD, NTP, RTP Multicast, WebRTC |
| Pan/Tile Movement | |
| Preset |
|
| Pan Rotation Angle | -170°~+170° |
| Tilt Rotation Angle | -30°~+90° |
| Pan Rotation Speed | 0.1°~120°/s |
| Tilt Rotation Speed | 0.1°~80°/s |
| I/O Interface | |
| Control Port | RS232 (RS485), NDI®HX |
| Video Port |
|
| Audio Port | Stereo 3.5mm linear inputs |
| Tally | Supported |
| POE+ | Supported |
| Daisy Chain | Supported |
| General | |
| Input Voltage | DC12V, POE+ (IEEE802.3at) |
| Operating Temperature | -10°C ~ 50°C |
| Operating Humidity | ≤80% |
| Dimension (L×W×H) | 220mm x 190mm x 173mm |
| Color | Black/White |
