Full HD video resolution
20x optical zoom
Latest NDI®|HX Integration
NDI®|HX / 3G-SDI / USB3.0 video interface
Intuitive Tally System
Power over Ethernet
Full HD video resolution
20x optical zoom
Latest NDI®|HX Integration
NDI®|HX / 3G-SDI / USB3.0 video interface
Intuitive Tally System
Power over Ethernet
NDI®HX, a variation of the NDI protocol optimized for lower bandwidth situations, ensures high-quality, real-time video transmission without the need for encoder and decoder. By utilizing existing network infrastructure, NDI®HX streamlines your workflow, reduces costs, and ensures smooth video production, even on limited bandwidth networks.

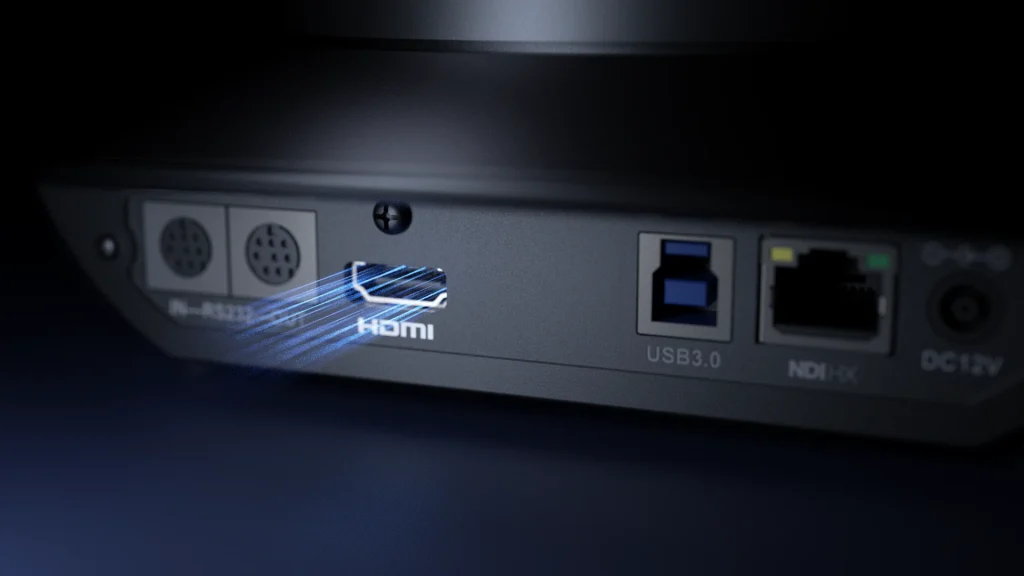

Drive+ SE provides selectable 3G-SDI or HDMI output for flexible integration ensuring seamless integration while keeping your budget in mind. 3G-SDI offers uncompressed, high-bandwidth video, while HDMI allows for convenient connection to various display devices. Choose the connection that best suits your existing infrastructure without compromising on high-quality video capture.
The Drive+ SE features an industry-leading image processor and a 1/2.8-inch 2.4-megapixel sensor, delivering FHD video at 1920x1080p60. It provides vivid, sharp visuals even in challenging low-light conditions.
With a 20X optical zoom lens and a 60-degree field of view, the Drive+ SE ensures rapid, accurate focus with its proprietary algorithm. Capture every detail effortlessly, whether zooming in or panning.
Tally light, a visible indicator typically in red LED, illuminates to signal when the camera is live and actively feeding its image output.
Drive+ SE series features built-in tally lights that work with NDI. This intuitive feature receives signals directly from NDI, without the need for separate tally control systems. A bright LED illuminates to clearly indicate which camera is currently on-air (“Program”) and which is lined up for the next transition (“Preview”).
| Camera | |
| Part NO. |
|
| Sensor | 1/2.8 inch, 2.4MP CMOS sensor |
| Zoom | 20X optical zoom |
| Lens | f= 4.9mm~98 mm, F1.5~F3.0 |
| Horizontal View Angle | 60° (Wide) ~ 3.2° (Tele) |
| Vertical View Angle | 34.14° ~ 1.12° |
| Diagonal View Angle | 67.08°~2.27° |
| Minimum Working Distance | 1.0m |
| S/N Ratio | ≥50dB |
| Image Parameters | |
| Noise Reduction | 2D&3D |
| Minimum lux | 0.7 Lux (50 IRE Max AGC, 1/30, F1.8) |
| White Balance | ATW / Manual / Auto / Indoor / Outdoor / One Push / Sodium / Fluorescent |
| Exposure | Auto / Manual / Shutter Priority / Iris Priority / Brightness Priority |
| Anti-flicker | OFF, 50Hz, 60Hz |
| Image Flip/Mirroring | Supported |
| Focus/Iris/Electronic-shutter | Auto / Manual |
| Gamma | Supported |
| Backlight Compensation | Supported |
| Video Format | |
| 3G-SDI (or HDMI) |
|
| NDI®HX |
|
| USB 3.0 |
|
| IP Streaming | |
| Video Encoding | H.264/H.265 |
| Bitrate control | Variable bitrate(VBR), Constant bitrate(CBR) |
| Bitrate Range | 1024Kbps~122800Kbps |
| Network Port Speed | 1000M |
| Protocol | NDI®HX, SRT, HTTP, RTSP, RTMP, DHCP, ONVIF, VISCA over IP, VISCA TCP, VISCA UDP, Pelco P/D, RTP Multicast, HTML |
| Pan/Tile Movement | |
| Preset |
|
| Pan Rotation Angle | -170°~+170° |
| Tilt Rotation Angle | -30°~+90° |
| Pan Rotation Speed | 0.1°~120°/s |
| Tilt Rotation Speed | 0.1°~80°/s |
| I/O Interface | |
| Control Port | RS232, RS485, NDI®HX, USB 3.0 (UVC1.5), USB 2.0 (UVC1.1) |

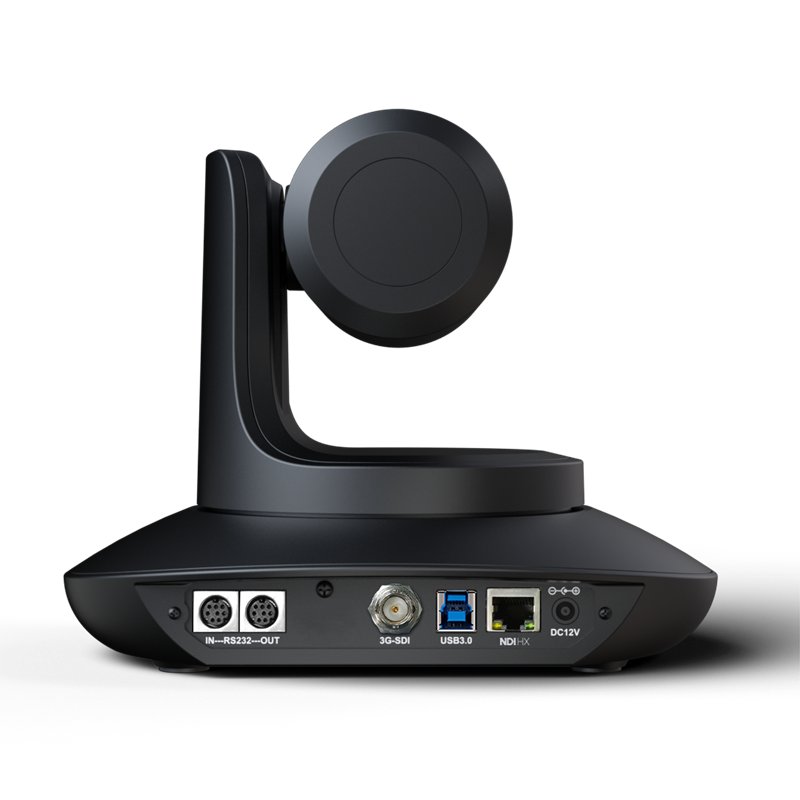

| Video Port | NDI®HX, 3G-SDI (or HDMI), USB 3.0 |
| Audio Port | stereo 3.5mm linear inputs |
| Tally | Supported |
| POE+ | Supported |
| Daisy Chain | Supported |
| General | |
| Input Voltage | DC12V, POE+(IEEE802.3at) |
| Operating Temperature | -10°C ~ 50°C |
| Operating Humidity | ≤80% |
| Dimension (L×W×H) | 220mm x 190mm x 173mm |
| Net Weight | 1.35 kg |
| Color | Black/White |
