1080p60 FHD resolution
30x optical zoom
Built-in auto tracking function
NDI®HX3 / 3G-SDI / HDMI2.0 / USB-C Available
Audio output via HDMI2.0, NDI®HX3 and 3G-SDI
SRT supported
Power over Ethernet
1080p60 FHD resolution
30x optical zoom
Built-in auto tracking function
NDI®HX3 / 3G-SDI / HDMI2.0 / USB-C Available
Audio output via HDMI2.0, NDI®HX3 and 3G-SDI
SRT supported
Power over Ethernet
NDI®HX3 brings better quality and lower latency to video production, supporting H.264/H.265 compression for flexibility and performance. With NDI®HX3 certification, Vision+ GE series provide superior video quality with minimal latency, ensuring smooth and professional live productions. The optimized low latency of NDI®HX3 enhances real-time transmission, making it perfect for dynamic and interactive content creation.
Equipped with premium image processing solution and Sony CMOS sensor, Vision+ GE delivers FHD and crystal-clear images even in low-light working environments.

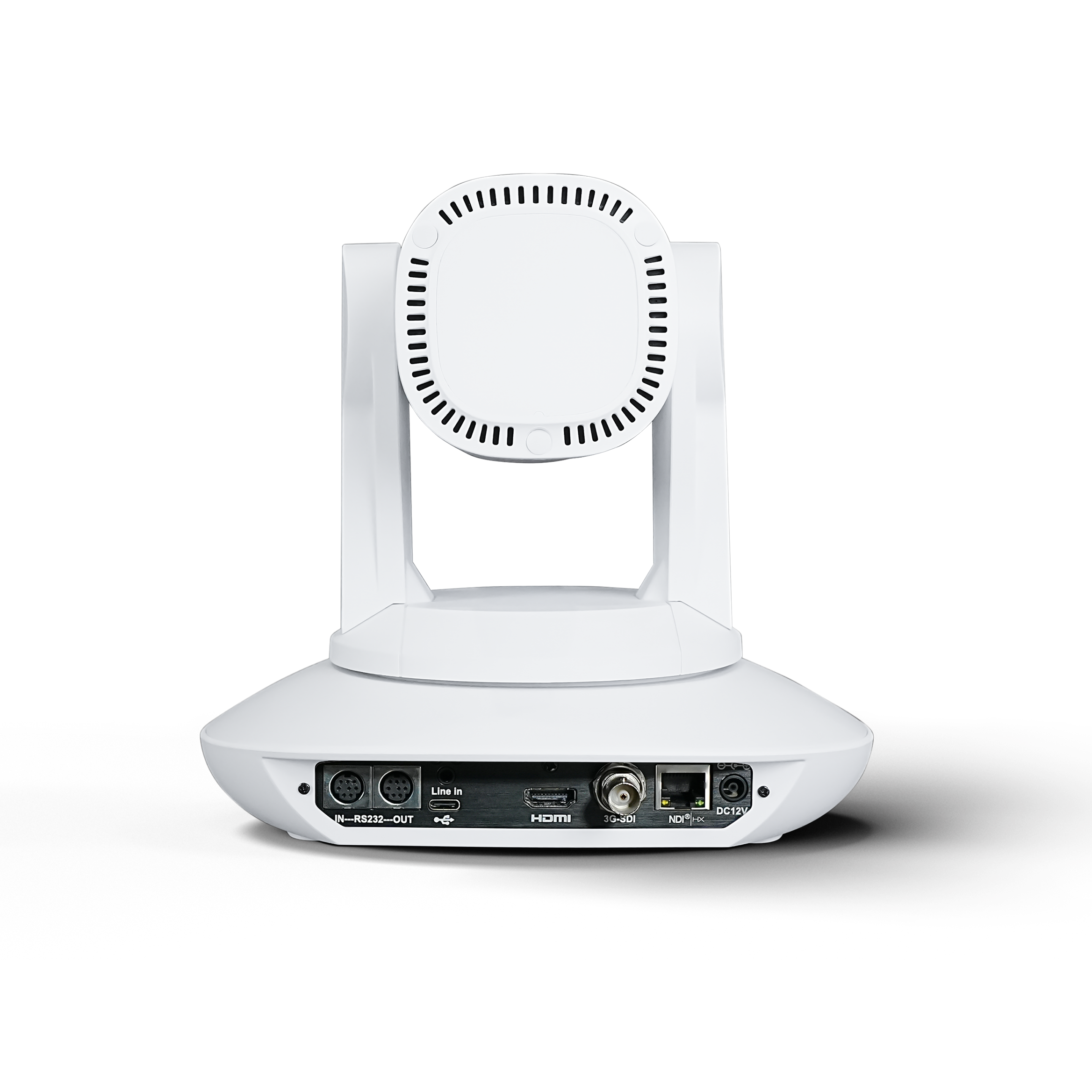

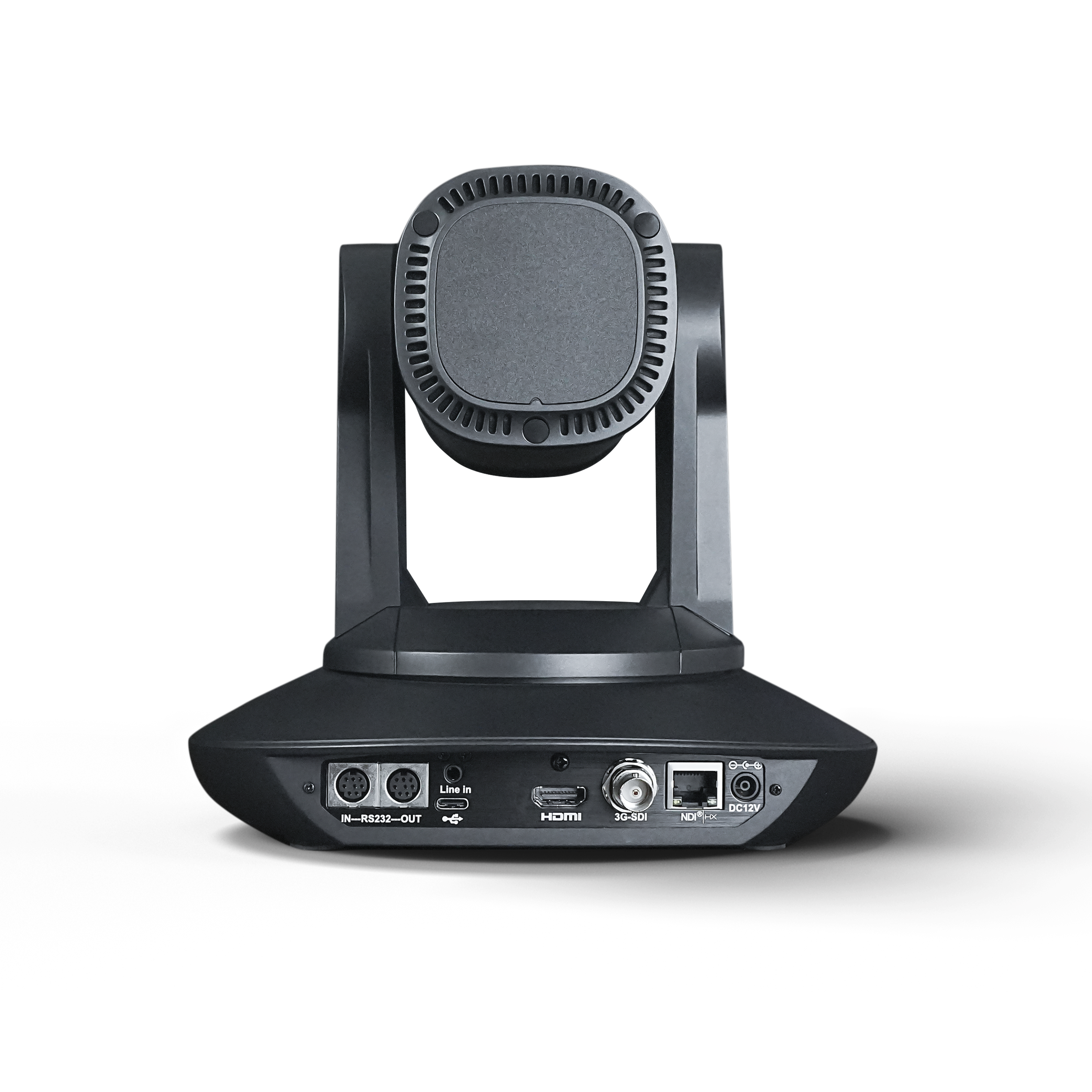

In addition to NDI®HX3, Vision+ GE simultaneously outputs images via 3G-SDI, HDMI, and USB 2.0. 3G-SDI and HDMI are for transitional video production, while the USB output can function as a high-end webcam.
Tally light, a visible indicator typically in red LED, illuminates to signal when the camera is live and actively feeding its image output.
Vision+ GE series features built-in tally lights that work with NDI. This intuitive feature receives signals directly from NDI, without the need for separate tally control systems. A bright LED illuminates to clearly indicate which camera is currently on-air (“Program”) and which is lined up for the next transition (“Preview”).
The Vision+ GE features a 3.5mm stereo line-in audio interface, allowing for direct connection of external audio sources. This ensures high-quality, synchronized audio alongside your video feed, enhancing overall production quality. The line-in supports various audio devices, providing flexibility and convenience for professional broadcasting and video production.
Vision+ GE features a 30X optical zoom lens with a 60-degree FOV and a proprietary focusing algorithm for precise focus even during zoom or movement, capturing every detail.
Setting up your Telycam PTZ camera has never been easier, thanks to SSDP integration. This feature streamlines the process of finding your camera’s IP address, especially under multi-camera streaming, eliminating the need for complicated searches or additional tools. Simply connect your camera with an Ethernet cable, ensuring it’s on the same local network with your computer.
The Vision+ GE features AI-based auto-tracking, automatically following subjects to enhance ease of use and capture the moments flawlessly.
| Camera | |
| Part NO. | TLC-700-IP-30(NDI)-GE |
| Sensor | 1/1.8-inch, 12MP CMOS sensor |
| Zoom | 20X optical zoom |
| Lens | f = 6.91 ~ 214.64mm, F1.35 ~ F4.6 |
| Horizontal View Angle | 60° (Wide) ~ 3.2° (Tele) |
| Vertical View Angle | 34.14° ~ 1.12° |
| Diagonal View Angle | 67.08°~2.27° |
| Minimum Working Distance | 1.5m |
| S/N Ratio | ≥50dB |
| Image Parameters | |
| Noise Reduction | 2D&3D |
| Minimum lux | 0.5 Lux (50 IRE Max AGC, 1/30, F1.8) |
| White Balance | Auto / Manual / Auto tracking / Push / Indoor / Outdoor / Color Temperature |
| Exposure | Auto / Manual / Shutter Priority / Iris Priority / Brightness Priority |
| Anti-flicker | OFF, 50Hz, 60Hz |
| Image Flip/Mirroring | Supported |
| Focus/Iris/Electronic-shutter | Auto / Manual |
| Gamma | Supported |
| Backlight Compensation | Supported |
| Video Format | |
| HDMI |
|
| NDI®HX3 |
Main Stream
Sub Stream
|
| 3G-SDI |
|
| USB Type-C |
NV12
YUY2
MJPG
H.264/HEVC
|
| IP Streaming | |
| Video Encoding | H.264/H.265 |
| Bitrate control | Variable bitrate(VBR), Constant bitrate(CBR) |
| Bitrate Range | 1024Kbps~122800Kbps |
| Network Port Speed | 1000M |
| Protocol | NDI®HX3, SRT, HTTP, RTSP, RTMP, ONVIF, VISCA over IP (TCP&UDP), VISCA, PELCO P/D, SSDP, NTP, RTP Multicast, WebRTC |
| Pan/Tile Movement | |
| Preset |
|
| Pan Rotation Angle | -170°~+170° |
| Tilt Rotation Angle | -30°~+90° |
| Pan Rotation Speed | 0.1°~80°/s |
| Tilt Rotation Speed | 0.1°~60°/s |
| I/O Interface | |
| Control Port | RS232 (RS485), NDI®|HX3 |
| Video Port | NDI®HX3, HDMI, 3G-SDI, USB Type-C |
| Audio Port | Stereo 3.5mm linear inputs |
| Tally | Supported |
| POE+ | Supported |
| Daisy Chain | Supported |
| General | |
| Input Voltage | DC12V, POE+ (IEEE802.3at) |
| Operating Temperature | -10°C ~ 50°C |
| Operating Humidity | ≤80% |
| Dimension (L×W×H) | 220mm x 190mm x 193.5mm |
| Net Weight | 1.9kg (4.2LBS) |
| Color | Black/White |
