1080p60 FHD resolution
12x / 20x optical zoom
NDI ®|HX / 3G-SDI / HDMI / USB3.0 Available
Embed the Latest NDI ®|HX SDK
Built in professional level audio in for line-in input
Program and Preview Tally
SRT supported
Power over Ethernet
1080p60 FHD resolution
12x / 20x optical zoom
NDI ®|HX / 3G-SDI / HDMI / USB3.0 Available
Embed the Latest NDI ®|HX SDK
Built in professional level audio in for line-in input
Program and Preview Tally
SRT supported
Power over Ethernet

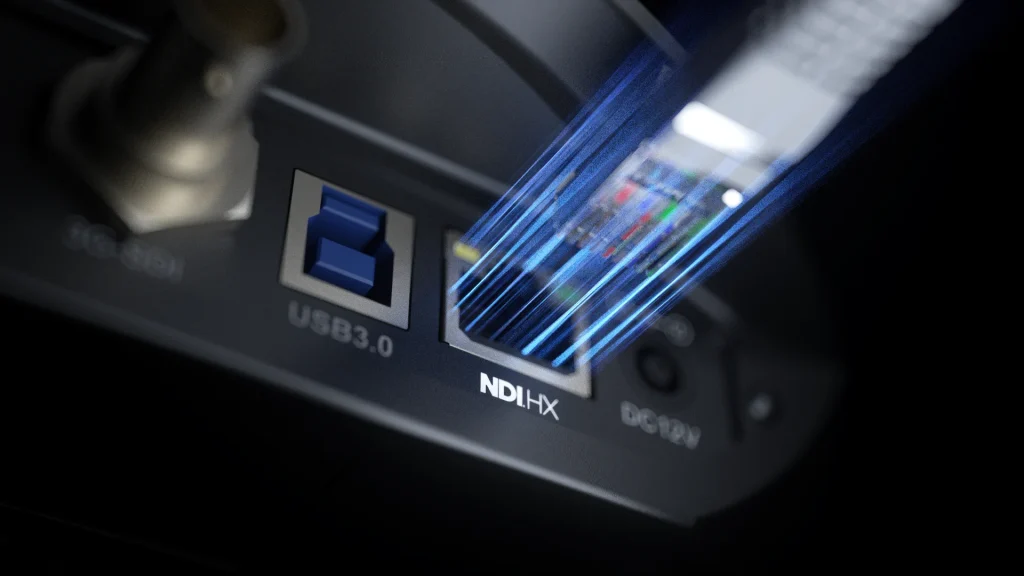

NDI®HX, a variation of the NDI protocol optimized for lower bandwidth situations, ensures high-quality, real-time video transmission without the need for encoder and decoder. By utilizing existing network infrastructure, NDI®HX streamlines your workflow, reduces costs, and ensures smooth video production, even on limited bandwidth networks.

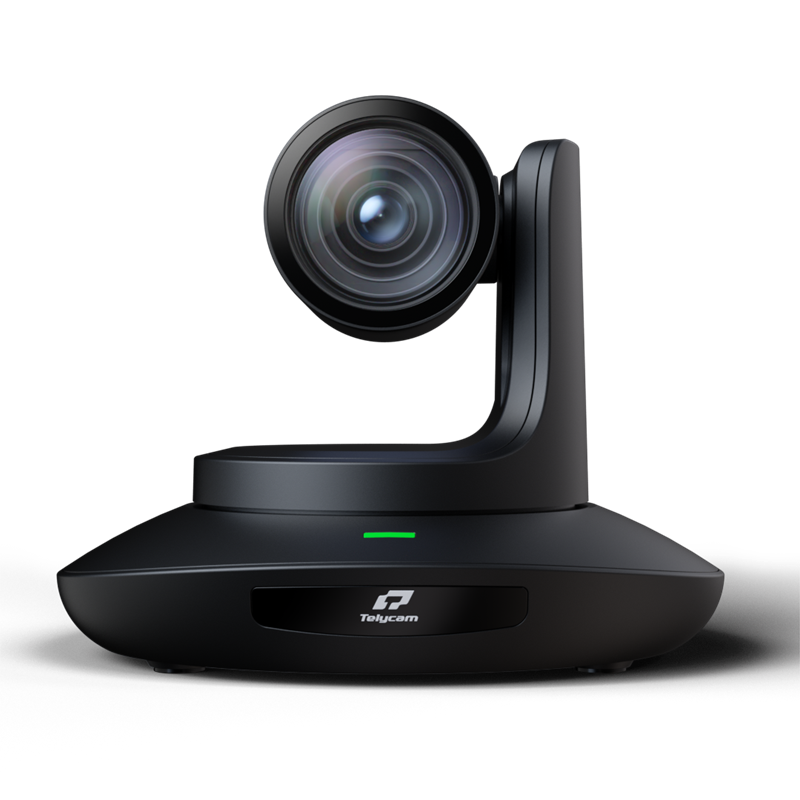

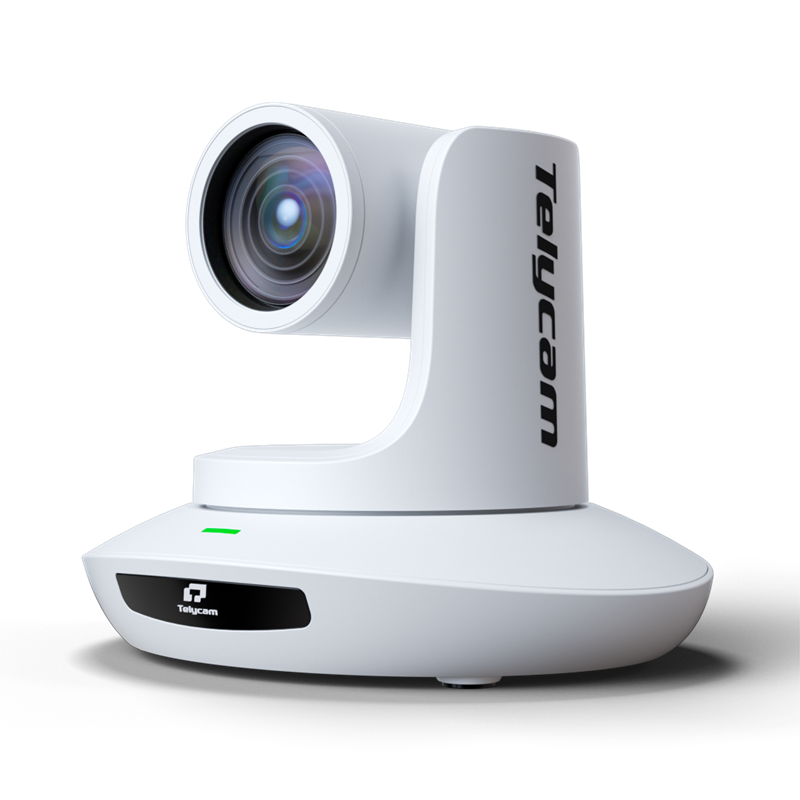

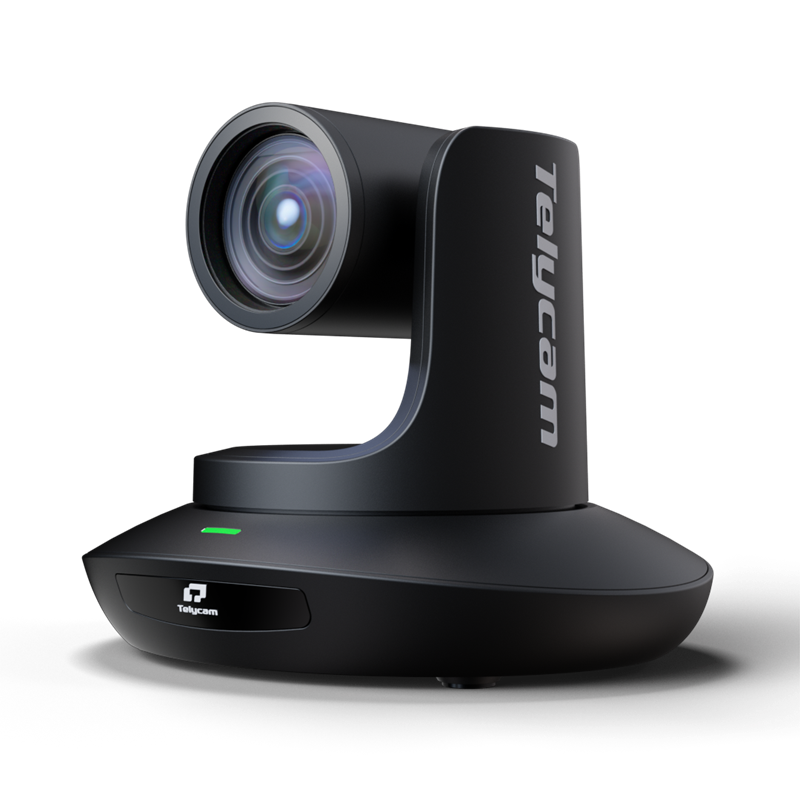

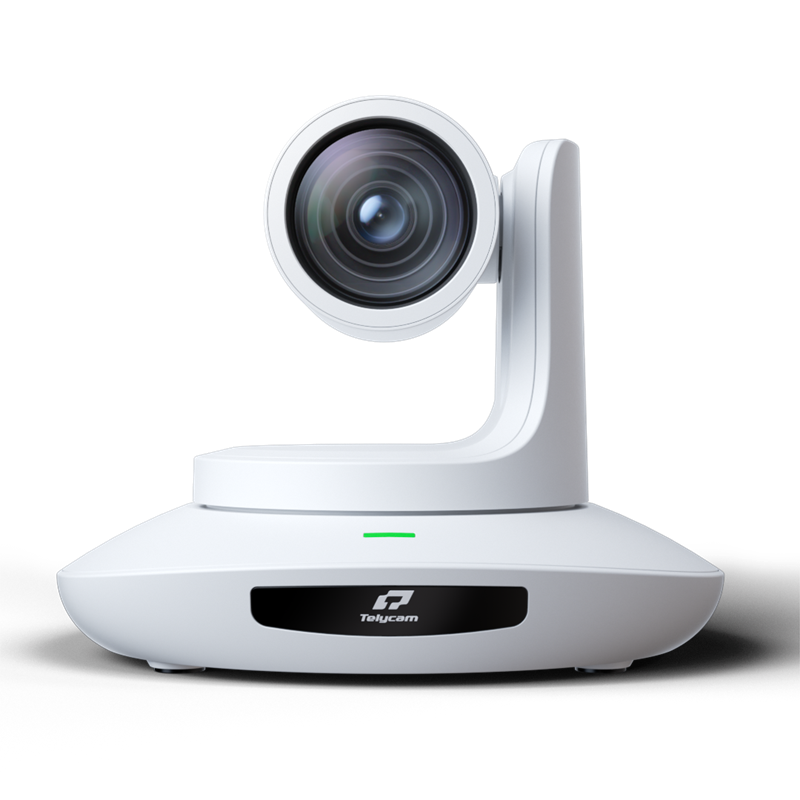

Boasting a robust image processor and a 1/2.8-inch 2.4MP sensor, Drive+ N 12/20 delivers FHD video resolution of 1920*1080p60, ensuring clear, sharp, lifelike images, even in low-light environments.

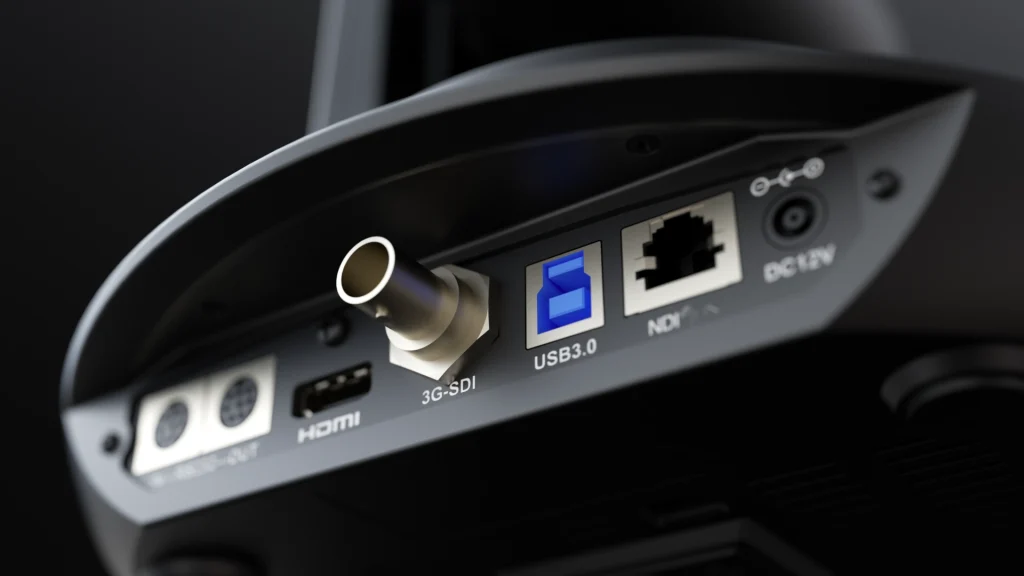

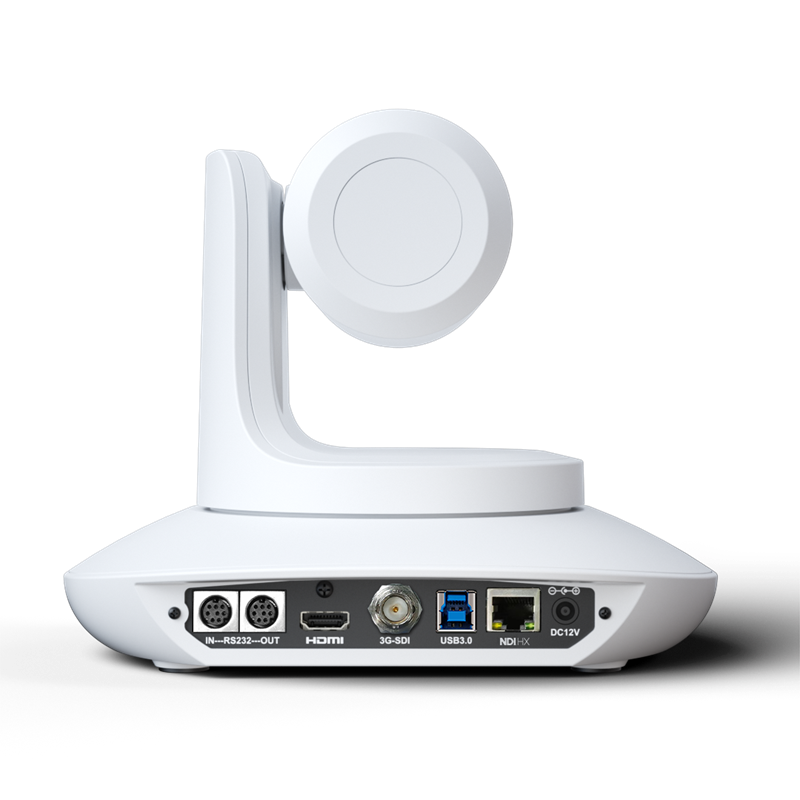

In addition to NDI®HX, Drive+ N simultaneously outputs images via 3G-SDI, HDMI, and USB 3.0. 3G-SDI and HDMI are for transitional video production, while the USB output can function as a high-end webcam.
Drive+ N features a 12X optical zoom lens with a 72.5-degree wide angle or a 20X optical zoom lens with a 60-degree field of view. Its proprietary focusing algorithm ensures fast, precise focus even during zoom or movement.
Tally light, a visible indicator typically in red LED, illuminates to signal when the camera is live and actively feeding its image output.
Drive+ N series features built-in tally lights that work with NDI. This intuitive feature receives signals directly from NDI, without the need for separate tally control systems. A bright LED illuminates to clearly indicate which camera is currently on-air (“Program”) and which is lined up for the next transition (“Preview”).
| Drive+ N 12x | |
| Part NO. | TLC-300-IP-12 (NDI) |
| Sensor | 1/2.8 inch, 2.4MP CMOS sensor |
| Zoom | 12X optical zoom |
| Lens | f = 3.92~47.32mm, F1.8~F2.8 |
| Horizontal View Angle | 72.5° (Wide) ~ 6.3° (Tele) |
| Vertical View Angle | 42.72° ~ 3.66° |
| Diagonal View Angle | 78.58° ~ 7.42° |
| Minimum Working Distance | 1.0m |
| S/N Ratio | ≥50dB |
| Drive+ N 20x | |
| Part NO. | TLC-300-IP-20(NDI) |
| Sensor | 1/2.8 inch, 2.4MP CMOS sensor |
| Zoom | 20X optical zoom |
| Lens | f= 4.9mm~98 mm, F1.5~F3.0 |
| Horizontal View Angle | 60° (Wide) ~ 3.2° (Tele) |
| Vertical View Angle | 34.14° ~ 1.12° |
| Diagonal View Angle | 67.08°~2.27° |
| Minimum Working Distance | 1.0m |
| S/N Ratio | ≥50dB |
| Image Parameters | |
| Noise Reduction | 2D&3D |
| Minimum lux | 0.7 Lux (50 IRE Max AGC, 1/30, F1.8) |
| White Balance | ATW / Manual / Auto / Indoor / Outdoor / One Push / Sodium / Fluorescent |
| Exposure | Auto / Manual / Shutter Priority / Iris Priority / Brightness Priority |
| Anti-flicker | OFF, 50Hz, 60Hz |
| Image Flip/Mirroring | Supported |
| Focus/Iris/Electronic-shutter | Auto / Manual |
| Gamma | Supported |
| Backlight Compensation | Supported |
| Video Format | |
| HDMI |
|
| NDI®HX |
|
| 3G-SDI |
|
| USB 3.0 |
|
| IP Streaming | |
| Video Encoding | H.264/H.265 |
| Bitrate control | Variable bitrate(VBR), Constant bitrate(CBR) |
| Bitrate Range | 1024Kbps~122800Kbps |
| Network Port Speed | 1000M |
| Protocol | NDI®HX, SRT, HTTP, RTSP, RTMP, DHCP, ONVIF, VISCA over IP, VISCA TCP, VISCA UDP, Pelco P/D, RTP Multicast, HTML |
| Pan/Tile Movement | |
| Preset |
|
| Pan Rotation Angle | -170°~+170° |
| Tilt Rotation Angle | -30°~+90° |
| Pan Rotation Speed | 0.1°~120°/s |
| Tilt Rotation Speed | 0.1°~80°/s |
| I/O Interface | |
| Control Port | RS232, RS485, NDI®HX, USB 3.0 (UVC1.5), USB 2.0 (UVC1.1) |
| Video Port | NDI®HX, HDMI, 3G-SDI, USB 3.0 |
| Tally | Supported |
| POE+ | Supported |
| Daisy Chain | Supported |
| General | |
| Input Voltage | DC12V, POE+ (IEEE802.3at) |
| Operating Temperature | -10°C ~ 50°C |
| Operating Humidity | ≤80% |
| Dimension (L×W×H) | 220mm x 190mm x 173mm |
| Net Weight | 1.35 kg |
| Color | Black/White |
