Ultra Encode AIO

Ultra Encode AIO live media encoders take the capabilities of our original Ultra Encode models to a whole new level for advanced use cases. It builds on the functionality of the Ultra Encode family with expanded features including HDMI and SDI input connectivity in a single unit; 4K encoding and streaming from the HDMI input; simultaneous multi-protocol streaming; higher streaming bitrates; file recording; and much more. This device is ideal for high-quality live streaming of content including sports, education, and live events as well as IP-based production and AV-over-IP.

Multi-Input Video Processing

The single-channel Ultra Encode AIO can encode one live input source – either HDMI or SDI – or mix video from the HDMI and SDI inputs (picture-in-picture or side-by-side) into a combined output. Up to eight user-configurable overlays – including text, images, and a clock – can be applied to the output profile.

Flexible Formats and Protocols

Ultra Encode AIO supports multiple video encoding formats – including H.264, H.265 (HEVC), NDI®|HX 2, and NDI®|HX 3 – and a wide array of delivery protocols including RTMP, RTMPS, SRT, RTSP, RTP, HLS, and TVU’s ISSP technology. Up to eight channels of audio can be encoded in AAC format.

Powerful Encoding & Streaming Capabilities

Video can be encoded at resolutions up to 4096×2160 at 30 frames per second from HDMI sources, or up to 1080p HD at 60 fps from the device’s 3G-SDI input. Ultra Encode AIO can stream to up to six different target destinations simultaneously at bitrates up to 32Mbps per stream.

Versatile Recording and Streaming

Ultra Encode AIO supports streaming and recording simultaneously. Inputs can be recorded as files to an SD card or an external, USB-connected storage device or networked storage (NFS, CIFS or SMB).

New NDI®|HX 3 Support

For IP production workflows and AV-over-IP signal distribution architectures, Ultra Encode AIO supports NDI®|HX 3, the latest version of the high-efficiency, low-bandwidth option in the popular NDI® IP media transport technology platform. Ultra Encode AIO also supports the earlier NDI®|HX 2 for broad compatibility.

Product Info

Ultra Encode AIO

Advanced Streaming and Recording Encoder
  • Mixes video from the HDMI and SDI inputs (picture-in-picture or side-by-side) into a combined output
  • Allow simultaneous 6 sessions over multiple streaming protocols at 32Mbps per session
  • High-efficiency, low-bandwidth NDI®|HX 3 supported
  • Supports streaming and recording schedule

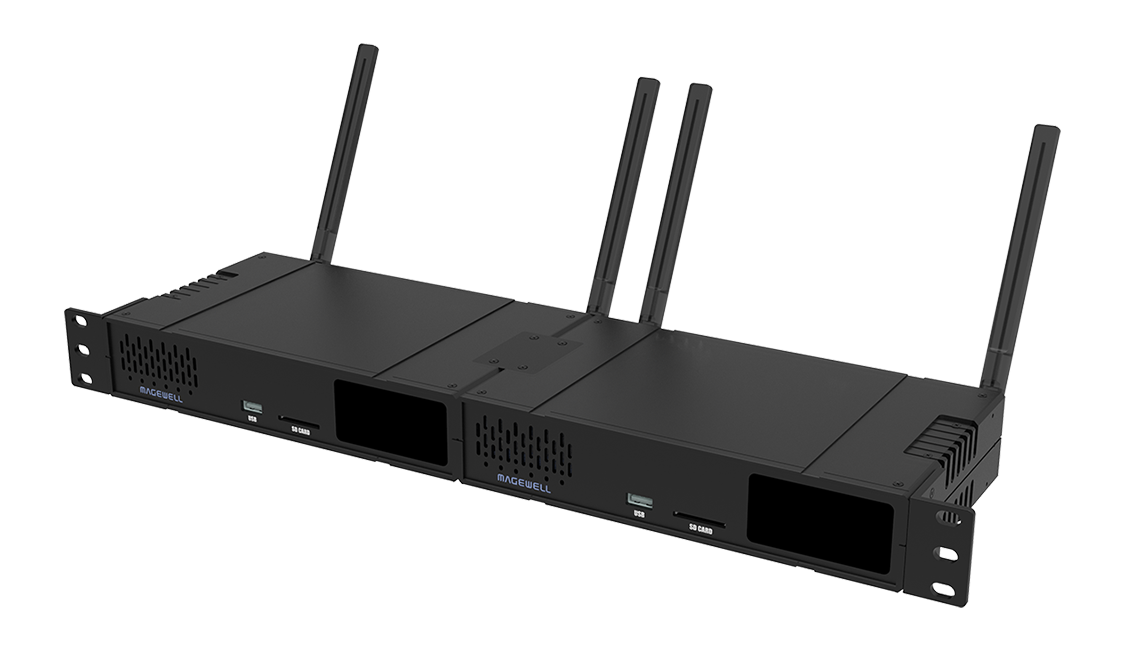

  • Rack-mountable form factor
1
2
3
4
5
6

Specification and Features

Features

Input Features

  • HDMI max input signal: 4096x2160 60fps
  • SDI max input signal: 4096x2160 30fps
  • Input 16-Channel SDI embedded audio
  • Input 8-Channel, 24-bit HDMI embedded audio
  • Input Audio from 3.5mm LINE IN

Encoding Features

  • Dual stream encoding profiles: main stream and sub stream (Max bitrate: 32Mbps)
  • Support for H.264 / HEVC video encoding
  • Encoding 8-channel AAC

Streaming Features

  • Natively support streaming to Facebook, Twitch and YouTube
  • Supported streaming protocols: RTSP / RTMP / RTMPS / SRT Caller / SRT Listener / NDI®|HX2 / NDI®|HX3 / HLS / TS over UDP / TS over RTP / TVU ISSP
  • Allow simultaneous 6 sessions over multiple streaming protocols
  • Support for streaming schedule for each destination

Recording Features

  • Record to an SD card or external USB storage, MP4 or MOV format supported
  • Support for loop recording when recording to SD card
  • Share recorded files with NFS / CIFS / SMB
  • Support for recording schedule

Others

  • LCD monitor for system status and input signal
  • Internet connectivity via wired Ethernet and wireless network
  • Remote control via Web GUI and Control Hub
  • Provide HTTP APIs
Input & Loop-through HDMI
  • Supports HDMI 1.4a, DVI-D
  • Typical resolution / frame rate:
    • 4096x2160 / 3840x2160p 23.98 / 24 / 25 / 29.97 / 30 / 47.95 / 48 / 50 / 59.94 / 60
    • 2048x1080p / 2048x1080i 23.98 / 24 / 25 / 29.97 / 30 / 47.95 / 48 / 50 / 59.94 / 60
    • 1920x1080p / 1920x1080i 23.98 / 24 / 25 / 29.97 / 30 / 47.95 / 48 / 50 / 59.94 / 60
    • 1280x720p 25 / 29.97 / 30 / 50 / 59.94 / 60
    • 720x576 25p / 50i (PAL SD)
    • 720x480 29.97p / 59.94i (NTSC SD)
  • Color depth: 8/10/12-bit
  • Color sampling: RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2
  • Custom EDID
SDI
  • Supports SD (ST 259) / HD (ST 292) / 3Ga (ST 425 ) /3Gb (ST 425) / 3Gb-DL(ST 425) / 3Gb-DS(ST 425) / 6G (ST 2081) standards
  • Typical resolution / frame rate:
    • 4096x2160 / 3840x2160 23.98 / 24 / 25 / 29.97 / 30
    • 2048x1080p / 2048x1080i 23.98 / 24 / 25 / 29.97 / 30 / 47.95 / 48 / 50 / 59.94 / 60
    • 1920x1080p / 1920x1080i 23.98 / 24 / 25 / 29.97 / 30 / 47.95 / 48 / 50 / 59.94 / 60
    • 1280x720p 25 / 29.97 / 30 / 50 / 59.94 / 60
    • 720x576 25p / 50i (PAL SD)
    • 720x480 29.97p / 59.94i (NTSC SD)
  • Color sampling: YCbCr 10-bit 4:2:2, YCbCr 10-bit 4:4:4:4, YCbCr 12-bit 4:2:2, YCbCr 12-bit 4:4:4
Audio
  • SDI embedded audio: 16-Channel, 24-bit, 192kHz sample rate
  • HDMI embedded audio: 8-Channel, 24-bit, 192kHz sample rate
  • Audio from 3.5 mm LINE IN: 2-Channel, 24-bit, 192kHz sample rate
Encode Video
  • Bitrate:
    • NDI® HX3: up to 62.0Mbps, down to 1.5Mbps
    • Others: up to 32.0Mbps, down to 256kpbs
  • Dual-stream encoding: main stream and sub stream
  • Main stream
    • Resolution / frame rate:
      • 4096x2160p / 3840x2160p 30 / 29.97 / 25 / 24 / 15 / 10 / 5
      • 2560x1440p / 2048x1080p / 1920x1200p 60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 15 / 10 / 5
      • 1920x1080p / 1920x720p 60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 15 / 10 / 5
      • 1664x936p / 1600x1200p / 1600x900p 60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 15 / 10 / 5
      • 1440x1080p / 1440x900p 60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 15 / 10 / 5
      • 1280x1024p / 1280x960p / 1280x800p / 1280x720p 60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 15 / 10 / 5
      • 1024x768p 60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 15 / 10 / 5
      • 960x540p / 800x600p 60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 15 / 10 / 5
      • 768x576p / 720x576p / 720x540p / 720x480p 60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 15 / 10 / 5
      • 640x480p / 640x360p 60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 15 / 10 / 5
      • 480x360p / 480x270p 60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 15 / 10 / 5
    • Native CEA–608/608 over 708 captions for SDI
  • Sub stream
    • Supports enabling / disabling sub stream
    • Resolution/frame rate:
      • 1920x1080p / 1920x720p 60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 15 / 10 / 5
      • 1664x936p / 1600x1200p / 1600x900p 60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 15 / 10 / 5
      • 1440x1080p / 1440x900p 60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 15 / 10 / 5
      • 1280x1024p / 1280x960p / 1280x800p / 1280x720p 60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 15 / 10 / 5
      • 1024x768p 60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 15 / 10 / 5
      • 960x540p / 800x600p 60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 15 / 10 / 5
      • 768x576p / 720x576p / 720x540p / 720x480p 60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 15 / 10 / 5
      • 640x480p / 640x360p 60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 15 / 10 / 5
      • 480x360p / 480x270p 60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 15 / 10 / 5
    • H.264/H.265 (HEVC) Codec:
      • System timecode or RP–188 standard timecode for SEI Message setting
      • H.265 (HEVC) SEI message supports carrying interlacing signal mark
      • Video aspect ratio conversion
      • Image rotation: 0°, 90°, 180°, 270°
      • Cropping
Audio
  • Encode up to 8 audio streams
    • SDI
      • Up to 8 channels can be selected for mapping when SDI input carries more than 8 audio channels
      • Supports mapping between source channels and encoded audio channels
      • Contains 1 x 8-channel stream and 7 x 2-channel streams
    • HDMI
      • Supports up to 8 source channels
      • Supports mapping between source channels and encoded audio channels
      • Contains 1 x 8-channel stream and 7 x 2-channel streams
  • Bitrate: 256/192/128/96/64/48/32/16 kbps
  • Output source embedded audio and line in through LINE OUT
Live stream
  • Natively supports streaming to:
    • Twitch
    • YouTube (HLS/RTMP), publishing to timeline or a new event and setting “made for kids”.
    • Facebook, enabling backup stream and publishing to timeline or a new event.
    • WOWZA over RTMP, adding token and publishing to timeline or a new event.
    • WOWZA over SRT, setting AES encryption (AES–128/192/256) and publishing to a channel or a new event.
    Supports streaming protocols:
    • RTSP
    • RTMP / RTMPS
    • SRT Caller / SRT Listener
    • NDI®|HX2/NDI® HX3
    • HLS
    • TS over UDP / TS over RTP
    • TVU ISSP
  • Supports streaming to 6 destinations simultaneously, containing 1 session of RTSP/SRT Listener/HLS/ISSP (if included), or 2 NDI®|HX2 sessions (if included)
  • Supports 1 NDI® HX3 sessions exclusively
  • Supports specifying a video stream and an audio stream for each streaming session
  • Supports live stream scheduler

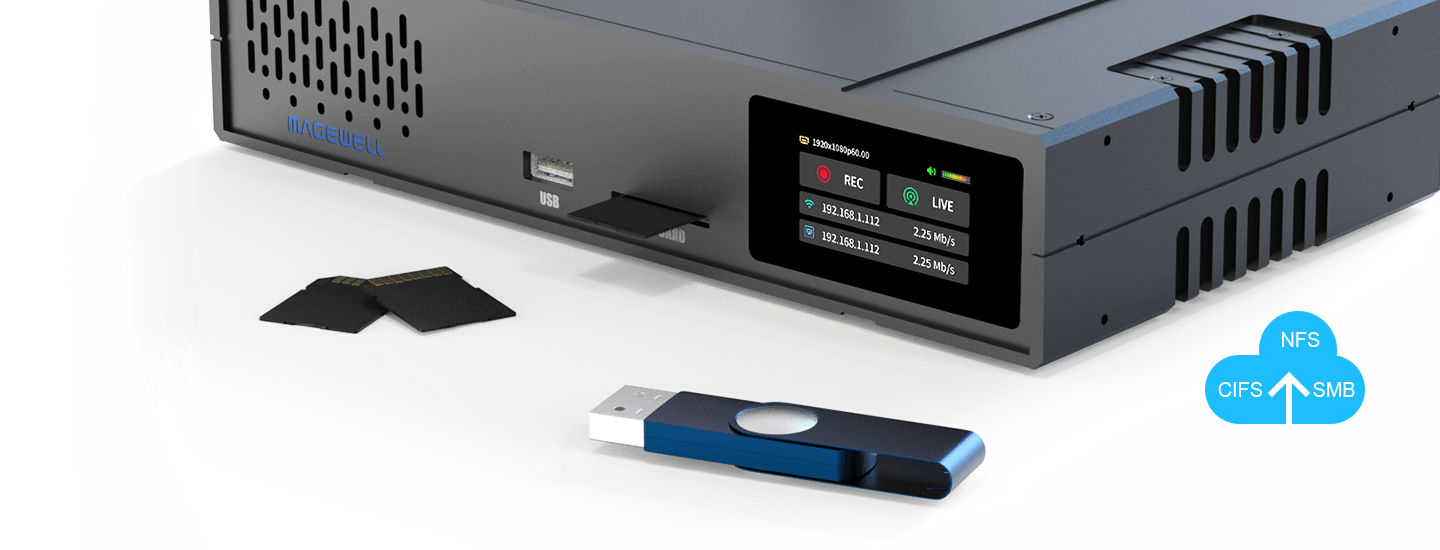

Record
  • Supports setting and managing recording function and tasks
  • Supports recording to external SD card
    • Supports format and performance test
    • Supported system format: FAT32, exFAT and NTFS
    • Automatically upload files to remote file storage platform
  • Supports recording to external USB storage
    • Supported system format: FAT32, exFAT and NTFS
  • Supports recording to network attached storage (NFS / CIFS)
    • Supported system format: NFS, CIFS
  • Supports loop recording and normal recording
  • Supports saving recording files in MP4, MOV or TS format
  • Supports specifying a video stream and an audio stream for each recording task
  • Supports customizing recording file name and prefix
  • Supports splitting recording files by time
    • MP4, MOV: up to 4 hours
    • TS: no limit
  • Supports exporting or downloading files through Web UI
  • Supports recording scheduler
LCD
  • 1.9 inch LCD display with 320x172 resolution
  • View real-time system information including preview image, audio meter, record and live status, IP address and QR code (Web UI).
  • Tap to start/stop recording/live streaming
Web UI
    • Access Web UI via PC and smartphone
    • View real-time device status
    • Preview encoded video
    • Set input sources
<li. Customize encoding parameters
  • Manage streaming destinations, start/stop streaming, view streaming status
  • Manage recording tasks and recorded files
  • Set up to 8 overlays for each stream, including text, picture, and clock
  • Set LCD touch screen
  • Update firmware
  • Supports registering Magewell Control Hub for centralized management
  • Supports Microsoft Edge / Firefox / Chrome / Safari / Opera web browsers
API Provides APIs for 3rd party control system
Network Connections
  • Ethernet: 1x RJ45 port, 10/100/1000 Mbps Base-T
  • PoE+ (IEEE 802.3at)
  • Wi-Fi: 802.11 a/b/g/n/ac, Station and AP modes supported
  • 4G/5G USB modem (not supplied)
  • USB Net

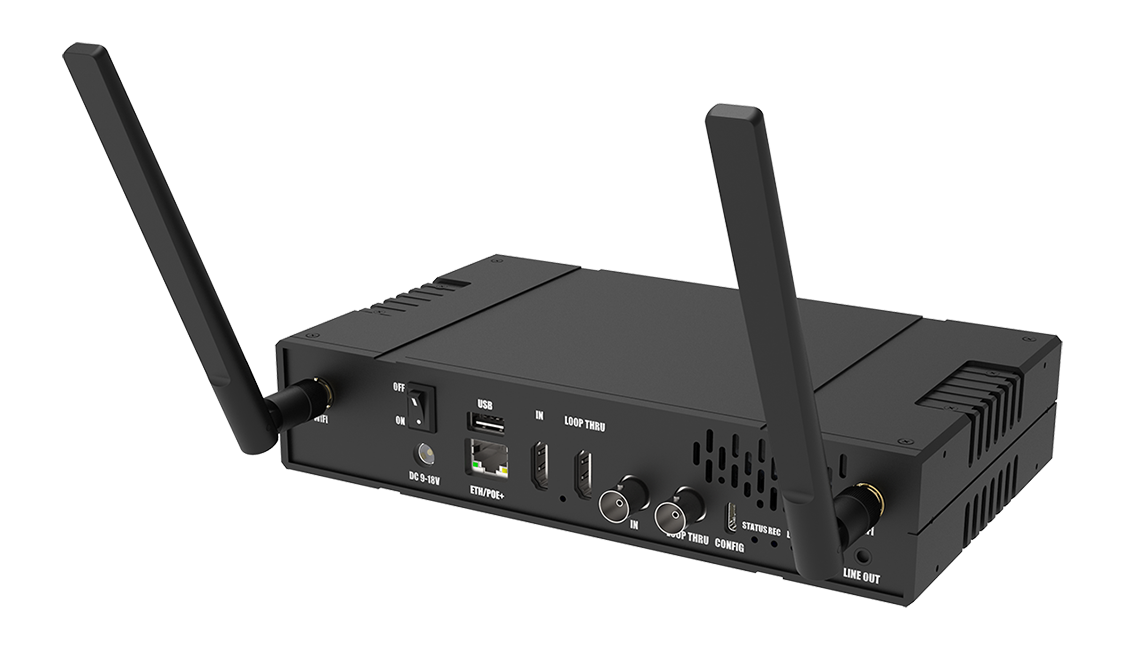

Input/Output Ports
  • 2 x SD/HD/3G BNC ports
    • 1 x Input
    • 1 x Loop-through
  • 2 x HDMI ports
    • 1 x Input
    • 1 x Loop-through
  • 1 x 3.5mm LINE IN
  • 1 x 3.5mm LINE OUT
  • 1 x USB Type-C (config)
  • 1 x SD card slot
  • 2 x USB Type-A
Storage
  • SD card (not supplied): FAT32, NTFS, exFAT
  • USB flash drive (not supplied): FAT32, NTFS, exFAT
  • NAS (not supplied): NFS/CIFS
LED Indicators LED indicators show the status of network connections, power, input signal, recording and streaming
Power Supply and Consumption
  • DC 9 ~ 18 V, max current: ~ 1.15 A
  • Max power consumption: ~ 11.5 W
Dimensions
  • 214.9mm x 128.2mm x 44.55mm

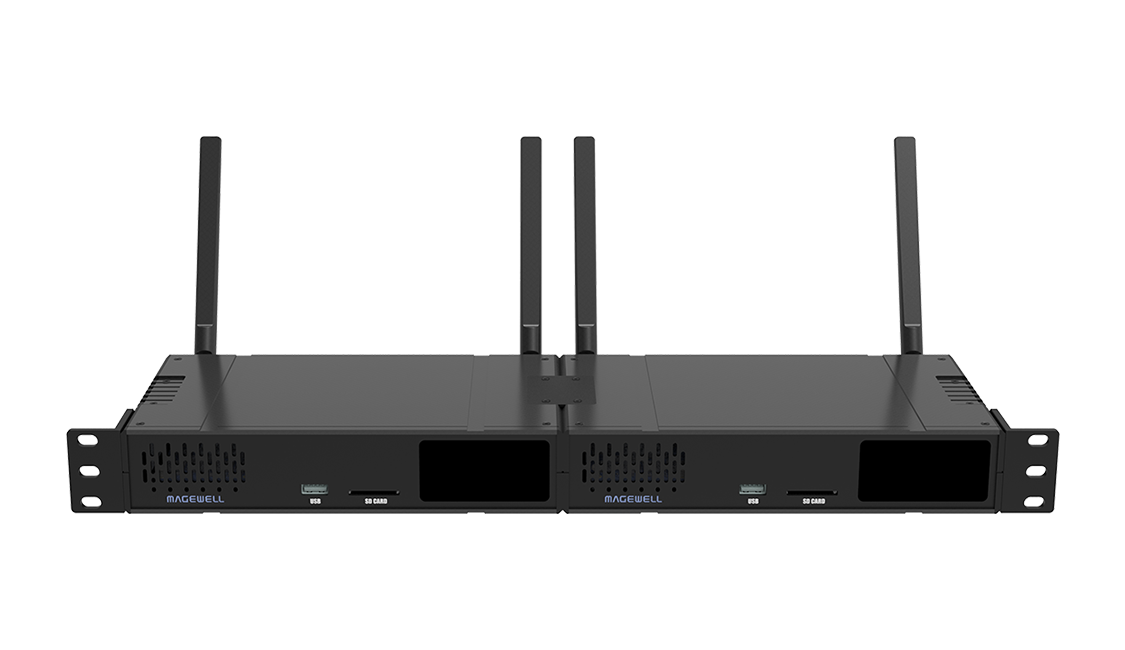

  • Support to mount onto a standard 1U rack with provided rack-mount kit
Accessories
  • 1 x Screw locking DC power adapter
  • 2 x Wi-Fi antenna
  • 1 x HDMI cable
  • 7 x M2.5 screws
  • 1 x Retainer plate
  • 1 x 1U short rack ear
  • 2 x 1U long rack ears
Working Environment
  • Operating temperature: 0 to 40 deg C
  • Storage temperature: –20 to 55 deg C
  • Relative humidity: 5% to 90% non-condensing

Accessory

Included

Power Adapter x1
Part number: ACC10010
HDMI Cable x1
Part number: ACC00090
Wi-Fi Antenna x2
Part number: ACC09021
M2.5 Screw x8
Part number: PAR10231
Retainer Plate x1
Part number: PAR10247
1U Short Rack Ear x1
Part number: ACC10016
1U Long Rack Ear x2
Part number: ACC10017
We recommend you always use the included accessories to avoid unnecessary damage to your device.
Please note, the appearance of the power adapter may vary due to suppliers or batches. The images here are for reference only.
