| Input Features |
Video
- Supports HDMI 1.4a, DVI-D
- Typical resolution / frame rate:
- 4096x2160 / 3840x2160 60fps 4:2:0
- 4096x2160 / 3840x2160 30fps 4:4:4 / 4:2:2
- 2560x1440p / 2048x1080p / 2048x1080i 23.98 / 24 / 25 / 29.97 / 30 / 47.95 / 48 / 50 / 59.94 / 60
- 1920x1080p / 1920x1080i 23.98 / 24 / 25 / 29.97 / 30 / 47.95 / 48 / 50 / 59.94 / 60
- 1280x720p 25 / 29.97 / 30 / 50 / 59.94 / 60
- 720x576 25p / 50i (PAL SD)
- 720x480 29.97p / 59.94i (NTSC SD)
- Color depth: 8 / 10 / 12-bit
- Color sampling: RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2
- Custom EDID
Audio
- HDMI embedded audio: 8-Channel, 24-bit, 192kHz sample rate
- Audio from 3.5 mm LINE IN: 2-Channel, 24-bit, 192kHz sample rate
|
| Encode |
Video
- Bitrate:
- NDI® HX3: up to 62.0Mbps, down to 1.5Mbps
- Others: up to 32.0Mbps, down to 256kpbs
- Dual-stream encoding: main stream and sub stream
- Main stream Resolution / frame rate:
- 4096x2160p / 3840x2160p 30 / 29.97 / 25 / 24 / 23.976 / 15 / 10 / 5
- 2560x1440p / 2048x1080p / 1920x1200p 60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.976 / 15 / 10 / 5
- 1920x1080p / 1920x720p 60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.976 / 15 / 10 / 5
- 1664x936p / 1600x1200p / 1600x900p 60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.976 / 15 / 10 / 5
- 1440x1080p / 1440x900p 60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.976 / 15 / 10 / 5
- 1280x1024p / 1280x960p / 1280x800p / 1280x720p 60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.976 / 15 / 10 / 5
- 1024x768p 60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.976 / 15 / 10 / 5
- 1024x576p 60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.976 / 15 / 10 / 5
- 960x540p / 800x600p 60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.976 / 15 / 10 / 5
- 768x576p / 720x576p / 720x540p / 720x480p 60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.976 / 15 / 10 / 5
- 640x480p / 640x360p 60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.976 / 15 / 10 / 5
- 480x360p / 480x270p 60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.976 / 15 / 10 / 5
- Sub stream
- Supports enabling / disabling sub stream
- Resolution / frame rate:
- 1920x1080p / 1920x720p 60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 15 / 10 / 5
- 1664x936p / 1600x1200p / 1600x900p 60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 15 / 10 / 5
- 1440x1080p / 1440x900p 60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 15 / 10 / 5
- 1280x1024p / 1280x960p / 1280x800p / 1280x720p 60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 15 / 10 / 5
- 1024x768p 60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 15 / 10 / 5
- 1024x576p 60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.976 / 15 / 10 / 5
- 960x540p / 800x600p 60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 15 / 10 / 5
- 768x576p / 720x576p / 720x540p / 720x480p 60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 15 / 10 / 5
- 640x480p / 640x360p 60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 15 / 10 / 5
- 480x360p / 480x270p 60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 15 / 10 / 5
- H.264 / H.265 (HEVC) Codec:
- System timecode or RP–188 standard timecode for SEI Message setting
- H.265 (HEVC) SEI message supports carrying interlacing signal mark
- Video aspect ratio conversion
- Image rotation: 0°, 90°, 180°, 270°
- Cropping
- Output 3D video
Audio
- Encode up to 8 audio streams
- Supports up to 8 source channels
- Supports mapping between source channels and encoded audio channels
- Contains 1 x 8-channel stream and 7 x 2-channel streams
- Bitrate: 256 / 192 / 128 / 96 / 64 / 48 / 32 / 16 kbps
- Output source embedded audio and line in through LINE OUT
|
| Live stream |
- Natively supports streaming to:
- Twitch
- YouTube (HLS / RTMP), publishing to timeline or a new event and setting “made for kids”.
- Facebook, enabling backup stream and publishing to timeline or a new event.
- WOWZA over RTMP, adding token and publishing to timeline or a new event.
- WOWZA over SRT, setting AES encryption (AES–128 / 192 / 256) and publishing to a channel or
a new event.
Supports streaming protocols:
- RTSP
- RTMP / RTMPS
- SRT Caller / SRT Listener
- NDI®|HX2 / NDI® HX3
- HLS
- TS over UDP / TS over RTP
- TVU ISSP
- Supports streaming to 6 destinations simultaneously, containing 1 session of RTSP / SRT
Listener / HLS / ISSP (if included), or 2 NDI®|HX2 sessions (if included)
- SSupports 1 NDI®|HX3 sessions exclusively
- Supports specifying a video stream and an audio stream for each streaming session
- Supports live stream scheduler
|
| Record |
- Supports setting and managing recording function and tasks
- Supports recording to local storage
- Supports format and performance test
- Automatically upload files to remote file storage platforms including FTP server, Google
Drive, and Dropbox
- Supports recording to external USB storage
- Supported system format: FAT32, exFAT and NTFS
- Supports recording to network attached storage (NFS / CIFS)
- Supported system format: NFS, CIFS
- Supports loop recording and normal recording
- Supports saving recording files in MP4, MOV or TS format
- Supports specifying a video stream and an audio stream for each recording task
- Supports customizing recording file name and prefix
- Supports splitting recording files by time
- MP4, MOV: up to 4 hours
- TS: no limit
- Supports exporting or downloading files through Web UI
- Supports recording scheduler
|
| Web UI |
- Access Web UI via PC and smartphone
- View real-time device status
- Preview encoded video
- Set input sources
- Customize encoding parameters
- Manage streaming destinations, start / stop streaming, view streaming status
- Manage recording tasks and recorded files
- Set up to 8 overlays for each stream, including text, picture, and clock
- Update firmware
- Supports registering Magewell Control Hub for centralized management
- Supports Microsoft Edge / Firefox / Chrome / Safari / Opera web browsers
|
| API |
Provides APIs for 3rd party control system |
| Network Connections |
- Ethernet: 1x RJ45 port, 10 / 100 / 1000 Mbps Base-T
- IEEE 802.3af PoE
- Wi-Fi: 802.11 a / b / g / n / ac, Station and AP modes supported
- 4G / 5G USB modem (not supplied)
- USB Net
|

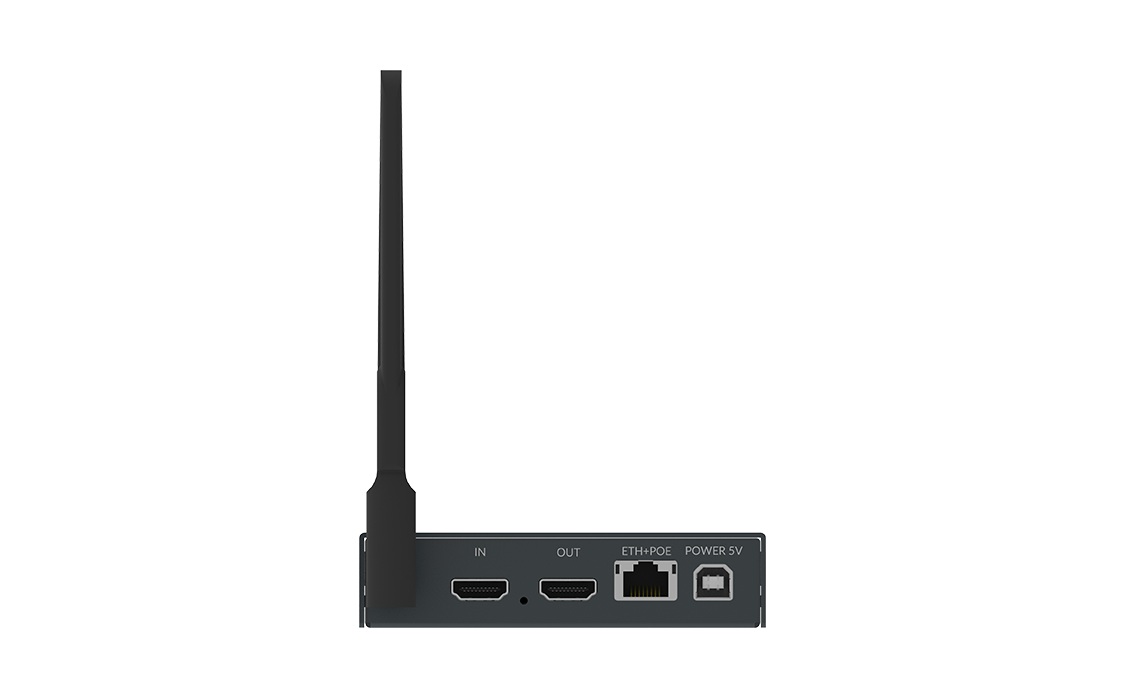

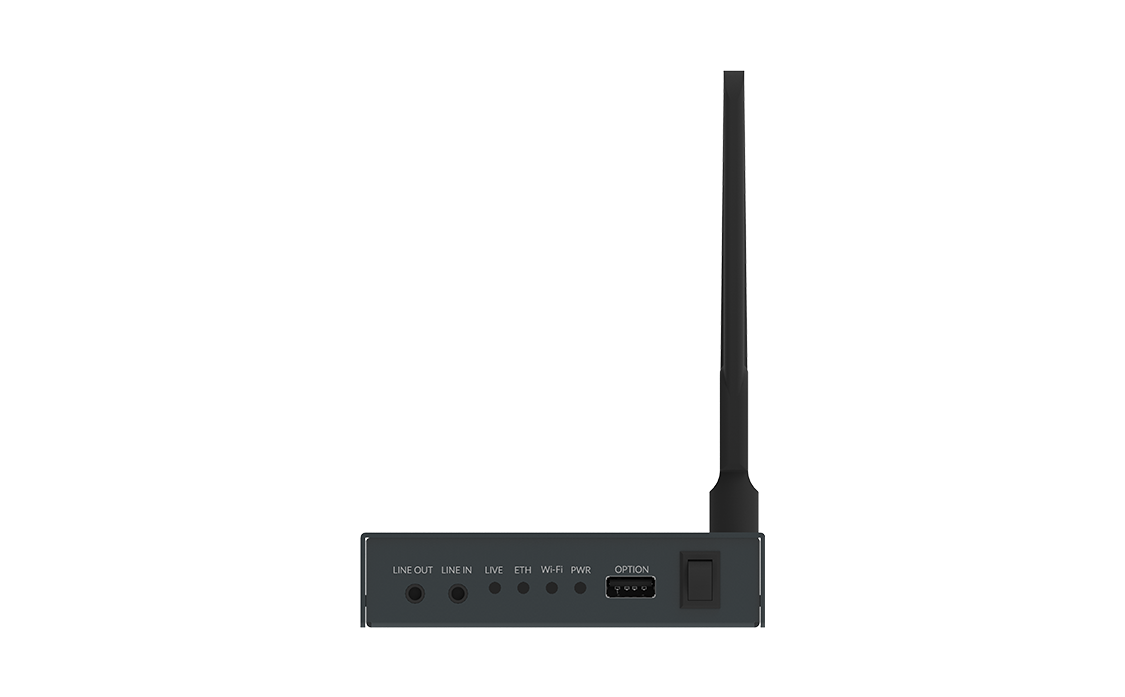

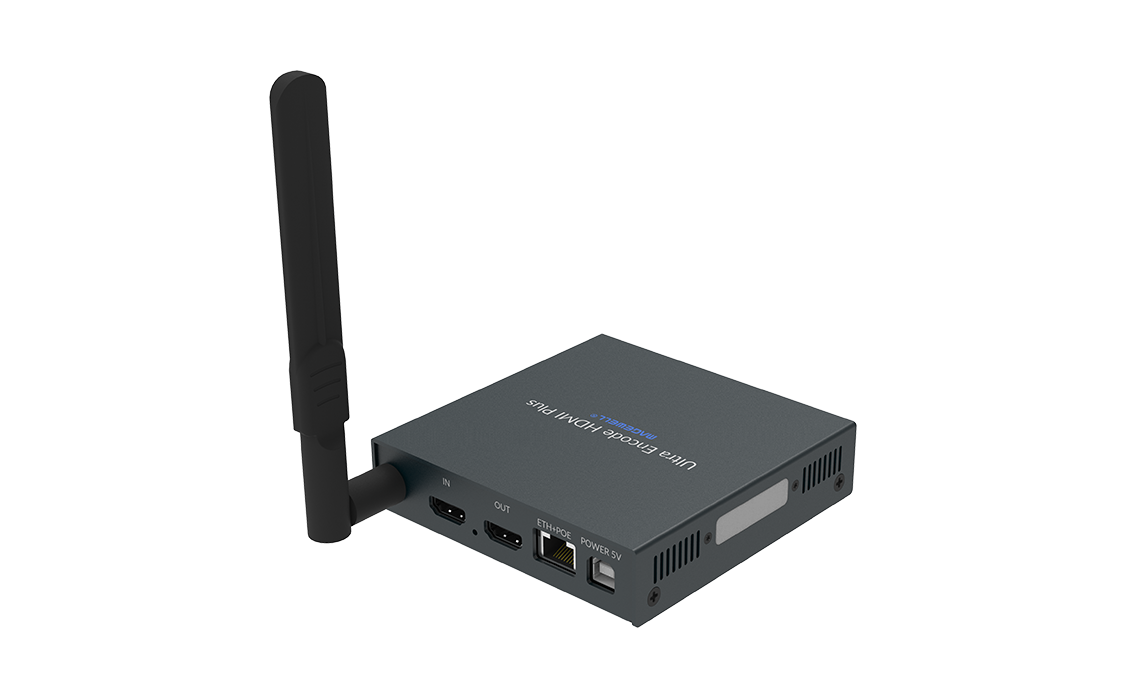

| Input / Output Ports |
- 2 x HDMI ports
- 1 x Input
- 1 x Loop-through
- 1 x 3.5mm LINE IN
- 1 x 3.5mm LINE OUT
- 2 x USB Type-A
|
| Storage |
- USB flash drive (not supplied): FAT32, NTFS, exFAT
- NAS (not supplied): NFS / CIFS
|
| LED Indicators |
LEDs indicating the status of power, input signal, streaming, Ethernet and Wi-Fi connection
NDI tally lights (preview-green, program-red) |
| Power Supply and Consumption |
- DC 5V / 3A
- Max power consumption: 8.68W
|
| Dimensions |
|
| Accessories |
- 1 x 5V Power Adapter
- 1 x HDMI Cable
- 1 x USB Type A to Type B cable
- 1 x Wi-Fi Antenna
- 1 x T-bracket
|
| Screw Mounting Hole |
- 2 x M3 threaded hole
- A standard 1 / 4"-20 socket provided by T-bracket
|
| Working Environment |
- Operating temperature: 0 to 50 deg C
- Storage temperature: –20 to 40 deg C
- Relative humidity: 5% to 90% non-condensing
|
