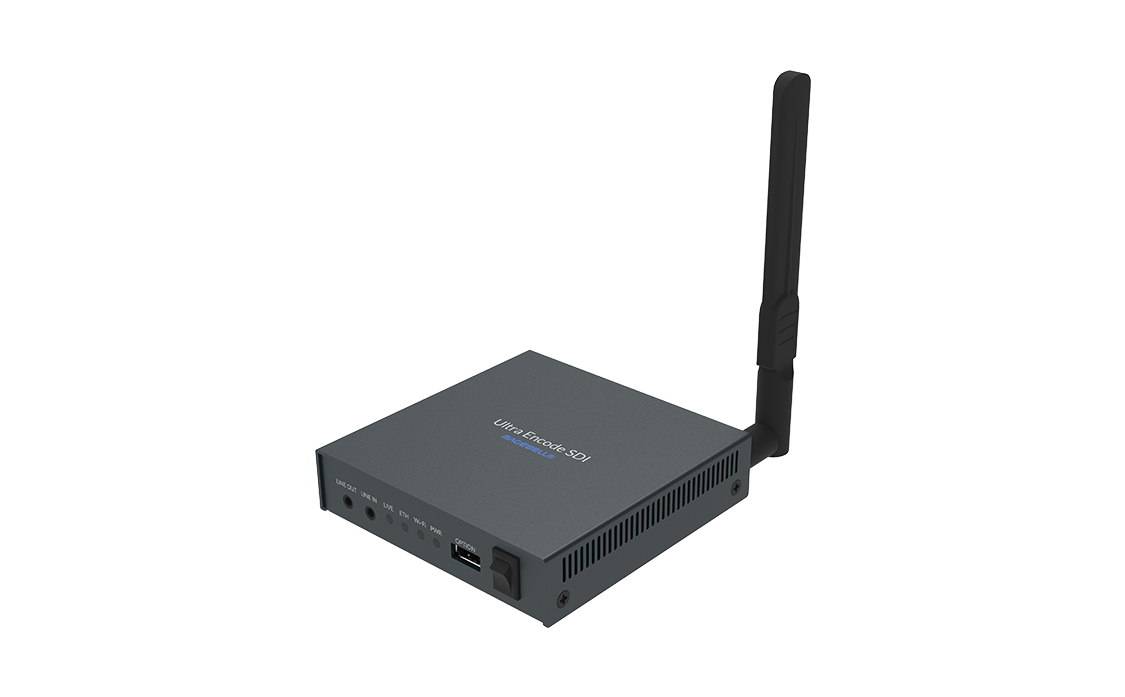

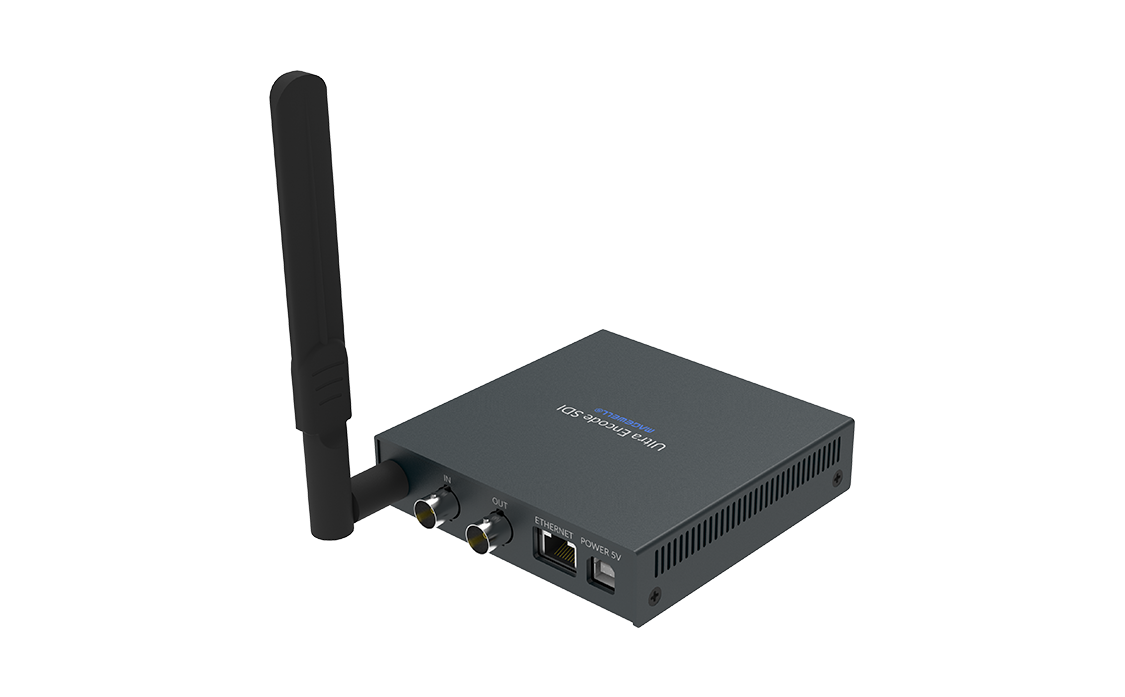

Ultra Encode SDI

A Flexible & Affordable Universal Encoder

Live H.264/H.265 streaming
Supports streaming protocols including SRT, NDI®|HX, HLS & more
Suitable for various network environment

interface

Specification and Features

Features

Input Features

Support for up to 2048x1080 60fps input and loopthrough signals
Input & loopthrough 16-Channel SDI embedded audio
Input audio from 3.5 mm LINE IN

Encoding Features

Dual stream encoding profiles: main stream and sub stream (Max bitrate: 16Mbps)
Support for H.264 / HEVC video encoding
Encoding 2-channel AAC at 48kHz, 16-bit

Streaming Features

Natively support streaming to Facebook, Twitch and YouTube
Supported streaming protocols: RTSP / RTMP / RTMPS / SRT Caller / SRT Listener / NDI|HX2 / HLS / TS over UDP / TS over RTP
Allow streaming to multiple destinations simultaneously (select protocols)

Others

Internet connectivity via wired Ethernet and wireless network
Remote control via Web GUI and Control Hub
Provide HTTP APIs

Details

Input & Loop-through	SDI Supports SD (ST 259) / HD (ST 292) / 3Ga (ST 425) / 3Gb (ST 425) / 3Gb-DL(ST 425) / 3Gb-DS(ST 425) standards Typical resolution / frame rate: 2048x1080p / 2048x1080i 23.98 / 24 / 25 / 29.97 / 30 / 47.95 / 48 / 50 / 59.94 / 60 1920x1080p / 1920x1080i 23.98 / 24 / 25 / 29.97 / 30 / 47.95 / 48 / 50 / 59.94 / 60 1280x720p 25 / 29.97 / 30 / 50 / 59.94 / 60 720x576 25p / 50i (PAL SD) 720x480 29.97p / 59.94i (NTSC SD) Color sampling: YCbCr 10-bit 4:2:2, YCbCr 10-bit 4:4:4:4, YCbCr 12-bit 4:2:2, YCbCr 12-bit 4:4:4 Audio SDI embedded audio: 16-Channel, 24-bit, 192kHz sample rate Audio from 3.5 mm LINE IN: 2-Channel, 24-bit, 192kHz sample rate
Encode	Video Bitrate: 16Mbps Dual-stream encoding: main stream and sub stream Main stream Resolution / frame rate: 2048x1080p / 1920x1200p 60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 15 / 10 / 5 1920x1080p / 1920x720p 60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 15 / 10 / 5 1664x936p / 1600x1200p / 1600x900p 60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 15 / 10 / 5 1440x1080p / 1440x900p 60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 15 / 10 / 5 1280x1024p / 1280x960p / 1280x800p / 1280x720p 60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 15 / 10 / 5 1024x768p 60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 15 / 10 / 5 960x540p / 800x600p 60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 15 / 10 / 5 768x576p / 720x576p / 720x540p / 720x480p 60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 15 / 10 / 5 640x480p / 640x360p 60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 15 / 10 / 5 480x360p / 480x270p 60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 15 / 10 / 5 Native CEA–608 / 608 over 708 captions Sub stream Supports enabling / disabling sub stream Resolution / frame rate: 1920x1080p / 1920x720p 60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 15 / 10 / 5 1664x936p / 1600x1200p / 1600x900p 60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 15 / 10 / 5 1440x1080p / 1440x900p 60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 15 / 10 / 5 1280x1024p / 1280x960p / 1280x800p / 1280x720p 60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 15 / 10 / 5 1024x768p 60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 15 / 10 / 5 960x540p / 800x600p 60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 15 / 10 / 5 768x576p / 720x576p / 720x540p / 720x480p 60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 15 / 10 / 5 640x480p / 640x360p 60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 15 / 10 / 5 480x360p / 480x270p 60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 15 / 10 / 5 H.264 / H.265 (HEVC) Codec: System timecode or RP–188 standard timecode for SEI Message setting H.265 (HEVC) SEI message supports carrying interlacing signal mark Video aspect ratio conversion Audio Encoding 2-channel AAC Bitrate: 256 / 192 / 128 / 96 / 64 / 48 / 32 / 16 kbps Output source embedded audio and line in through LINE OUT
Streaming Features	Natively support Facebook, Twitch and YouTube Supported streaming protocols: RTSP / RTMP / RTMPS / SRT Caller / SRT Listener / NDI\|HX2 / HLS / TS over UDP / TS over RTP Allow simultaneous sessions over the same streaming protocol. Streaming protocols are as follows. Up to 6 sessions of TS over RTP and TS over UDP simultaneously Up to 6 sessions of SRT Caller and SRT Listener simultaneously, containing one SRT Listener session at most (max 8 clients simultaneously) Up to 6 sessions of RTMP and RTMPS simultaneously Stream only 1 session of HLS, RTSP, or NDI\|HX2 Specify streaming main stream or sub stream for each session
Live Stream	Natively supports streaming to: Twitch YouTube, publishing to timeline or a new event and setting “made for kids”. Facebook, enabling backup stream and publishing to timeline or a new event. Supports streaming protocols: RTSP RTMP / RTMPS SRT Caller / SRT Listener NDI®\|HX2 HLS TS over UDP / TS over RTP TVU ISSP Supports sessions over the same streaming protocol, such as Up to 6 sessions of TS over RTP and TS over UDP simultaneously Up to 6 sessions of SRT Caller and SRT Listener simultaneously, containing one SRT Listener session at most (max 8 clients simultaneously) Up to 6 sessions of RTMP and RTMPS simultaneously Supports streaming only 1 session of HLS, RTSP, or NDI\|HX2 Supports specifying a video stream and an audio stream for each streaming session
Web UI	Access Web UI via PC and smartphone View real-time device status Preview encoded video Set input sources Customize encoding parameters Manage streaming destinations, start / stop streaming, view streaming status Set up to 8 overlays for each stream, including text, picture, and clock Update firmware Supports registering Magewell Control Hub for centralized management Supports Microsoft Edge / Firefox / Chrome / Safari / Opera web browsers
API	Provides APIs for 3rd party control system
Network Connections	Ethernet: 1x RJ45 port, 10 / 100 / 1000 Mbps Base-T Wi-Fi: 802.11 a/b/g/n/ac, Station and AP modes supported 4G / 5G USB modem (not supplied) USB Net

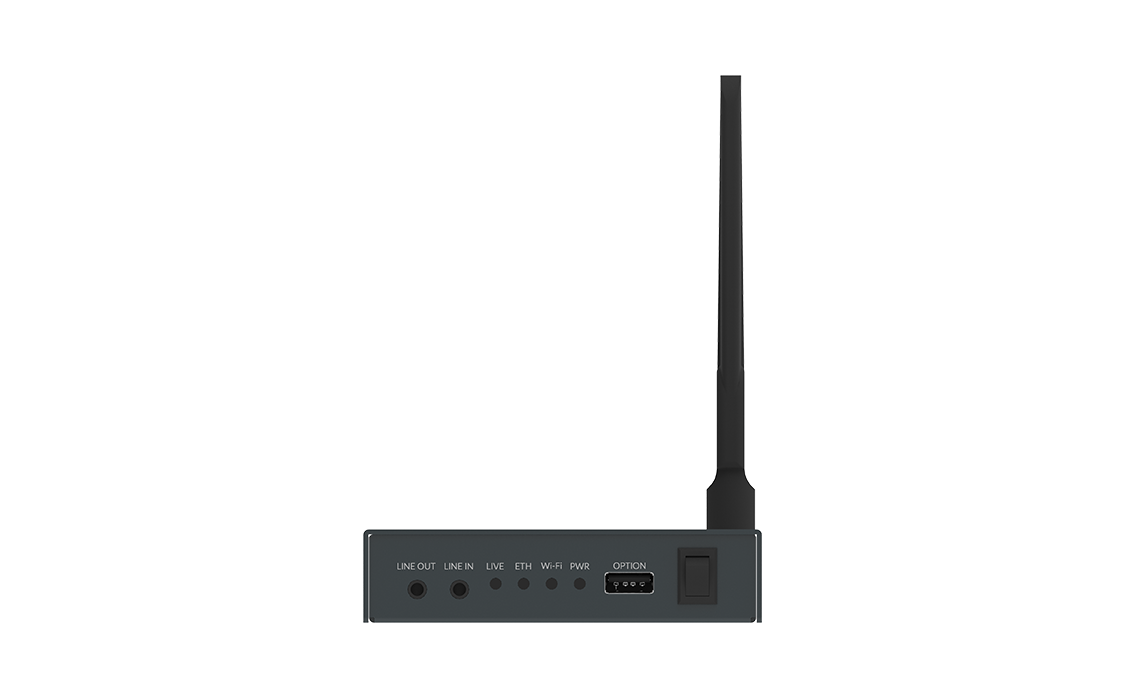

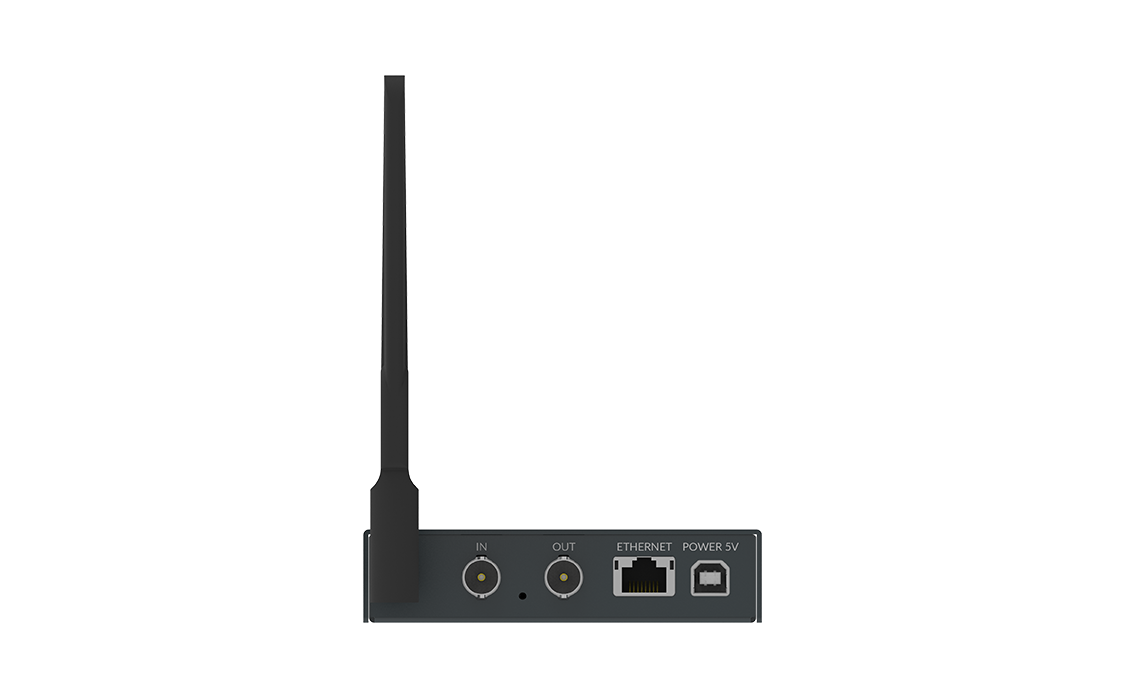

Input / Output Ports	2 x SD / HD / 3G BNC ports 1 x Input 1 x Loop-through 1 x 3.5mm LINE IN 1 x 3.5mm LINE OUT 1 x USB Type-A
LED Indicators	LEDs indicating the status of power, input signal, streaming, Ethernet and Wi-Fi connection
Power Supply and Consumption	DC 5V / 3A Max power consumption: ~ 7.16W
Dimensions	106.6mm x 106.2mm x 25mm
Accessories	1 x 5V Power Adapter 1 x USB Type A to Type B cable 1 x Wi-Fi Antenna 1 x T-bracket
Screw Mounting Hole	2 x M3 threaded hole A standard 1 / 4"-20 socket provided by T-bracket
Working Environment	Operating temperature: 0 to 40 deg C Storage temperature: –20 to 40 deg C Relative humidity: 5% to 90% non-condensing

Accessory

Included

Power Adapter (US/EU/UK/AU/JP) x1
Part number: ACC08010

Power Adapter (KR) x1
Part number: ACC08015

USB 2.0 Type B cable x1
Part number: ACC00065

Wi-Fi Antenna x1 Part number: ACC09021

T-bracket x1
Part number: ACC02241

Two types of power adapters are provided as options to meet your need. Please choose the right part number when placing the order to our dealers. We recommend you always use the included accessories to avoid unnecessary damage to your device. Please note, the appearance of the power adapter may vary due to suppliers or batches. The images here are for reference only.
