| Input Features |
Video
- Supports HDMI 1.4a, DVI-D
- Typical resolution / frame rate:
- 4096x2160 / 3840x2160 60fps 4:2:0
- 4096x2160 / 3840x2160 30fps 4:4:4 / 4:2:2
- 2560x1080p 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60
- 1920x1080p 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 / 100 / 119.88 / 120
- 1920x1080i 25 / 29.97 / 30 / 50 / 59.94 / 60
- 1280x720p 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 / 144
- 720x576p 50 / 100 / 144
- 720x576i 25 / 50
- 720x480p 59.94 / 60/144
- 720x480i 29.97 / 30
- Color depth: 8/10/12-bit
- Color sampling: RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2
- Custom EDID
Audio
- HDMI embedded audio: 8-Channel, 24-bit, 192kHz sample rate
- Audio from 3.5 mm LINE IN: 2-Channel, 24-bit, 192kHz sample rate
|
| Encode |
Video
- Bitrate: 16Mbps
- Dual-stream encoding: main stream and sub stream
- Main stream Resolution / frame rate:
- 2048x1080p / 1920x1200p 60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 15 / 10 / 5
- 1920x1080p / 1920x720p 60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 15 / 10 / 5
- 1664x936p / 1600x1200p / 1600x900p 60 / 59.94/ 50 / 30 / 29.97 / 25 / 24 / 15 / 10 / 5
- 1440x1080p / 1440x900p 60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 15 / 10 / 5
- 1280x1024p / 1280x960p / 1280x800p / 1280x720p 60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 /
15 / 10 / 5
- 1024x768p 60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 15 / 10 / 5
- 960x540p / 800x600p 60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 15 / 10 / 5
- 768x576p / 720x576p / 720x540p / 720x480p 60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 15 /
10 / 5
- 640x480p / 640x360p 60 / 59.94 /50 / 30 / 29.97 / 25 / 24 / 15 / 10 / 5
- 480x360p / 480x270p 60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 15 / 10 / 5
- Sub stream
- Supports enabling / disabling sub stream
- Resolution/frame rate:
- 1920x1080p / 1920x720p 60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 15 / 10 / 5
- 1664x936p / 1600x1200p / 1600x900p 60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 15 /
10 / 5
- 1440x1080p / 1440x900p 60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 15 / 10 / 5
- 1280x1024p / 1280x960p / 1280x800p / 1280x720p 60 / 59.94 / 50 / 30 / 29.97 / 25
/ 24 / 15 / 10 / 5
- 1024x768p 60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 15 / 10 / 5
- 960x540p / 800x600p 60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 15 / 10 / 5
- 768x576p / 720x576p / 720x540p / 720x480p 60 / 59.94 / 50 / 30 / 29.97 / 25 / 24
/ 15 / 10 / 5
- 640x480p / 640x360p 60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 15 / 10 / 5
- 480x360p / 480x270p 60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 15 / 10 / 5
- H.264 / H.265 (HEVC) Codec:
- System timecode or RP–188 standard timecode for SEI Message setting
- H.265 (HEVC) SEI message supports carrying interlacing signal mark
- Video aspect ratio conversion
Audio
- Encoding 2-channel AAC
- Bitrate: 256 / 192 / 128 / 96 / 64 / 48 / 32 / 16 kbps
- Output source embedded audio and line in through LINE OUT
|
| Live stream |
- Natively supports streaming to:
- Twitch
- YouTube (HLS / RTMP), publishing to timeline or a new event and setting “made for kids”.
- Facebook, enabling backup stream and publishing to timeline or a new event.
Supports streaming protocols:
- RTSP
- RTMP / RTMPS
- SRT Caller / SRT Listener
- NDI®|HX2/NDI® HX3
- HLS
- TS over UDP / TS over RTP
- TVU ISSP
- Supports sessions over the same streaming protocol, such as
- Up to 6 sessions of TS over RTP and TS over UDP simultaneously
- Up to 6 sessions of SRT Caller and SRT Listener simultaneously, containing one SRT
Listener session at most (max 8 clients simultaneously)
- Up to 6 sessions of RTMP and RTMPS simultaneously
- Supports streaming only 1 session of HLS, RTSP, or NDI|HX2
- Supports specifying a video stream and an audio stream for each streaming session
|
| Web UI |
-
- Access Web UI via PC and smartphone
- View real-time device status
- Preview encoded video
- Set input sources
- Customize encoding parameters
- Manage streaming destinations, start/stop streaming, view streaming status
- Set up to 8 overlays for each stream, including text, picture, and clock
- Update firmware
- Supports registering Magewell Control Hub for centralized management
- Supports Microsoft Edge/Firefox/Chrome/Safari/Opera web browsers
|
| API |
Provides APIs for 3rd party control system |
| Network Connections |
- Ethernet: 1x RJ45 port, 10 / 100 / 1000 Mbps Base-T
- Wi-Fi: 802.11 a/b/g/n/ac, Station and AP modes supported
- 4G/5G USB modem (not supplied)
- USB Net
|

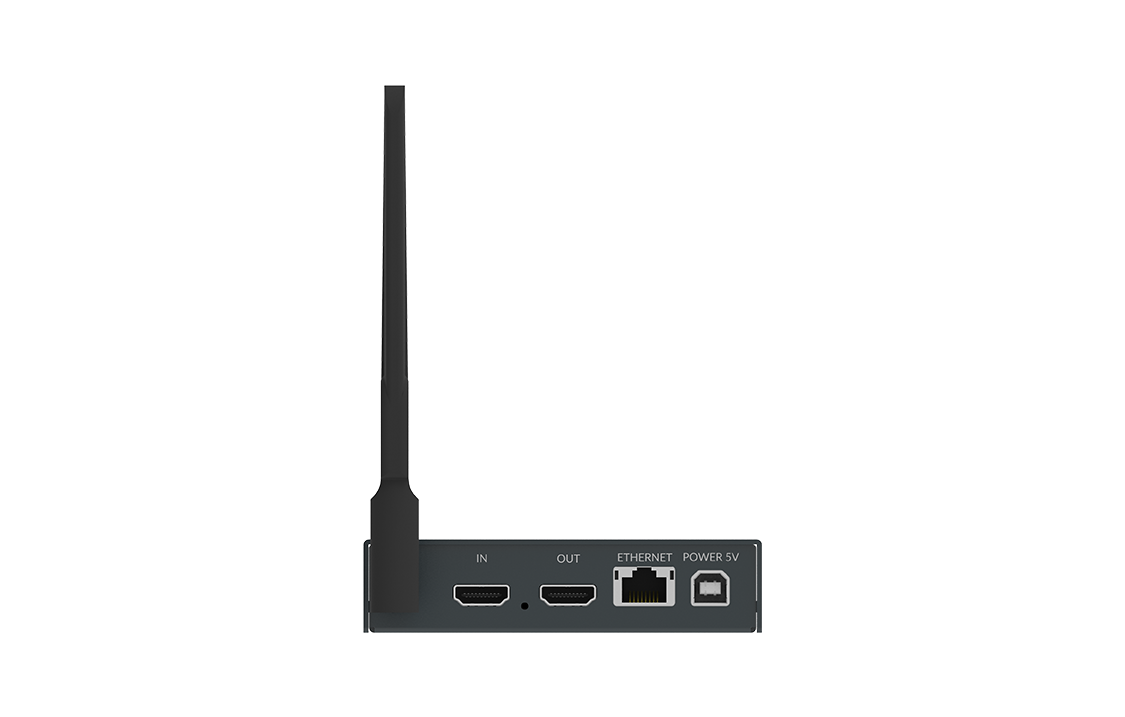

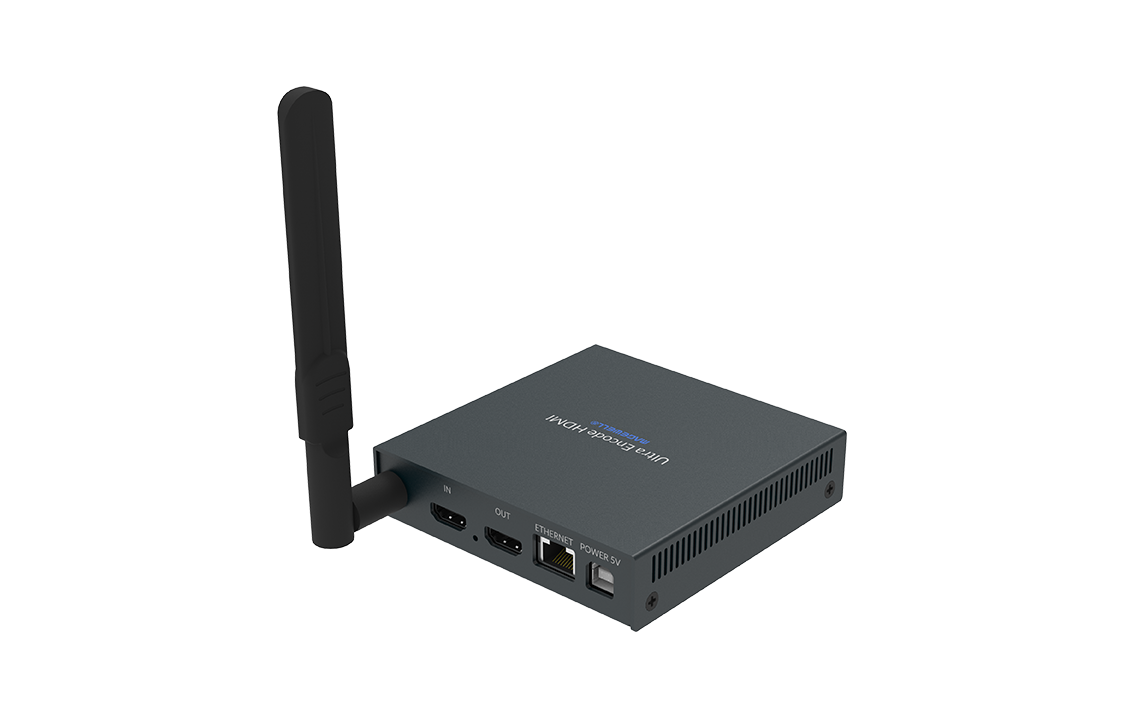

| Input/Output Ports |
- 2 x HDMI ports
- 1 x Input
- 1 x Loop-through
- 1 x 3.5mm LINE IN
- 1 x 3.5mm LINE OUT
- 2 x USB Type-A
|
| Storage |
- SD card (not supplied): FAT32, NTFS, exFAT
- USB flash drive (not supplied): FAT32, NTFS, exFAT
- NAS (not supplied): NFS/CIFS
|

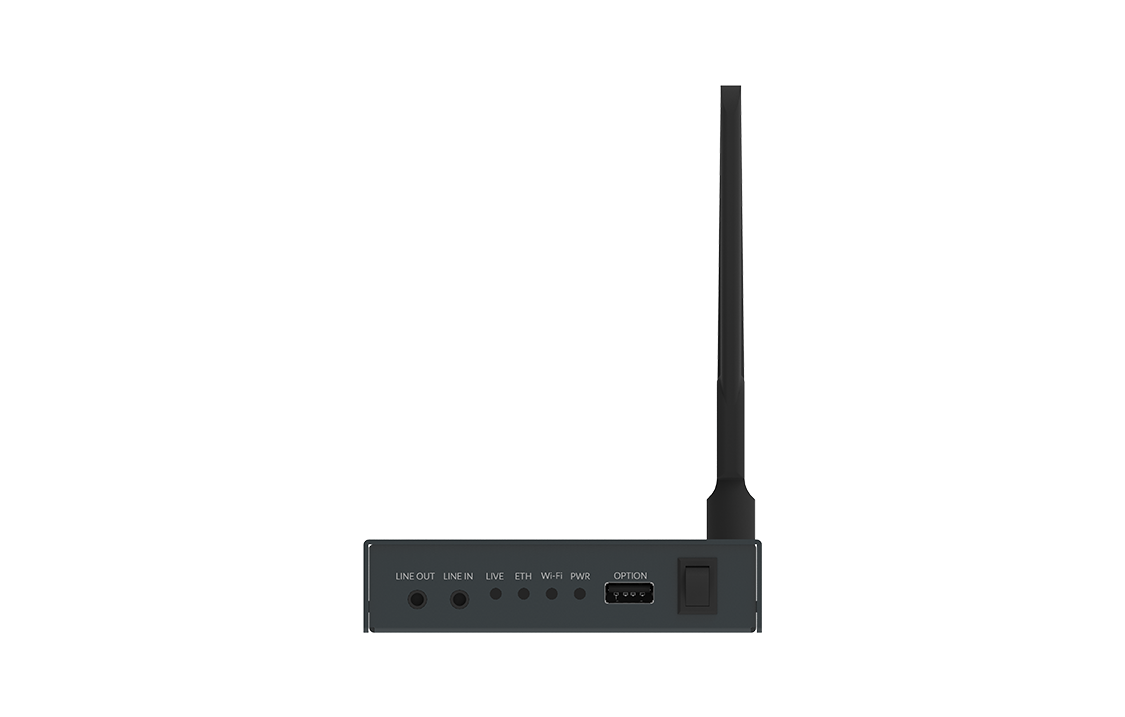

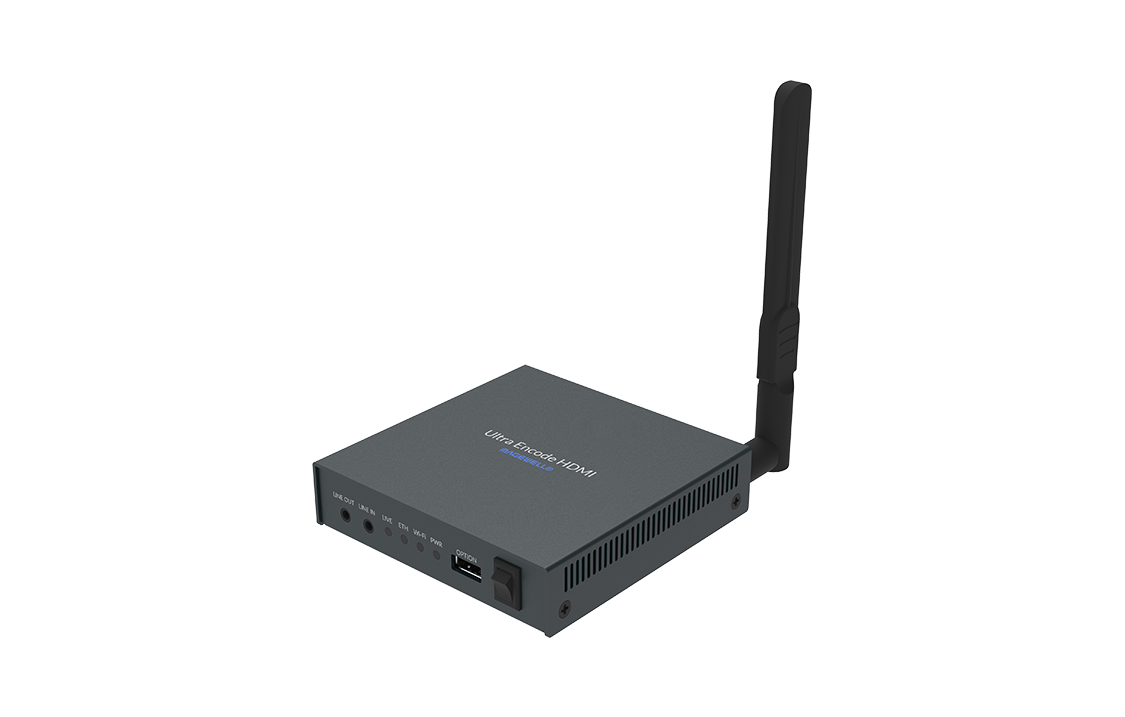

| LED Indicators |
LEDs indicating the status of power, input signal, streaming, Ethernet and Wi-Fi connection |
| Power Supply and Consumption |
- DC 5V/3A
- Max power consumption: ~8.62W
|
| Dimensions |
|
| Accessories |
- 1 x 5V Power Adapter
- 1 x HDMI Cable
- 1 x USB Type A to Type B cable
- 1 x Wi-Fi Antenna
- 1 x T-bracket
|
| Working Environment |
- Operating temperature: 0 to 40 deg C
- Storage temperature: –20 to 40 deg C
- Relative humidity: 5% to 90% non-condensing
|
