6 NDl Encoders, 6 NDI Decoders, 6 Optical Transceivers
6 SDl/HDMl Converters and 6 Up/Down Cross Converters Integrated into One
1-6 Channels available for selection

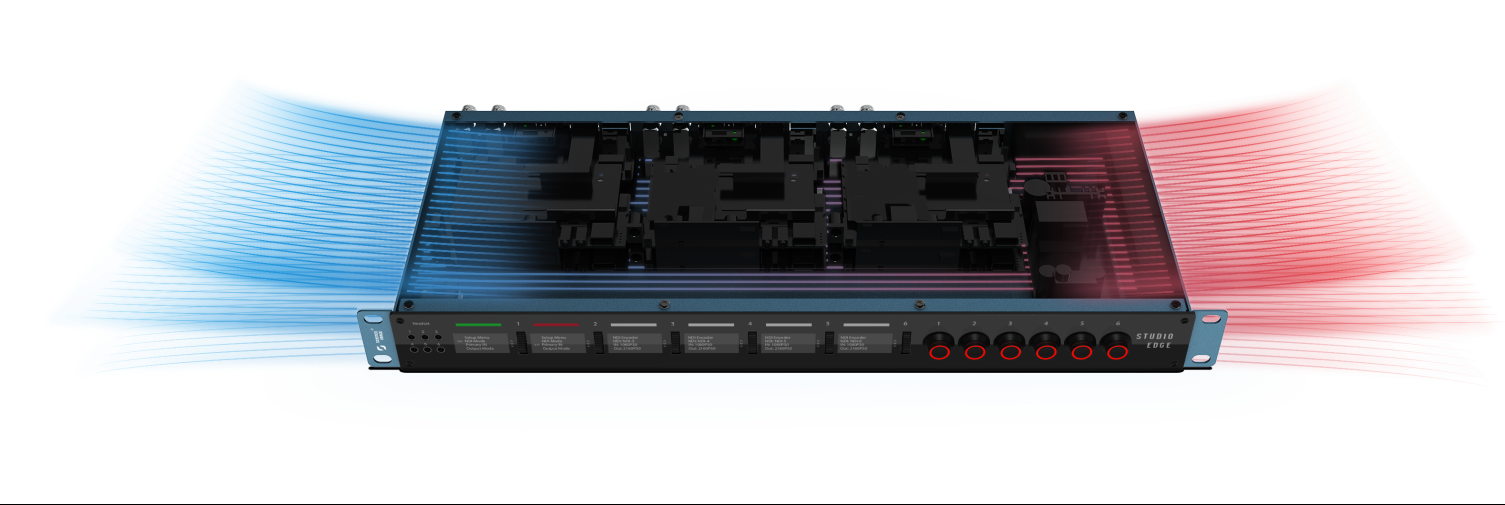

Provide overall heat dissipation for the system and escort each operation
Provide overall heat dissipation for the system and escort each operation

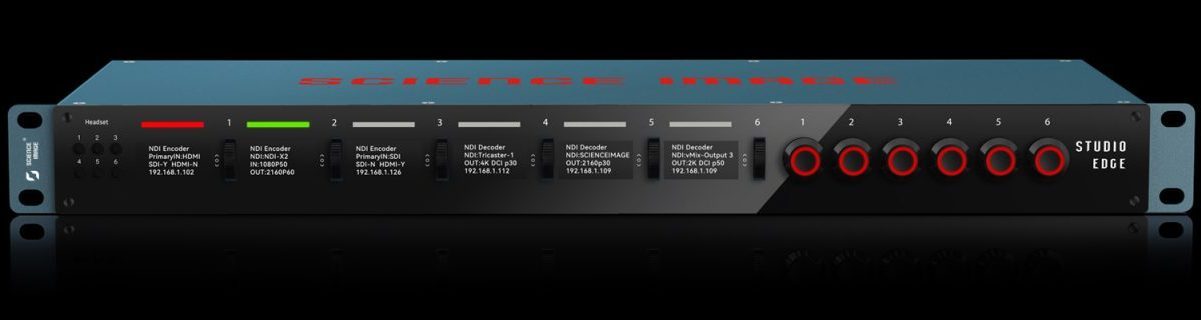

1.3″ OLED will display all working status, such as Encoding or Decoding,
Signal, Format, Network, Input/Output, Optical Transmit or Receive and more
The encoding/decoding mode for each channel can be flexibly switched via scroll wheel button or WebUI.

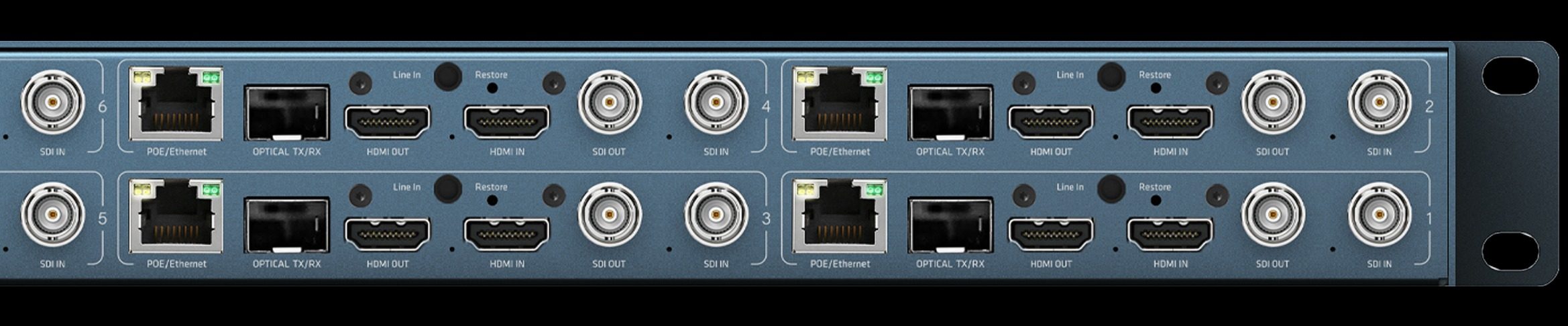

POE/Ethernet, OPTICAL TX/RX, HDMI IN, HDMI OUT, SDI IN, SDI OUT, Line In
Encode/Decode
Tally
1.3" OLED Display
3 Year Warranty
Independent Switch at Disposal
Optical Transceiver
Scroll Wheel Control
12G-SDI/ HDMI 4K UpDown Cross Converter

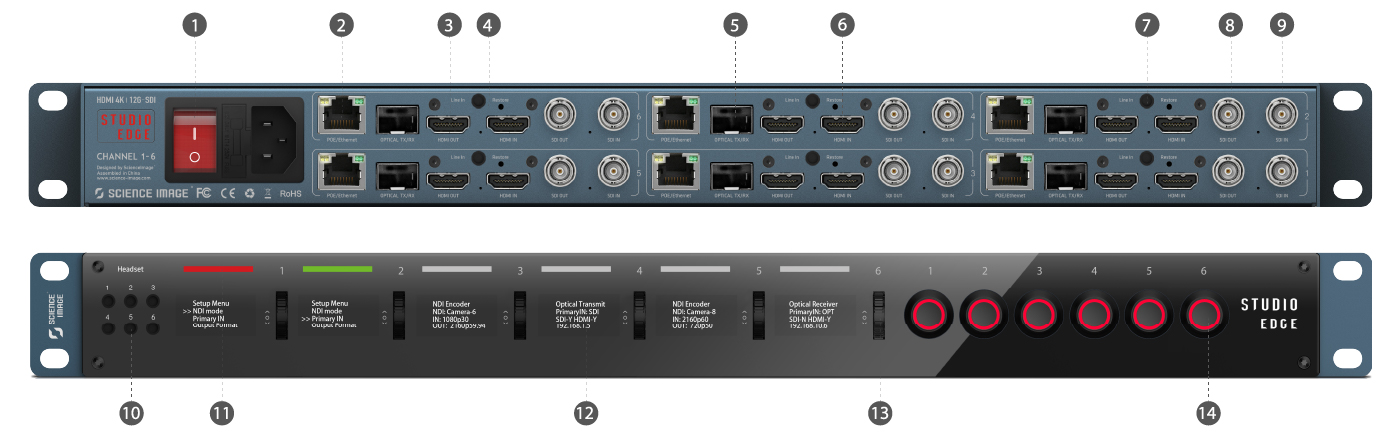

| Front Panel | The front panel includes an OLED screen, Tally light, scroll wheel button, independent power button, and Headset interface. |
| Rear Panel | The rear panel includes corresponding interfaces according to the number of channels and the main power switch. |
| SDI Video Input | 1 x 3G/6G/12G-SDI, adaptive input, automatic switching |
| SDI Video Output | 1 x 3G/6G/12G-SDI, adaptive output, automatic switching |
| HDMI Video Input | 1 x HDMI 2.0 Type A interface supports up to HDMI 4K60p input, format down compatible |
| HDMI Video Output | 1 x HDMI 2.0 Type A interface supports maximum HDMI 4K60p output, format downcompatible |
| Optical Fiber Input and Output | 1 x 12G-SDI Optical Fiber Video Input & Output |
| RJ45 Gigabit Ethernet Port | 1 x RJ45 Gigabit Ethernet interface, used to control and set equipment parameters and input and output NDI signals |
| Line In Audio Input Port | 1 x LINE IN 3.5mm audio input port for external analog audio embedding |
| Mic/Headset Input and Output Port | 1 x 3.5mm audio input and output port, used for audio monitoring |
| 1.3" OLED Screen | Used to display the status information of each channel |
| Tally | TALLY status display in real time: green as PVW and red as PGM |
| Scroll Wheel Button | Support configuring NDI encoding/decoding mode, SDI/HDMI input priority and output’s resolution format, as well as optical transceiver |
| Power Supply | Three-in-one AC power socket with a wide voltage input range of 100V to 250V, providing heat dissipation. Supports both DC and POE power supply. DC power supply can be provided to any channel through an independent power switch, while POE power supply is provided through the Ethernet port. |
| HD Resolution Formats Supported by SDI/HDMI Input and Output | 720p50, 720p59.94, 720p60, 1080i50 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30,1080p50, 1080p59.94, 1080p60，2Kp60, 2Kp59.94, 2Kp50, 2Kp30, 2Kp29.97, 2Kp25, 2Kp24, 2Kp23.98 |
| 4K Resolution Formats Supported by SDI/HDMI Input and Output | 4Kp60, 4Kp59.94, 4Kp50, 4Kp30, 4Kp29.97, 4Kp25, 4Kp24, 4Kp23.98, 2160p60, 2160p59.94, 2160p50, 2160p30, 2160p29.97,2160p25, 2160p24, 2160p23.98 |
| Full NDI Encoding | Support for Encoding HDMI HD/1.5G-SDI to HDMI 4Kp60/12G-SDI Video into FULL NDI |
| Full NDI Decoding | Support FULL NDI Decoding from HD to UHDp60 Formats with SDI or HDMI Output |
| SDI specification | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1 and SMPTE 2082-10 |
| SDI Video Sampling |
4:2:2 4:4:4 |
| SDI Audio Sampling Rate | 48kHz |
| SDI Color Accuracy |
4:2:2 4:4:4 |
| SDI Color Space |
REC 709 BT2020 |
| HDMI Color Space | REC 709 |
| HDMI Color Accuracy | RGB |
| Network Configuration | Support the inter-conversion among TCP (multi-connection), TCP (single connection), UDP and RUDP |
| Firmware Upgrade | Upload firmware via WebUI for upgrade |
| Supported Software | TriCaster / vMix / OBS / Wirecast / Streamstar / LiveStream / Skype / Zoom / Tencent Meeting / XSplit / Webex / Watchout / GoToMeeting |
| Dimension | 482mm * 188mm * 44.5mm (Channels 1-6 have the same dimension) |
| Material | Aluminum |
| Weight | Vary depending on different channels |
| Packing List |
Studio Edge Manual |
