NDI HD Mini is a HD, full bi-directional codec, supporting up to 3G-SDI and HDMI 4K30 with SMPTE input, able to accurately restore the color and clarity of the source image.
It integrates 3G-SDI and HDMI 4K30 encoding technology, converts video stream into network stream, support 1080p60 decoding to large screens.
Switch Full NDI encoding and decoding with one key; Support 3G-SDI and HDMI 4K30 or below any SMPTE standard format input; Full NDI encodes and decodes exact original image color and sharpness, low latency, broadcast-grade metrics, flexible UDP features, integrated TALLY, audio embed/unembed and call capabilities, flexible live applications and networking, enabling your team to quickly build an IP broadcast-grade studio with high efficiency and low cost.

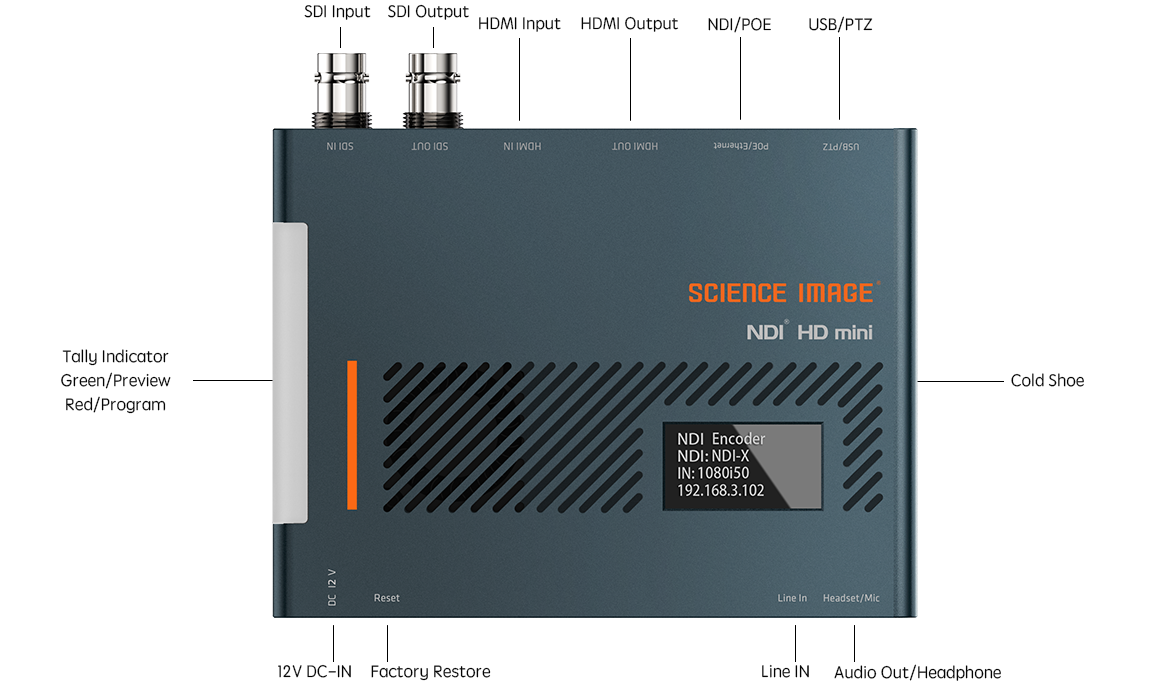

Large tally light size covering three sides
1.3" OLED screen to display working status such as encoding/decoding, signal, format, network, input/ output, optical transmit/ receive and more.

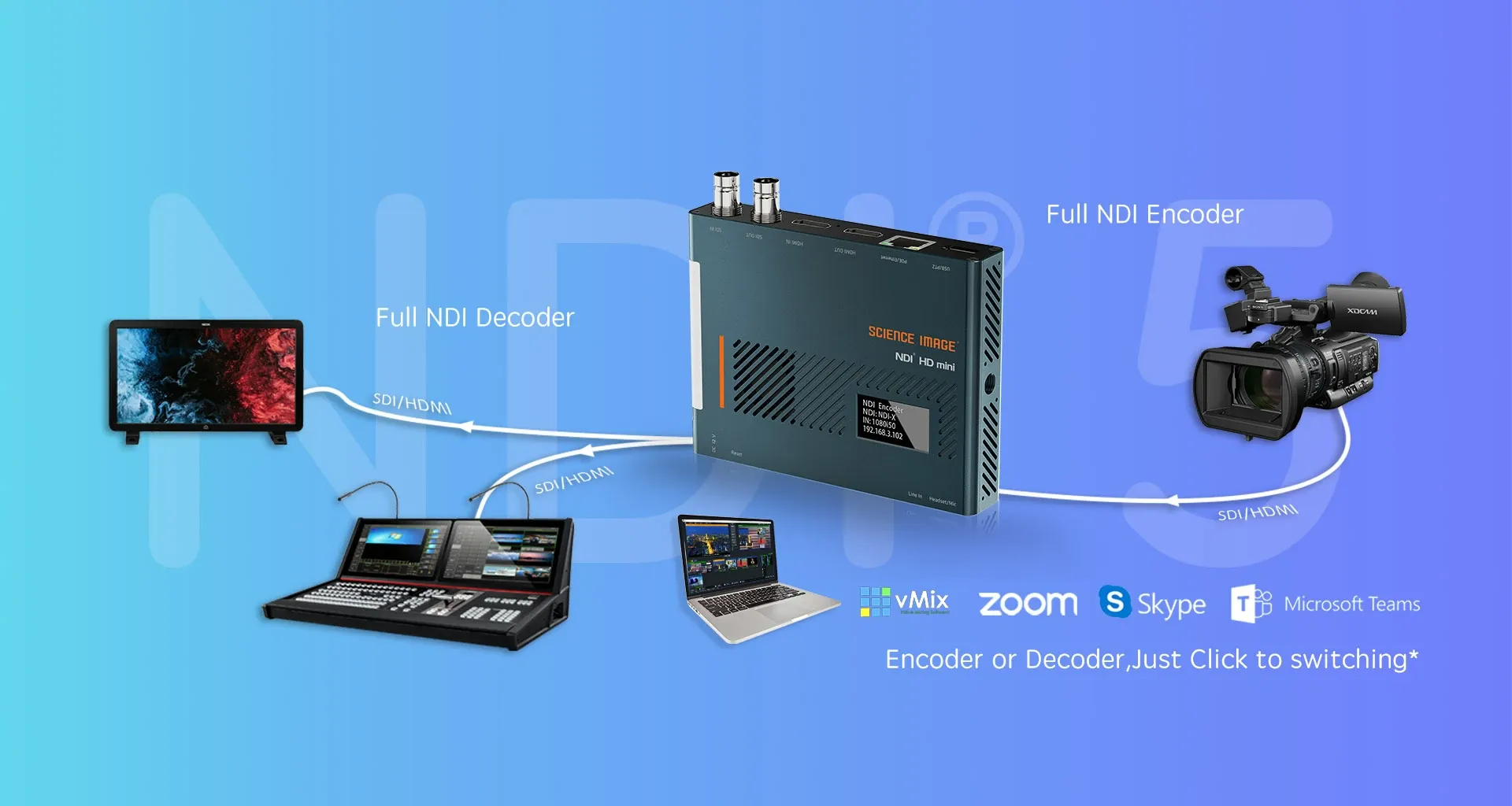

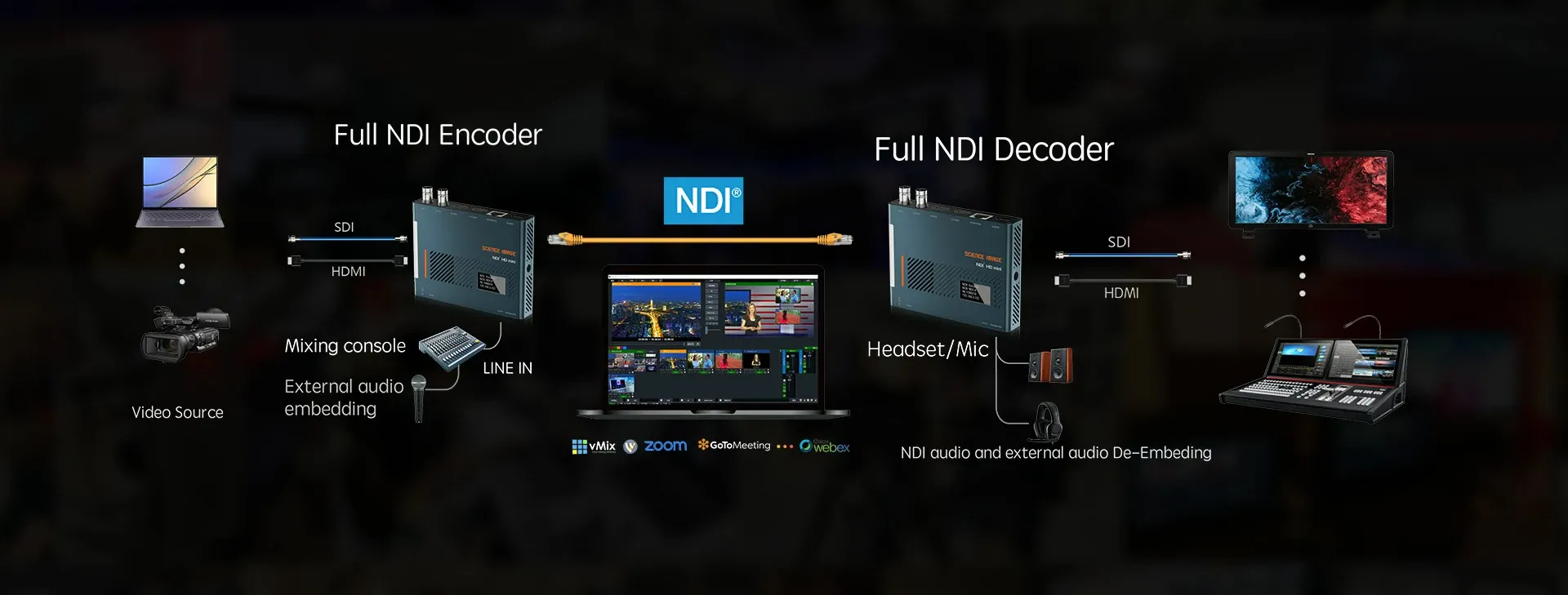

The box can be used as a Full NDI Encoder or Decoder to be flexibly deployed in the front end or display/control terminal according to different scenarios in the field. While NDI works, it is also an SDI/HDMI Bi-Directional converter. One multi-purpose device to reduce the system cost and to be able to respond quickly, flexible, convenient
Support NDI 5.5 functions, the application of NDI 5 features and tool set, give full play to the remote advantages of NDI 5, not limited by the region and network bandwidth, anytime, anywhere to build the studio you need.

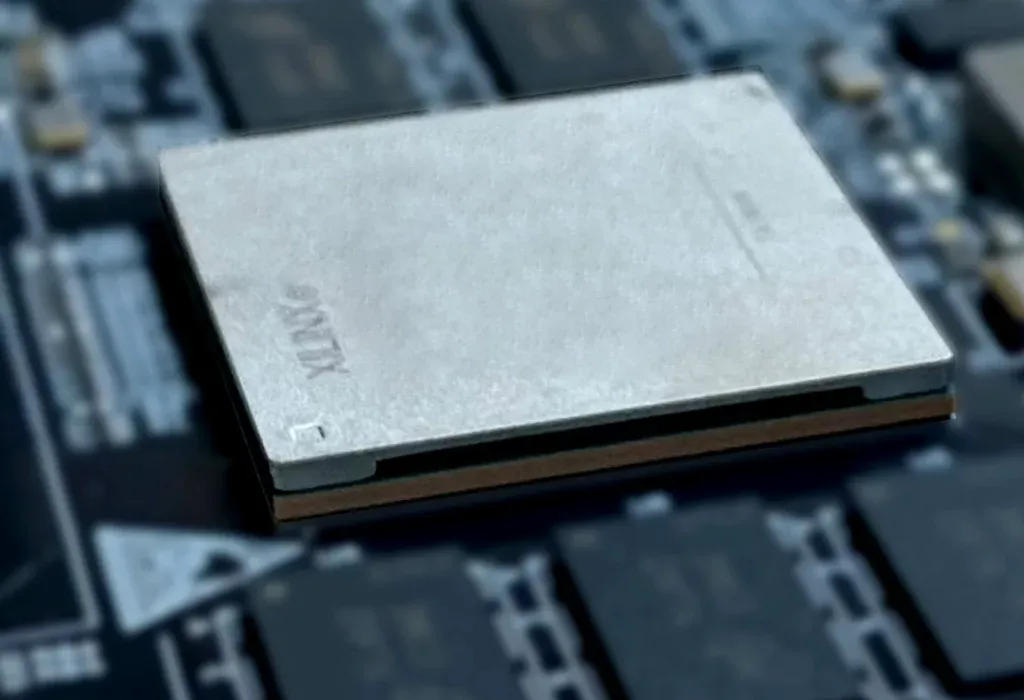

Support 12G-SDI/HDMI 2.0 and SMPTE/ITU international broadcast standard formats, compatible with multiple sampling formats (4:4:4,4:2:2,4:2:0), accurate and fast signal recognition. It uses Xilinx FPGA SOC hardware, internal design and embedded Linux system, ensuring a stable operation, not influenced by the external environment.
Supports SMPTE video source, compatible with the video from most equipment. Open to most software and browsers, truly plug and play. HD mini meets industrial standard, which ensure it works durably and reliably.
Aviation aluminum integrated design and milling, ultra-thin process, aviation process manufacturing.
Broadcast grade international standard formats and specifications, accurate and rapid signal recognition.
Wide usage range such as conference and stage live, remote connection, education live broadcast, and gives full play to its advantages in various fields.
Respond quickly, flexibly, and conveniently; while saving system cost with one singular, multi-purpose device.
| Video input | 3G-SDI IN 1, HDMI IN 1 |
| Video output | 3G-SDI OUT 1, HDMI OUT 1 |
| SDI video format | 525i59.94 NTSC, 625i50 PAL, 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60 |
| HDMI video format | 525i29.97 NTSC, 625i25 PAL, 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60, 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30 |
| SDI specfications | SMPTE 259M, SMPTE 292M, SMPET 274, SMPTE 296M, SMPTE 424M, ITU-R BT.656 and ITU-R BT.601, ITU-R BT.709 |
| SDI video data rate | The SDI video interface can be switched between standard definition, high definition A and B 3G‑SDI |
| SDI video sampling | 4:2:2 and 4:4:4 |
| SDI audio sampling rate | 48kHz, 24bit |
| SDI color accuracy | 4:2:2 and 4:4:4 |
| SDI color space |
REC 601 REC 709 |
| SDI Auto Switch | Automatically detects SD, HD and 3G‑SDI |
| HDMI color accuracy |
YUV 4:2:2 RGB 4:4:4 |
| HDMI color space |
REC 601 REC 709 |
| Screen | 1 x 1.3-inch OLED screen, real-time display of NDI box encoding/decoding status, input/output format and IP and other information |
| Tally light | Large-size semi-transparent matt TALLY light guide block, which can display two TALLY states transmitted through NDI in real time |
| Network | Gigabit Ethernet switch and Gigabit Ethernet card |
| Software | Built-in Linux, application control software Science Image Laudo |
| Operating system | Supports Windows 8.1 and 10 operating systems, Mac 10.14 Mojave, Mac 10.15 Catalina or higher |
| Browser support | IE/ Edge/ Firefox/ Chrome/ Safari/ Opera |

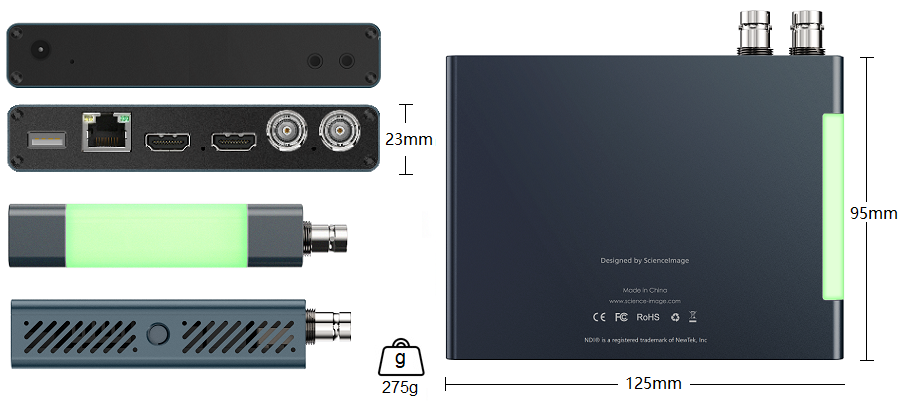

| Dimensions | 125mm x 95mm x 22mm |
| Weight | 270g |
| Material | All aviation aluminum milling |
| Power supply | 5-18V DC power input, USB power supply, and POE |
| Power consumption | 10W |
| Operating temperature | 5°C to 40°C |
| Storage temperature | -20° to 60° C (-4° to 140° F) |
| Relative humidity | 0% to 90% non-condensing |
| Packing list |
NDI HI Mini Manual 12V universal power supply (includes four sets of international conversion plugs) |
