Encoder | Decoder | Up/Down Cross Converter | Optical Transceiver
A small river named Duden flows by their place and supplies it with the necessary regelialia. It is a paradise
Adopting 10G optical fiber transmission technology to ensure efficient, stable and reliable data transmission

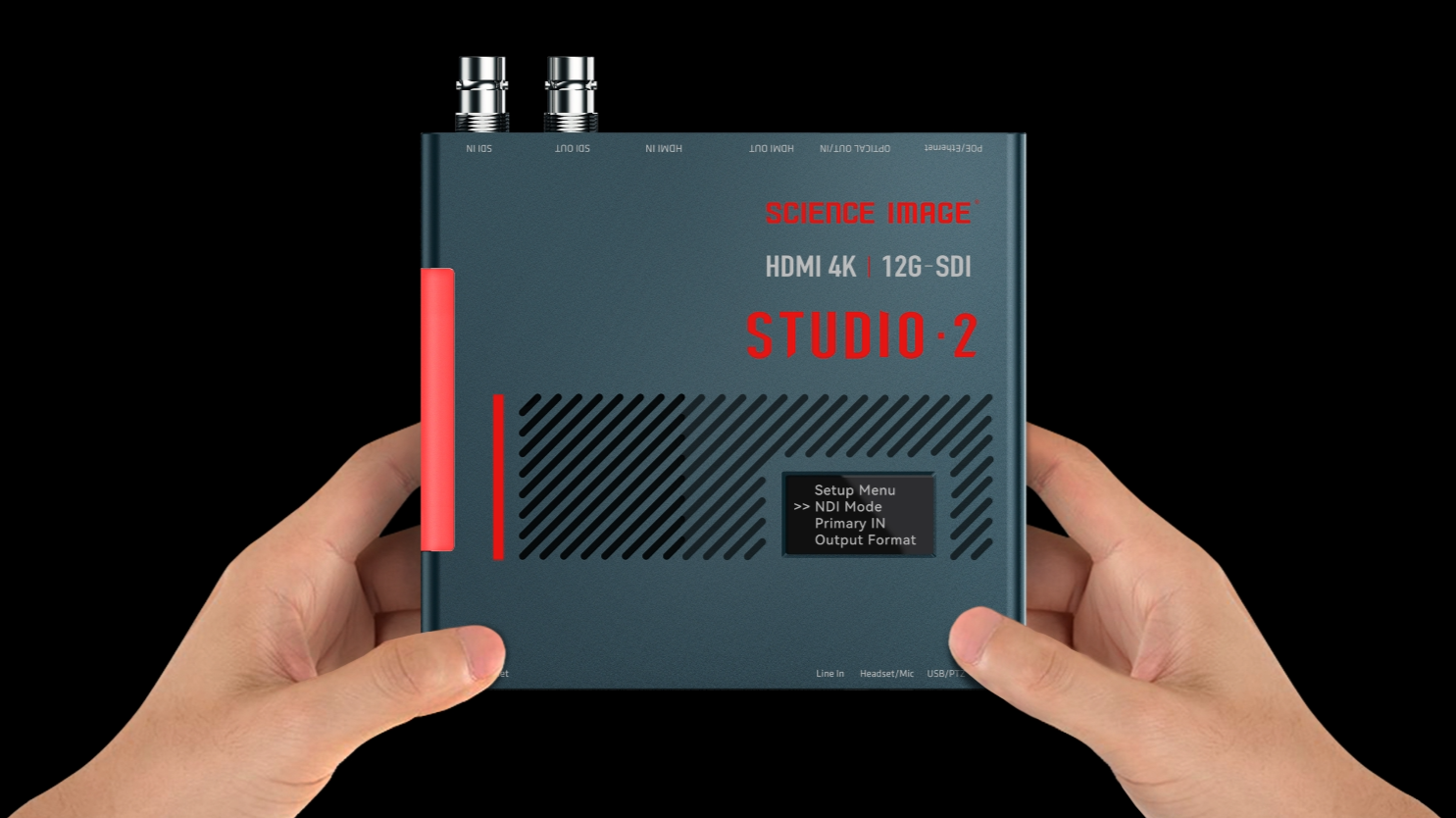

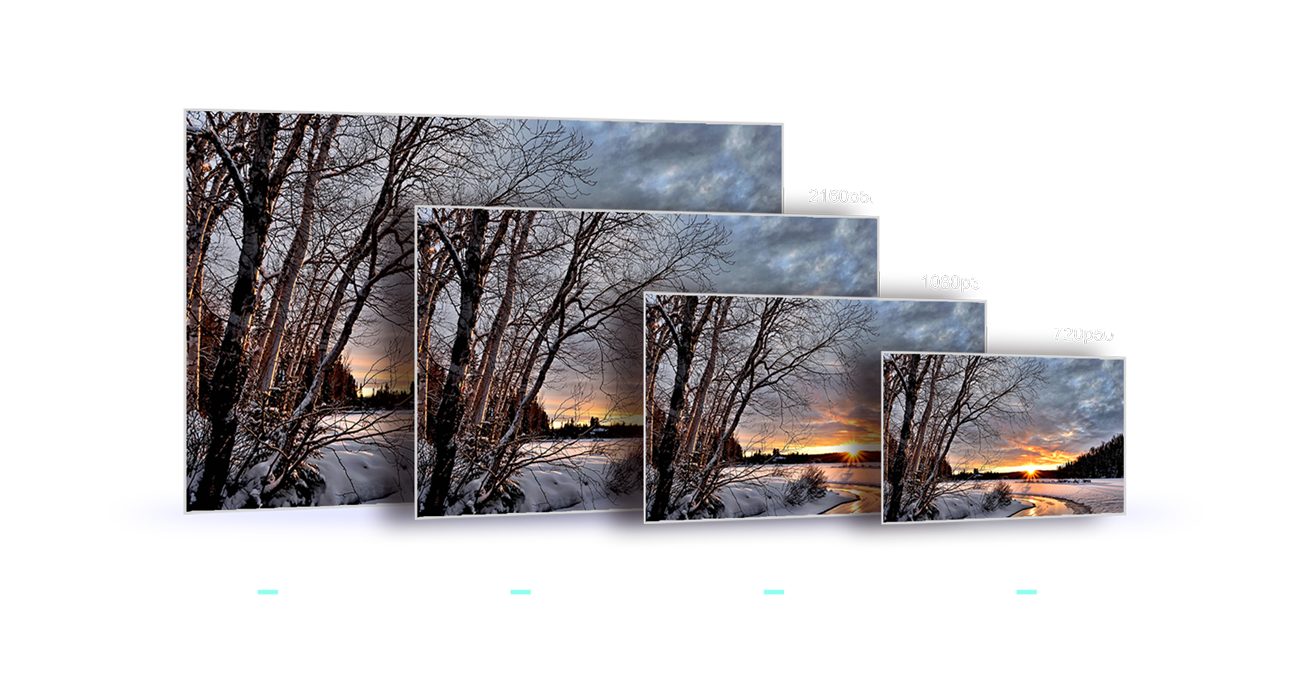

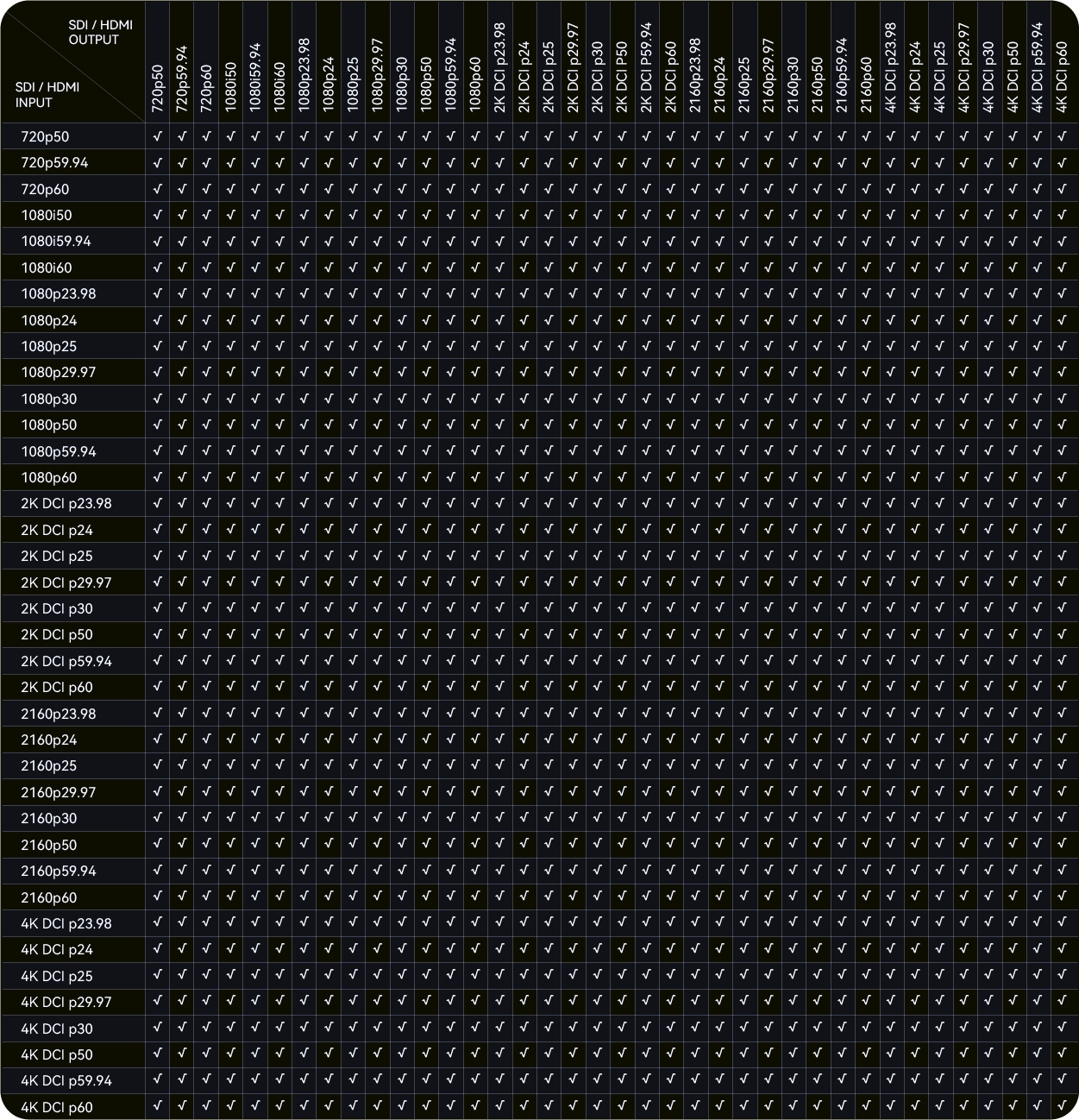

With a 12G-SDI/HDMI 2.0 interface, the Studio 2 is capable of cross converting from 720p50 to 2160p60

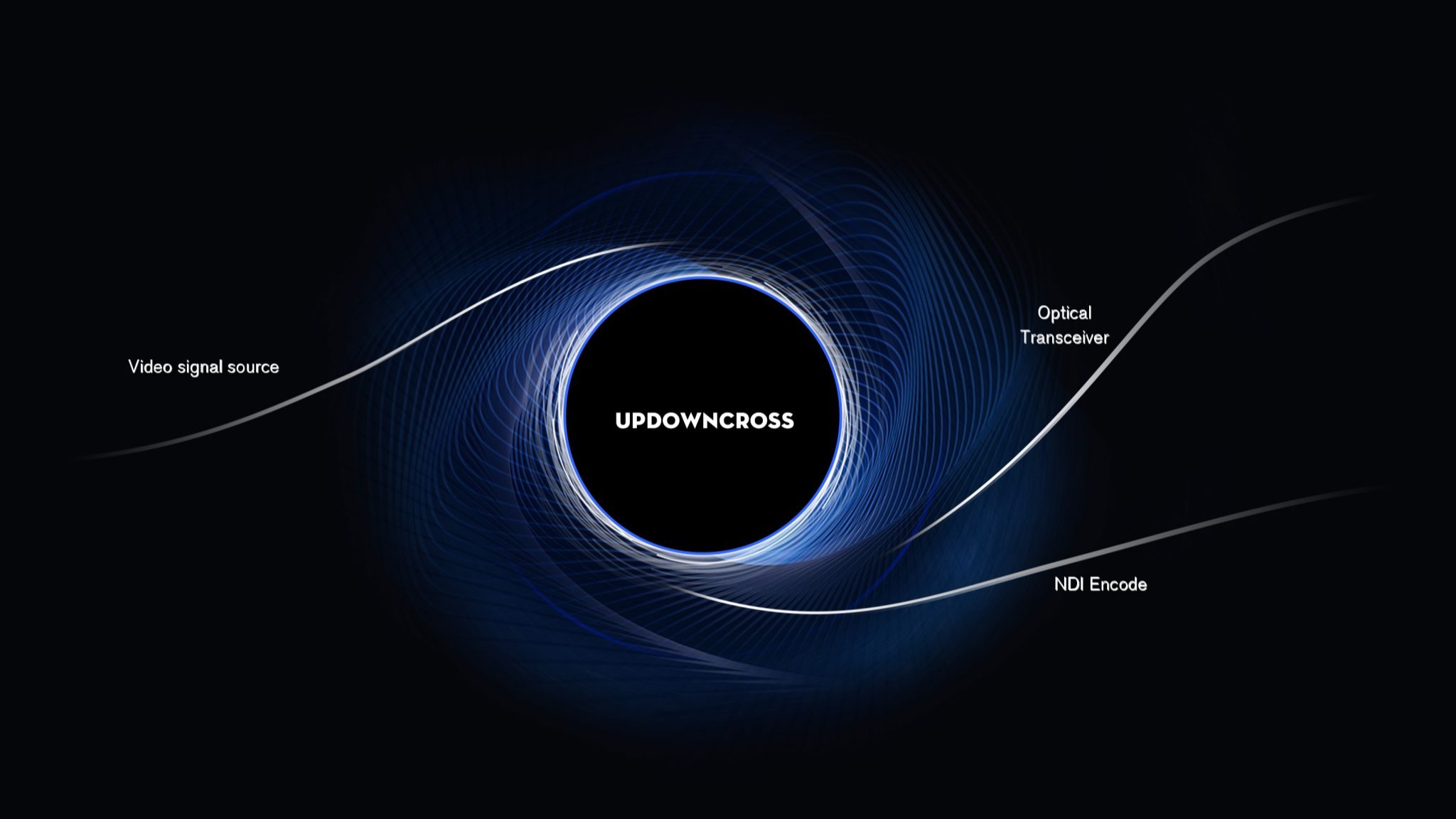

NDI encode / UpDown cross conversion / Optical transceiver working simultaneously
Display encoding/ decoding status, input/ output format, IP address
Encode/Decode
Tally
1.3" OLED Display
3 Year Warranty
Audio Embedded/ De-Embedded/ Intercom
Optical Transceiver
Scroll Wheel Control
12G-SDI/ HDMI 4K UpDown Cross Converter

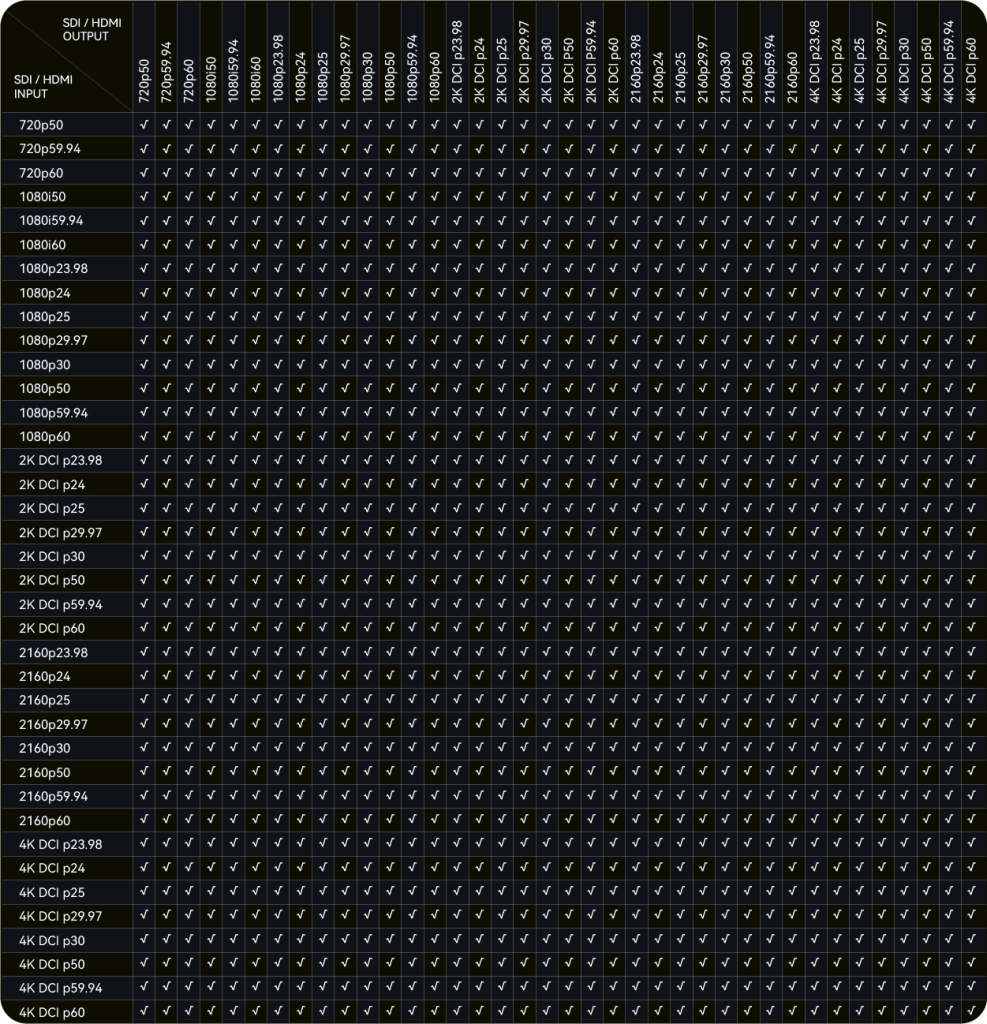

| SDI HD video format | 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30,1080p50, 1080p59.94, 1080p60 |
| HD video format | 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080p50, 1080p59.94, 1080p60 |
| UHD/4K video format | 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 |
| SDI Specification | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1 and SMPTE 2082-10 |
| SDI video sampling | 4:2:2 and 4:4:4 |
| SDI audio sampling rate | 48kHz |
| SDI color accuracy | 4:2:2 and 4:4:4 |
| SDI color space | REC 709 and BT2020 |
| HDMI color space | REC 709 |
| HDMI color accuracy | RBG |

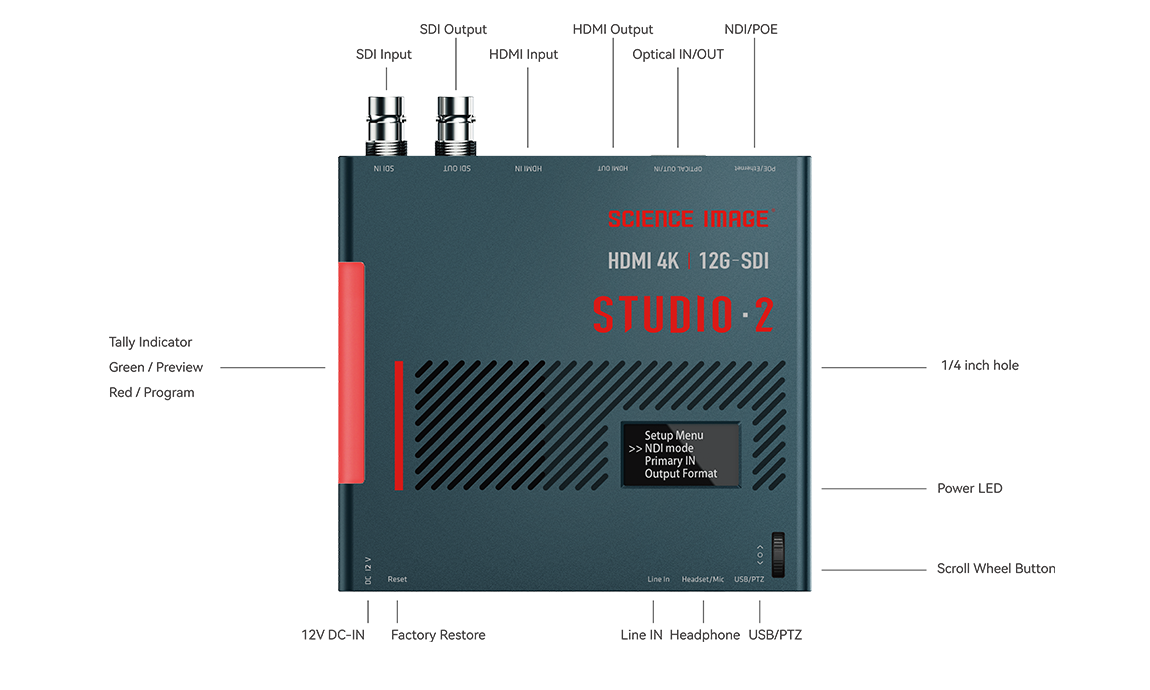

| SDI video input | 1 x 1.5G/3G/6G/12G-SDI, adaptive input, automatic switching |
| SDI video output | 1 x 1.5G/3G/6G/12G-SDI, adaptive output, automatic switching |
| HDMI video input | 1 x HDMI 2.0 Type A interface supports up to HDMI 4K60p input, backward compatible. |
| HDMI video output | 1 x HDMI 2.0 Type A interface supports maximum HDMI 4K60p output, backward compatible. |
| Optical fiber input and output | 1 x optical fiber SFP socket, 12G-SDI optical Transceiver modules |
| RJ45 Gigabit Ethernet port | 1 x RJ45 Gigabit Ethernet interface, used to control and set equipment parameters and input and output NDI signals. |
| LINE IN audio input port | 1 x LINE IN 3.5mm audio input port for external analog audio embedding |
| MIC Intercom input and output port | 1 x Mic 3.5mm audio input and output port (De-Embeded), used for NDI Intercom (with DynaControl software required) |
| USB 2.0 Type A port | 1 x USB 2.0 Type A interface, used to control a third-party PTZ camera. |
| Screen | 1 x 1.3-inch OLED screen, real-time display of NDI box encoding/decoding status, input/output format and IP and other information, clear at a glance, easy to operate. |
| Tally light | Large-size semi-transparent matt TALLY light guide block, which can display three TALLY states transmitted through NDI in real time: Green/Preview, Red/Program |
| Network requirement | Gigabit Ethernet switch and Gigabit Ethernet card |
| Software | Built-in Linux, application control software Science Image DynaControl. |
| Operating System | Supports Windows 8.1, Windows 10 and Windows 11 operating systems, Mac 10.14 Mojave, Mac 10.15 Catalina or higher. |
| Supported Platform | Support IE/ Edge/ Firefox/ Chrome/ Safari/ Opera |

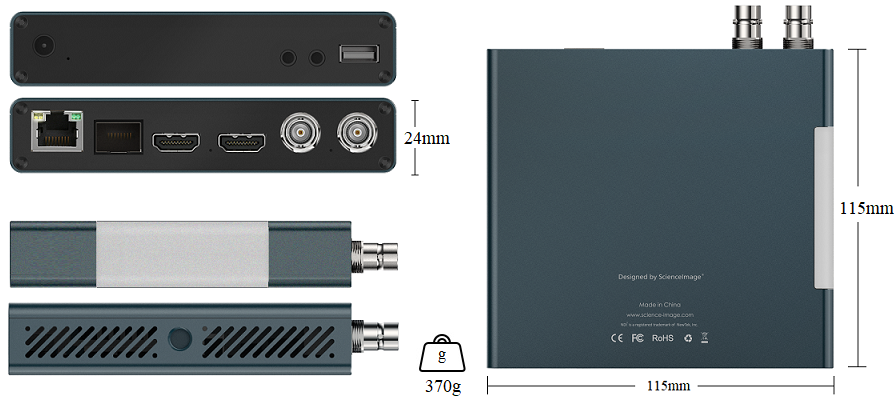

| Dimension | 125mm x 115mm x 24mm |
| Weight | 370g |
| Material | all aviation aluminum milling |
| Power supply | Two power supply modes: 9-18V DC and POE+ |
| Power consumption | 25W |
| Optical Module | 12G-SDI /HDMI 4K SFP Optical Module |
| Operating temperature | 5°C to 40°C |
| Storage temperature | -20° to 60° C (-4° to 140° F) |
| Relative humidity | 0% to 90% non-condensing |
| Packing list |
Studio 2 Manual 12V universal power supply (includes four sets of international conversion plugs) |
