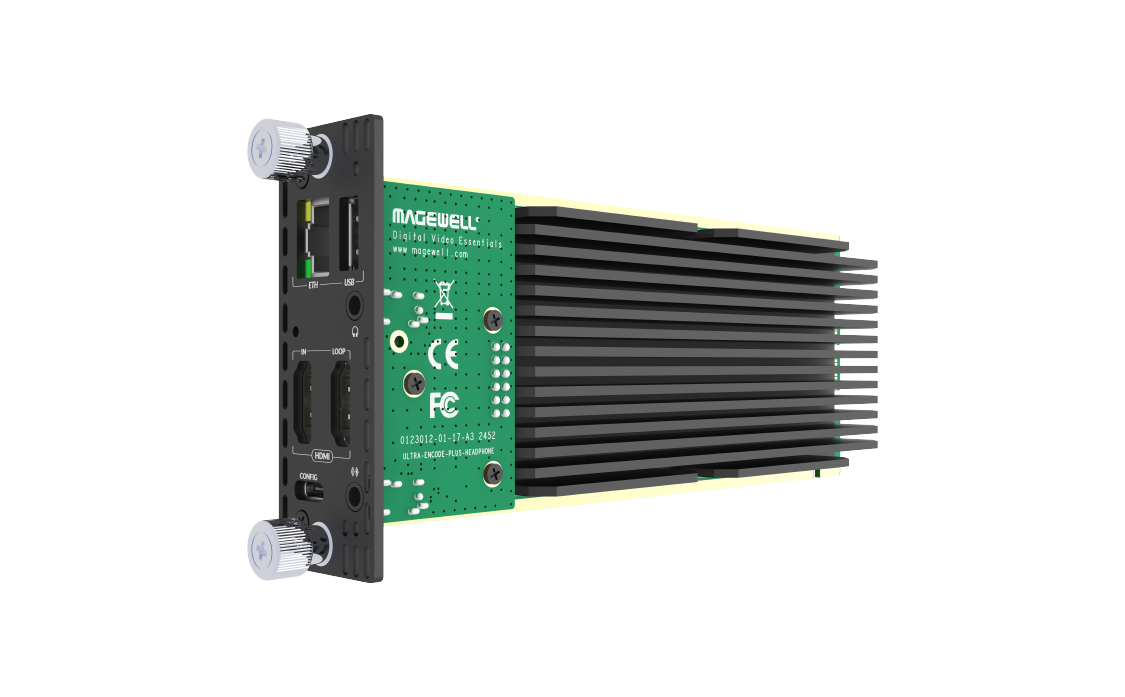

Ultra Encode HDMI Plus Module

Encoding module for rack-mounted centralized deployment

A hot-swappable module to be installed in Magewell Modator chassis
Supports common encoding formats and streaming protocols, including NDI® HX3
Powerful encoding performance with support for streaming and recording schedule
Centrally manageable via the Modator chassis and Magewell Control Hub

For standalone version with same specification.

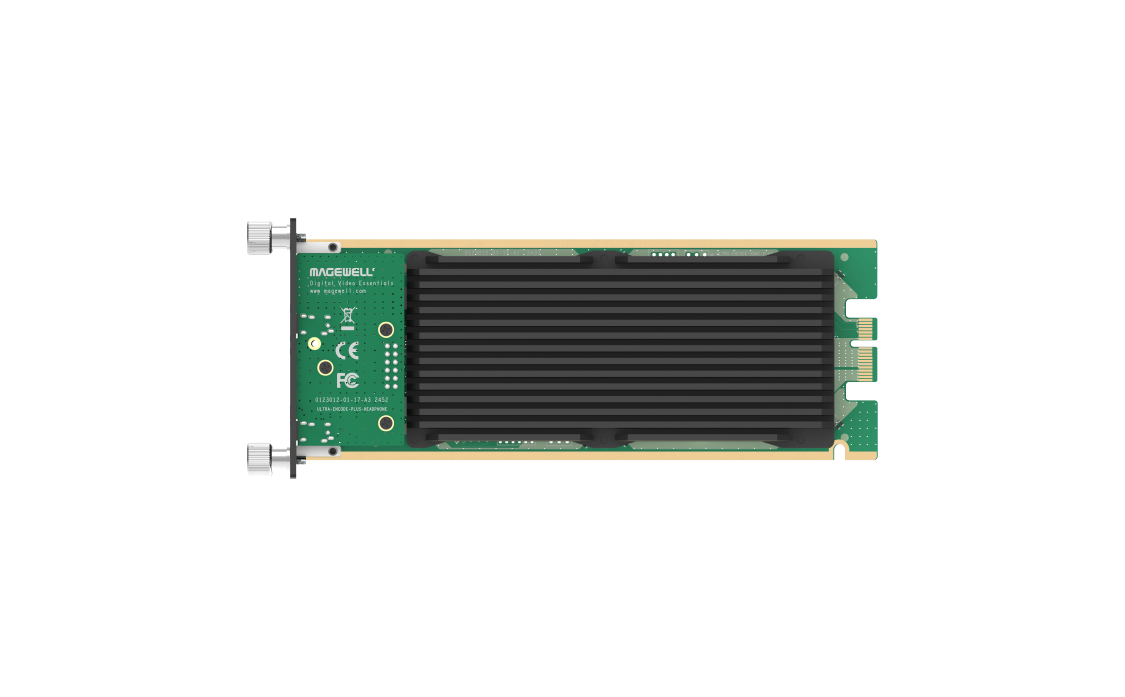

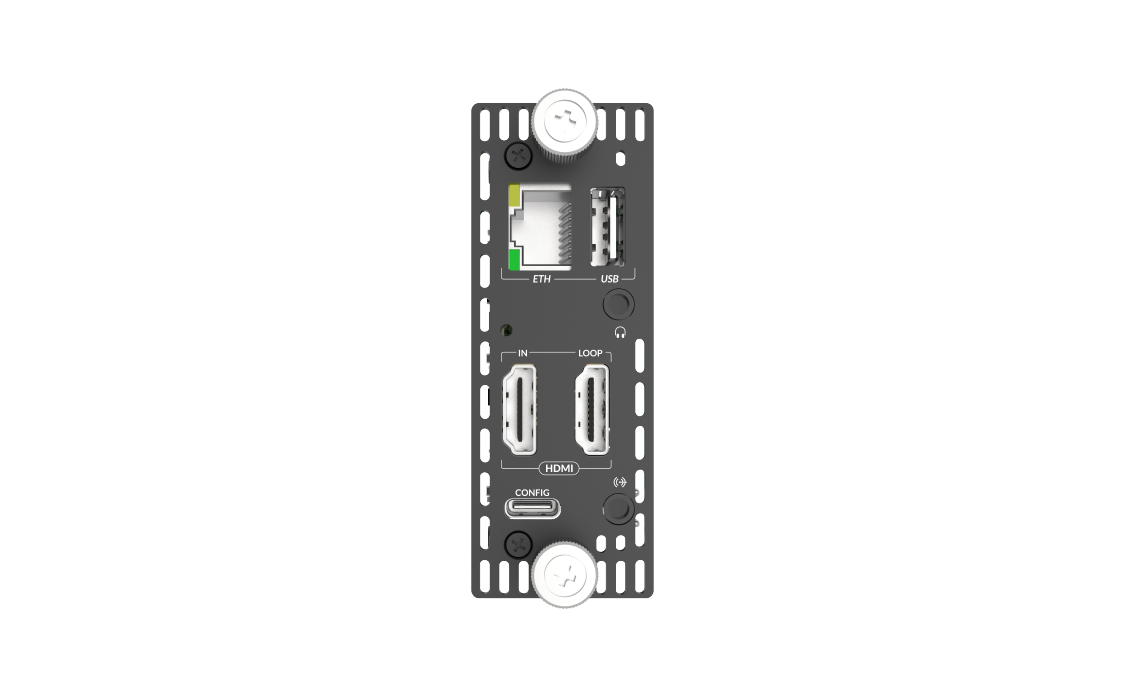

Ultra Encode HDMI Plus Module

imgi_36_2 (2)

imgi_37_3 (1)

Interface

imgi_9_interface_1

imgi_8_interface_2

Specifications and Features

Features

Input & Loop-Through Features

Support for up to 4096x2160 30fps input and loopthrough signals
Input & loop through 8-Channel, 24-bit HDMI embedded audio
Input audio from 3.5 mm LINE IN

Encoding Features

Dual stream encoding profiles: main stream and sub stream up to 4096x2160p30
Max bitrate: 62Mbps (NDI® HX3), 32Mbps (Others)
Support for H.264/HEVC video encoding
Provide video aspect ratio conversion, image rotation and cropping for the main and sub streams
Encoding 8-channel AAC and audio channels mapping
Side-by-Side 3D video encoding

Streaming Features

Natively support Facebook, Twitch, YouTube and WOWZA
Supported streaming protocols: RTSP/RTMP/RTMPS/SRT Caller/SRT Listener/NDI® HX2/NDI® HX3/HLS/TS over UDP/TS over RTP/TVU ISSP
Allow simultaneous 6 sessions over multiple streaming protocols
Support for streaming schedule

Recording and screenshot

Record to internal storage (supplied 128GB Micro-SD card), external USB storage or network attached storage (NFS/CIFS)
Video recordings in MP4, MOV or TS format
Normal recording and loop recording supported
Support for recording schedule

Others

Configure through the touch screen of Magewell Modator chassis, Web GUI or Control Hub
HTTP-based APIs for custom integration
2-year warranty

Details

Input/Output Ports	1 x RJ45 1000Mbps Ethernet port 1 x USB Type-C port for configuration 2 x HDMI ports 1 x Input 1 x Loop-through 1 x 3.5mm LINE IN 1 x 3.5mm LINE OUT 1 x USB Type-A 1 x Micro-SD card slot 1 x Modator interface for connecting to Modator 2U (hot-swappable)
Input & Loop-through	Video Supports HDMI 1.4a, DVI-D Typical resolution/frame rate 4096x2160/3840x2160 30fps 4:4:4/4:2:2 2560x1440p/2048x1080p/2048x1080i 23.98/24/25/29.97/30/47.95/48/50/59.94/60 1920x1080p/1920x1080i 23.98/24/25/29.97/30/47.95/48/50/59.94/60 1280x720p 25/29.97/30/50/59.94/60 720x576 25p/50i (PAL SD) 720x480 29.97p/59.94i (NTSC SD) Color depth: 8/10/12-bit Color sampling: RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 Custom EDID Audio HDMI embedded audio: 8-Channel, 24-bit, 192kHz sample rate Audio from 3.5 mm LINE IN: 2-Channel, 24-bit, 192kHz sample rate
Encoding Features	Video Bitrate: NDI HX3: up to 62.0Mbps, down to 1.5Mbps Others: up to 32.0Mbps, down to 256kpbs Dual-stream encoding: main stream and sub stream Main stream Resolution/frame rate: Follow input 4096x2160p/3840x2160p 30/29.97/25/24/23.976/15/10/5 2560x1440p/2048x1080p/1920x1200p 60/59.94/50/30/29.97/25/24/23.976/15/10/5 1920x1080p/1920x720p 60/59.94/50/30/29.97/25/24/23.976/15/10/5 1664x936p/1600x1200p/1600x900p 60/59.94/50/30/29.97/25/24/23.976/15/10/5 1440x1080p/1440x900p 60/59.94/50/30/29.97/25/24/23.976/15/10/5 1280x1024p/1280x960p/1280x800p/1280x720p 60/59.94/50/30/29.97/25/24/23.976/15/10/5 1024x768p 60/59.94/50/30/29.97/25/24/23.976/15/10/5 1024x576p 60/59.94/50/30/29.97/25/24/23.976/15/10/5 960x540p/800x600p 60/59.94/50/30/29.97/25/24/23.976/15/10/5 768x576p/720x576p/720x540p/720x480p 60/59.94/50/30/29.97/25/24/23.976/15/10/5 640x480p/640x360p 60/59.94/50/30/29.97/25/24/23.976/15/10/5 480x360p/480x270p 60/59.94/50/30/29.97/25/24/23.976/15/10/5 Native CEA–608/608 over 708 captions Sub stream Supports enabling/disabling sub stream Resolution/frame rate: 1920x1080p/1920x720p 60/59.94/50/30/29.97/25/24/23.976/15/10/5 1664x936p/1600x1200p/1600x900p 60/59.94/50/30/29.97/25/24/23.976/15/10/5 1440x1080p/1440x900p 60/59.94/50/30/29.97/25/24/23.976/15/10/5 1280x1024p/1280x960p/1280x800p/1280x720p 60/59.94/50/30/29.97/25/24/23.976/15/10/5 1024x768p 60/59.94/50/30/29.97/25/24/23.976/15/10/5 1024x576p 60/59.94/50/30/29.97/25/24/23.976/15/10/5 960x540p/800x600p 60/59.94/50/30/29.97/25/24/23.976/15/10/5 768x576p/720x576p/720x540p/720x480p 60/59.94/50/30/29.97/25/24/23.976/15/10/5 640x480p/640x360p 60/59.94/50/30/29.97/25/24/23.976/15/10/5 480x360p/480x270p 60/59.94/50/30/29.97/25/24/23.976/15/10/5 H.264/H.265 (HEVC) Codec: System timecode or RP–188 standard timecode for SEI Message setting H.265 (HEVC) SEI message supports carrying interlacing signal mark Video aspect ratio conversion Image rotation: 0°, 90°, 180°, 270° Cropping Output 3D video Audio Encode up to 8 audio streams, including 1 x 8-channel stream and 7 x 2-channel streaming Supports mapping between source channels and encoded audio channels Bitrate: 256/192/128/96/64/48/32/16 kbps Output source embedded audio and line in through LINE OUT
Live stream	Natively supports streaming to: Twitch YouTube (HLS/RTMP), publishing to timeline or a new event and setting “made for kids”. Facebook, enabling backup stream and publishing to timeline or a new event. WOWZA over RTMP, adding token and publishing to timeline or a new event. WOWZA over SRT, setting AES encryption (AES–128/192/256) and publishing to a channel or a new event. Supports streaming protocols: RTSP RTMP/RTMPS SRT Caller/SRT Listener NDI HX2/NDI HX3 HLS TS over UDP/TS over RTP TVU ISSP Supports streaming to 6 destinations simultaneously, containing 1 session of RTSP/SRT Listener/HLS/ISSP (if included), or 2 NDI HX2 sessions (if included) Supports 1 NDI HX3 sessions exclusively Supports specifying a video stream and an audio stream for each streaming session Supports live stream schedule Supports NDI 6.1.1
Record	Supports setting and managing recording function and tasks Supports recording to local storage (128 GB) Supports format and performance test Automatically upload files to remote file storage platform including FTP server, Google Drive, and Dropbox Supports recording to external USB storage Supported system format: FAT32, exFAT and NTFS Supports recording to network attached storage (NFS/CIFS) Supported system format: NFS, CIFS Supports loop recording and normal recording Supports saving recording files in MP4, MOV or TS format Supports specifying a video stream and an audio stream for each recording task Supports customizing recording file name and prefix Supports splitting recording files by time MP4, MOV: up to 4 hours TS: no limit Supports exporting or downloading files through Web UI Supports recording schedule
Web UI	Register with Magewell Control Hub for remote centralized management Supports configuring and managing via Web UI View real-time device status Preview encoded video Set input sources Customize encoding parameters Manage streaming destinations, start/stop streaming, view streaming status Manage recording tasks and recorded files Set up to 8 overlays for each stream, including text, picture, and clock Update firmware Supports Microsoft Edge/Firefox/Chrome/Safari/Opera web browsers
API	Provides APIs for 3rd party control system
Network Connections	Ethernet: 1x RJ45 port, 10/100/1000 Mbps Base-T 4G/5G USB modem (not supplied) USB Net
Storage	Micro-SD card (supplied): 128GB USB flash drive (not supplied): FAT32, NTFS, exFAT NAS (not supplied): NFS/CIFS
LED Indicators	Input signal: On: locked Off: unlocked
Physical Specifications	Form factor: 184.4mm (L) x 30.0mm (W) x 81.5mm (H) Weight: ≈ 307g
Power Consumption	Max power consumption: 13.08W
Working Environment	Operating temperature: 0 to 50 deg C Storage temperature: –20 to 70 deg C Relative humidity: 5% to 90% non-condensing
