| Input Features |
- Max input & loop-through signal: 2048x1080 60fps
- Supported SDI inputs include:
- 2048x1080p / 2048x1080i / 1920x1080p / 1920x1080i
23.98 / 24 / 25 / 29.97 / 30 / 47.95 / 48 / 50 / 59.94 / 60
- 1280x720p 25 / 29.97 / 30 / 50 / 59.94 / 60
- 720x576 25p / 50i (PAL SD)
- 720x480 29.97p / 59.94i (NTSC SD)
- 8 / 10 / 12-bit color
- Support 16-Channel SDI embedded audio

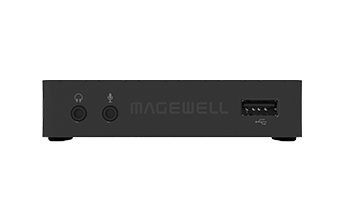

- Input audio from 3.5mm microphone

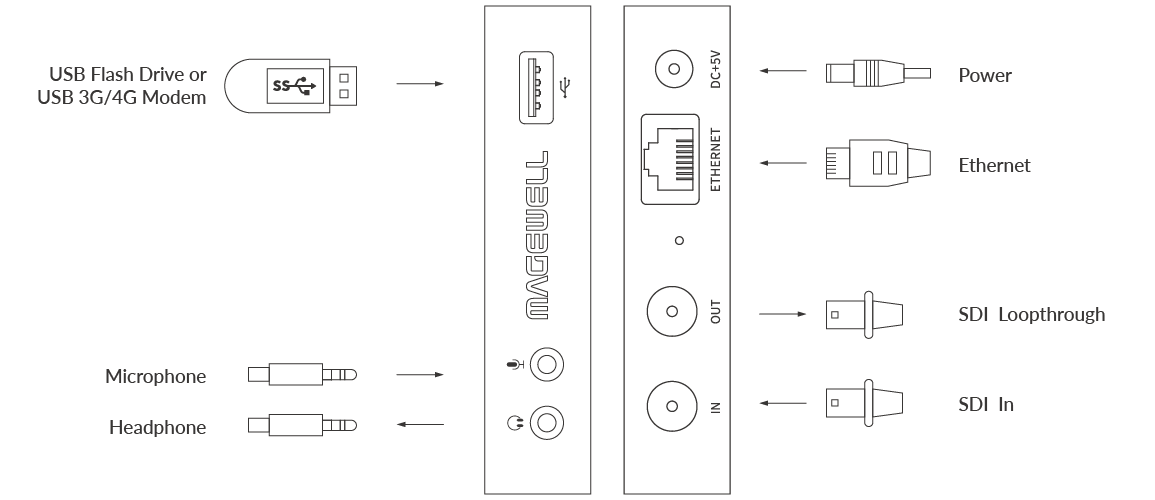

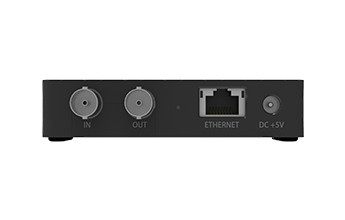

- SD / HD / 3G BNC input & loopthrough
- SD (ST 259) / HD (ST 292) / 3Ga (ST 425) / 3Gb (ST 425) / 3Gb-DL (ST 425) / 3Gb-DS (ST 425)
standards
|
| Encoding Features |
- Dual-stream encoding: main stream and sub stream
- Max bitrate:
- Main Stream - 8Mbps
- Sub Stream - 2Mbps
- Supported resolutions:
- HD: 1920x1080, 1600x1200, 1600x900, 1440x1080, 1440x900, 1280x1024, 1280x960, 1280x800,
1280x720, 1024x768
- SD: 960x540, 800x600, 768x576, 720x576, 720x540, 640x480, 640x360, 480x360, 480x270
- Supported frame rates: 60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 15 / 10 / 5fps
- H.264 / H.265(HEVC) video encoders
- Encoding 2-channel AAC at 48kHz, 16-bit
- Supported audio bitrates: 256 / 192 / 128 / 96 / 64 / 48 / 32 / 16 kbps
- Extracting audio from SDI signal and output through 3.5mm headphone
- Encoding videos after de-interlacing
|
| Recording Features |
- Recording to a USB flash drive, internal SD storage and paired mobile device simultaneously
- When recording to a USB Flash Drive
- Support auto-recording, normal recording
- Recording as MP4 or MOV files
- Recording duration can be 5 / 10 / 30 / 40 / 50 / 60 / 90 / 120 min
- Downloading recorded videos via WebUI
- When recording to internal SD storage (32GB)
- Support auto-recording, loop-styled or normal recording
- Recording as MP4 or MOV files
- Recording duration can be 5 / 10 / 30 / 40 / 50 / 60 / 90 / 120 min
- Uploading recorded videos to a specified FTP server (FTP over TLS is supported), your
Dropbox
and Google Drive via WebUI
- Downloading recorded videos via WebUI
- When recording to paired mobile device
- Recording as MP4 files
- Taking still image snapshots during recording
- Timer recording at 15s, 30s, 1min, 2min, 5min
|
| Configuration Management |
- Register with 2 Control Hub platforms
- Remote control via Application, WebUI and Control Hub
- Provide comprehensive information regarding the system information of device and working status
in
real-time
- Configure parameters of volume and color, input and output signals, stream profiles, no signal
image,
the Ethernet and Wi-Fi connection, as well as date and time
- Update firmware
- WebUI supports IE / Edge / Firefox / Chrome / Safari / Opera web browsers
- Provide HTTP APIs
|
| Network |
- Wired Ethernet network: 10 / 100 / 1000Mbps
- Wi-Fi 802.11 a / b / g / n / ac
- 3G / 4G USB mobile broadband Modem (not included)
- Bluetooth 4.0 BLE
|

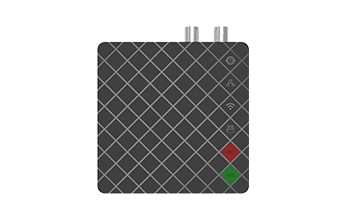

| LED Indicators |
- Indicate the state of the input signal, Ethernet Network, Wi-Fi, USB flash drive
- Indicate the working state of the device: startup, recording, streaming, updating
|
| Power Supply and Consumption |
- DC 5V / 2A
- Max power consumption: ~7.2 W
|
| Form Factor |
94.20mm x 94.20mm x 22.30mm |
| Accessories |
AC adapter |
| Working Environment |
- Operating temperature: 0 to 40 deg C (AC power)
- Storage temperature: –20 to 70 deg C
- Relative humidity: 5% to 90% non-condensing
|
