Ultra Stream HDMI

A dedicated HDMI streaming encoder with loop-through
The device is supplied with different options of power adapters.
  • Live streaming to popular services such as Facebook Live, YouTube or Twitch
  • Streams to a custom-specified RTMP or RMTPS server and supports sending RTSP streams
  • Records video to the internal storage, a connected USB drive or an associated smartphone
  • Internet connectivity via wired Ethernet, Wi-Fi and optional 3G/4G modem support


Specifications and Features

Input Features
    • Max HDMI input & loop-through signals:
      • 4096×2160 4:2:0 60fps
      • 4096×2160 4:4:4/4:2:2 30fps
    • Custom EDID
    • Supported SDI inputs include:
      • 4096x2160p/3840x2160p 23.98/24/25/29.97/30/59.94/60
      • 2560x1080p 23.98/24/25/29.97/30/50/59.94/60
      • 1920x1080p 23.98/24/25/29.97/30/50/59.94/60/100/119.88/120
      • 1920x1080i 25/29.97/30/50/59.94/60
      • 1280x720p 23.98/24/25/29.97/30/50/59.94/60/144
      • 720x576p 50/100/144
      • 720x576i 25/50
      • 720x480p 59.94/60/144
      • 720x480i 29.97/30
    • 8/10/12-bit color
    • Input & loopthrough 8-Channel, 24-bit HDMI embedded audio, 192kHz sample rate

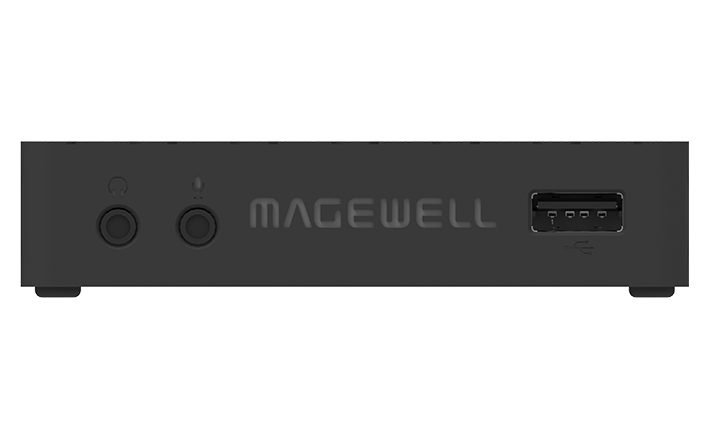

    • Input audio from 3.5mm microphone

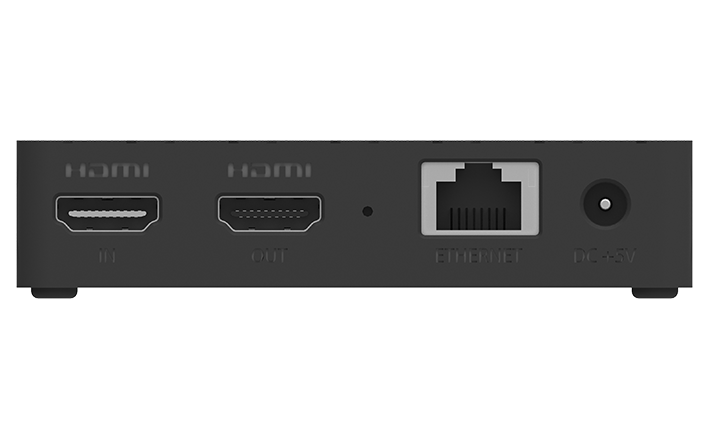

    • HDMI Input and loop-through interfaces: HDMI 1.4a, DVI-D

Encoding Features
  • Dual-stream encoding: main stream and sub stream
  • Max bitrate:
    • Main Stream – 8Mbps
    • Sub Stream – 2Mbps
  • Supported resolutions:
    • HD: 1920×1080, 1600×1200, 1600×900, 1440×1080, 1440×900, 1280×1024, 1280×960, 1280×800, 1280×720, 1024×768
    • SD: 960×540, 800×600, 768×576, 720×576, 720×540, 640×480, 640×360, 480×360, 480×270
  • Supported frame rates: 60/59.94/50/30/29.97/25/24/15/10/5fps
  • H.264/H.265 (HEVC) video encoders
  • Encoding 2-channel AAC at 48kHz, 16-bit
  • Supported audio bitrates: 256/192/128/96/64/48/32/16 kbps
  • Extracting audio from HDMI signal and output through 3.5mm headphone
  • Encoding videos after de-interlacing

Streaming Features
  • Natively support streaming to Facebook, Twitch and YouTube
  • Supported streaming protocols including RTSP/RTMP/RTMPS
  • Up to 2 streaming sessions simultaneously

Recording Features
  • Recording to a USB flash drive, internal SD storage and paired mobile device simultaneously
  • When recording to a USB Flash Drive
    • Support auto-recording, normal recording
    • Recording as MP4 or MOV files
    • Recording duration can be 5/10/30/40/50/60/90/120 min
    • Downloading recorded videos via WebUI
  • When recording to internal SD storage (32GB)
    • Support auto-recording, loop-styled or normal recording
    • Recording as MP4 or MOV files
    • Recording duration can be 5/10/30/40/50/60/90/120 min
    • Uploading recorded videos to a specified FTP server (FTP over TLS is supported), your Dropbox and Google Drive via WebUI
    • Downloading recorded videos via WebUI
  • When recording to paired mobile device
    • Recording as MP4 files
    • Taking still image snapshots during recording
    • Timer recording at 15s, 30s, 1min, 2min, 5min

Configuration Management
  • Register with 2 Control Hub platforms
  • Remote control via Application, WebUI and Control Hub
  • Provide comprehensive information regarding the system information of device and working status in real-time
  • Configure parameters of volume and color, input and output signals, stream profiles, no signal image, the Ethernet and Wi-Fi connection, as well as date and time
  • Update firmware
  • WebUI supports IE/Edge/Firefox/Chrome/Safari/Opera web browsers
  • Provide HTTP APIs

  • Wired Ethernet network: 10/100/1000Mbps
  • Wi-Fi 802.11 a/b/g/n/ac
  • 3G/4G USB mobile broadband Modem (not included)
  • Bluetooth 4.0 BLE

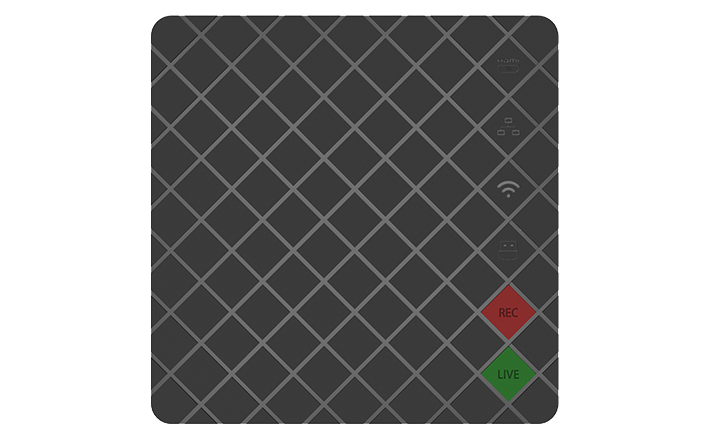

LED Indicators
  • Indicate the state of the input signal, Ethernet Network, Wi-Fi, USB flash drive
  • Indicate the working state of the device: startup, recording, streaming, updating

Power Supply and Consumption
  • DC 5V/2A
  • Max power consumption: ~9.6 W

Form Factor94.20mm x 94.20mm x 22.30mm

AccessoriesAC adapter
HDMI Cable

Working Environment
  • Operating temperature: 0 to 40 deg C (AC power)
  • Storage temperature: –20 to 70 deg C
  • Relative humidity: 5% to 90% non-condensing



Power Adapter (US/EU/UK/AU/JP) x1
Part number: ACC08010
Power Adapter (KR) x1
Part number: ACC08015
Power Cable x1
Part number: ACC00064
Power Cable x1
Part number: ACC00090

Two types of power adapters are provided as options to meet your need. Please choose the right part number when placing the order to our dealers. We recommend you always use the included accessories to avoid unnecessary damage to your device. Please note, the appearance of the power adapter may vary due to suppliers or batches. The images here are for reference only.
