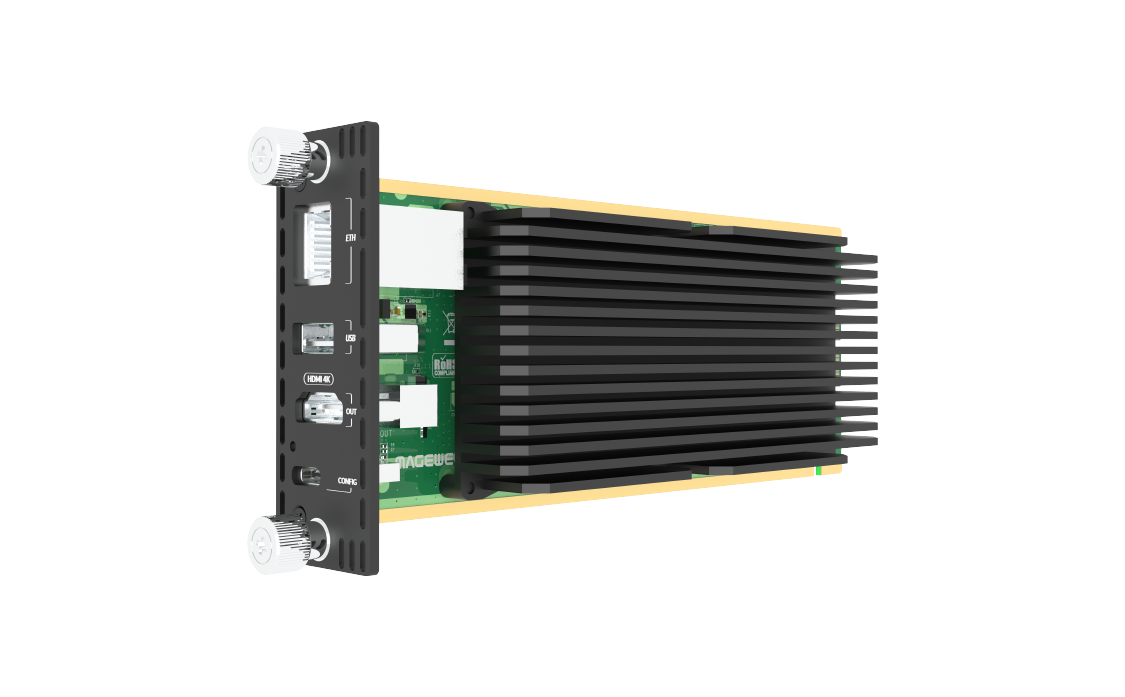

Pro Convert for NDI® to HDMI 4K Module

Decoding module for rack-mounted centralized deployment, converting a live IP stream into 4K HDMI signal
  • A hot-swappable module to be installed in Magewell Modator chassis
  • Supports NDI® High Bandwidth, NDI® HX2, or NDI® HX3 sources or H.264/H.265 streams
  • Centrally manageable via the Modator chassis and Magewell Control Hub

For standalone version with same specification.

Pro Convert for NDI® to HDMI 4K Module
imgi_39_2
imgi_43_3 (1)

Interface

Specifications and Features

Features

Output Features

  • Support for up to 4096x2160 60fps HDMI output
  • Support for 96KHz, 16-bit 8-channel audio streams

Decoding Features

  • Support for decoding up to 4Kp60 NDI streams
  • Support for decoding NDI® High Bandwidth、NDI® HX2 and NDI® HX3
  • Discover NDI devices across network segments
  • Compatible with H.264/H.265 streams in additional protocols including RTSP, HTTP, HLS, RTMP Pull/Push, MPEG-TS over UDP/SRT/RTP and TVU
  • Supports NDI 6.2
  • Support for decoding alpha channel

Others

  • Very low latency
  • Configure through the touch screen of Magewell Modator chassis, Web GUI or Control Hub
  • HTTP-based APIs for custom integration
  • Image flip for inverted projector installations and safe area controls
  • Automatic output optimization for target display with integrated up/down conversion
  • 2-year warranty

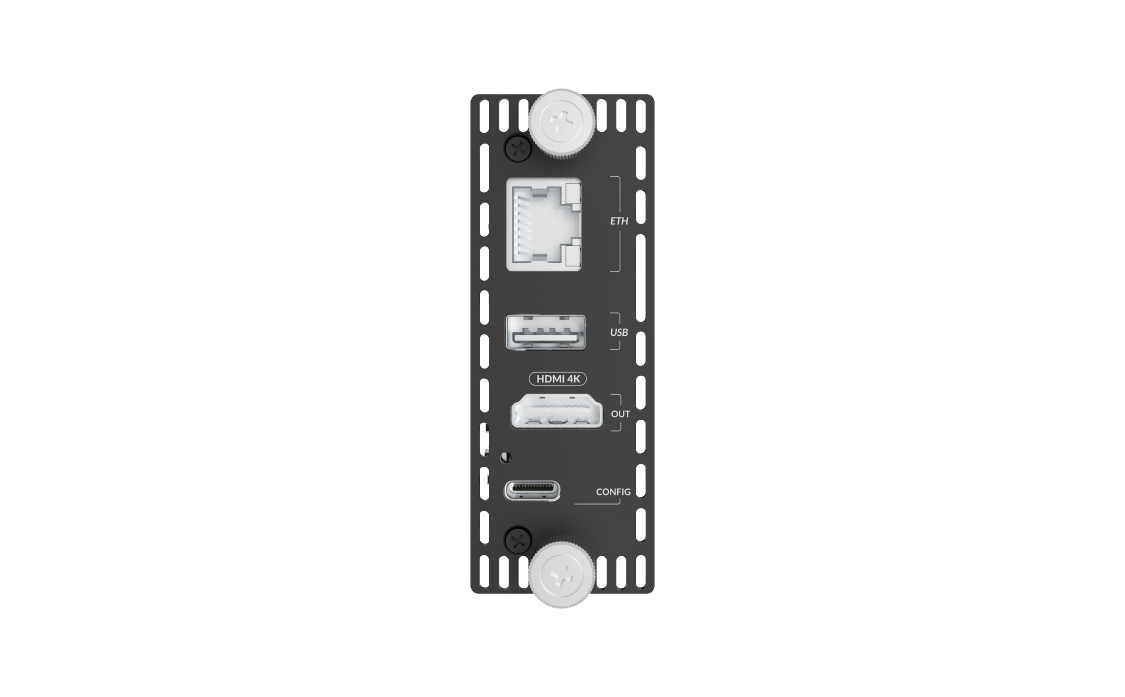

Interfaces
  • 1* RJ45 1000Mbps Ethernet port
  • 1* USB Type-C port for configuration
  • 1* USB Type-A 3.0 port for connecting peripherals
  • 1* HDMI 2.0 output port
  • 1* Modator interface for connecting to Modator 2U (hot-swappable)
Decoding Features
  • Decoding up to 4Kp60 streams of NDI High Bandwidth, NDI HX, NDI HX2, NDI HX3, RTSP, HTTP, HLS, RTMP Pull/Push, MPEG-TS over UDP/SRT/RTP and TVU ISSP protocols
  • SpeedHQ/H.264/H.265 video decoders
  • Decode AAC/MP3 audio
  • Supports NDI® 6.2
Output Features
  • Max. output: 4096x2160 60fps 4:4:4 8-bit
  • Deliver video at the preferred video format according to the EDID of the connected monitor. Supported output formats include:
    • 4096x2160p/3840x2160p 23.98/24/25/29.97/30/50/59.94/60
    • 2560x1440p 60/100/120/144
    • 2560x1080p 23.98/24/25/29.97/30/50/59.94/60
    • 1920x1080p 23.98/24/25/29.97/30/50/59.94/60/100/119.88/120
    • 1920x1080i 50/59.94/60
    • 1280x720p 23.98/24/25/29.97/30/50/59.94/60
    • 720x576p50
    • 720x576i50
    • 720x480p59.94/60
    • 720x480i59.94/60
  • Supports 96KHz 16bits 8-channel audio output
Web UI
  • Register with Magewell Control Hub for remote centralized management
  • Supports configuring and managing via Web UI
  • Provides comprehensive information regarding the device and decoded signals in real-time
  • Allow to configure how a signal is decoded and output, including OSD settings, deinterlacing, resolutions, audio gain, sample rate, and channel mapping, as well as the network connection
  • Supports updating firmware
  • Supports USB NET
  • Supports Microsoft Edge/Firefox/Chrome/Safari/Opera web browsers
  • Provides HTTP APIs
LED Indicators Decode status indicator
  • On: decoding
  • Blinks: decoding error
  • Off: source unselected
Physical Specifications
  • Form factor: 184.4mm (L) x 30.0mm (W) x 81.5mm (H)
  • Weight: ≈ 316g
Power Consumption Max power consumption: 9.85W
Working Environment
  • Operating temperature: 0 to 50 deg C
  • Storage temperature: –20 to 70 deg C
  • Relative humidity: 5% to 90% non-condensing
