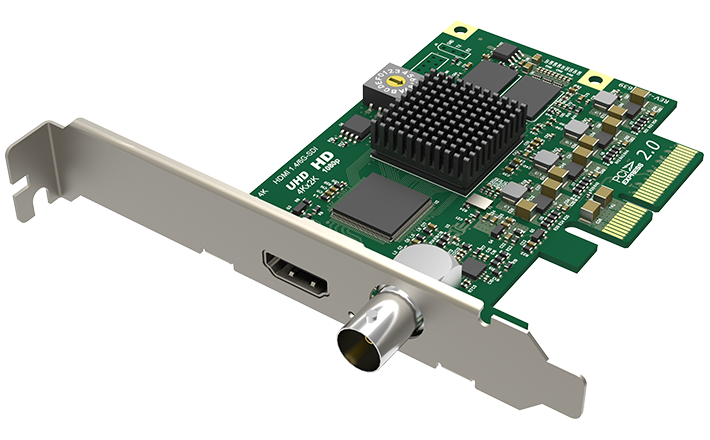

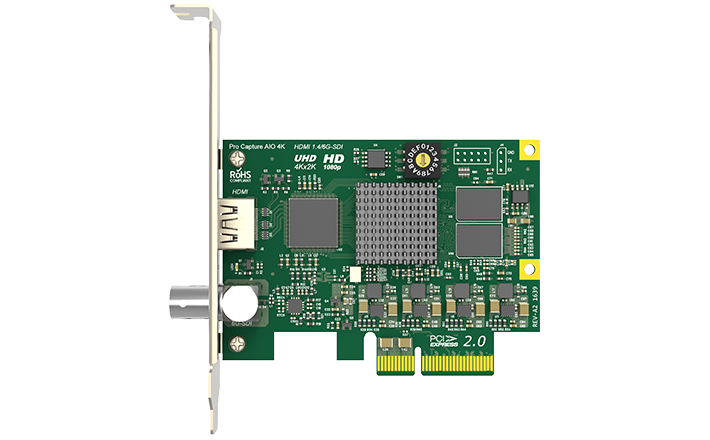

Pro Capture AIO 4K

One-channel 4K capture card

Captures one of the following

  • SDI + embedded audio
  • HDMI + embedded audio

*MOQ is required: 20 PCS


Specifications and Features

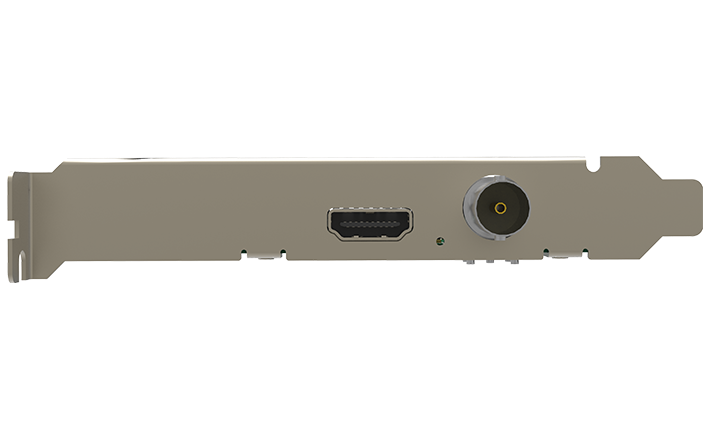

Input Interface

  • HDMI x1
  • SD/HD/3G/6G SDI x1
  • Support input resolution up to 4096×2160 pixels

Host Interface

  • PCIe Gen2 x4

Video Engine

  • 10-bit video processing
  • Deinterlace
  • Cropping
  • Color Adjustment
  • Hardware Timestamp
  • Color Space Conversion
  • Up/down Conversion
  • Aspect Ratio Conversion
  • OSD
  • SG-DMA Transmission mode

Signal Detection & Support

  • Auto Detection of Input Signal Format
  • 3D HDMI
  • Time Code
  • Closed Caption

Software Environment


  • Windows, Linux, Mac

Driver and Firmware

  • Universal Driver, Updatable Firmware

Included Software

  • Capture Express

Compatible Software



Multiple Capture Streams
Continuously Work for 24hx7
Windows, Linux and Mac SDK

Low Latency Mode
High-speed Memory
2-year Warranty

Multiple Devices on One Host
LED Status Indicator

Mounting Hole
Rotary Switch



Low Profile Bracket
