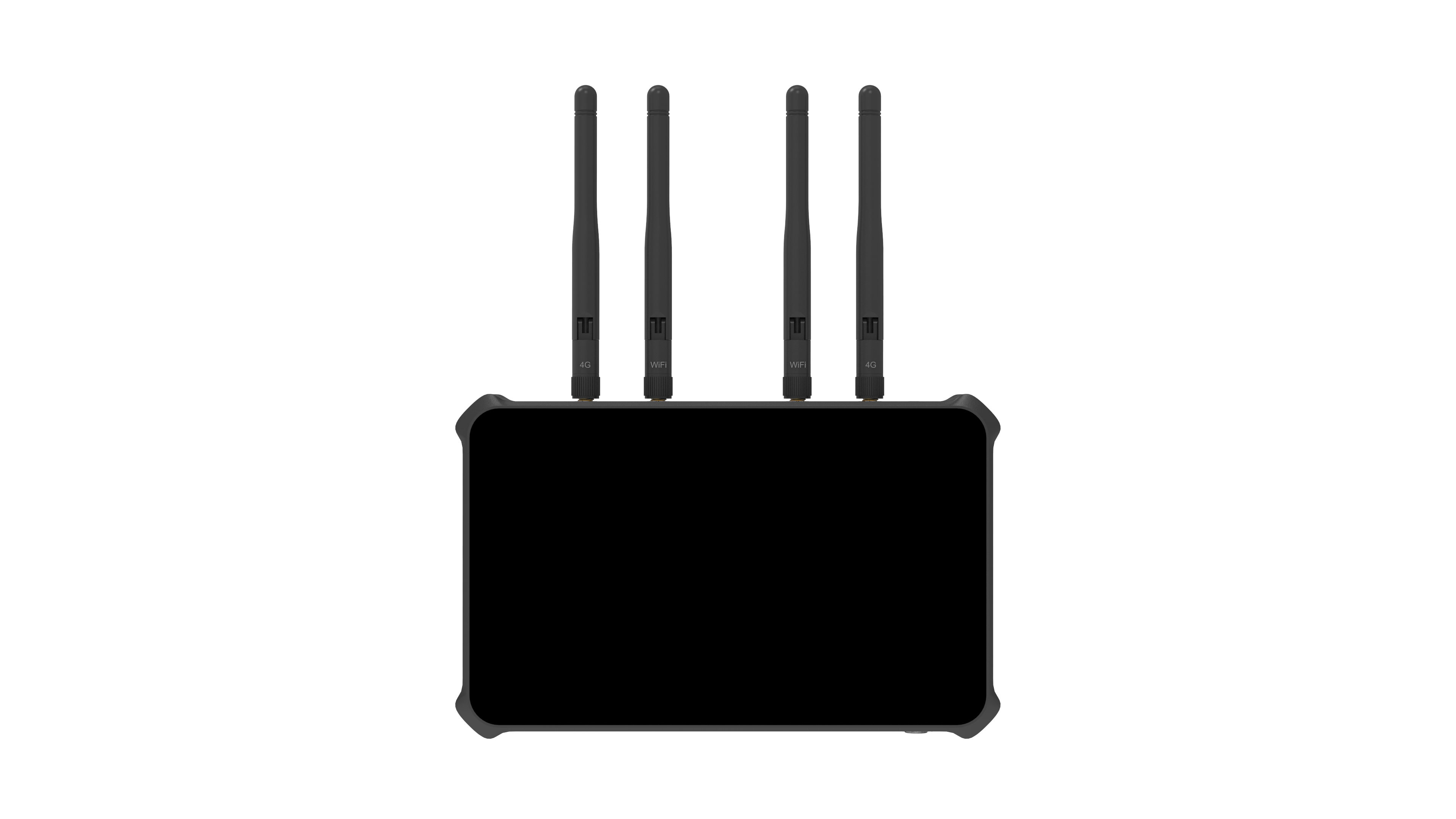

Combining multi-input switching, graphics, streaming, recording, and monitoring in one powerful device, Director One boasts a large 7" touchscreen that provides an expansive view for seamless control and monitoring. Equipped with a built-in 4G modem and both 4G and WiFi antennas, Director One ensures users have stable and reliable network connectivity anytime, anywhere. Designed for versatile production needs, Director One enables operators to produce live events and remote feeds with enhanced visibility and ease.

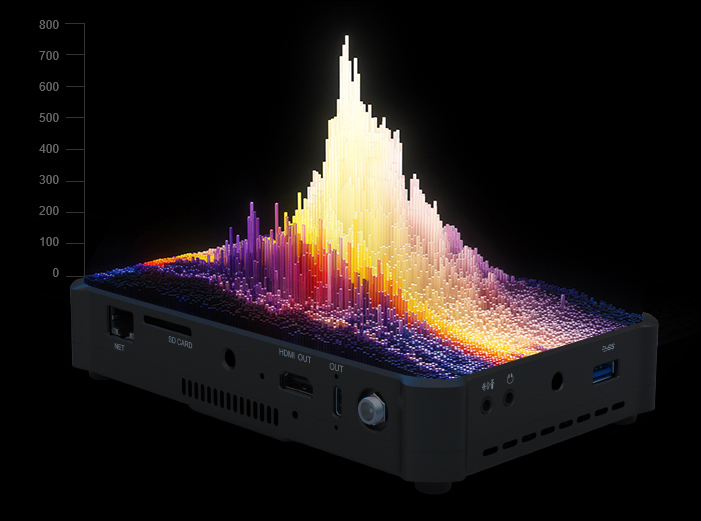

Director One is equipped with a premium 7’’ AMOLED touchscreen, delivering vibrant visuals with 800-nit brightness, a remarkable 100,000:1 contrast ratio, and a selectable refresh rate of 50Hz or 60Hz. Whether in bright sunlight or low light, Director One’s display ensures crystal-clear visibility and lifelike color accuracy, providing a seamless experience for capturing every moment with precision.
7”
800Nit
50/60Hz
100000:1

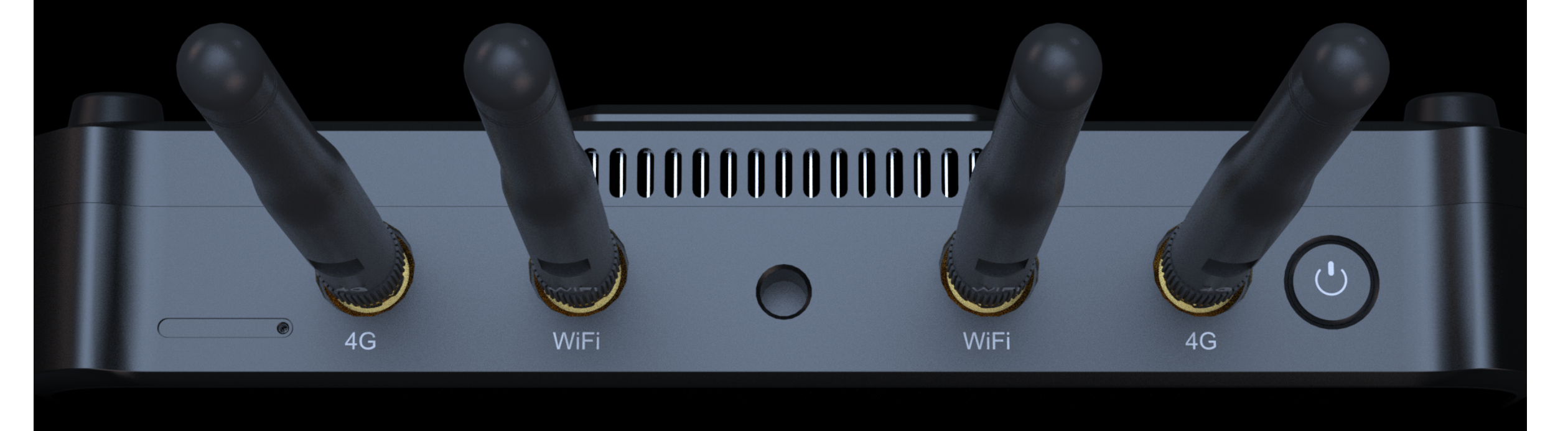

With a built-in 4G modem and dedicated 4G and WiFi antennas, Director One users flexible networking anywhere. Integrated bonding support enables stable and reliable connectivity wherever you are. From remote locations to bustling events, Director One keeps you seamlessly connected, ensuring uninterrupted streaming and control for a flawless production experience.

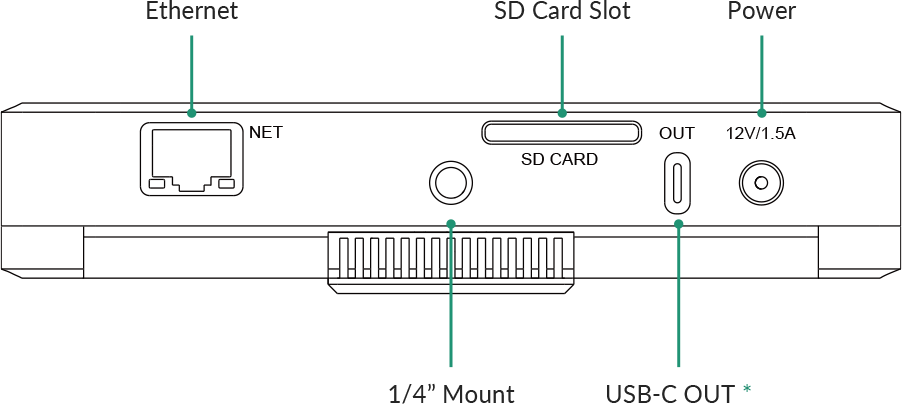

Ethernet
Wi-Fi
External USB Modem
Network Bonding
USB Tethering

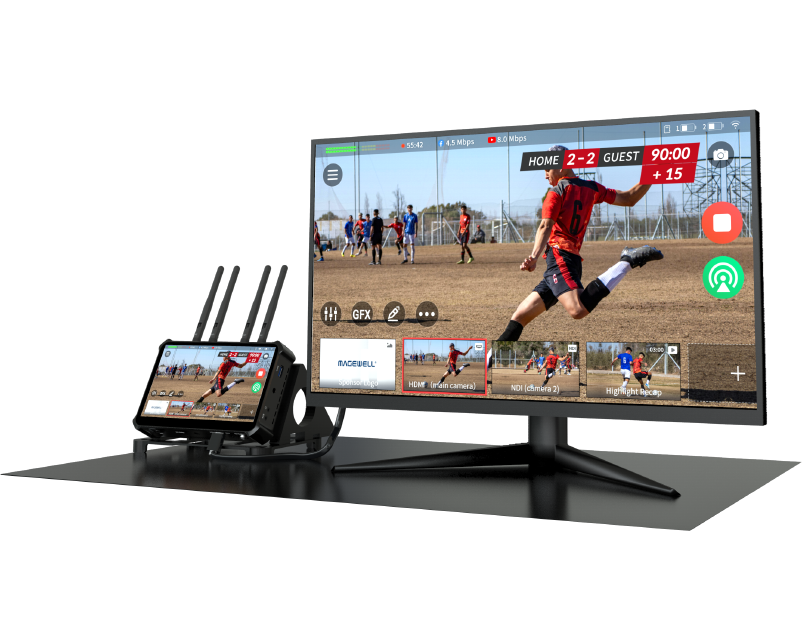

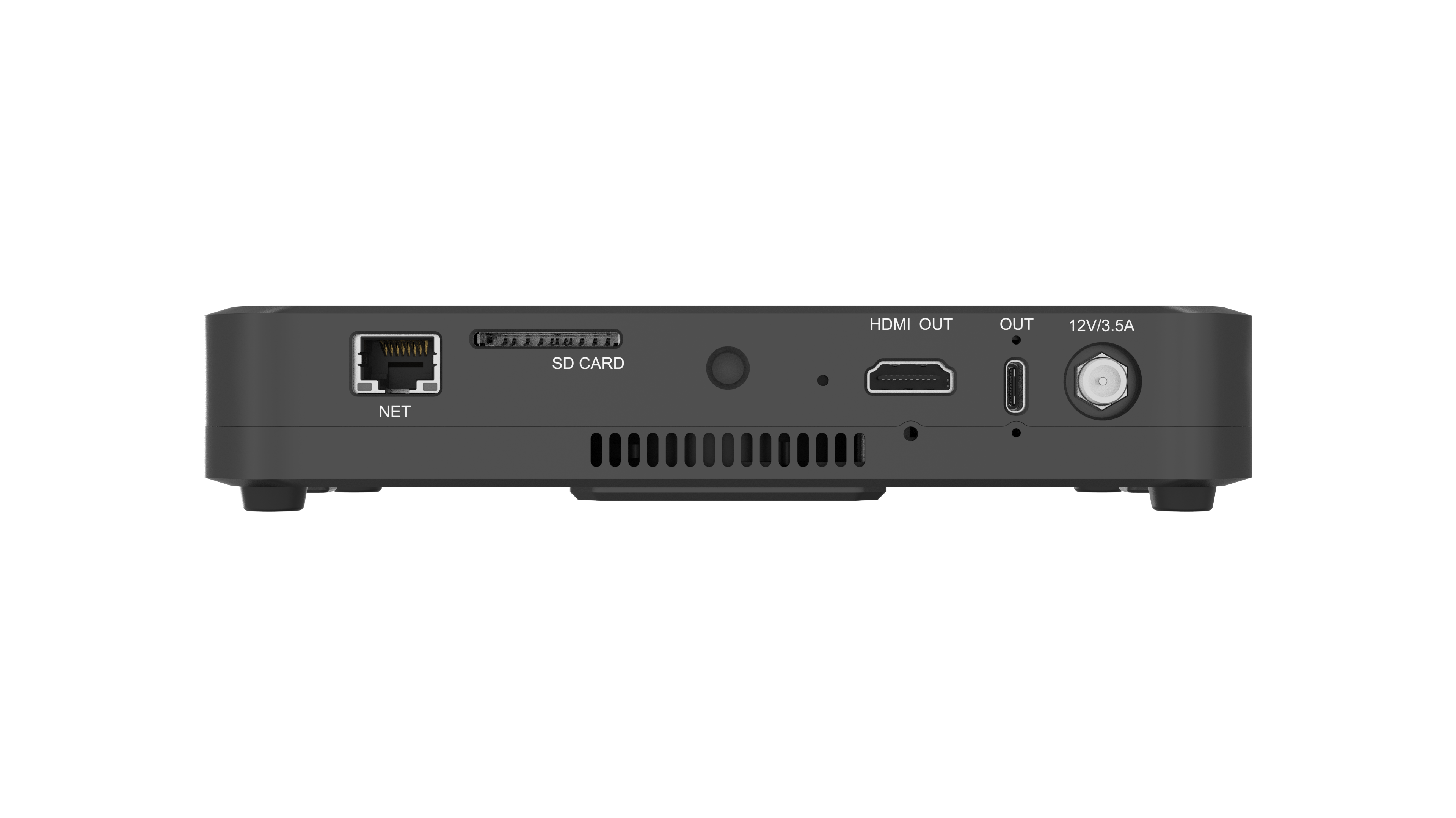

Director One features an HDMI output port, making it easy to connect to an external screen for a larger display experience. Connected touchscreen displays can even control the Director One in reverse, providing an intuitive and flexible way to manage productions.

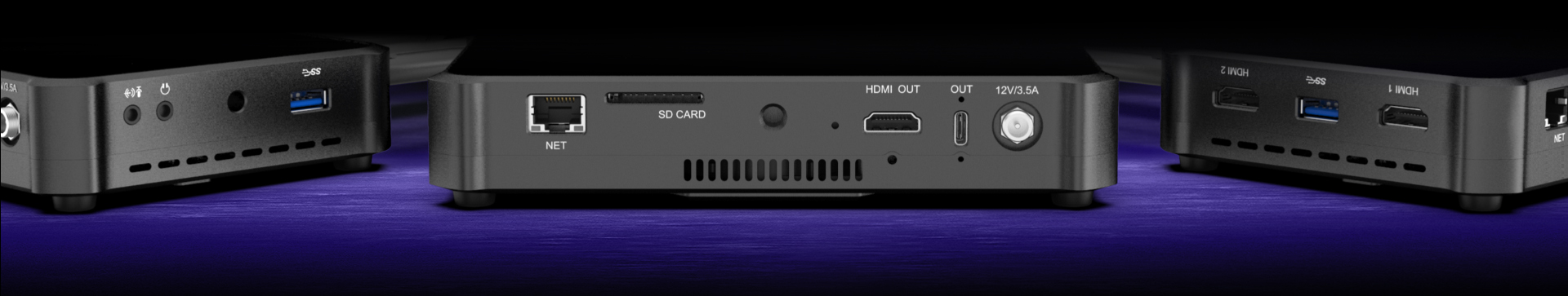

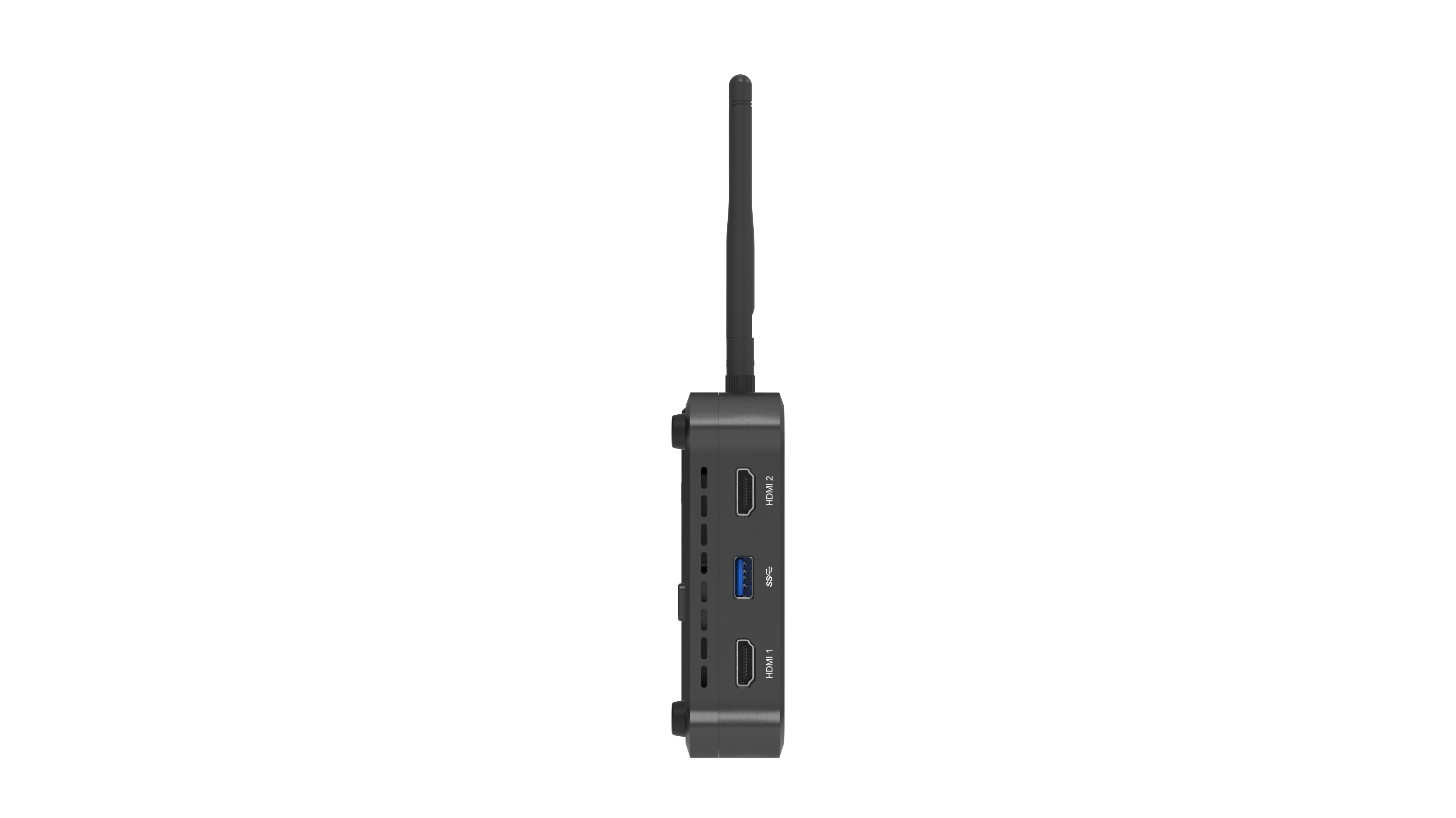

Users can switch between two HDMI inputs and two USB AV inputs as well as three simultaneous live IP sources including SRT streams, RTMP streams, RTSP streams, NDI® High Bandwidth and NDI® HX sources. Users can bring in up to three NDI sources simultaneously, one of which can be used as a motion graphics overlay with NDI alpha channel. HTML webpages and file-based media assets including video, audio and images can also be combined freely with live sources.

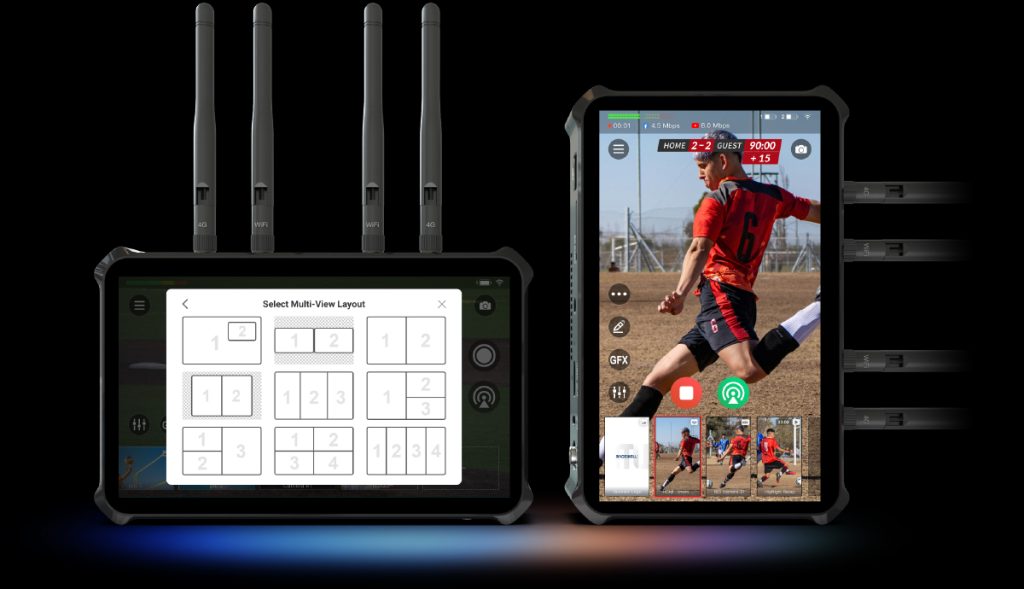

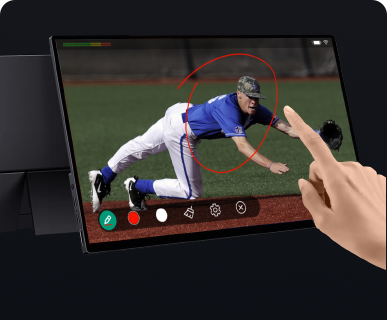

Users can define multiple scenes that combine live video and audio inputs with network streams, media sources and graphics, then switch or transition between these scenes on the fly. Director One also offers multi-source scene layout presets, making it easier and faster for content creators to produce engaging multi-camera event streams. Production tools including chroma keying, graphics and telestration further enhance your content.
Director One can encode video up to 1080p at 60 frames per second and bitrates up to 30Mbps. Productions can be streamed via RTMP to popular platforms such as YouTube™ Live, Facebook™ Live, or custom destinations. SRT output supports high-quality remote production workflows, while NDI® HX3 output is ideal for local IP-based production. Content can also be recorded to an SD card or the device’s internal storage. Two-channel ISO recording lets users choose from the program output, HDMI inputs or USB inputs.

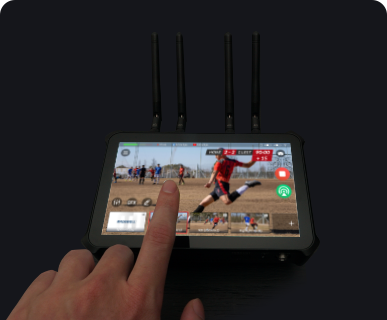

Director One lets users easily produce engaging multi-camera content through an intuitive touchscreen interface and a flexible array of additional powerful control options.

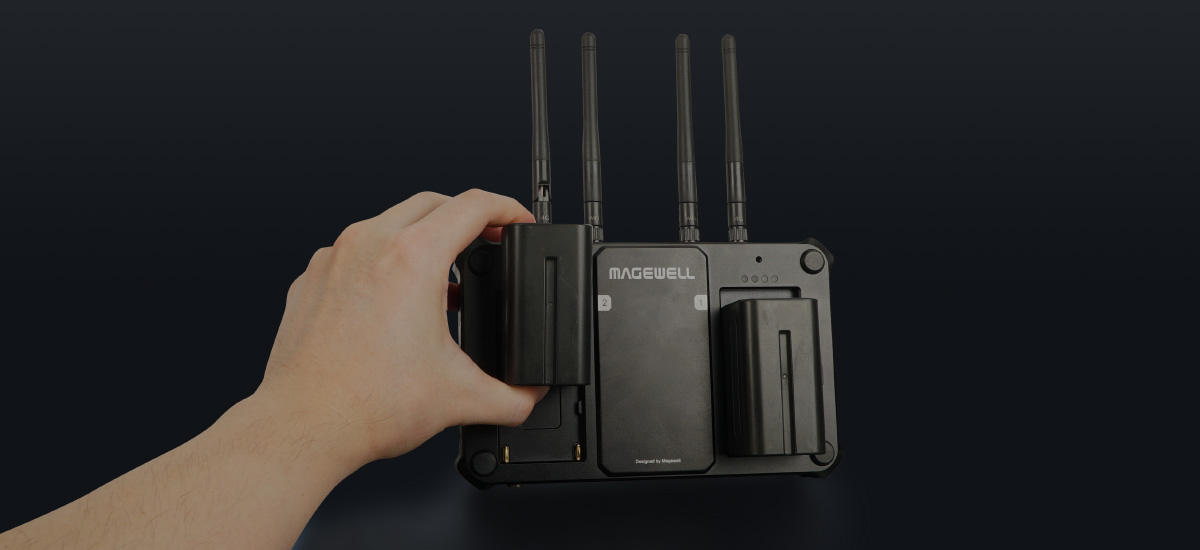

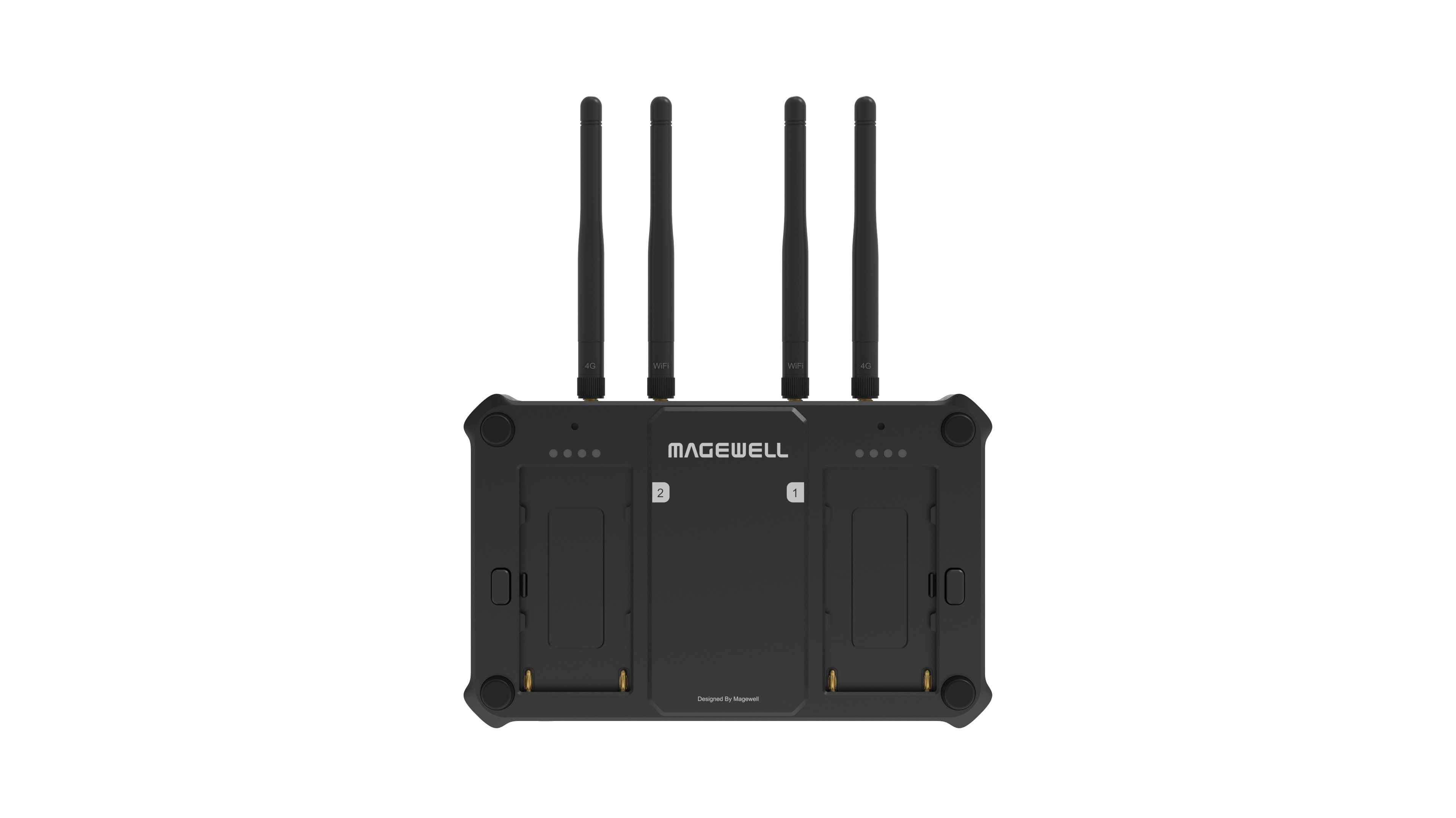

Director One can be powered with the included power adapter but also supports two NP-F hot-swappable external batteries (not included), enabling it to be used anywhere and ensuring uninterrupted power for long productions. The device will preferentially use the battery with a higher charge. If the two batteries have the same charge level, they will supply power to the device simultaneously.
| Director Family | Director One | Director Mini |
| Touchscreen size (Diagonal) | 7" AMOLED | 5.44" AMOLED |
| Cellular Connectivity | Integrated 4G modem | via external USB modem (not included) |
| Director Family | 2 | 2 |
| USB Type A Input | 2 | 2 |
| IP Video Inputs | 3 | 3 |
| USB-C Interface | configurable as UVC/UAC output (to software), MTP mode (file transfer) | configurable as DisplayPort video output (with external touchscreen compatibility; output to HDMI with USB-C to HDMI adapter), UVC/UAC output (to software), MTP mode (file transfer) |
| Dedicated HDMI Output | 1 | No (can adapt USB-C interface to HDMI) |

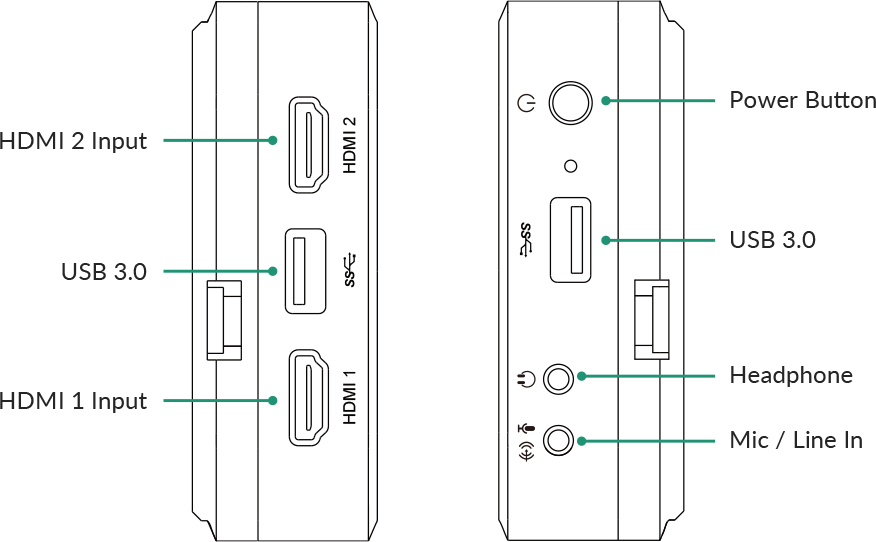

| Video Input |
HDMI
|
| Audio Input |
|
| Video Output |
Streaming and recording
|
| Audio Output |
|
| Features of USB-A Port |
|
| Features of USB-C OUT Port |
Connect to a computer
* To transfer video at full frame rate, please use a USB 3.0 cable to connect the USB 3.0 port of your computer. |
| Features of HDMI OUT Port |
Connect to an external screen
|
| Network |
|
| Features |
Show
|

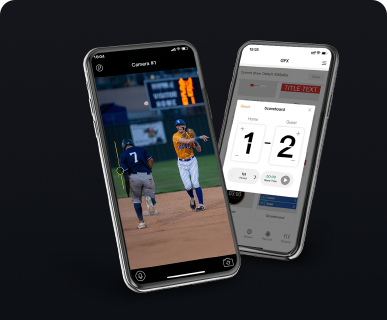

| Director Utility App |
OS version: iOS 11 and later, Android 7.0 and later Phone Camera: Use a phone as a camera
|

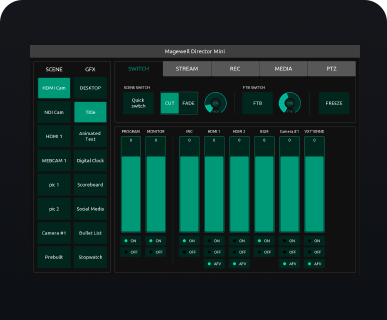

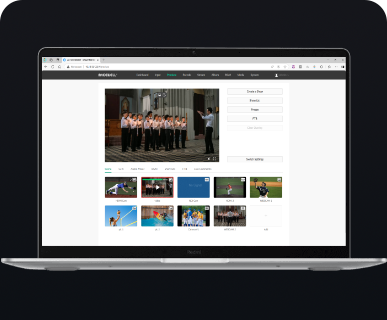

| Web UI |
|

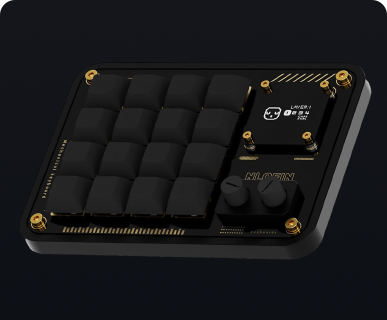

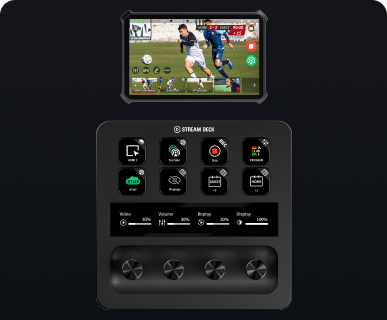

| Magewell Director Plugin for Stream Deck | Control Director device effortlessly at fingertips to enable efficient creative production. |

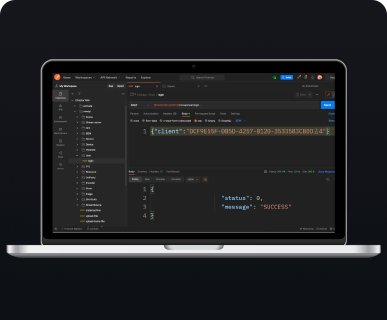

| API | Provides basic APIs for 3rd party control system |
| OSC | Supports OSC for 3rd part Apps to control the device |
| Screen |
|
| Storage |
|
| Dimensions | 185.2 mm x 117.2 mm x 32.8 mm |
| Power |
AC power
|
| LED Lights |

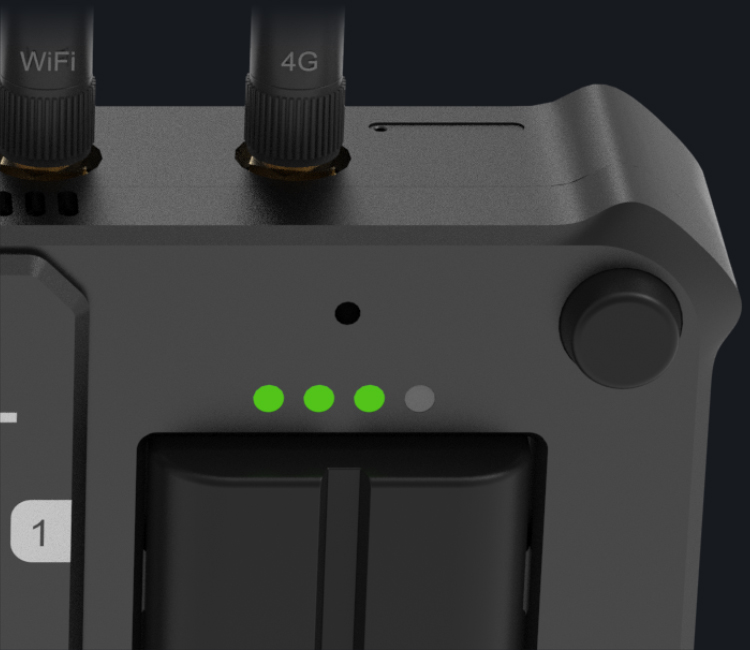

Each battery has four LED lights which can be set as battery indicators or NDI tally lights. Battery indicators (default)
|
| Working Temperature |
|
