| Video Input |

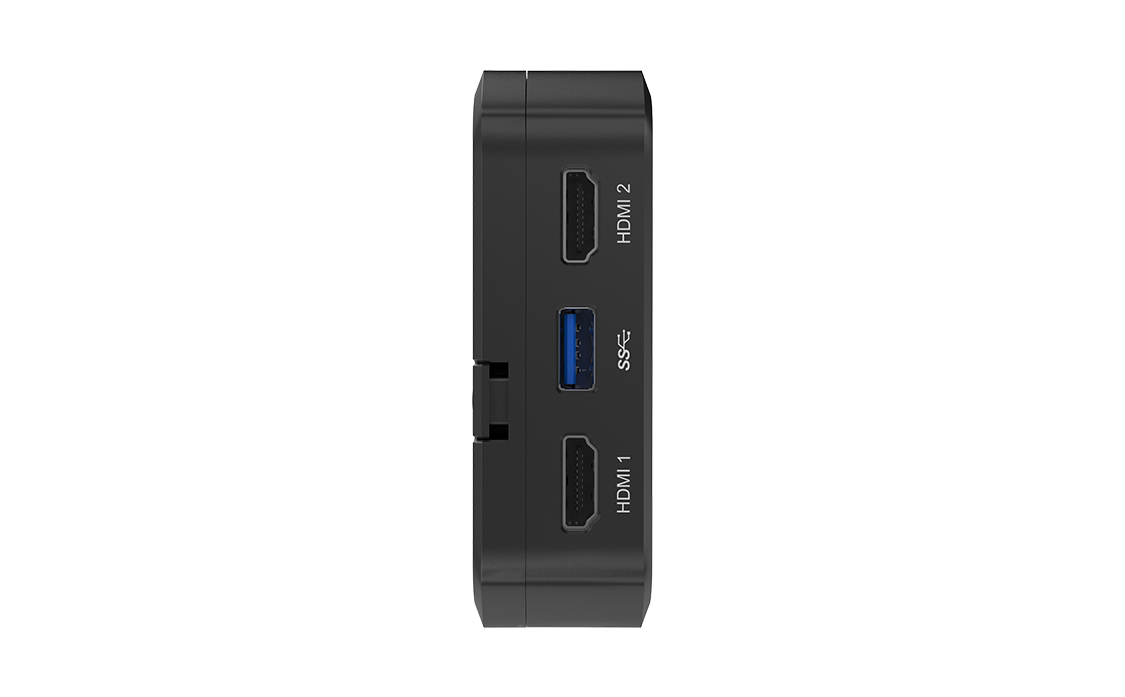

HDMI
- Port: 2x HDMI 2.0 Type-A port
- Typical resolution/ frame rate:
- 4096 x 2160p/ 3840 x 2160p 23.98/ 24/ 25/ 29.97/ 30/ 59.94/ 60
- 1920 x 1080p 23.98/ 24/ 25/ 29.97/ 30/ 50/ 59.94/ 60
- 1920 x 1080i 25/ 29.97/ 30
- 1280 x 720p 23.98/ 24/ 25/ 29.97/ 30/ 50/ 59.94/ 60
- 720 x 576p 50/ 100
- 720 x 576i 25/ 50
- 720 x 480p 59.94/ 60
- 720 x 480i 29.97/ 30
- Color depth: 8/ 10/ 12-bit
- Color sampling: RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2
USB
- Port: 2x USB 3.0 Type-A port, 1x USB 3.0 Type-C port
- Format: YUYV, MJPG, NV12
- Resolution/ frame rate:
- Single USB-A input: Up to 1920 x 1080p, 60fps
- Single USB-C input: Up to 1920 x 1080p, 60fps
- Dual USB-A input: Up to 1920 x 1080p, 50fps + 1920 x 1080p, 30fps
- One USB-A input + one USB-C input: Up to 1920 x 1080p, 60fps + 1920 x 1080p, 60fps
Phone Camera
- Connection mode: LAN
- Resolution/ frame rate: Up to 1080p, 60fps
SRT stream
- Codec: H.264, H.265
- Resolution/ frame rate: Up to 1080p, 60fps
RTMP pull
- Codec: H.264
- Resolution/ frame rate: Up to 1080p, 60fps
RTMP push
- Codec: H.264
- Resolution/frame rate: Up to 1080p, 60fps
NDI® stream
- NDI|HX2, NDI|HX3, Full NDI
- Codec: H.264, H.265
- Resolution/ frame rate: Up to 1080p, 60fps
Video
- Resolution: Up to 4K
- Codec: H.264, H.265
- Format: MOV/ MP4
|
| Audio Input |
- Mic/line in: 1x 3.5mm jack, 2-channel, 48 KHz, 16-bit
- Audio input from HDMI port: 2-channel, 48 KHz, 16-bit
- Audio input from USB port: 2-channel, 48 KHz, 16-bit
- Audio input from Bluetooth device: 2-channel, 48 KHz, 16-bit
- Audio input from phone microphone
- Audio from SRT stream
- Audio from RTMP stream
- Audio from NDI stream
- Audio embedded in video files
- Audio from a webpage serving as a GFX
- Background music (BGM): MP3, M4A, WAV files
|
| Audio Output |
- Streaming and recording: 2-channel, 16-bit, 48 KHz, aac, 64kbps /96kbps/ 128kbps
- Headphone output: 1 x 3.5mm jack, 2-channel, 48 KHz, 16-bit
- Audio output via Bluetooth device: 2-channel, 48 KHz, 16-bit
- Audio output via USB-C port: 2-channel, 48 KHz, 16-bit
- Audio output via USB-A port: 2-channel, 48 KHz, 16-bit/ 24-bit/ 32-bit
|

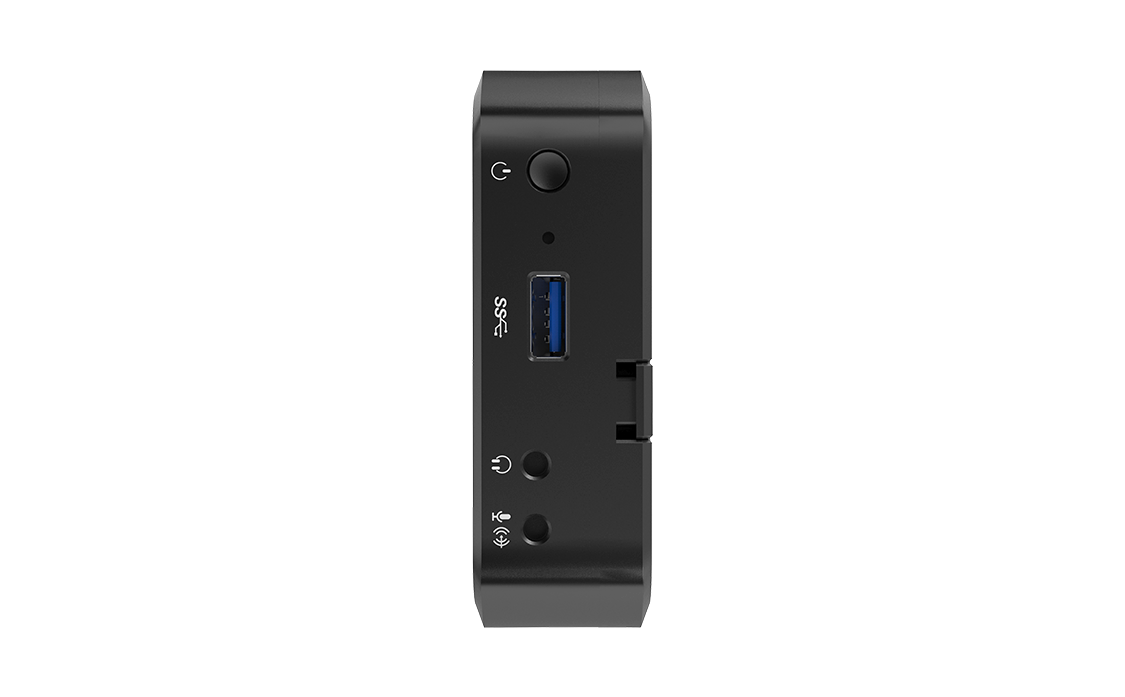

| Features of USB-A Port |
- Connect to a USB A/V device, such as webcam, USB microphone, USB speaker, etc.
- Connect to a USB modem
- Connect to a USB flash drive
- To transfer video, picture, audio and other media files, firmware update files, log
files, etc.
- Supported system format: FAT32, exFAT and NTFS
- Connect to a USB keyboard for shortcuts
|
| Features of USB-C OUT Port |
- Connect to an external screen
- Connection mode: Connect the device to a monitor with a USB-C to HDMI/VGA/DP adapter
- A/V display mode options: Clean Program, Preview, Multi-view, Duplicate Screen, Loop
HDMI 1, Loop HDMI 2
- Image rotation: Rotate 90° to left, or rotate 90° to right
- Supports using an external touchscreen to control the device in the Duplicate Screen
mode
- Connect to a computer
- MTP mode: Transfer video, picture, audio and other media files, firmware update
files, log files, etc.
- UVC/UAC mode*: Output audio and video to streaming
software
- Connect to other USB devices, such as USB A/V devices, USB keyboard
* To transfer video at full frame rate, please use a
USB 3.0 cable to connect the USB 3.0 port of your computer.
|

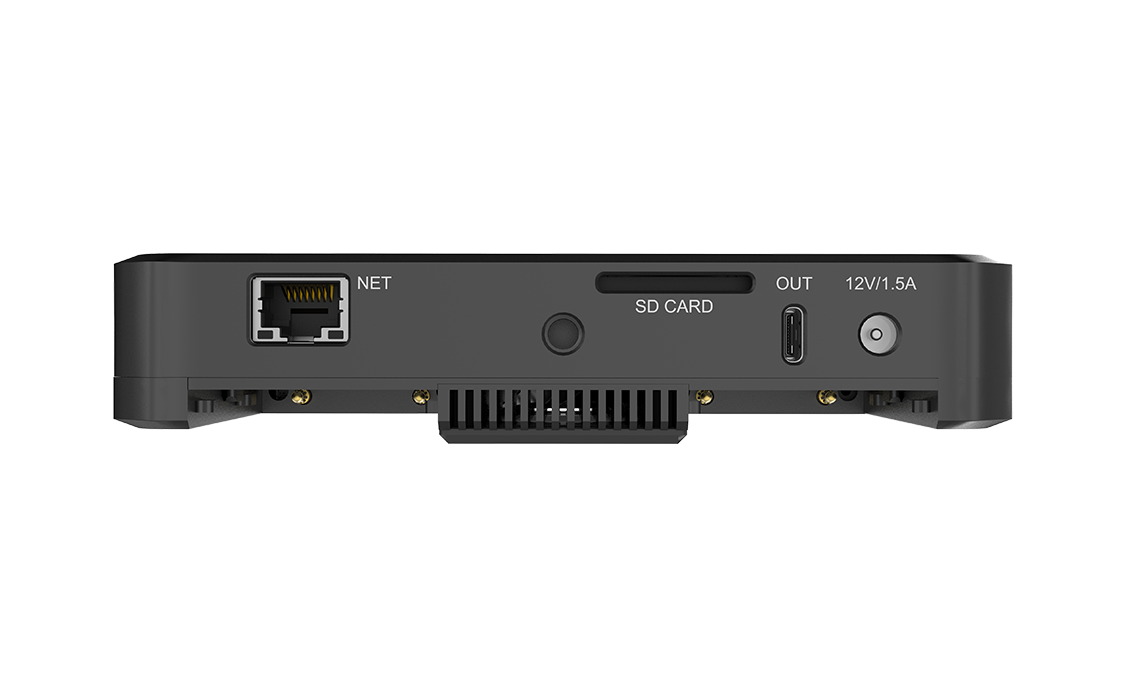

| Network |
- Supports network bonding (not available in China Mainland)
- Supports Ethernet, WiFi and Cellular
- Ethernet: 1 x RJ45 port, 10/ 100/ 1000 Mbps Base-T
- WiFi: 2.4G/ 5G, Station and Hotspot modes supported
- Cellular: USB modem supported (not supplied)
- Supports Bluetooth for audio input or output with Bluetooth devices, and also supports
Bluetooth keyboard, etc.
|
| Features |
Show
- Supports creating multiple shows in landscape (16:9) or portrait (9:16) mode, and manage
them
- Supports creating a shows at 60/ 59.94/ 50/ 30/ 29.97/ 25/ 24/ 23.98 fps
Scenes
- Supports creating multiple scenes in a show, and managing them
- Supports adding various sources, including HDMI, WEBCAM, video, picture, RTMP stream, SRT
stream, phone camera, NDI stream, text and color
- Supports multi-view composition in one scene
- Provides lots of editing tools, including chromakey, crop, transition, etc.
- Supports switch scenes directly or preview at first and then switch
- Supports switching scenes with an instant cut or fade effect.
Audio
- Supports displaying level and peak through audio meter
- Supports adjusting the level of each input audio, output and monitor audio
- Supports global or scene-based settings for audio input sources
- Supports AFV (Audio-follow-video)
- Supports solo monitor
- Supports switching monitor device
GFX
- Supports multiple GFX types, including title, lower third, animated text, digital clock,
analog clock, bullet list, social media, logo, scoreboard, timer, stopwatch, custom picture
and text
- Supports HTML graphics
- Supports displaying multiple GFXs, and managing them
- Supports controlling scoreboard, timer and stopwatch in real time
BGM
- Supports adding BGM for each scene and controlling in real time
Pen
- Annotates on the screen in real time
PTZ Camera
- Supports controlling PTZ camera via the network, supporting Visca UDP, supported sources
including HDMI, WEBCAM (UVC camera), SRT stream, RTMP stream, and NDI stream
Phone Camera control
- Control the phone camera to zoom or focus
Replay
- Capture some of greatest moments, slow down the action and save highlights.
Live stream
- Natively supports streaming to YouTube, Twitch and Facebook Live
- Supports selecting RTMP or HLS protocol for streaming to YouTube
- Supports streaming via SRT, RTMP and RTMPS protocols
- Supports two NDI® HX3 outputs, supporting NDI Tally lights
- Supports customizing encoding parameters and selecting the encoding source (Program, HDMI,
WEBCAM) for ISO streaming
- Supports streaming to two destinations simultaneously
- Supports sending live comment as an overlay into the video feed when streaming to social
media
Record
- Supports customizing encoding parameters
- Supports ISO recording, to record two of different sources simultaneously, or record
two-channel images with different quality for one source, and supported sources include
Program, HDMI, WEBCAM as well as NDI|HX2 and NDI|HX3 stream
- Supports saving recording files in MP4 or MOV format to local storage or SD card
- Supports saving screenshot files in PNG format to local or SD card
- Supports splitting recording files by time or size, up to 4 hours or 16G
- Supports exporting or downloading files through computer, SD card, USB flash drive, App, or
Web UI
|
| Director Utility App |
- OS version: iOS 11 and later, Android 7.0 and later
- Phone Camera: Use a phone as a camera
- Stream images taken by the phone to Director device
- Stream images taken by the phone to a destination via SRT
- Remote Assistant: Control Director device remotely
- Switch and manage scenes, set switch mode and effect, implement FTB, free scene, and
control PTZ camera and phone camera
- Switch and manage GFX, edit GFX text and picture in real time, and control
scoreboard, timer and stopwatch
- Control audio, including adjusting audio level, switch monitor device, mute audio
and monitor audio exclusively
- Start/stop recording, take screenshots, and manage album files
- Set streaming servers, start/stop streaming, view streaming status, and send live
comment as overlay
- Control and manage BGM
- Execute shortcuts functions
- View input information
- View real-time device status
- Power off the device remotely
|
| Web UI |
- Set and manage device, view input information, configure networks, update firmware
- Preview and monitor the show, switch and manage shows, scenes, GFXs, control audio, set
shortcuts, send live comment as overlay, etc.
- Set encoding parameters
- Set streaming servers, start/stop streaming, view streaming status
- Start/stop recording, take screenshots and manage album files
- Control and manage BGM
- Manage media files
- View real-time device status
- Supports registering Magewell Control Hub (V2.1.20 and later) for centralized management
- System requirement: Windows 10 19H1 and above, macOS 10.12 and above, Linux
|
| API |
Provides basic APIs for 3rd party control system |
| OSC |
Supports OSC for 3rd part Apps to control the device |
| Screen |
- Size: 5.44"
- Type: AMOLED
- Aspect ratio: 16:9
- Resolution: 1920x1080
- Brightness: 350 nits
- Color depth: 8-bit
- Contrast ratio: 6000:1
- Color gamut: 105% NTSC
- Refresh rate: 60Hz
- Viewing direction: All
- PPI: 405
- Touchscreen: Capacitive
- Screen coating: Anti-fingerprint coating
|
| Storage |
- Local storage: 64 GB
- SD card (not supplied): FAT32 (Under 128G), NTFS, exFAT
|
| Dimension |
147.2 mm x 90 mm x 28.5 mm |
| Power |
AC power
- Power input: 12V/1.5A
- Maximum power consumption: 15W

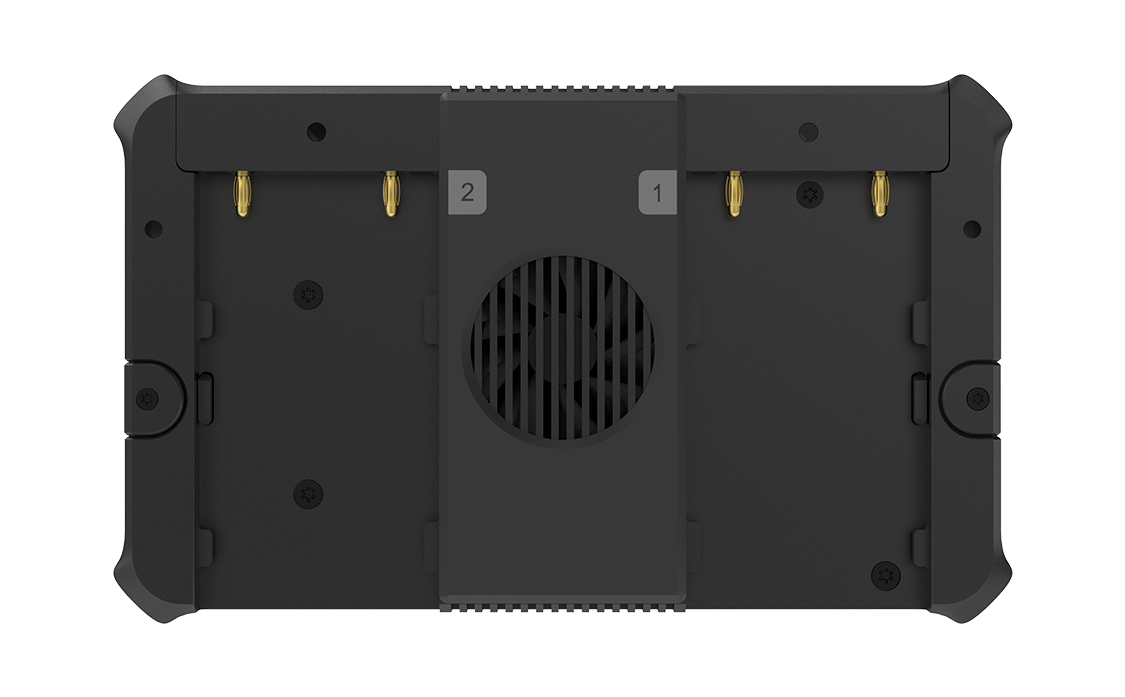

Battery pack
- 2x DC 7.4V (NP-F battery packs, not supplied)
- Hot swappable
|
| Working Environment |
- Operating temperature: –10 to 50 deg C (AC power)
- Storage temperature: –20 to 70 deg C
- Relative humidity: 5% to 90% non-condensing
|
