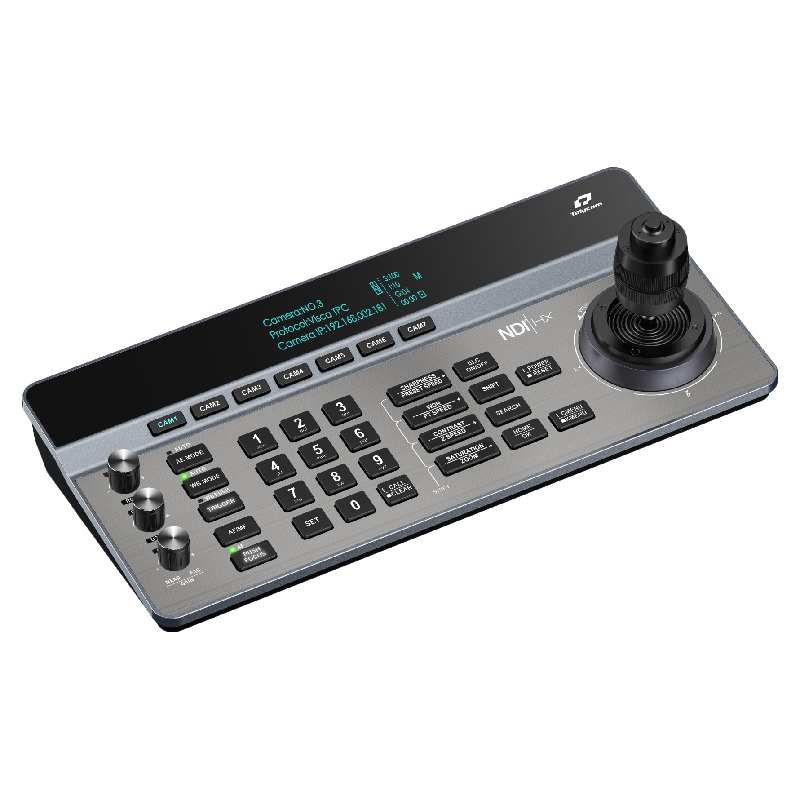

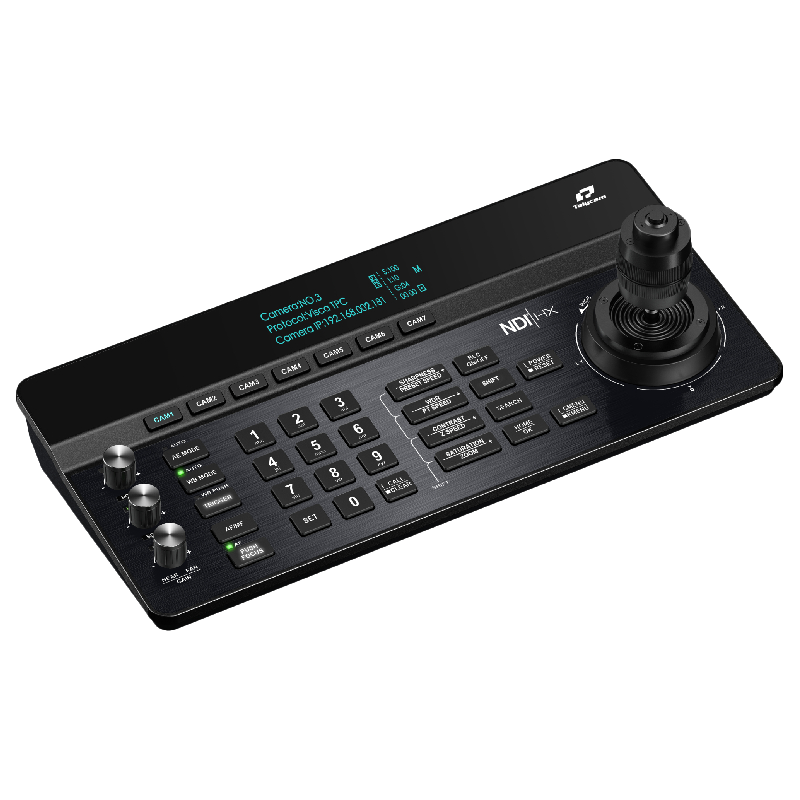

V-Joy/V-Joy+

NDI/IP Remote Control Keyboard
Highlights
Be able to control different brands of cameras
Be able to use different protocols to control camera simultaneously: NDI/VISCA over IP/VISCA/ONVIF
Simple and intuitive panel design to enable control and adjust the image simply
Has a wide range of control interfaces: NDI/Ethernet, RS232, RS485, RS422
Edit Content

Broad Compatibility

  • Supports multiple protocols NDI, VISCA over IP, Serial VISCA, ONVIF, PELCO P/D,
  • Users can control multiple cameras with different protocols with one keyboard, or multiple keyboards controlling one camera through a network interface.
  • It supports up to 7 cameras of daisy chain control.

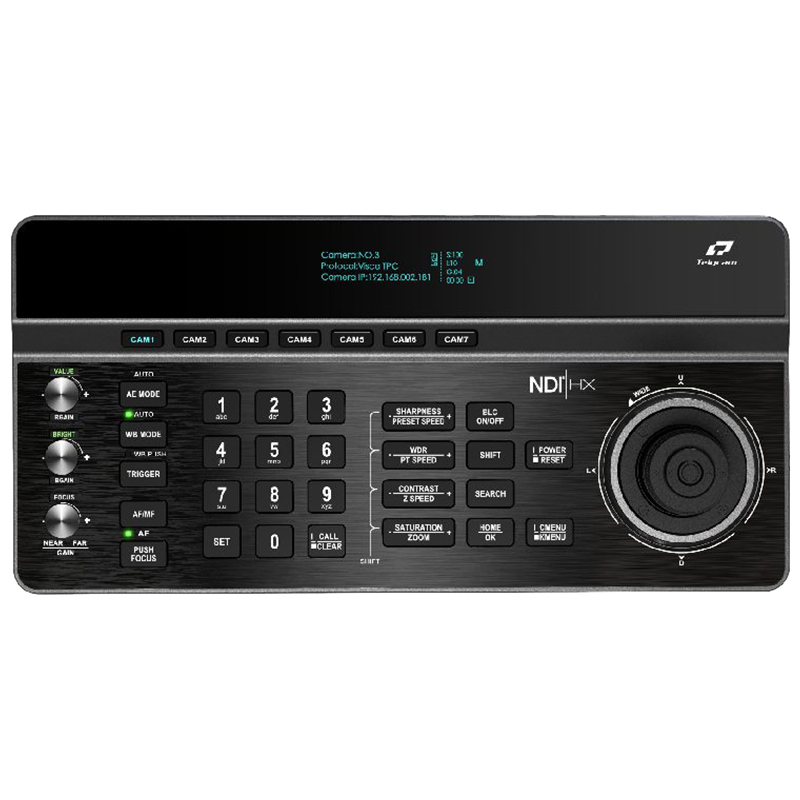

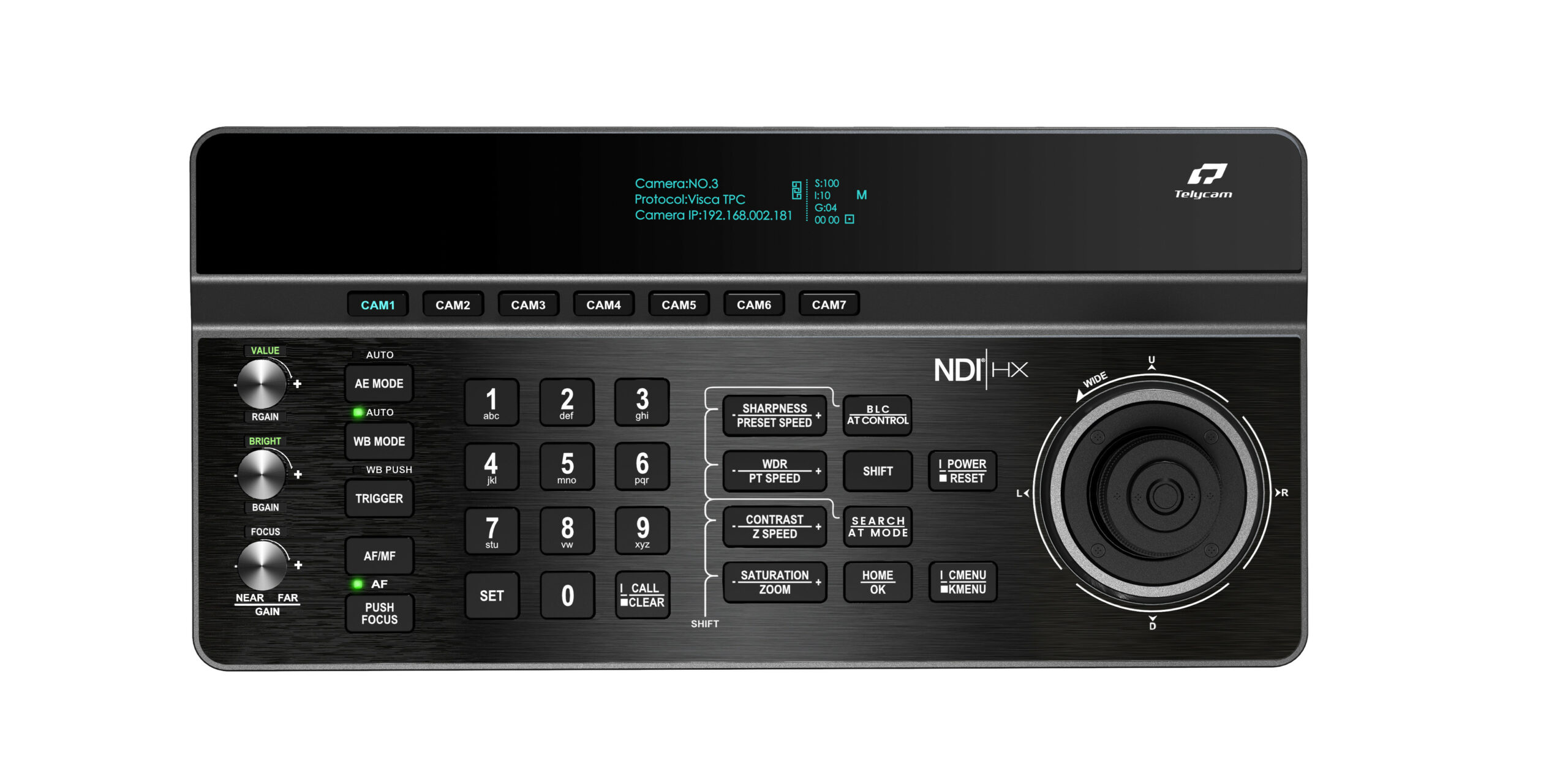

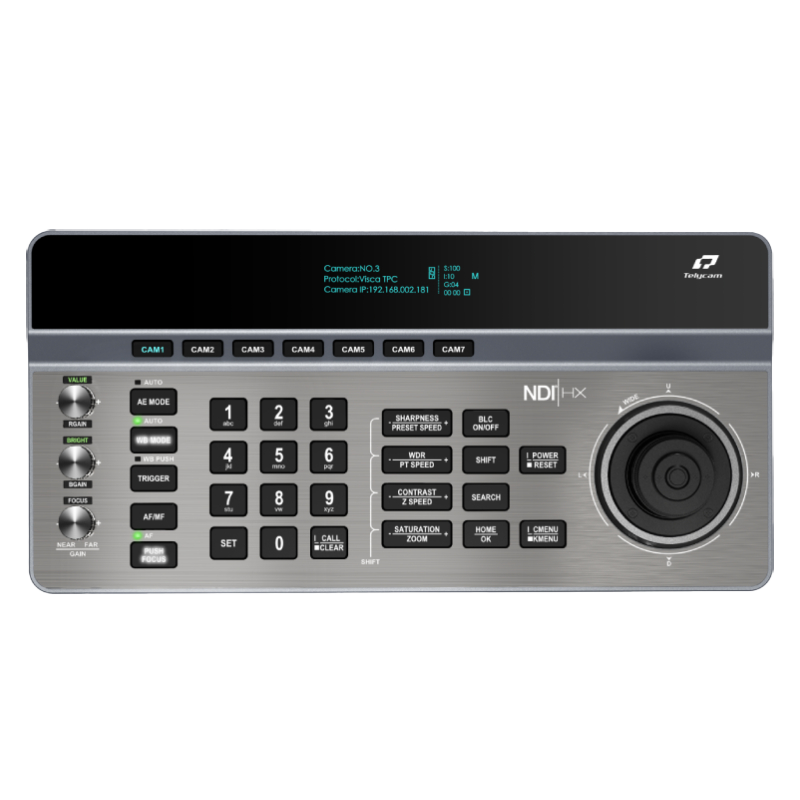

Intuitive and Clear Layout

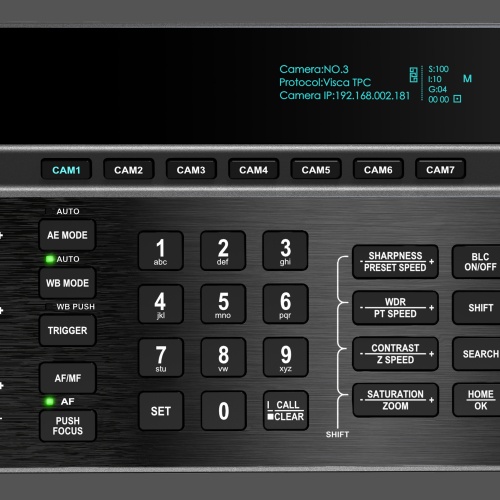

  • A high-definition screen to show detailed camera and control status.

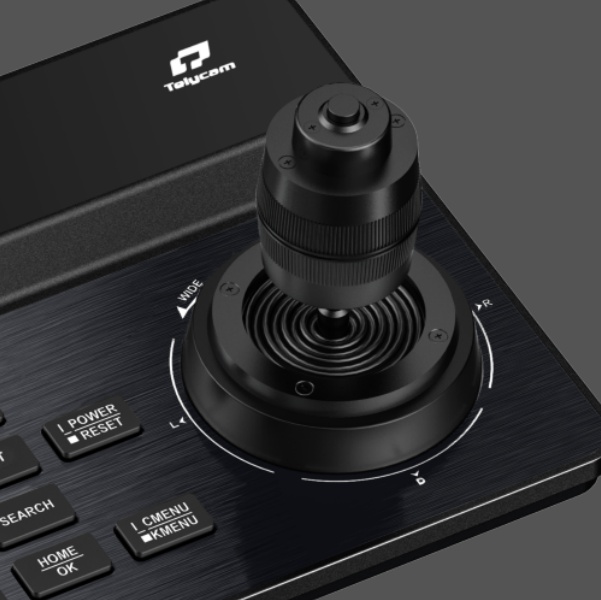

  • PTZF four-dimensional joystick to make smooth control of the camera’s all-around rotation, zooming and focus.
  • Independent layout of numeric and functional areas for clear setup and control.

Effortless Auto-tracking Control

  • Integrates auto-tracking functionality directly into the keyboard, enabling operators to activate and manage this feature with a simple button press for dynamic live operations.
  • Supports precise control and customization of auto-tracking parameters, such as Tracking Switch, Target Position, PT Limitation, Initial Position, and Blackboard Area, ensuring targeted and efficient tracking.

Flexible Control

  • Basic pan/tilt/zoom control, PTZ control speed as well as preset can be easily accomplished.
  • Auto tracking switch and set. 128 preset positions can be set, recalled, and cleared via the numerical button area.
  • Focus, Iris, Exposure, White balance, WDR, and Backlight compensation can be set and adjusted.
Edit Content
Model V-Joy+ AT
Part NO. TLC-50TC (NDI)-AT

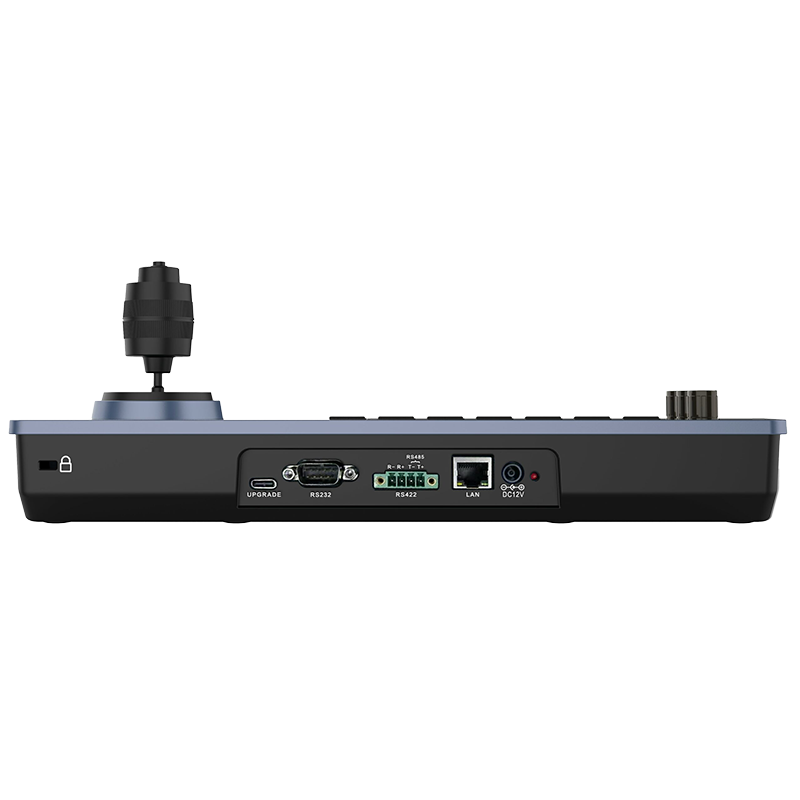

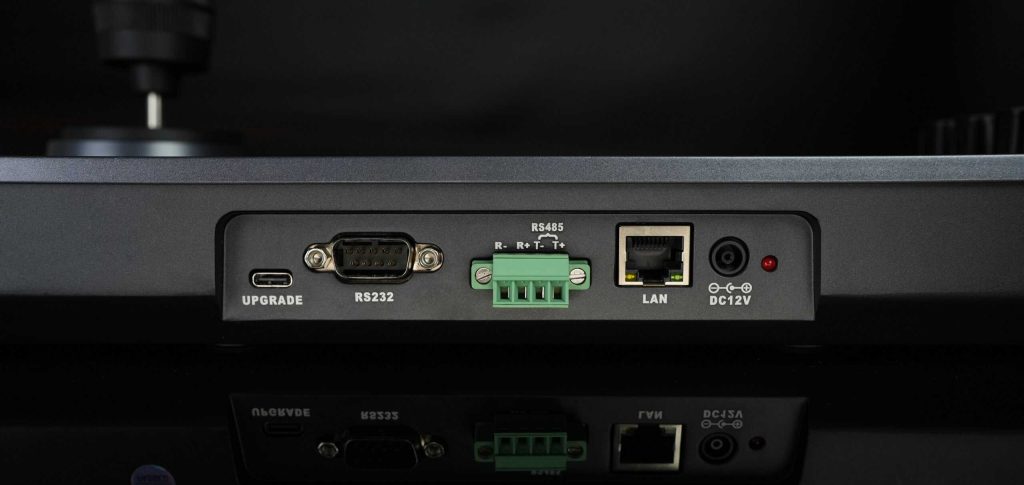

Control Ports NDI®HX, RS232, RS422, RS485
RJ45 Ethernet port, POE (IEEE802.3af)
RS232 DB9 Male Head
RS422 3.81 Spacing terminal, T+, T-, R+, R-
RS485 3.81 Spacing terminal, T+, T-
Control Protocols NDI®HX, VISCA Serial, PELCO-P, PELCO-D, VISCA over IP, VISCA TCP, VISCA UDP, ONVIF
Upgrade Port Type-C
LCD Screen 3.12-inch OLED screen, blue light, 256×64 pixel
Working Power 12V, 1A
Working Temperature -10°C ~ 50°C
Working Humidity 20% ~ 80%
Storage Temperature -20°C ~ 60°C
Storage Humidity 0 ~ 90%
Dimension 320.5mm × 156.5mm × 118mm
Net Weight 1.05 kg
