Professional live streaming productions with extreme portability and maximum features are now in your hands.
With up to four FULL HD camera inputs and HDMI outputs, SK-1730 series allows productions of all sizes. For productions such as house of worship, sports, meetings, training, or any other live event, the SK-S1730 series live portable production solution is your go-to rig.
Based on vMix live video streaming software, SK-S1730 series live portable production solution give you nearly unlimited input types, clean transitions, live image adjustment, virtual sets, instant replay, and more.
The shell and chassis of SK-S1730 series broadcast live portable production solution are made of a matte alloy splicing structure, which reaches the level of military-grade seismic and compressive resistance, and the firmness and structural stability are more than 99% of the same type of products.
The main screen uses a 17.3-inch ultra-thin LCD screen, with toughened glass film, to protect the screen of the all-in-one machine to effectively offset the stress on the surface when it is under external force, greatly improving the force-bearing capacity of the LCD screen.
SK-S1730 series live portable production solution adopts an upturned structural design. When you need to expand the device, just slide the lock right and turn it over. When you need to close the device, just close the screen down and gently press it down, and hear the lock sound.
Opening the upper flap of the live portable production solution, you are greeted with operating console of the device. The operating console is generally composed of three parts, which are the embedded PC keyboard, midi controller switcher, and the touchpad. Functions and usage methods will then be introduced in the future.
SK-S1730 series broadcast live portable production solution has three appearance colors: black, silver, and army green.
SK-S1730 series has built-in UMC202 sound card, the specific interface description is shown below

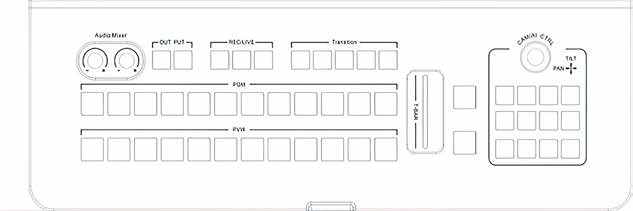

In terms of function, SK-S1730 series live portable production solution embedded vMix layout guide switching console is one of the most popular and perfect construction applied to live production at present. All buttons on the broadcast switcher control panel are double color backlight button design helps the operator to quickly identify important keys, which greatly reduces the chance of switching control operation errors. SK-S1730 series live portable production solution adopts professional midi controller, the specific functions are as follows:
| Parameter | Description |
|---|---|
| All-in-one design | Integrated portable integrated design upturn structure |
| Alloy structure | Alloy reinforced chassis, resistance to pressure, shock, electricity, humidity and heat environment |
| Display screen | 17.3-inch ultra-thin LCD display with 1920x1080 resolution and tempered glass film |
| Architecture | X86 architecture, non-embedded architecture |
| Processor | i7-8709G |
| Memory | DDR4 16G |
| Storage | SSD 1T |
| IO Port |
|
| Operating system | Windows 10 Professional |
| Network | Supports Gigabit network port |
| Power supply | DC 19V |
| Slot |
|
| Sound card | Built-in Larinda UMC22 sound card, phantom power switch indication function |
| Professional console | Includes inbuilt PC keyboard, inbuilt mouse touch pad, inbuilt radio and MIDI Controller switcher panel (including T-push rod, micro thumb control stick) |
| Controller switcher | Double color backlight button design, support 12 PGM/PVW keys, support output volume adjustment, with audio knob, embedded T-shaped push rod; Support PTZ |
| Video input | 4x 1080P60 HDMI input |
| Video output | 1x HDMI output(Up to 2106P60), supports SRT/RTMP/NDI network output |
| Speakers | Stereo speakers |
| Weight | ~5kg |
| Work environment |
Storage temperature -30°C to + 70°C Working temperature -20°C to + 60°C |
| Packing method | Double corrugated cartons inside and outside with pearl cotton lining |
