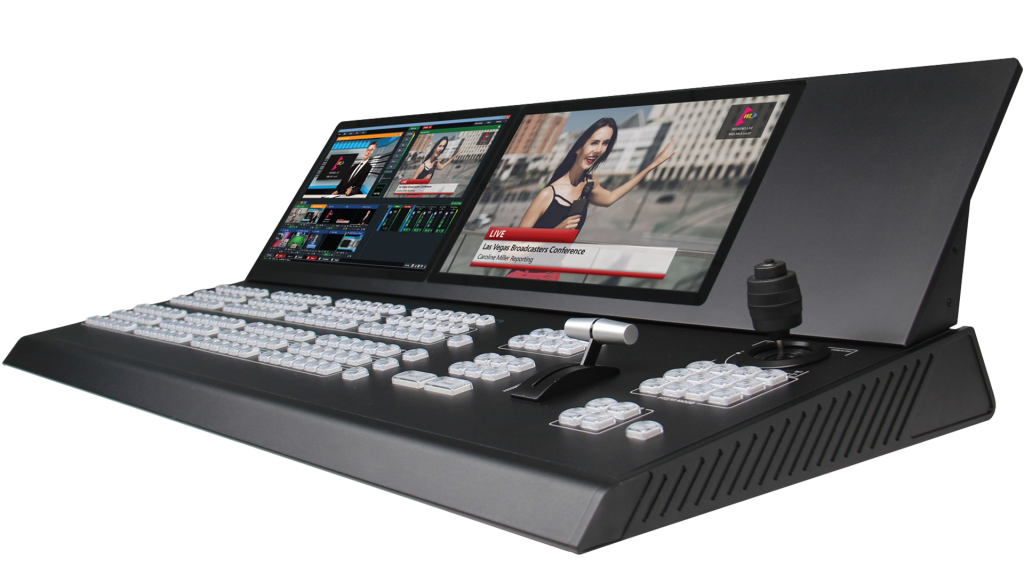

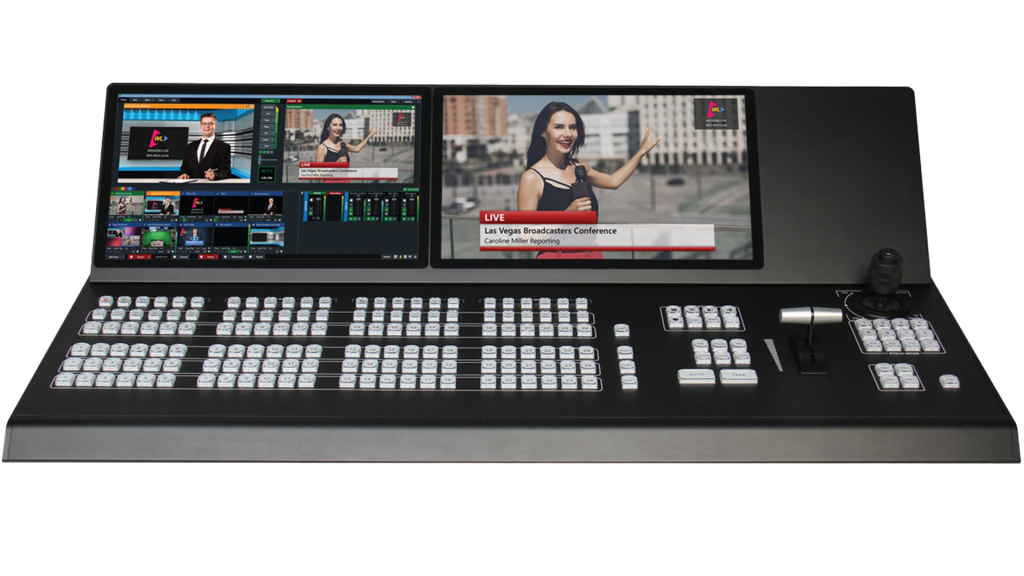

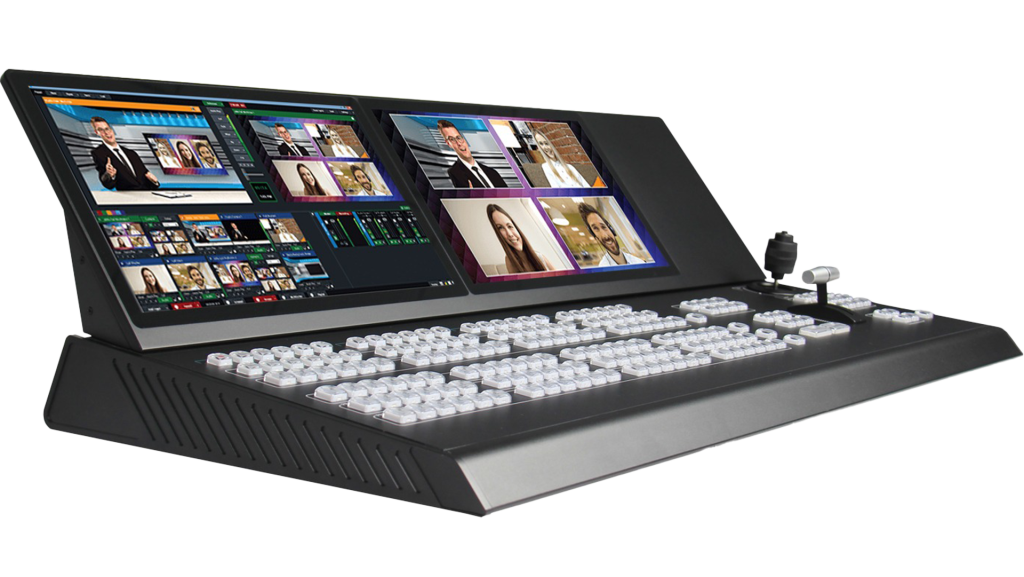

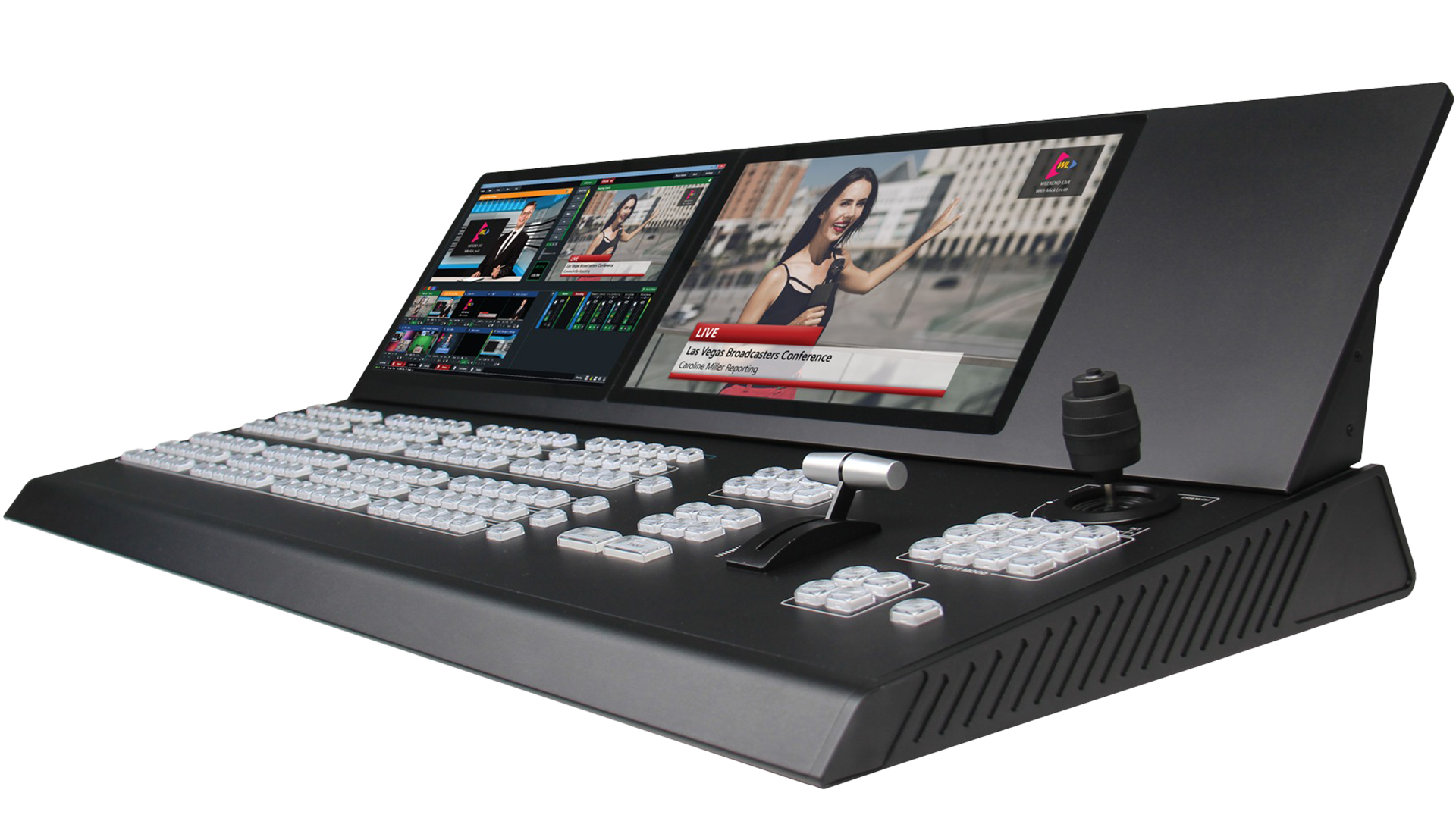

Control your vMix software switcher with the 4M/E vMix Revolution Monitor-Control Panel from iSanKeys Control Surface. Designed with dual-color backlit buttons and a professional T-bar that facilitates common commands, including crossfades, wipes, digital video effects, and downstream.
Overview
Enhance your live production setup with the Medium 24-Channel Video Control Panel from iSanKeys, designed for seamless integration with vMix, OBS, and TriCaster systems. This compact yet powerful control surface offers 24 total inputs with dedicated Program and Preview rows, supporting plug-and-play functionality and quick configuration through the included setup application.
Equipped with Auto, Cut, and Live/Full Screen buttons, a precision T-bar for transition control, and a joystick for smooth remote camera operation, it delivers a professional, hands-on workflow. Additional features include USB-A/USB-B connectivity, an RS-232 DB9 port for PTZ control, and a 2 km wireless tally interface, making it ideal for professional productions of any scale.
Key Feature
More Software Support
Quickly achieve the functions of vMix, Tricaster Mini, Central Control, or other live stream software controls, integrating director switching, resource recording, video live streaming, audio mixer, special effects transitions, and Wireless Tally system.
Ergonomic Design
The SK-P1810 video streaming control panel features an enhanced ergonomic design that combines portability and professionalism, making it ideal for live productions of any scale. It delivers studio-grade control in a compact footprint, ensuring smooth, efficient operation—whether in the office, at an event, or on location.
PTZ Camera Control
In addition, the SK-P1810 offers integrated PTZ control for cameras and virtual scenes, enabling users to easily adjust camera orientation and perform zoom in/out operations directly from the control panel for a seamless, efficient workflow.
Wireless Tally System
The SK-P1810 comes equipped with a built-in wireless tally communication system. When paired with optional tally lights, it supports status indication for up to 24 cameras within a 2-kilometer range, providing reliable visual feedback for professional multi-camera productions.
Customizable Buttons
The SK-P1810 video control panel offers a standard vMix template layout while also allowing customized configurations tailored to user preferences and specific workflow requirements, ensuring flexibility and efficiency across various production scenarios.
| Parameter | Description |
|---|---|
| Products Name | 4M/E Advanced Monitor-Control Surface |
| Model Number | SK-P1810 |
| Screen Size | 15.6 inch IPS LCD Display |
| Number of Keys | 181 Single Keys |
| I/O |
|
| Protocols |
|
| PTZ Protocol | VISCA |
| Supported Software |
|
| Input Voltage | 5V 300mA |
| Power Source | USB Port, Nominal Voltage = DC 12V 3A |
| Weight | 13600g |
| Dimensions | 940 × 450 × 250mm |
| Material | Aluminum vs. Steel Gantry CNC Construction |
