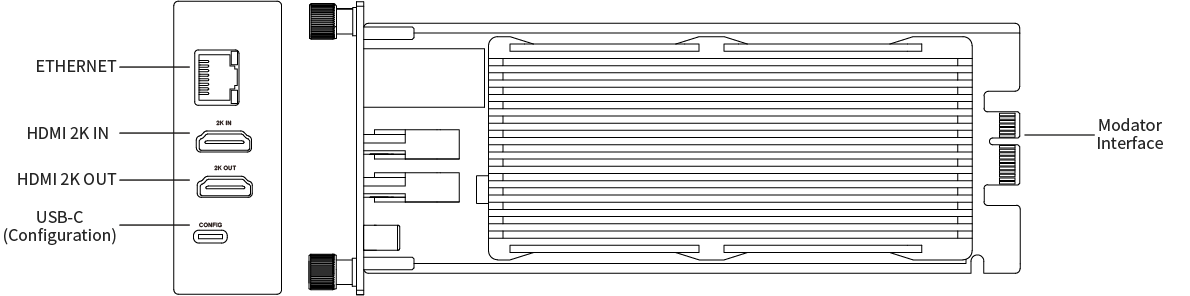

Interfaces
|
-
1* RJ45 1000Mbps Ethernet port
-
1* USB Type-C port for configuration
-
1* HDMI 1.4 input port
-
1* HDMI 1.4 output port
-
1* Modator interface for connecting to Modator 2U (hot-swappable)
|
|
Input & Loop Through Features
|
Max. input & loop through signal:
-
4096x2160 30fps 4:4:4/4:2:2
-
4096x2160 60fps 4:2:0
-
Input videos at any format by customizing the EDID of input port
-
Supports RGB and YUV BT.601/709 signals
-
Supports 8-channel HDMI-embedded audio
|
|
NDI® Encoding Features
|
-
Encode and output real-time streams of Full NDI® at up to 2048x2160 120fps 4:2:2 8-bit
-
Output the same resolution as input or any custom resolution.
Typical outputs include:
-
2048 x 1080p/ 1920 x 1080p 23.98/ 24/ 25/ 29.97/ 30/ 50/ 59.94/ 60
-
1280 x 720p 23.98/ 24/ 25/ 29.97/ 30/ 50/ 59.94/ 60/ 100/ 119.88/ 120
-
1920 x 1080i 25/ 29.97/ 30/ 50/ 59.94/60
-
720 x 480p/ 720 x 480i 59.94/ 60/ 119.88/ 120
-
720 x 576p/ 720 x 576i 50/ 100
-
Output frame rate same as the original, 1/2, 1/3 or 1/4 of input frame rate
-
Encode 8-channel NDI-embedded audio
-
Supports NDI® 5.x
|
|
LED Indicators
|
Input signal:
Loop through signal:
-
On: device connected and signal detected
-
Off: undetected
|
|
Physical Specifications
|
-
Form factor: 184.4mm (L) x 30.0mm (W) x 81.5mm (H)
-
Weight: ≈ 295g
|
|
Power Consumption
|
Max power consumption: 6.2W
|
|
Working Environment
|
-
Operating temperature: –10 to 45 deg C
-
Storage temperature: –20 to 70 deg C
-
Relative humidity: 5% to 90% non-condensing
|
