Pro Convert HDMI 4K Plus Module

Converts a 4K HDMI input signal into high-bandwidth NDI® with loop-through
  • A hot-swappable module to be installed in Magewell Modator chassis
  • Supports up to 4096x2160 60fps (4:4:4) input signals including 1080p 144fps
  • Centrally manageable via the Modator chassis and Magewell Control Hub

For standalone version with same specification.

Pro Convert HDMI Plus Module

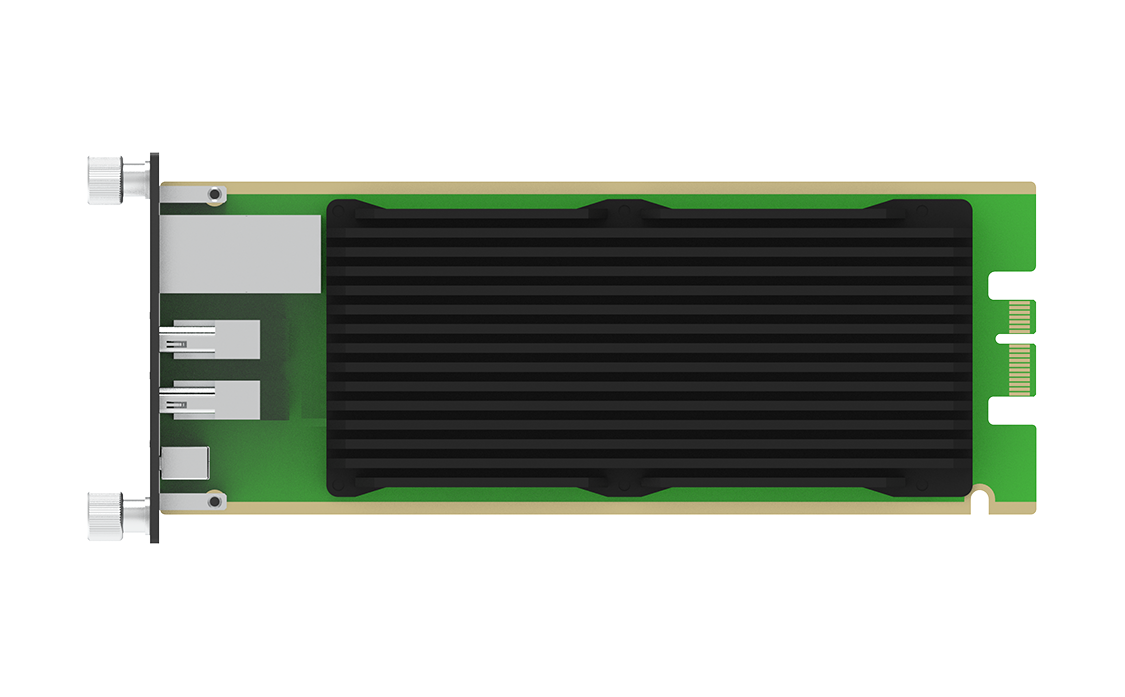

1 (3)
3 (3)

Interface

Specifications and Features

Features

Input & Loop-Through Features

  • Supports for up to 4096x2160 4:4:4 60fps HDMI input and loop-through
  • Supports 8-channel HDMI-embedded audio

Decoding Features

  • Supports for up to 4096x2160 60fps or 1920x1080 240fps 4:2:2 8-bit NDI encoding
  • Sends NDI streams across network segments
  • Encodes 8-channel NDI-embedded audio
  • Supports NDI 5.x

Others

  • Very low latency
  • Configure through the touch screen of Magewell Modator chassis, Web GUI or Control Hub
  • HTTP-based APIs for custom integration
  • 2-year warranty

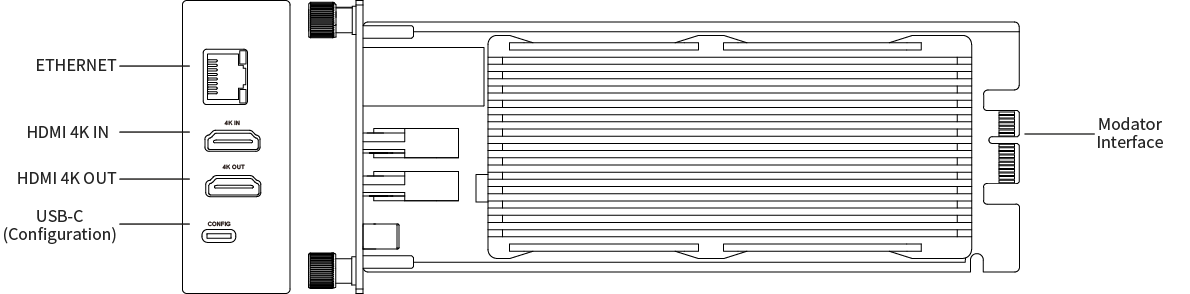

Interfaces
  • 1* RJ45 1000Mbps Ethernet port
  • 1* USB Type-C port for configuration
  • 1* HDMI 2.0 input port
  • 1* HDMI 2.0 output port
  • 1* Modator interface for connecting to Modator 2U (hot-swappable)
Input & Loop-Through Features
  • Max. input & loop-through signal: 4096x2160 60fps 4:4:4 8-bit
  • Input videos at any format by customizing the EDID of input port
  • Supports RGB and YUV BT.601/709/2020 signals
  • Supports 8-channel HDMI-embedded audio
NDI® Encoding Features Encode and output real-time streams of Full NDI® at up to:
  • 4096 x 2160 60fps 4:2:2 8-bit
  • 1920 x 1080 240fps 4:2:2 8-bit
Output the same resolution as input or any custom resolution. Typical outputs include:
  • 4096 x 2160p/ 3840 x 2160p/ 2048 x 1080p 23.98/ 24/ 25/ 29.97/ 30/ 50/ 59.94/ 60
  • 1920 x 1080p/ 1280 x 720p 23.98/ 24/ 25/ 29.97/ 30/ 50/ 59.94/ 60/ 100/ 119.88/ 120
  • 1920 x 1080i 25/ 29.97/ 30/ 50/ 59.94/ 60
  • 720 x 480p/ 720 x 480i 59.94/ 60/ 119.88/ 120
  • 720 x 576p/ 720 x 576i 50/ 100
  • Output frame rate same as the original, 1/2, 1/3 or 1/4 of input frame rate
  • Encode 8-channel NDI-embedded audio
  • Supports NDI® 5.x
Web UI
  • Register with Magewell Control Hub for remote centralized management
  • Supports configuring and managing via Web UI
  • Provides comprehensive information regarding the device and decoded signals in real-time
  • Allow to configure how a signal is decoded and output, including OSD settings, deinterlacing, resolutions, audio gain, sample rate, and channel mapping, as well as the network connection
  • Supports updating firmware
  • Supports USB RNDIS/ ECM
  • Supports IE/ Edge/ Firefox/ Chrome/ Safari/ Opera web browsers
  • Provides HTTP APIs
LED Indicators Input signal:
  • On: locked
  • Off: unlocked
Loop through signal:
  • On: device connected and signal detected
  • Off: undetected
Physical Specifications
  • Form factor: 184.4mm (L) x 30.0mm (W) x 81.5mm (H)
  • Weight: ≈ 295g
Power Consumption Max power consumption: 7W
Working Environment
  • Operating temperature: –10 to 45 deg C
  • Storage temperature: –20 to 70 deg C
  • Relative humidity: 5% to 90% non-condensing
