Production & Streaming System

The complete production studio.
In your hands.
Portable, broadcast-grade performance for content creators, event teams, and corporate productions. No bulky gear. No complex setup.
Explore Director Plus →
Compare Models

4

HDMI Inputs

10

Live IP Source

4K

HDMI Inputs

5G

WiFi 6E • 2.5G LAN

signal inputs
Ultra-Rich Signal Flexibility

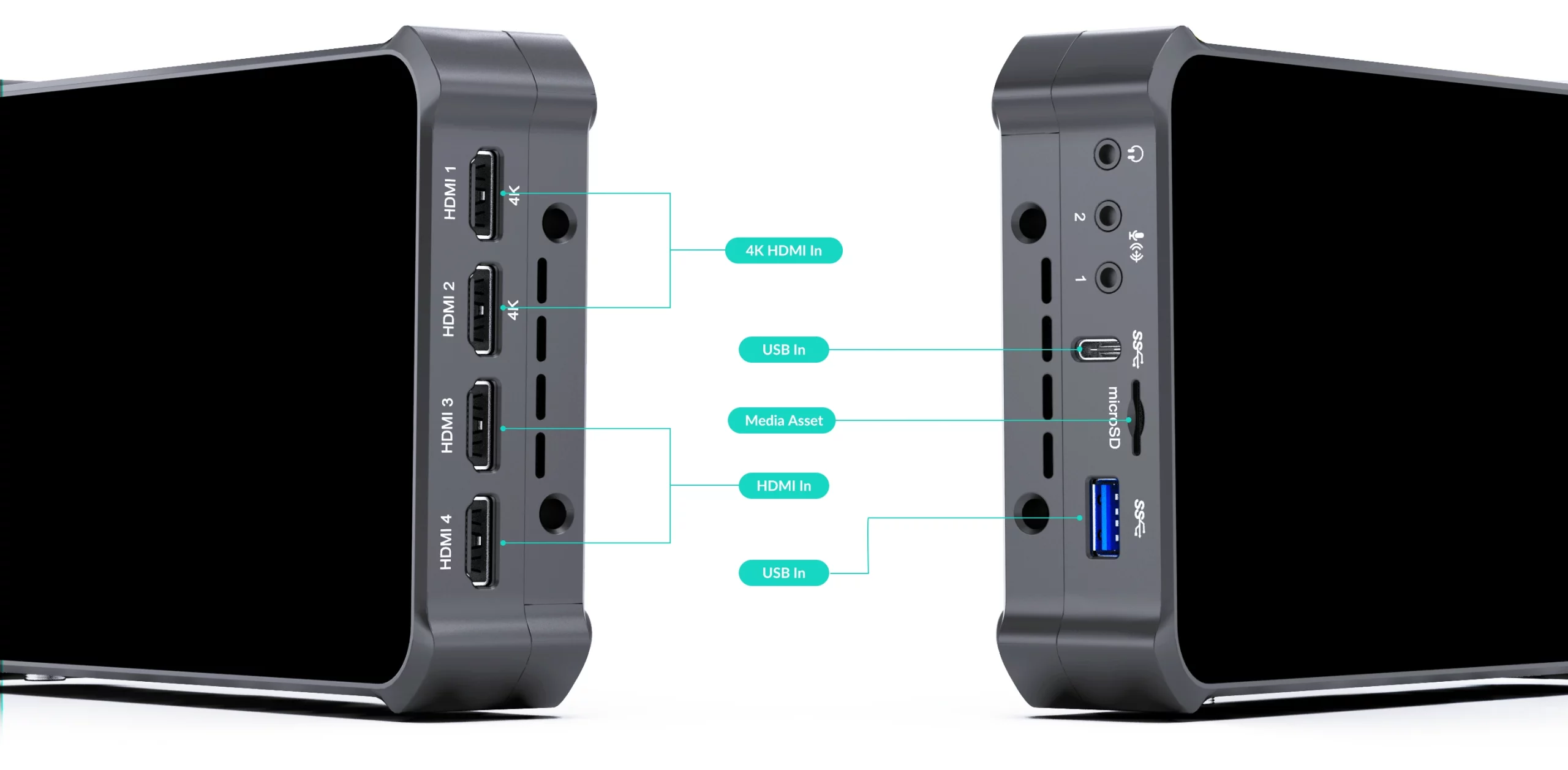

Four HDMI inputs, two USB AV inputs, ten simultaneous live IP sources including SRT, RTMP, RTSP, NDI® sources, HTML webpages, and third-party apps — Director Plus gives you unmatched flexibility to mix cameras, computers, remote feeds, and media files in any layout.
2× USB AV
10× IP Sources
4× HDMI
NDI / SRT / RTMP
Network
Stay Connected in Any Network
Four HDMI inputs, two USB AV inputs, ten simultaneous live IP sources including SRT, RTMP, RTSP, NDI® sources, HTML webpages, and third-party apps — Director Plus gives you unmatched flexibility to mix cameras, computers, remote feeds, and media files in any layout.
Wi-Fi 6E
Next-gen, minimal interference
2.5G Ethernet
Wired stability for demanding venues
Network Bonding
Multi-link unbreakable streaming
5G Modem
Ultra-low latency mobile streaming
streaming
Pro-Grade Streaming & Recording

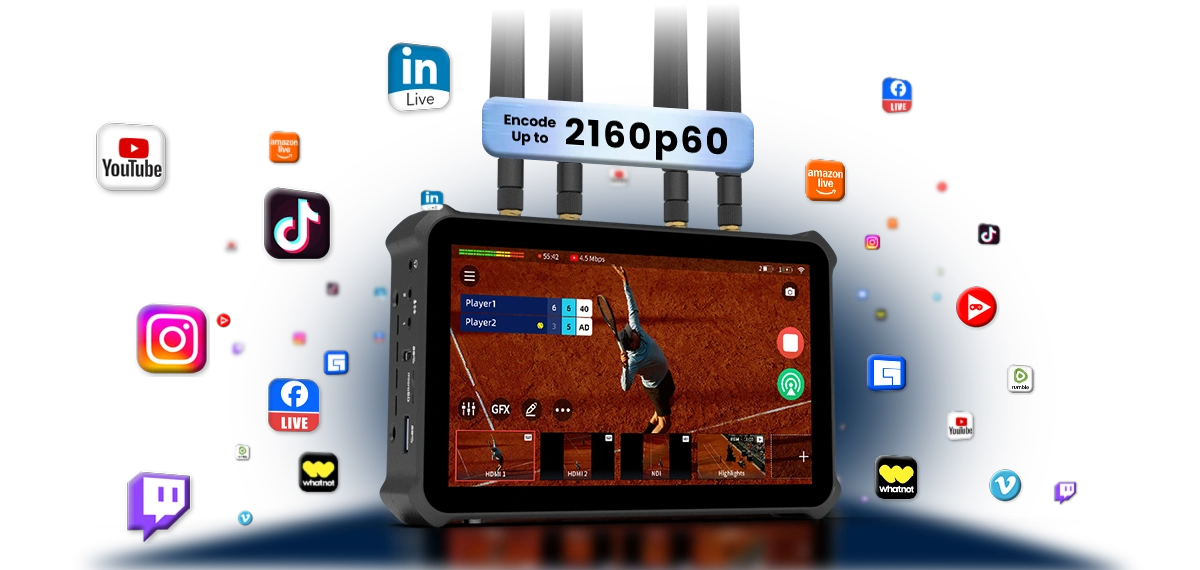

Encode up to 2160p60 at 120Mbps. Stream to YouTube, Facebook, Twitch and three other platforms simultaneously. Four-channel ISO recording gives full flexibility in post-production for replays, editing, and content repurposing.

4× Platforms

Simultaneous streaming

4K / 60fps

Max resolution

ISO ×4

Independent channel recording

120 Mbps

Max encoding bitrate

control
Complete Control, Your Way
Operate from wherever works best for you — built-in touchscreen, mobile app, web browser, or third-party integrations.

Mobile App

Free Director Utility app adds IP input sources and wireless device control.

Web Browser

Full browser-based web UI — access Director Plus from any connected device.

API & Integrations

Stream Deck support, OSC protocol, developer API, and Control Hub software.

Touchscreen

7” AMOLED built-in display for hands-on, standalone production operation.

product info
Director Plus
A portable, all-in-one 4K live production and presentation system

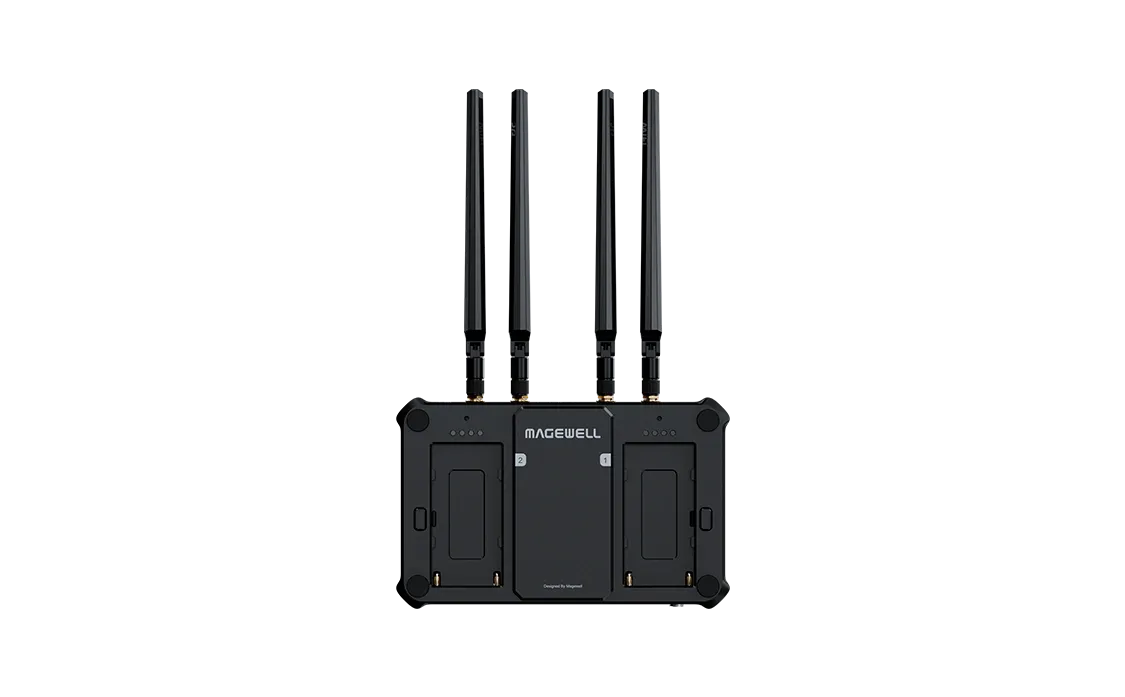

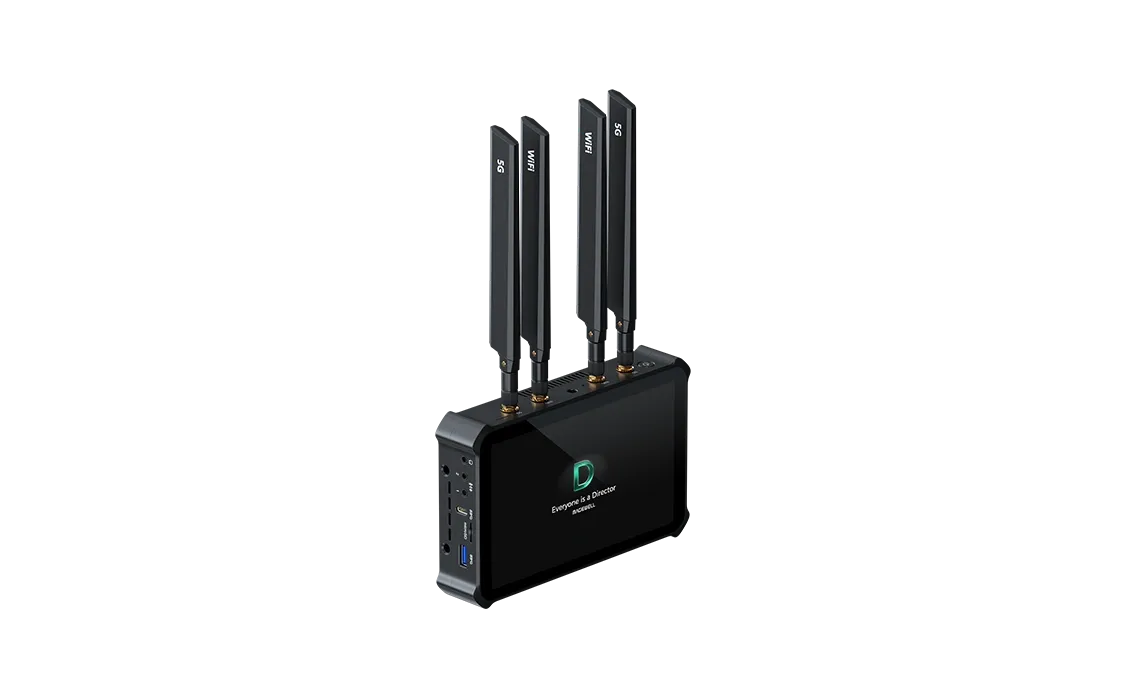

Director Plus 1 Director Plus 2 Director Plus 3 Director Plus 4 Director Plus 5
01 / 05
overview

Flexible connectivity for AV sources, IP streams, media files and third-party apps

Enhanced networking with 5G modem, Wi-Fi 6E, and 2.5GbE Ethernet

End-to-end 4K production from source ingest to streaming and recording

Intuitive control for seamless workflow integration via touchscreen, app, or API

specfication & features

inputs

  • 4× HDMI inputs + 2× USB AV inputs
  • 10 simultaneous live IP sources (SRT, RTMP, RTSP, NDI®)
  • Media files (video, image, music)
  • Webpage inputs
  • Up to 3 third-party apps from whitelist

content creation

  • Landscape (16:9) or portrait (9:16) shows
  • Free composition + scene layout templates
  • Chroma keying, graphics, telestration
  • Lower thirds, scoreboard, timer, stopwatch
  • Autoplay and Video-Follow-Audio switching

streaming

  • Native: YouTube Live, Twitch, Facebook Live
  • SRT, RTMP, RTMPS, RTSP, NDI HX3
  • Up to 4 simultaneous streaming platforms
  • Custom encoding parameters per destination
  • Max bitrate: 120 Mbps at up to 2160p60

recording

  • Local storage, SD card, or USB SSD
  • Split recording files by time or size
  • 4-channel independent ISO recording
  • Multi-channel recording for single source

network

  • 5G cellular modem (SIM card slot)
  • Wi-Fi 6E — 5GHz/6GHz, station & hotspot
  • Ethernet: 2.5 Gbps (RJ45)
  • Multi-link network bonding

display & hardware

  • 7” AMOLED capacitive touchscreen, 800 nit
  • 185.2 × 117.2 × 38.5 mm
  • 2-year device warranty (1-year screen)
  • 2× HDMI outputs + 1× USB-C output
what's included
Director Plus

Director Plus ×1

Director Plus

Screw Locking Power Adapter ×1

5G Antenna

5G Antenna ×2

Director Plus

Wi-Fi Antenna ×2

Sunhood

Sunhood ×1

Thumb Screws

Thumb Screws ×1

USB-C to USB-A Cable

USB-C to USB-A Cable ×1

USB-A to USB-C Adapter

USB-A to USB-C Adapter ×1

SIM Card Ejector

SIM Card Ejector ×1

Assembly Stand Kit

Assembly Stand Kit ×1

Screen Cover

Screen Cover ×1

specification & features
Broadcast quality,
no compromise.
Director Plus redefines all-in-one live production. Portable, professional, and powerful — built for creators who refuse to compromise.
