Pro Convert HDMI TX

Converts an HD HDMI input signal into Full NDI®

Supports up to 2048×1200 60fps input signals
Connects existing source equipment into NDI-enabled, IP-based media networks
Plug-and-play ease of use with automatic input format detection and DHCP network configuration

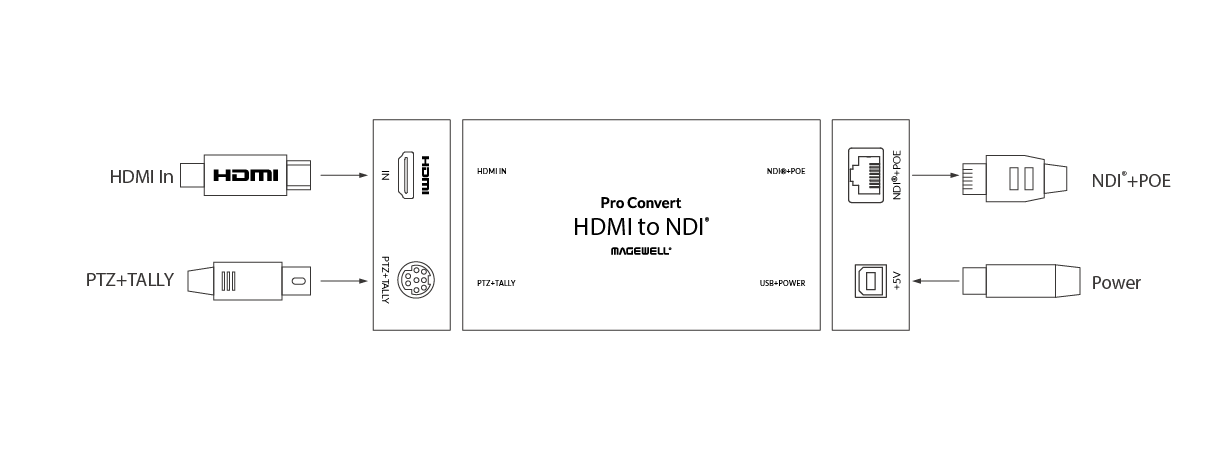

Specifications and Features

Input Features

Max video input: 2048×1200 60fps 4:4:4/4:2:2
Input video at any format by custom EDID of input port
Video formats: RGB, YUV BT.601/709/2020
8-channel HDMI-embedded audio
HDMI interface: HDMI 1.4, DVI-D

NDI® Encoding Features

Encoding Full NDI real-time stream at up to 2048×1200 60fps 4:2:2 8-bit.
Output the same resolution as input or any custom resolution. Typical outputs include:
- 2048x1080p/1920x1080p 23.98/24/25/29.97/30/50/59.94/60
- 1920x1080i 25/29.97/30/50/59.94/60
- 1280x720p 23.98/24/25/29.97/30/50/59.94/60/100/119.88/120
- 720x480p/720x480i 59.94/60/119.88/120
- 720x576p/720x576i 50/100
Output frame rate same as the original, 1/2, 1/3 or 1/4 of input frame rate
Encoding 2-channel NDI-embedded audio
Support NDI 5.x

Configuration Management

Registration with Control Hub
Remote control via WebUI and Control Hub
Provide comprehensive information regarding the device and input signals in real-time
Allow to configure how a signal is decoded and output, including OSD settings, deinterlacing, resolutions, audio gain, sample rate, and channel mapping, as well as the network connection
Support for updating firmware
Support for USB RNDIS/ECM
Support for IE/Edge/Firefox/Chrome/Safari/Opera web browsers
Provision of HTTP APIs

On-board Control Buttons

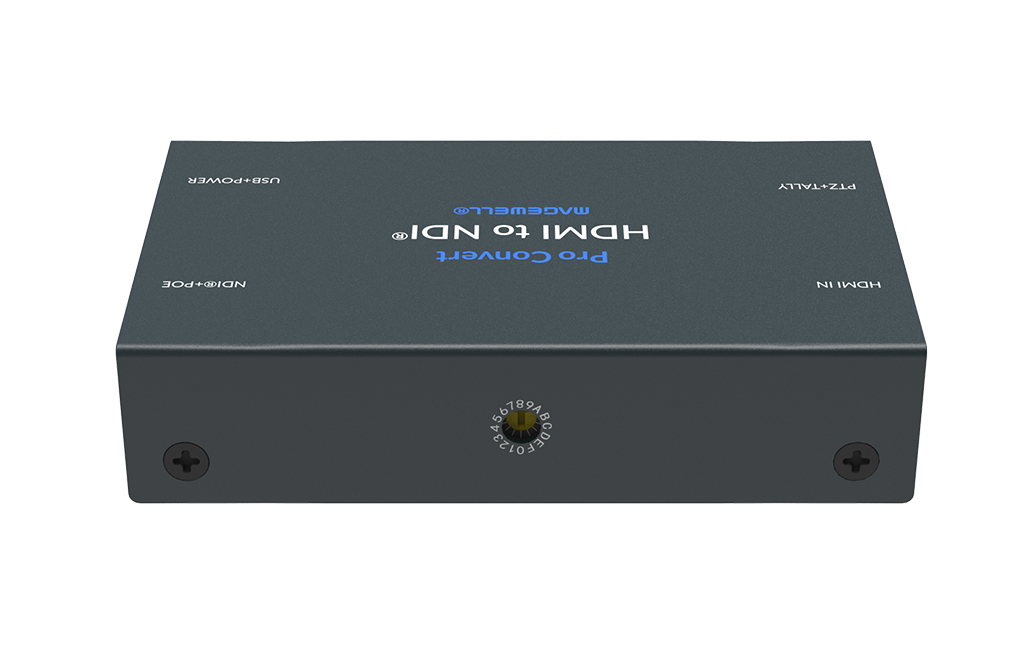

16 Position Rotary DIP Switch: set board-index from 0 to F

PTZ Control

Control PTZ cameras using protocols of VISCA, Visca UDP, Visca UDP2rs232, PELCO-P and PELCO-D via NDI

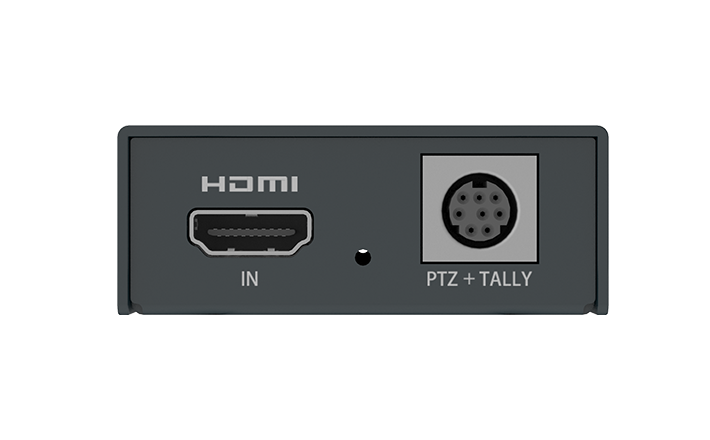

Mini-DIN–8 jack (shared with Tally light)

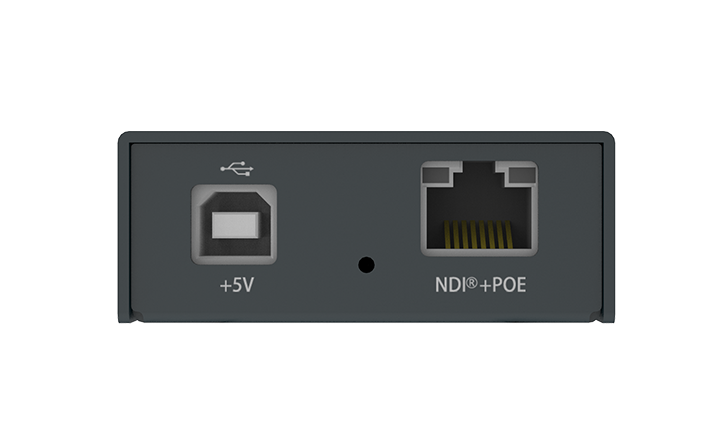

Network Interfaces

10/100/1000Mbps Ethernet
IEEE 802.3af PoE

USB Interfaces

USB2.0 Type B

5V/2.1A power supply
USB RNDIS/ECM

Supported Products

NDI Studio Monitor
OBS
vMix
Any other NDI-enabled product

LED Indicators

Status LEDs indicate:

Power supply: on/off
Input signal: locked/unlocked

Form Factor

100.9mm (L) x 60.2mm (W) x 23.3mm (H)

Accessories

USB 2.0 A to B cable
5V/2.1A power adaptor
Mini-DIN 8 breakout cable
L-bracket
Tally light

Screw Mounting Hole

¼–20 threaded hole

Power Consumption

5V max current: ~ 1.5 A
Max power consumption: ~ 6 W

Working Environment

Operating temperature: 0 to 40 deg C
Storage temperature: –20 to 70 deg C
Relative Humidity: 5% to 90% non-condensing

Accessory

Included

Power Adapter (US/EU/UK/AU/JP)x1
Part number: ACC08010

Power Adapter (KR) x1
Part number: ACC08015

USB Type A to Type B cable x1
Part number: ACC00065

Mini DIN8 to DIN8+DB9 cable x1
Part number: ACC00110

L bracket x1
Part number: 92240

Tally Light x1
Part number: 99090

Two types of power adapters are provided as options to meet your need. Please choose the right part number when placing the order to our dealers. We recommend you always use the included accessories to avoid unnecessary damage to your device. Please note, the appearance of the power adapter may vary due to suppliers or batches. The images here are for reference only.
