D260 now supports decoding in H.265 format and up to 4-channel of video streams in 1080p60 simultaneously. All 4 video outputs can be custom to single display or PIP with adjustable figures.
D260 is Kiloview’s newest H.265 1X3G-SDI+2XHD HDMI decoder which builds on the capabilities of our original decoder DC230 with expanded new features including upgraded decoding performance, extended ports, more protocols supported and a new LCD screen. Everything your need about decoding is packaged in this single unit with low cost.
D260 now supports decoding in H.265 format and up to 4-channel of video streams in 1080p60 simultaneously. All 4 video outputs can be custom to single display or PIP with adjustable figures.

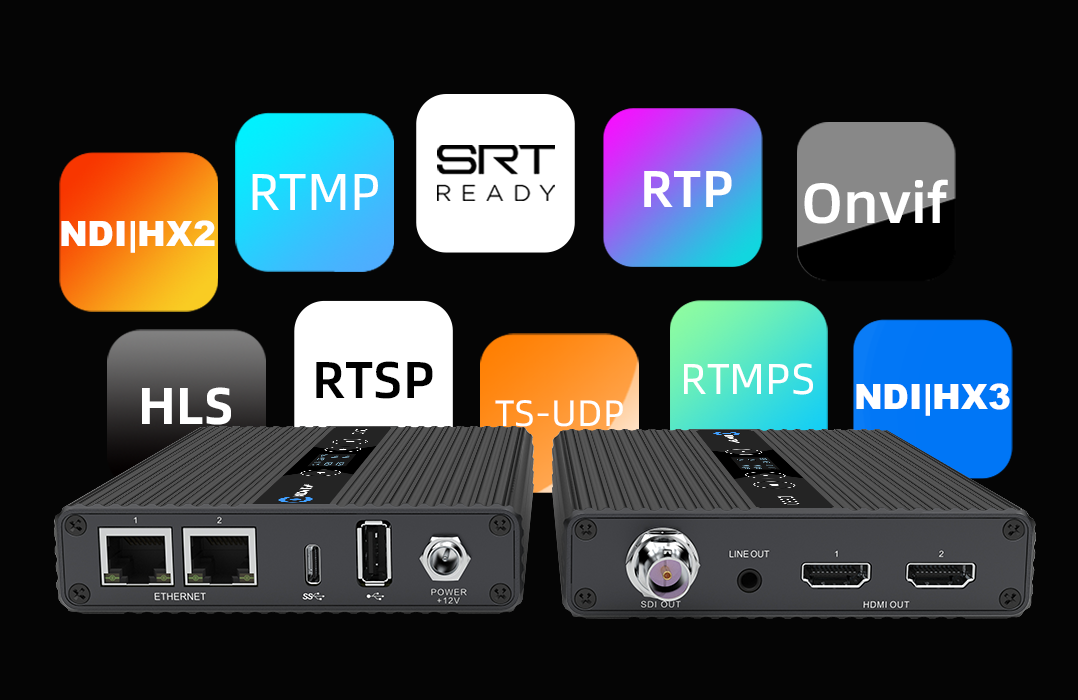

As an upgraded version of DC230, D260 adds a couple more interfaces for advanced application. Now D260 is equipped with two HDMI 2.0 ports, one 3G-SDI port and 2 USB ports(one USB Type-A and one USB Type-C)to ensure the scalability, It’s capable for outputting in three ways: Independently, Combine multi-channel video flows or replicate of one single flow to stream simultaneously.
D260 supports “preview + output” mode, in which you can preview 16 video streams and select 4 of them to display on the screen for output simultaneously. This feature can also be used for monitoring (PVW/PGM).
D260 is also super powerful in audio decoding. With a long list of audio formats supported including AAC/MPEG-4/MPEG-2/G.711/Opus/LPCM, It’s also capable of switching audio On/Off, audio mix and audio gain in real-time to output alternatively through its HDMI ports, SDI port and 3.5mm line out port.
Custom multi-output display is also allowed for D260(including custom grids/PIP/simply drag and drop). All things about display(bit-rate and resolution) can be customized.

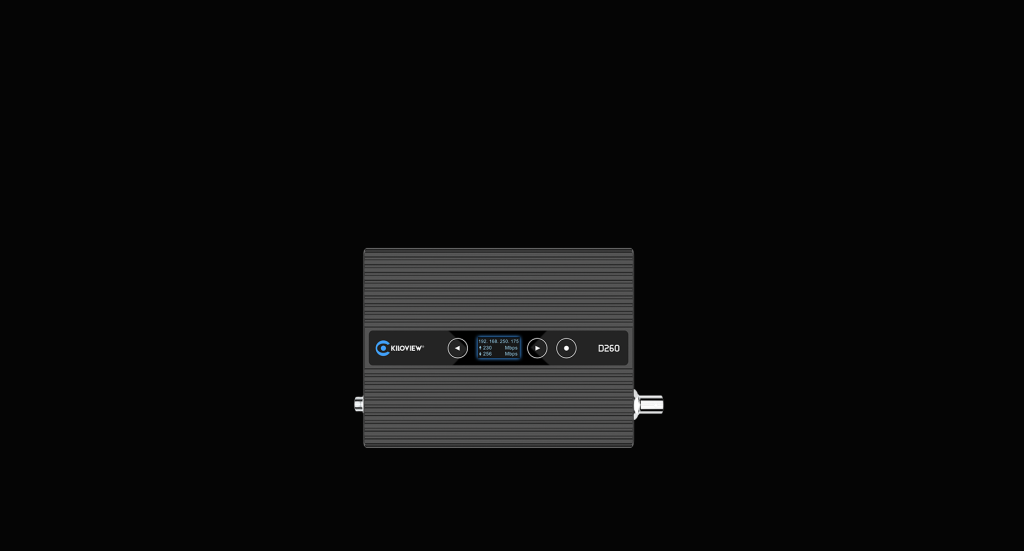

D260 is equipped with an LCD screen with touch buttons for a better user experience. With the built-in LCD screen, users can easily check transmission status in real-time.
| Model | D260 |
|---|---|
| Video Output |
2*HDMI 1*3G-SDI |
| Audio Output | HDMI, SDI and 1*3.5mm Line out |
| Video Formats | H.264(AVC), Compatible with Baseline/Main/High Profile, up to Level 5.2； H.265(HEVC)Compatible with Main Profile, up to Level 5.1 |
| Video Decoding | 4 channels of H.264(AVC)/H.265(HEVC) video streams in resolution of 1080p60 |
| Audio Formats | AAC/MPEG-4/MPEG-2/G.711/Opus/LPCM |
| Streaming protocols | NDI|HX2/NDI|HX3/SRT/RTMP/RTMPS/HLS/TS over UDP/RTP/ RTSP |
| Display | 0.96”LCD Display and Touch Button |
| Layouts | Custom 1/2/3/4 layouts |
| Intercom | Yes |
| OSD | Yes |
| Tally | Yes |
| Network Connections | Ethernet Ports: 2*10/100M/1000M |
| USB Ports |
1*USB 2.0 Type-C 1*USB 2.0 Type-A |
| Power Supply | DC 12V/1A |
| Management | WebUI/KiloLink Server |
| Power Consumption | 7W (MAX) |
| Size | 162.85mm x 104.00mm x 25.00mm |
| Weight | 328.18g |
| Operating Temperature | -20°C ~ 60°C |
| Support Download | Docs & Firmware |
| Product Type | Product Model | Output Interface | Resolution | Decoding Performance |
|---|---|---|---|---|
| H.265 4K Video Decoder | D350 | 3G-SDI + HDMI 2.0*2 |
SDI: up to 1920×1080@60Hz; HDMI: up to 3840×2160@60Hz |
Up to 9 Video Streams Simultaneously Decoding, 1/2/3/4/5/6/7/8/9 Splitting Screen and Dynamic Switching Supported |
| 4-Channel H.265 Video Decoder | D260 | 3G-SDI + HDMI 2.0*2 |
SDI: up to 1920×1080@60Hz; HDMI: up to 1920×1080@60Hz |
Up to 4 Video Streams Simultaneously Decoding, 1/2/3/4 Splitting Screen and Dynamic Switching Supported |
