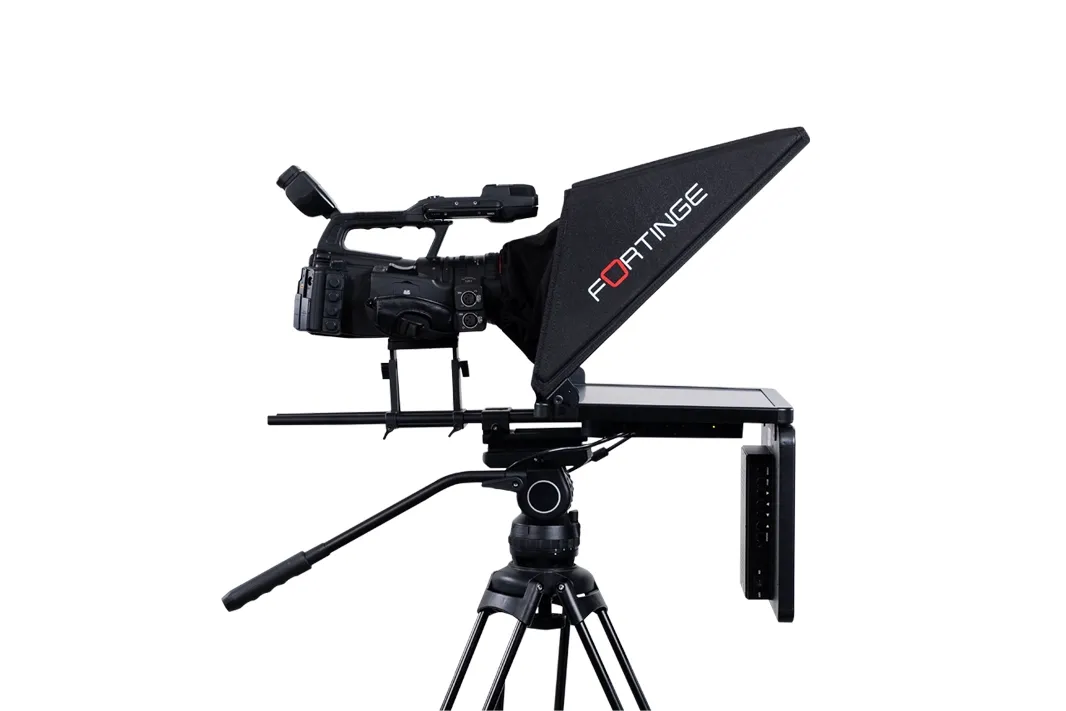

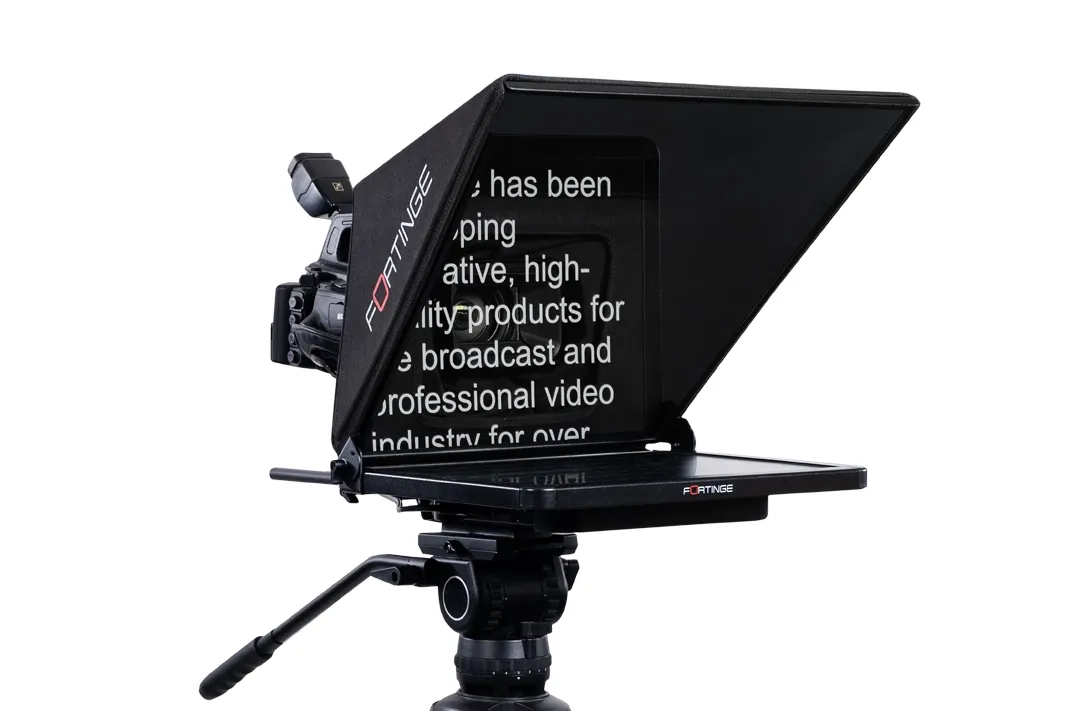

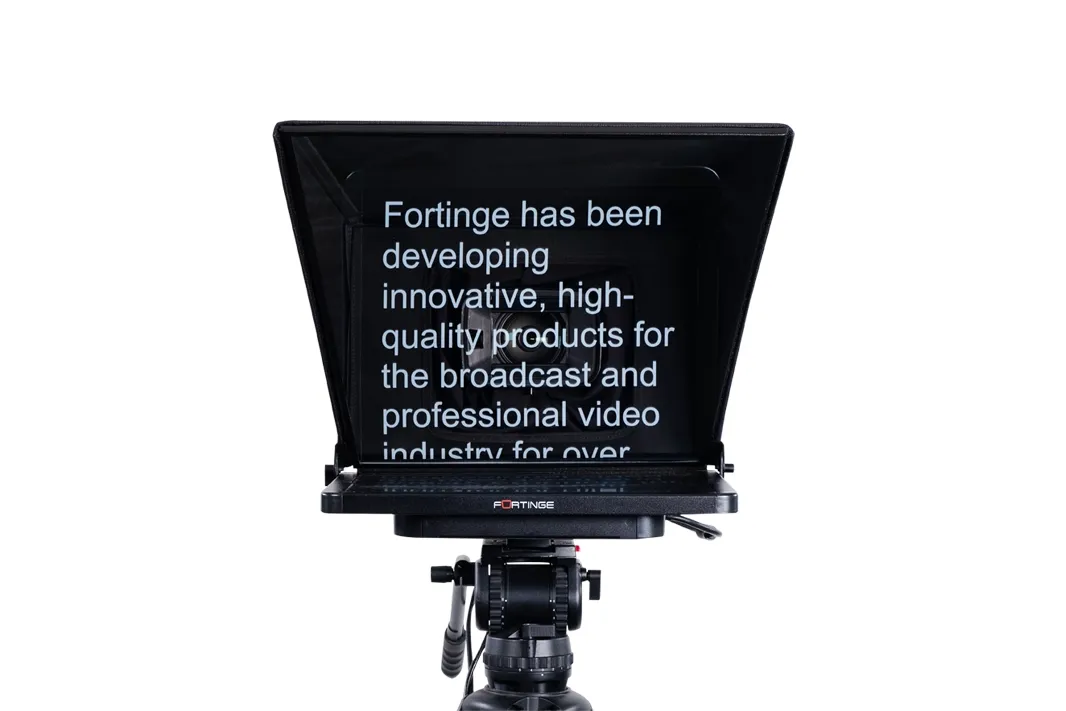

PROX Studio Teleprompter is a professional teleprompter system that accommodates different needs with its 15″, 17″, 19″, and 21″ sizes. Specifically designed for seamless integration with small and medium-sized ENG handheld cameras, not only in the studio environment but also for small-medium range broadcasting projects, it offers a smooth and professional management of script reading processes for presenters. PROX Studio Teleprompter is an ideal solution to enhance the impact and fluency of reading & speaking to the audience.
The PROX Teleprompter is designed to be lightweight, thin, intelligent, and well-balanced on the tripod head and featured an enlarged hood with trapezoidal glass for an expanded reading field. This versatile teleprompter is offered in sizes ranging from 15” to 21” inches. While the 15″-17″-19″ options maintain a 4:3 aspect ratio, the 21″ model provides a widescreen experience with a 16:9 aspect ratio. The “Elevator” system empowers users to customize the camera height for an optimal shooting position. The PROX Teleprompter is constructed from heavy-duty materials, ensuring a durable & long operational lifetime, and can be easily assembled without any tools. The new design eliminates the need for counterbalancing weights as well. Standard inputs include HDMI, Composite (BNC), and VGA, with the option to add an SDI input & output. Available in both high-brightness and regular brightness monitor versions.
Included in the package
| Features | PROX 15" | PROX 17" | PROX 19" | PROX 21" | ||||
|---|---|---|---|---|---|---|---|---|
| PROX | High Brightness | PROX | High Brightness | PROX | High Brightness | PROX | High Brightness | |
| Resolution | 1024×768 | 1024×768 | 1280×1024 | 1280×1024 | 1280×1024 | 1280×1024 | 1920×1080 | 1920×1080 |
| Sharpness | 700:1 | 700:1 | 1000:1 | 1000:1 | 1000:1 | 1000:1 | 1000:1 | 1000:1 |
| Brightness | 400cd/m² | 1000cd/m² | 250cd/m² | 1000cd/m² | 250cd/m² | 1000cd/m² | 300cd/m² | 1000cd/m² |
| Glass | 70/30 Prompter Glass | |||||||
| Panel | INDUSTRIAL TFT LCD PANEL | |||||||
| Glass Size (trapezoidal) |
|
|
|
|
||||

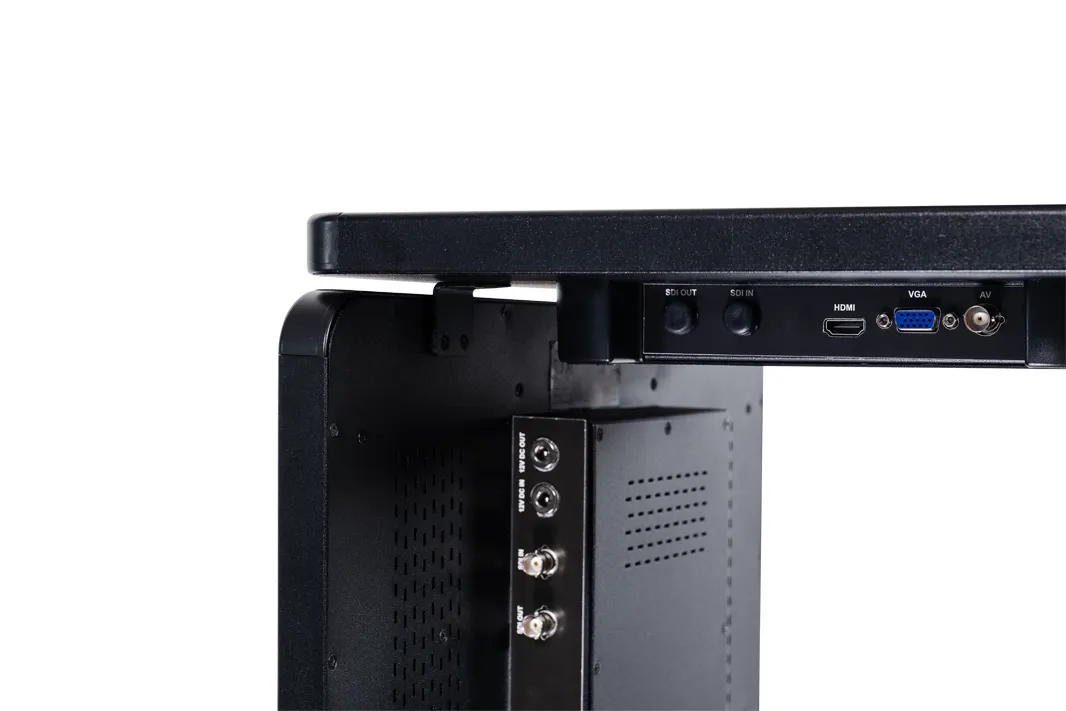

| Video Input | HDMI, Composite (BNC), VGA, SDI (Optional) | |||||||
| Video Output | SDI (Optional) | |||||||
| Plate | Quick Release | |||||||
| Elevator | Lifting Camera | |||||||
| Viewing Angle | H: 176° / V: 176° | H: 170° / V: 160° | H: 170° / V: 160° | H: 178° / V: 178° | ||||
| Rated Input Voltage | 110V–230V AC (50–60Hz) | |||||||
| Transportation Dimensions | 66.5 × 54 × 20.5 | |||||||
| Weight (Net) | 6.4 kg | |||||||

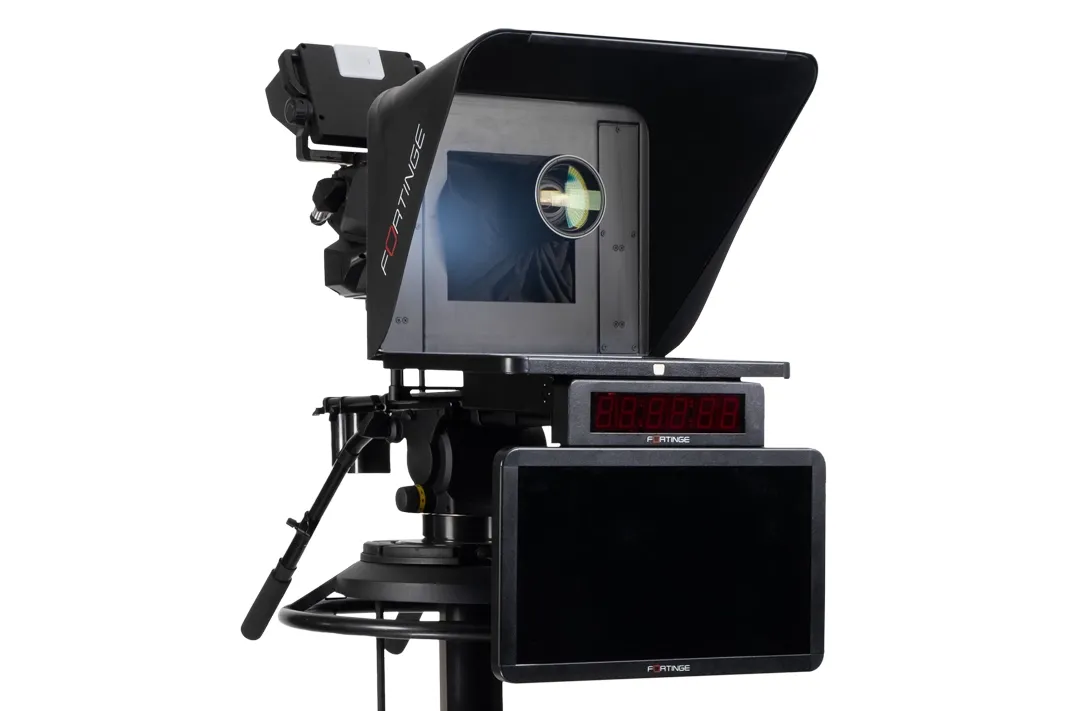

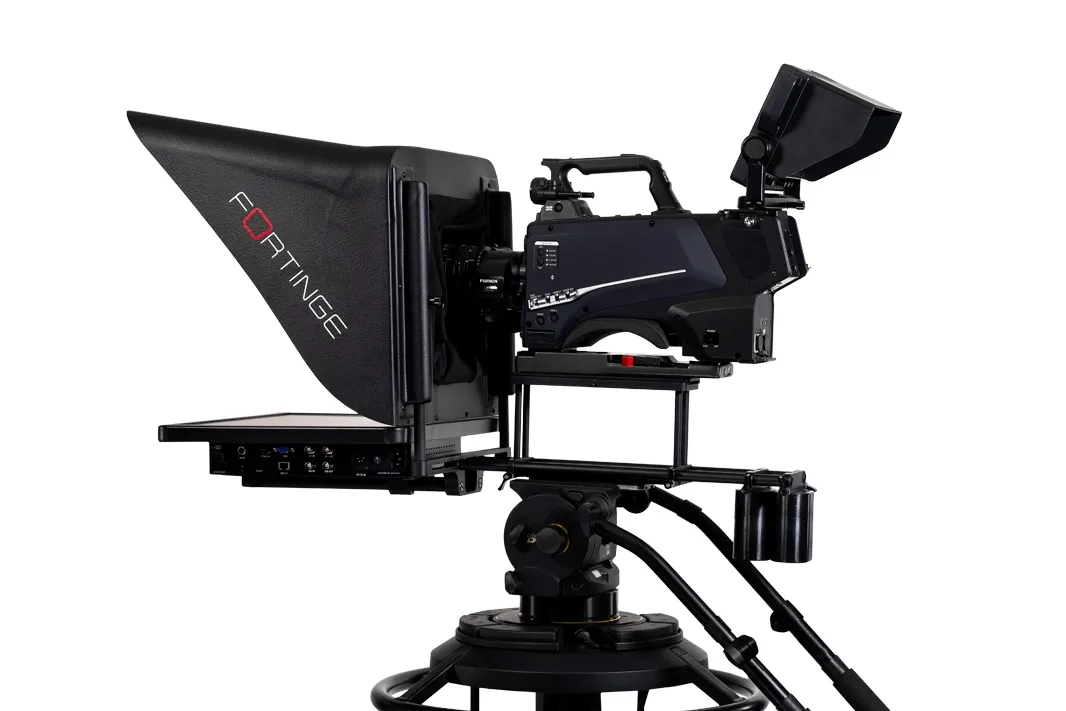

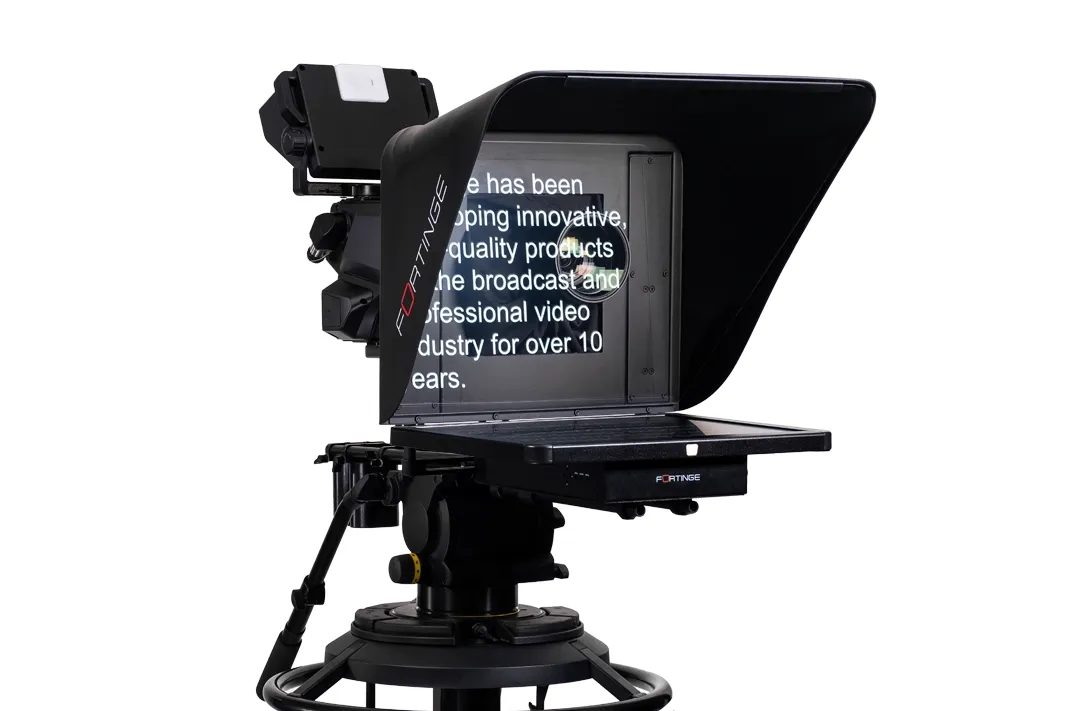

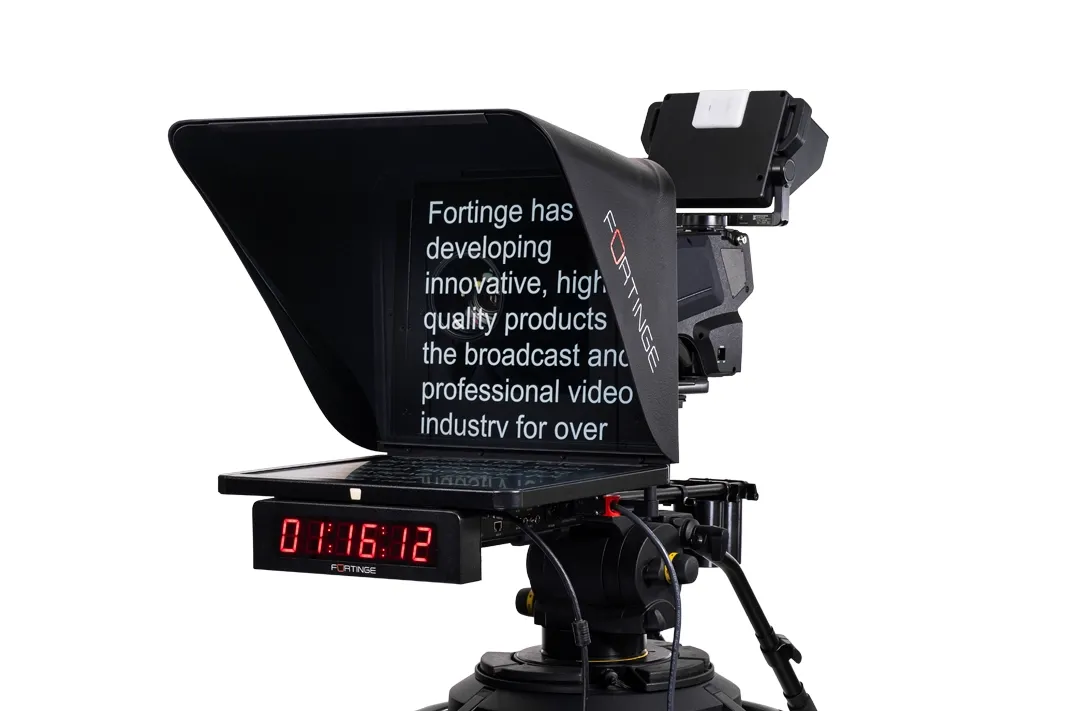

ERA IP Studio Teleprompter is a user-friendly teleprompter solution that caters to a wide range of needs with its 17″-19″-21″-24″ dimensions. Specifically designed for use in broadcast and news studios, this product stands out with its high performance. ERA IP Studio Teleprompter adapts to different requirements with its extensive size options, making it an ideal tool to support professional presentations in broadcast and news studios.
Introducing ERA IP Studio Teleprompter, a versatile solution available in 17″-19″-21″-24″ sizes tailored for Broadcast and News Studios. With 17″ and 19″ options providing a 4:3 aspect ratio, and 21″ and 24″ offering a widescreen 16:9 ratio, this teleprompter ensures a diverse range of visual possibilities. Equipped with SDI, HDMI, Composite (BNC), VGA inputs, and the added convenience of NDI/IP capability, ERA IP Studio Teleprompter meets the dynamic needs of modern broadcasting. It also has optional software. Furthermore, catering to varying lighting conditions, each model offers different brightness levels. The 17″ and 19″ models have a brightness at 250 cd/m2, the 21″ boasts a brighter 300 cd/m2, and the 24″ impresses with 550 cd/m2 brightness. For those seeking an even higher brightness, the High Brightness (HB) option allows each model to reach an impressive 1000 cd/m2, ensuring optimal visibility in any studio setting.
Setting up is a breeze, and the ‘flip mirror’ function automatically provides a reverse view, enhancing user convenience. Designed to seamlessly integrate with professional shoulder-type ENG and studio cameras, the ergonomic design also allows for reduced counterbalance, ensuring a smoother and more comfortable user experience. Elevate your broadcasting setup with ERA IP Studio Teleprompter, where functionality meets user-friendly design for unparalleled performance in the studio environment.
Included in the package
| Features | ERA IP 17" | ERA IP 19" | ERA IP 21" | ERA IP 24" | ||||
|---|---|---|---|---|---|---|---|---|
| Standard | High Brightness | Standard | High Brightness | Standard | High Brightness | Standard | High Brightness | |
| Resolution | 1280 × 1024 | 1920 × 1080 | 1920 × 1080 | 1920 × 1080 | ||||
| Brightness | 250cd/m² | 1000cd/m² | 250cd/m² | 1000cd/m² | 300cd/m² | 1000cd/m² | 550cd/m² | 1000cd/m² |
| Panel Size | 17" | 19" | 21" | 24" | ||||
| Panel Dimensions | 40.2 × 32.6 × 7.8 cm | 44.2 × 37.4 × 7.8 cm | 55.8 × 34.9 × 7.8 cm | 57.5 × 34.5 × 7.8 cm | ||||
| Weight | 8.5 kg | 9.5 kg | 10.5 kg | 11.5 kg | ||||
| Reading Range | 20 ft (6 m) | 23 ft (7 m) | 26 ft (8 m) | 29 ft (9 m) | ||||
| Aspect Ratio | 4:3 | 16:9 | 16:9 | |||||
| Contrast Ratio | 1000:1 | |||||||
| Viewing Angle | 170/160 | 178/178 | 178/178 | 189/189 | ||||
| Video Input | NDI, SDI, HDMI, Composite (BNC), VGA | |||||||
| Video Output | SDI, Composite (BNC) | |||||||
| Tally Input | 3-pin mini XLR | |||||||
| Rated Input Power | 45W | |||||||
| Rated Voltage | 110V–230V AC (50–60Hz) / 12V DC | |||||||
| Output Voltage | 12V DC | |||||||

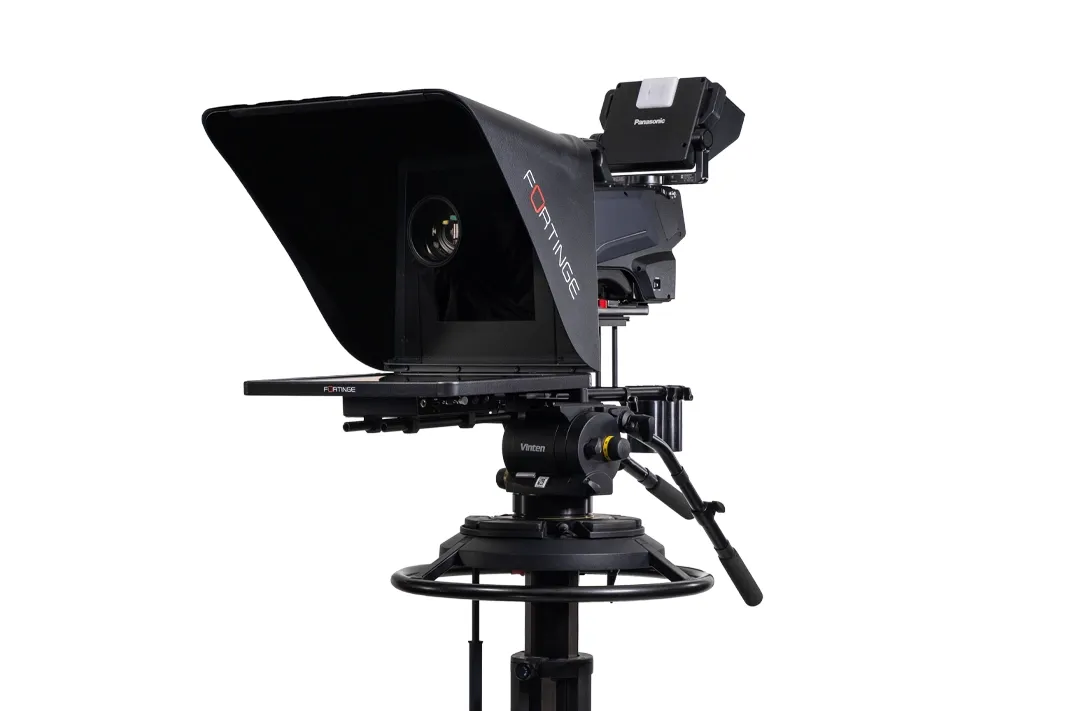

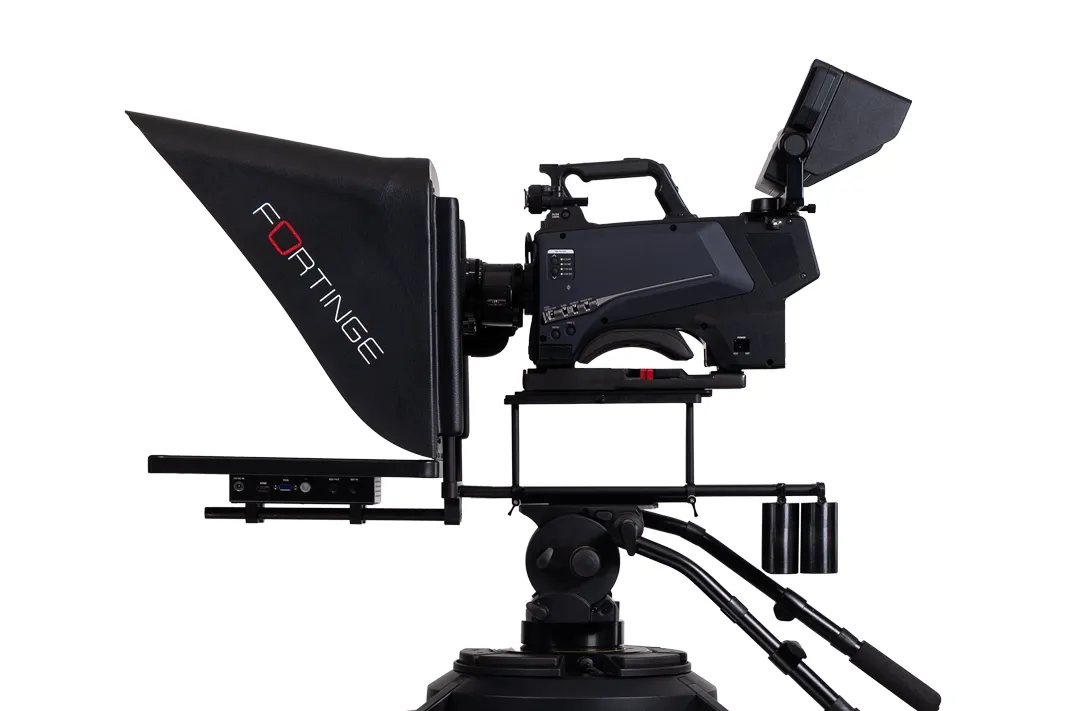

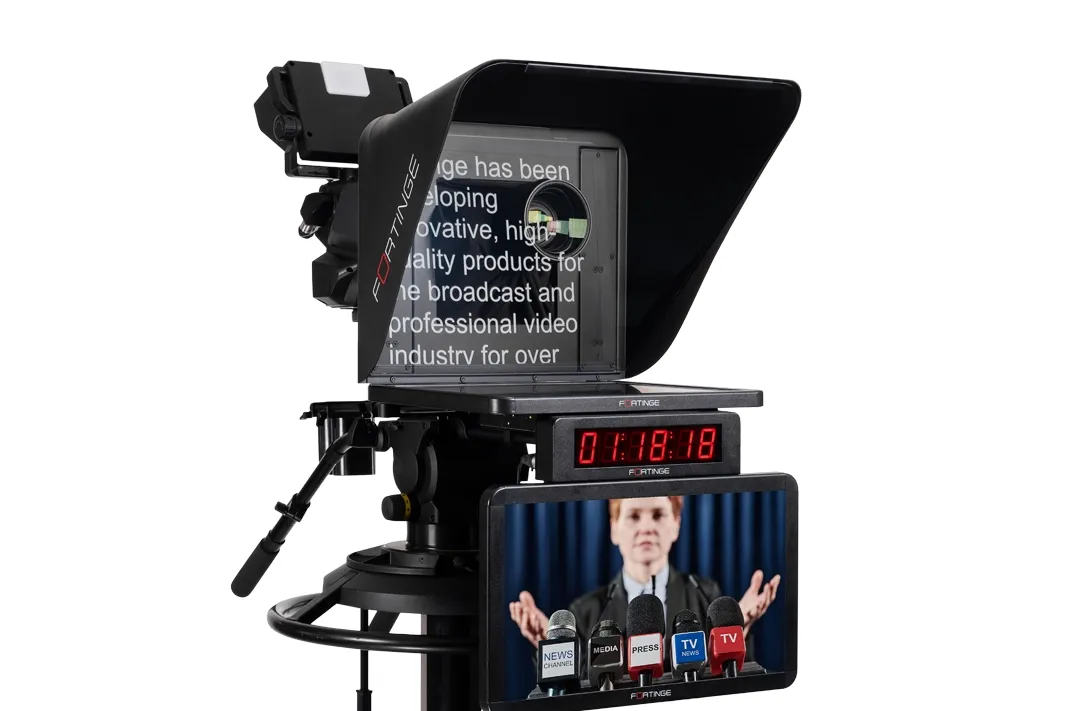

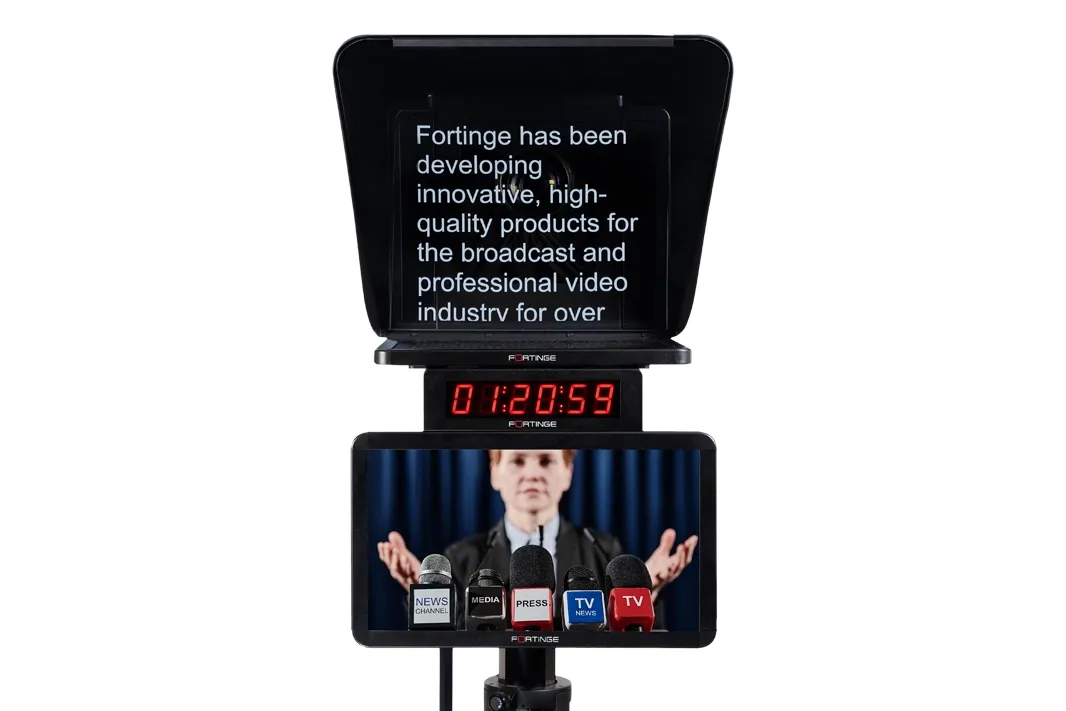

ERA LITE Studio Teleprompter is a perfect solution designed specifically for System Cameras and Heavy-Duty ENG Cameras in Studio Configurations weighing 10-20 Kg, offering a special design and lightweight structure. This teleprompter, known for its high brightness levels and long-lasting usage, is available in various sizes that seamlessly fit a wide range of studio setups. Carefully crafted in sizes 17″, 19″, 21″, and 24″, it caters to different spatial needs.
ERA LITE Studio Teleprompter, tailored for System Cameras and Heavy-Duty ENG Cameras in Studio Configurations weighing 10-20 Kg, represents a top-tier teleprompter system, blending lightweight design with robust functionality. Crafted for Broadcast and News Studios, this teleprompter boasts an operational lifetime of 50,000 hours. Compatible with a wide array of studio setups, ERA LITE Studio Teleprompter, features comprehensive video inputs and outputs, including HDMI, Composite (BNC), VGA, and optional SDI, ensuring seamless integration into any studio environment. Additionally, the teleprompter operates using DC power. The dimensions range from 17″ to 24″, catering to diverse spatial requirements. Brightness levels are finely tuned, offering 250 cd/m2 for 17″ and 19″, 300 cd/m2 for 21″, and an impressive 550 cd/m2 for 24″. The High Brightness (HB) option elevates all sizes to an impressive 1000 cd/m2, providing enhanced luminance. ERA LITE Studio Teleprompter stands out for its adaptability and includes the ForPrompt Studio Teleprompter software, a sophisticated script management solution.
In essence, ERA LITE Studio Teleprompter redefines the studio experience, offering precision, adaptability, and durability for Broadcast and News Studios. Elevate your studio productions with this advanced teleprompter system.
Included in the package
| Features | ERA LITE 17" | ERA LITE 19" | ERA LITE 21" | ERA LITE 24" | ||||
|---|---|---|---|---|---|---|---|---|
| PROX | High Brightness | PROX | High Brightness | PROX | High Brightness | PROX | High Brightness | |
| Resolution | 1280 x 1024 | 1920 x 1080 | ||||||
| Brightness | 250cd/m² | 1000cd/m² | 250cd/m² | 1000cd/m² | 300cd/m² | 1000cd/m² | 550cd/m² | 1000cd/m² |
| Glass | 70/30 Prompter Glass | |||||||
| Panel | INDUSTRIAL TFT LCD PANEL | |||||||
| Glass Size (trapezoidal) |
|
|
|
|||||
| Video Input | HDMI, Composite (BNC), VGA, SDI (Optional) | |||||||
| Video Output | SDI (Optional) | |||||||
| Plate | Quick Release | |||||||
| High Brightness | 1000 cd/m² | |||||||
| Viewing Angle | H: 170°, V: 160° | H: 170° / V: 160° | H: 178° / V: 178° | H: 189°, V: 189° | ||||
| Rated Input Voltage | 12 V DC | |||||||
| Transportation Dimensions | 66.5 × 54 × 20.5 | 68 × 57 × 22 | ||||||
| Weight (Net) |
|
|
|
|
||||

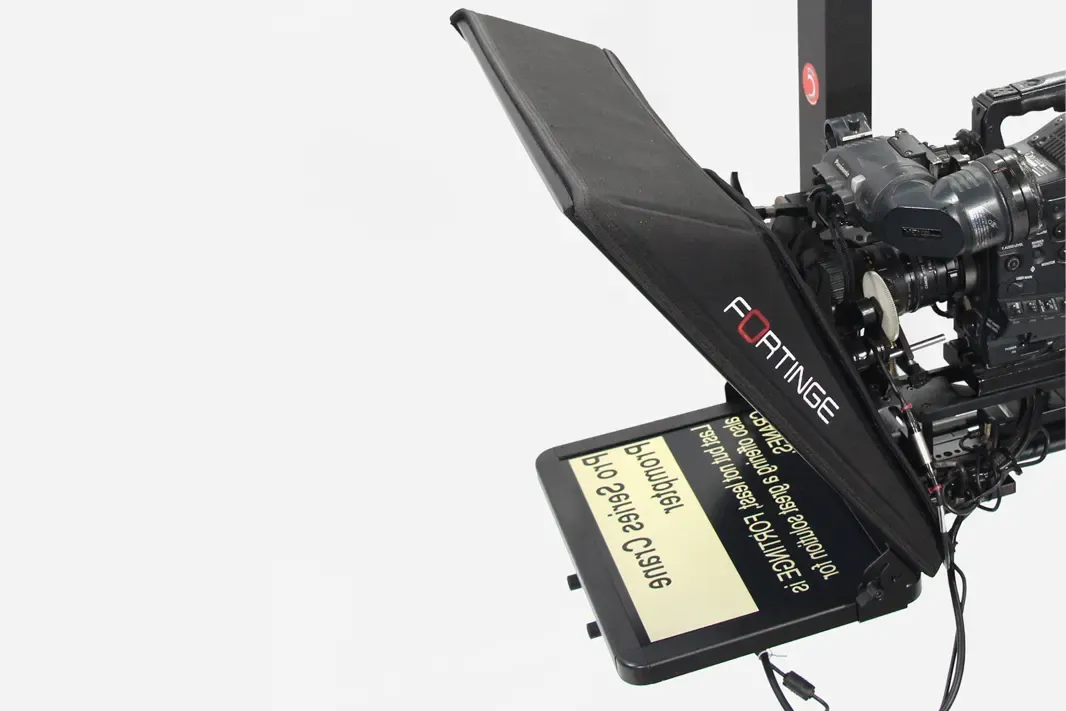

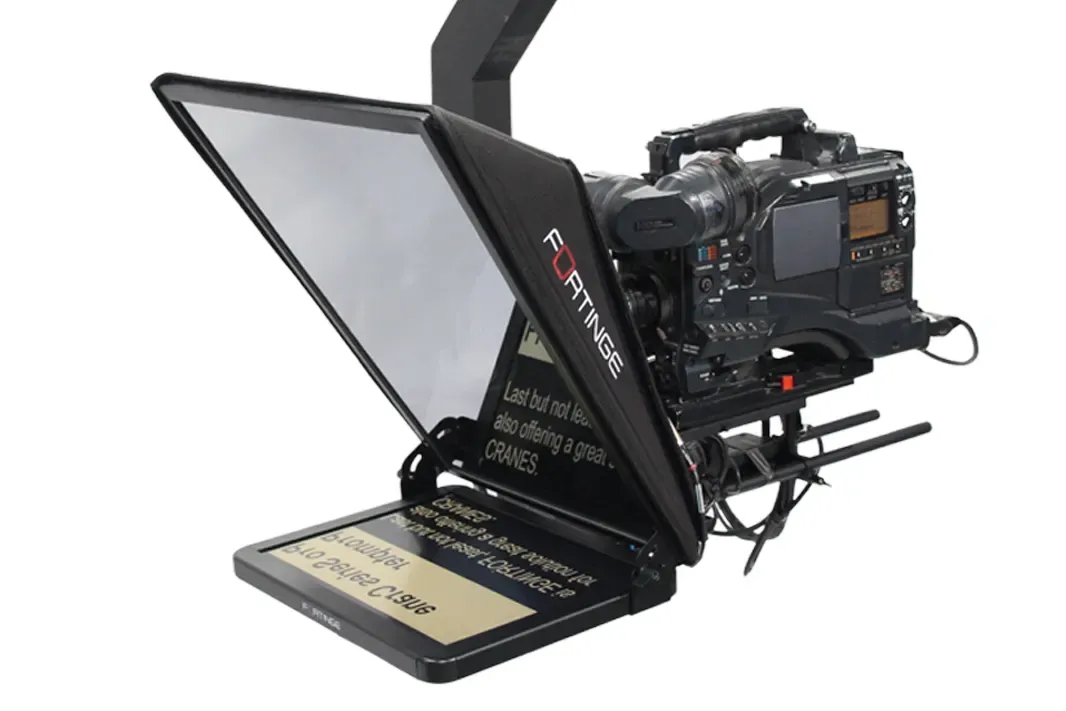

The PROXJ Crane Teleprompter stands out with its 15-inch monitor size, 4:3 or 16:9 aspect ratio options, and a brightness range of 400-1000 cd/m2. This teleprompter is designed to ensure a comfortable reading experience for cranes in motion, featuring a specially crafted hood. With VGA, HDMI, AV, and optional SDI connections, the PROXJ Crane Teleprompter seamlessly integrates with the cranes.
Meet with the PROXJ Crane Teleprompter, the next evolution in teleprompting technology. The PROXJ is designed to ensure a comfortable reading experience, thanks to its cleverly crafted hood that maintains optimal visibility even during crane movements.
The PROXJ Crane Teleprompter comes in two versatile options: the PROXJ 15 with a 4:3 aspect ratio and 400 cd/m2 brightness, and the PROXJ 15-W with a widescreen 16:9 ratio and enhanced 500 cd/m2 brightness. For those seeking the pinnacle of brightness, both versions offer a High Brightness (HB) option at an impressive 1000 cd/m2. It also has software in the package.
Moreover, the PROXJ Crane Teleprompter is designed for seamless connectivity, featuring inputs such as VGA, HDMI, AV, and an optional SDI connection. This versatility ensures compatibility with a range of devices, empowering you to create captivating content across various production scenarios. Elevate your production standards and embrace a new era of teleprompting excellence with the PROXJ Crane Teleprompter—where innovation meets performance for a dynamic and engaging broadcasting experience.
Included in the package
| PROXJ 15 | |
|---|---|
| Panel Brand | PROXJ 15 |
| Panel Size | 15" |
| Resolution | 1024 × 768 |
| Aspect Ratio | 4:3 |
| Brightness | 500cd/m² – 1000cd/m² |
| Backlight | LED |
| Viewing Angle | 75°/75°/65°/65° (L/R-U/D) |
| Input | VGA, HDMI, AV, SDI (Optional) |
| Rated Input Voltage | 12V DC |
| Rated Input Power | 24W |
| Monitor Dimensions | 37cm × 28cm × 4cm |
| Box Dimensions | 67cm × 54cm × 20cm |
| Weight | 5.5 kg |

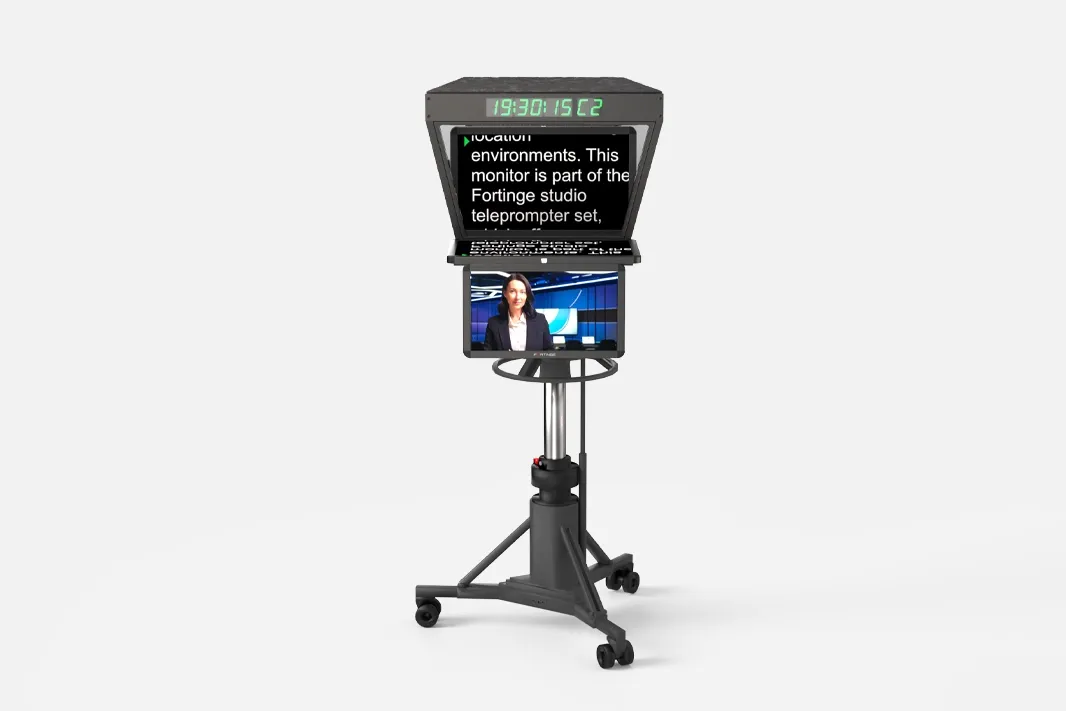

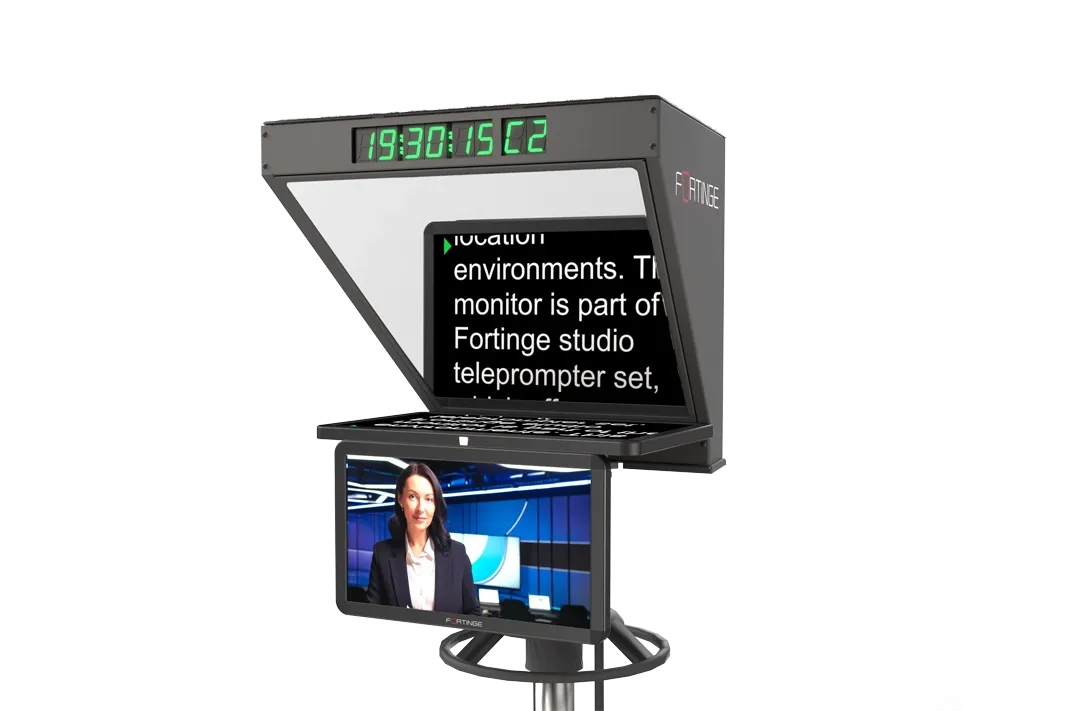

Introducing the latest version of the ROBO Studio Teleprompter, now featuring a sleek new design and enhanced functionality, specifically tailored for PTZ cameras. This updated teleprompter is available in sizes ranging from 19″ to 24″, ensuring compatibility with a wide range of PTZ camera types from small to large size and catering to the needs of both broadcast professionals and enthusiasts.
The new ROBO Studio Teleprompter is designed to provide seamless communication with the camera across various professional video production environments, including education, corporate video, and TV broadcasting.
The updated design includes a robust mechanical structure that supports larger PTZ cameras, setting it apart from previous models and enhancing its versatility.
Key user-friendly features include easy setup, an adjustable mounting plate, and trapezoidal glass that expands the viewing angle for any size PTZ cameras, significantly improving the user experience. The ROBO Studio Teleprompter is available in both “Regular Brightness” and “High-Brightness” versions, with optional SDI I/O and software features to meet the specific needs of your production environment.
| Panel Brand | ROBO 19" | ROBO 21" | ROBO 24" |
|---|---|---|---|
| Monitor Size | 19" | 21" | 24" |
| Resolution | 1280 × 1024 | 1920 × 1080 | 1920 × 1080 |
| Brightness | 250cd/m² | 300cd/m² | 550cd/m² |
| Viewing Angle | 170/160 (H/V) | 178/178 (H/V) | 189/189 (H/V) |
| Aspect Ratio | 4:3 | 16:9 | 16:9 |
| Sharpness | 1000:1 | ||
| Glass Size | Length: 48 cm, Height: 64 cm | ||
| Glass | 70/30 Prompter Glass | ||
| Video Input | HDMI, Composite (BNC), VGA, SDI (Optional) | ||
| Video Output | 3G SDI, Composite (BNC) | ||
| Rated Input Voltage | 110V-230V AC (50-60Hz) / 12 V DC | ||
| Weight | 12.5 kg / 27.5 lbs | 12.75 kg / 28 lbs | 13 kg / 28.5 lbs |
| Box Weight | 17.5 kg / 38.5 lbs | 17.75 kg / 39 lbs | 18 kg / 39.5 lbs |
| Box Dimensions | 75 × 65 × 25 cm / 30 × 26 × 10 in | ||
The latest version of the ROBO IP Studio Teleprompter, now featuring enhanced design and functionality tailored specifically for wider PTZ cameras. Available in sizes from 19″ to 24″, this upgraded teleprompter accommodates a range of PTZ camera types and offers a comprehensive video input and output range suitable for diverse production environments. With brightness levels ranging from 250 cd/m² to an impressive 1000 cd/m² that ensures crystal-clear readability in any lighting condition.
The new ROBO IP Studio Teleprompter continues to utilize the professional monitors from the ERA IP series, equipped with NDI/IP-supported SDI, HDMI, Composite (BNC), and VGA inputs, and designed to meet industry standards with a remarkable lifespan of 50,000 operating hours.
This updated version features a sleek new design and a robust mechanical structure that supports larger PTZ cameras, distinguishing it from previous models and competitors. Enhanced features include easy setup, an adjustable mounting plate, and trapezoidal glass that improves the viewing angle for PTZ cameras, enriching the user experience.
The new ROBO IP Studio Teleprompter offers a dynamic and reliable tool for professional content creation, providing seamless camera connectivity and superior performance.
| Panel Brand | ROBO IP 19" | ROBO IP 21" | ROBO IP 24" | |||||
|---|---|---|---|---|---|---|---|---|
| Standard | High Brightness | Standard | High Brightness | Standard | High Brightness | |||
| Monitor Size | 19" | 21" | 24" | |||||
| Resolution | 1280 × 1024 | 1920 × 1080 | 1920 × 1080 | |||||
| Sharpness | 1000:1 | |||||||
| Brightness | 250cd/m² | 1000cd/m² | 300cd/m² | 1000cd/m² | 550cd/m² | 1000cd/m² | ||
| Glass Size | Length: 48 cm, Height: 64 cm | |||||||
| Viewing Angle | 170/160 (H/V) | 178/178 (H/V) | 189/189 (H/V) | |||||
| Aspect Ratio | 4:3 | 16:9 | ||||||
| Glass | 70/30 Prompter Glass | |||||||
| Video Input | HDMI, Composite (BNC), VGA, SDI, NDI/IP | |||||||
| Video Output | 3G SDI, Composite (BNC) | |||||||
| Rated Input Voltage | 110V-230V AC (50-60Hz) / 12 V DC | |||||||
| Weight | 12.75 kg / 28 lbs | 13 kg / 28.5 lbs | 13.25 kg / 29 lbs | |||||
| Box Weight | 17.75 kg / 39 lbs | 18 kg / 39.5 lbs | 18.25 kg / 40 lbs | |||||
| Box Dimensions | 75 × 65 × 25 cm / 30 × 26 × 10 in | |||||||
