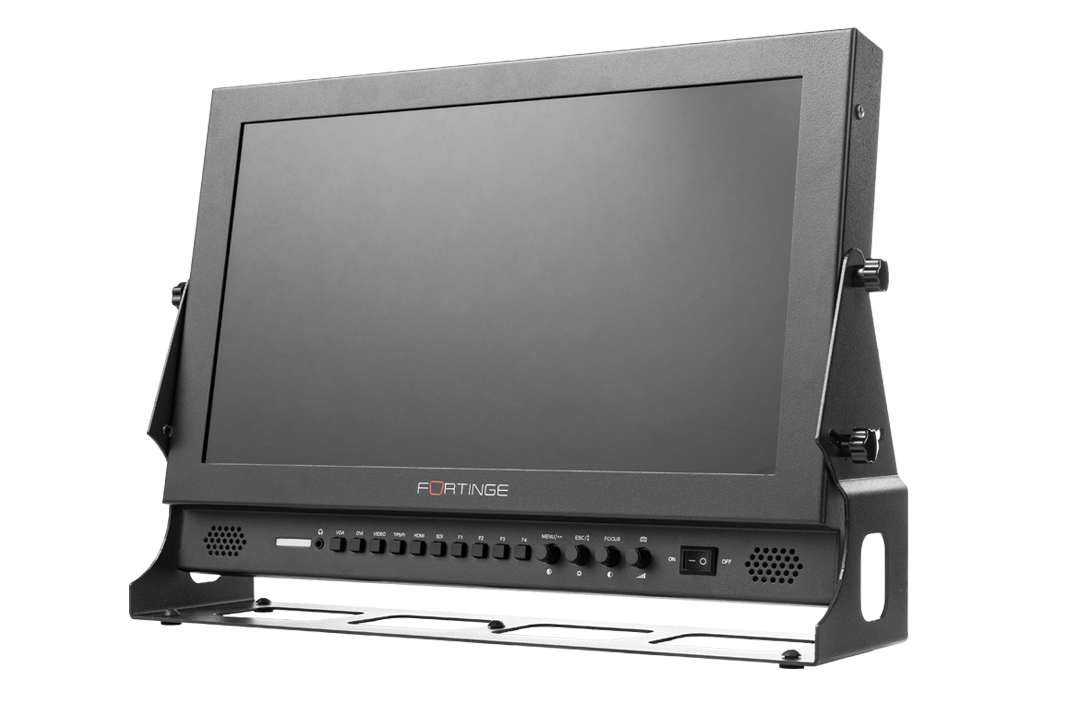

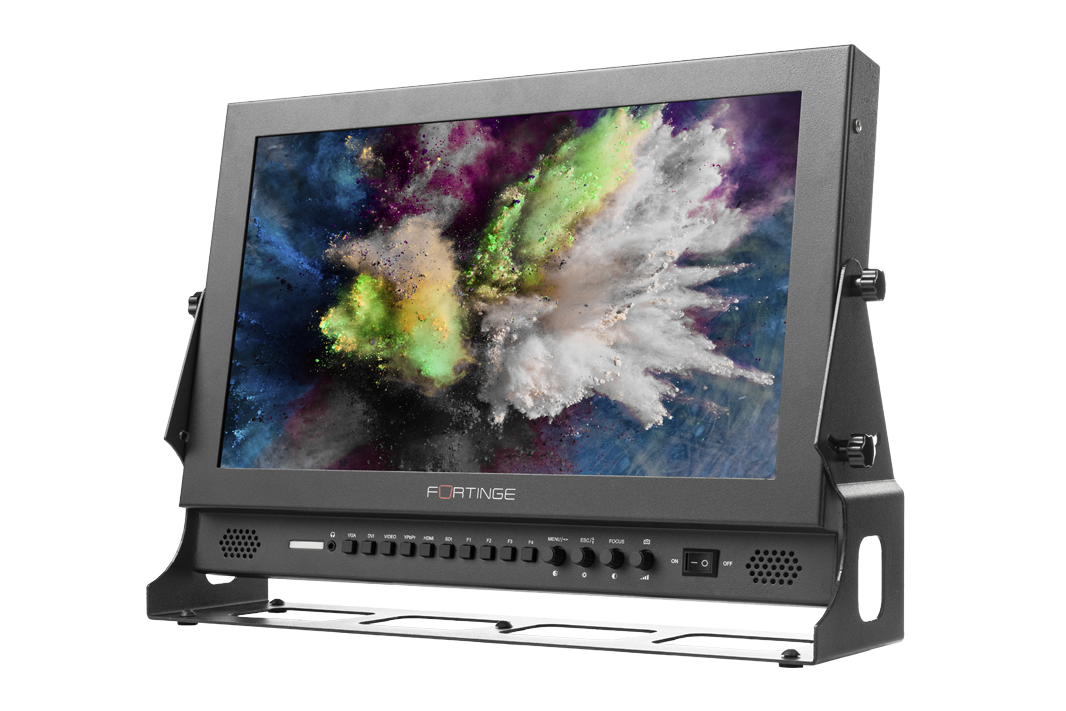

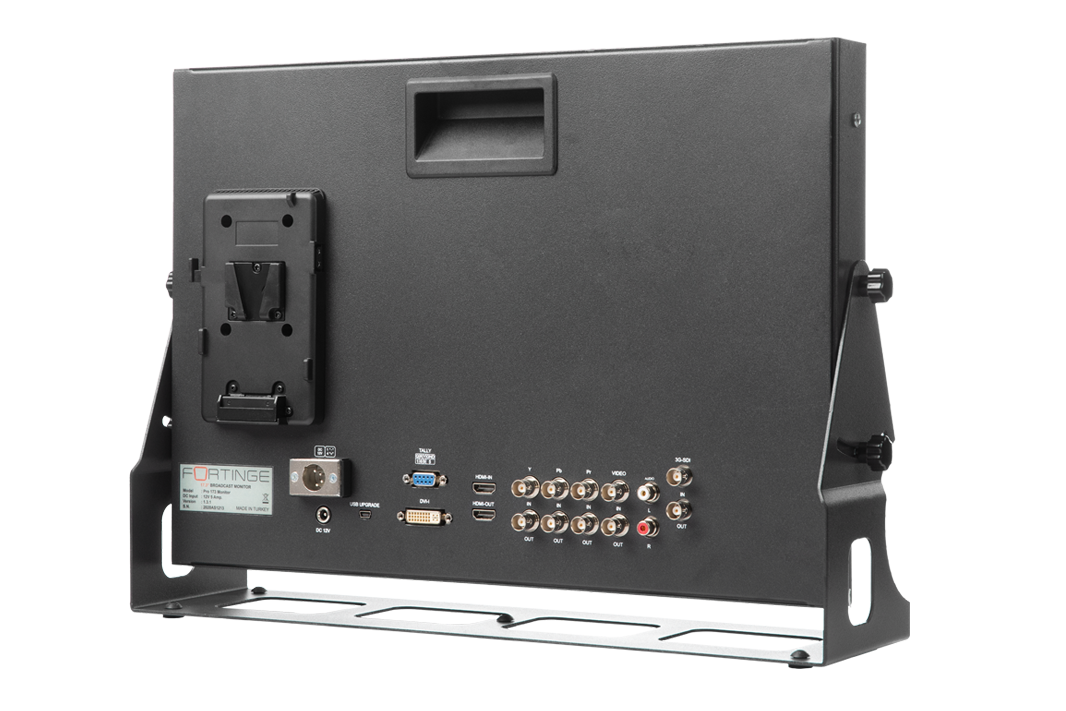

The Fortinge PRO173 is perfect for TV Production, Obvan and outdoor use, as well as providing the perfect balance between ‘good value’ and ‘high quality’. Thanks to its 17.3” panel and 1920×1080 full HD screen, it displays accurate video quality, as you ‘catch the right aspect’. (?) All functions can be controlled by its adjustable keypad. It also allows for focus assistance, field control, camera functions (?) and center sign, among other features.
| PRO173 | |
|---|---|
| Screen Size | 17.3" |
| Color Depth | 16.7M |
| Pixel Pitch | 0.1989 (H) × 0.1989 (V) mm |
| Aspect Ratio | 16:9 |
| Brightness | 400cd/m² |
| Contrast Ratio | 600:1 |
| Backlight | LED |
| INPUT | |
| 1 x BNC | 3G-SDI |
| 1 x HDMI | HDMI |
| 3 x BNC | YPbPr |
| 1 x DVI-I | DVI-I |
| 1 x BNC | Video |
| 2 x RCA | Audio (L/R) |
| OUTPUT | |
| 1 x BNC | 3G-SDI |
| 1 x HDMI | HDMI |
| 3 x BNC | YPbPr |
| 1 x BNC | Video |
| Audio | |
| Stereo Headphone, Speaker | Audio Out |
| General | |
| Input Voltage | 9~24VDC |
| Power Consumption | ≤ 26W |
| Working Temperature | -10°C~50°C |
| Storage Temperature | -20°C~60°C |
| Unit Size | 426 (L) × 285 (H) × 35.1D mm (W/O Bracelet) |
| Unit Weight |
2.75kg (W/O Bracket) 3.30kg (W/ Bracket) |
| Supported Format | |
| SDI |
|
| HDMI |
|
Fortinge presents PRO173UHD: a powerful 4K monitoring solution for broadcasting, cinema and CCTV. Balancing ‘value for money’ with ‘peak performance’, the PRO173UHD combines its 17.3” panel with 3840×2160 resolution to achieve perfect 4K video quality at the right aspect. All functions can be controlled by its intuitive controls. Desktop and rack mount kits are included to allow you to use it anywhere!
| PRO173-UHD | |
|---|---|
| Panel Size | 17.3" (16:9) |
| Brightness | 400cd/m² |
| Contrast Ratio | 1000:1 |
| Resolution | 3840 × 2160 (Up to 60Hz) |
| Display Colors | 16.7M colors (RGB 8-bit) |
| Viewing Angles | 178/178 |
| Input |
|
| Output | Earphone |
| Power | 12VDC (3A) & V-Mount Battery Plate |
| Storage Temperature | -10 ~ 60°C |
| Operating Temperature | 0 ~ 40°C |
| Relative Humidity | ≤80% |
| Dimensions | 44 x 35 x 7 cm |
| Weight | 4.2 kg |

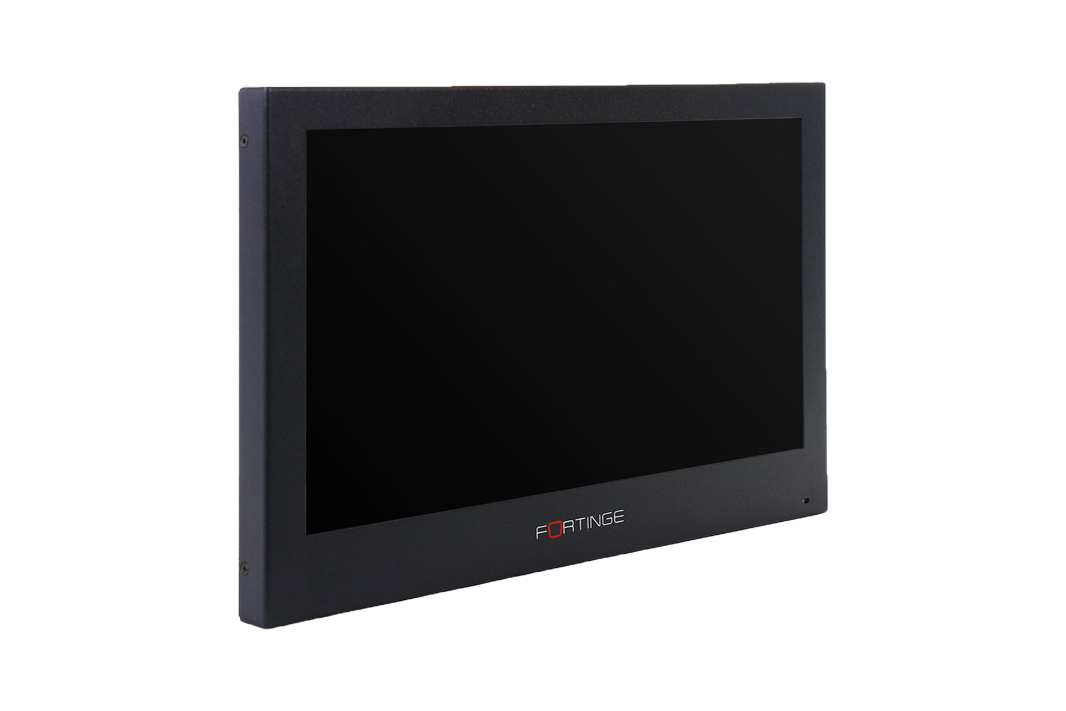

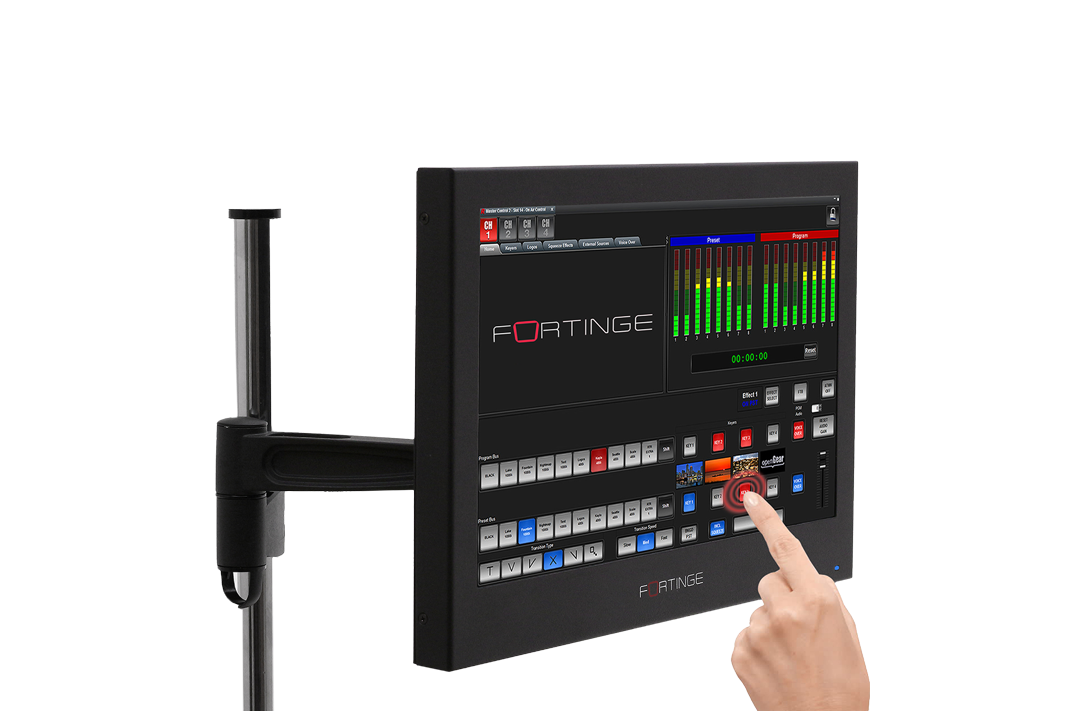

PROT156 was developed as an ‘all-in-one’ response to today’s broadcasting demands. It has 10 different capacitive sensitive touch points, to ensure it is highly responsive. The PC Hardware is useful in many different ways. Specially designed for Professional Broadcast usage, it is also perfect as a TV/control room main controller, touch screen and digital signage solutions. Comes with reinforced case, so that it can be used in any condition.
| PROT156 | |
|---|---|
| Panel Size | 15.6" (16:9) |
| Panel Type | TFT-LCD Panel |
| Contrast Ratio | 600:1 |
| Resolution | 1366 x 768 |
| Brightness | 200 cd/m² |
| Viewing Angles | 45/45/20/40 (Typ.) (CR≥10) Left / Right / Up / Down |
| Touch Screen | Capacitive, 10 points touch |
| USB | 2 X USB 2.0 high-current/ fast-charging ports |
| Network | 1 X RJ45 (10/ 100/ 1000 Mb/s) |
| Power | 8-19 VDC |
| CPU | INTEL® Quad Celeron 2.0GHz |
| RAM | Kingston 4GB DDR3 |
| Memory | Kingston 60 GB mSATA SSD |
| Operating System | Windows 7 |

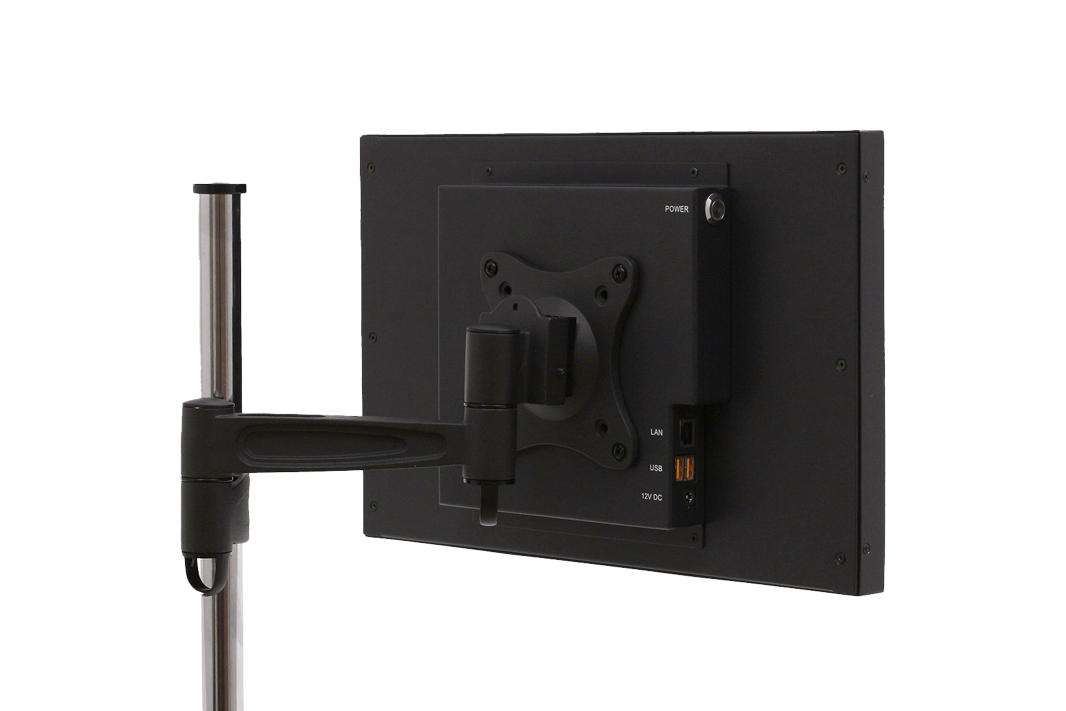

| Cabinet Size | 381mm x 250mm x 55mm / VESA mount compatible |
| TOUCH156 | |
|---|---|
| Panel Size | 15.6″ |
| Brightness | 220 cd/m2 |
| Contrast | 650:1 |
| Display Area | 349mm x 193mm |
| Resolution | 1366 × 768 |
| Display Colors | 262K |
| Input |
|
| Touch Interface | USB |
| Output | Earphone |
| Power | 12 VDC (2A) |
| Storage Temperature | -10~60°C |
| Operating Temperature | 0~40°C |
| Relative Humidity | ≤80% |

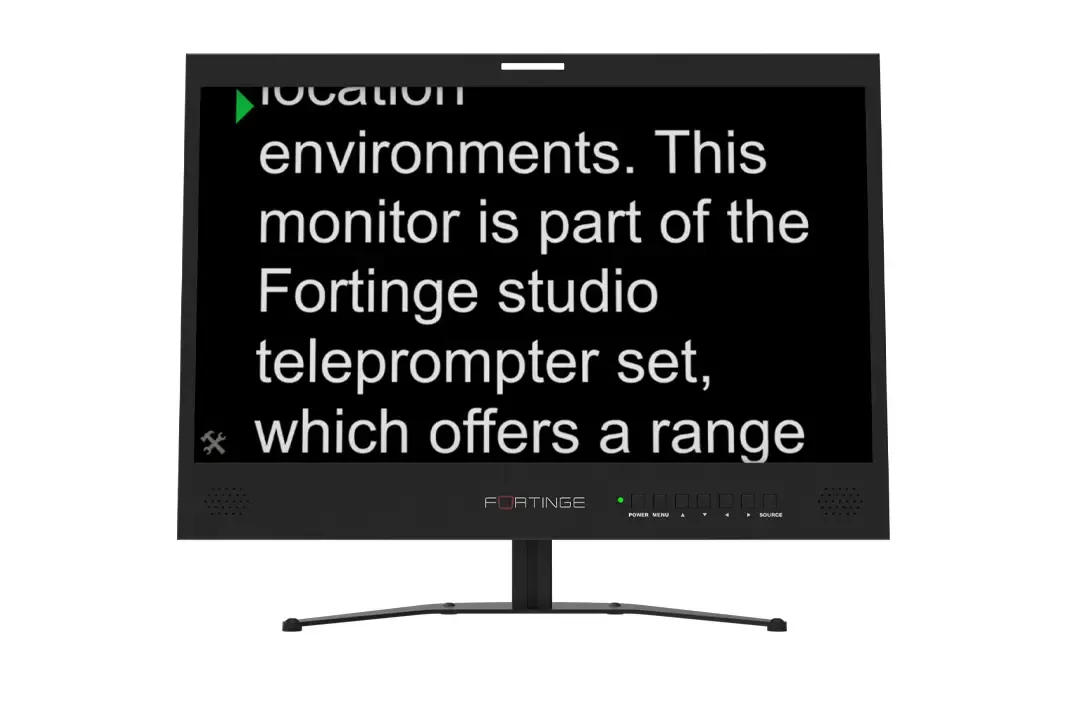

Introducing the FORTINGE PRO210-N Monitor series—designed to enhance your production capabilities with precision and performance.
Technical Excellence: Featuring a 21-inch TFT-LCD panel with a 1920×1080 resolution and 16.7 million colors, the PRO210-N ensures stunning clarity in every frame. With brightness 500 cd/m2 and a contrast ratio of 1000:1, visuals are vibrant, with deep blacks and bright whites.
Versatile Connectivity: The PRO210-N supports various in-puts, including HDMI, VGA, AV, 3G SDI, and NDI, for seamless integration in studio or on field use, making it a perfect edge product for NDI systems. Equipped with a robust battery plate system, it offers flexible power solutions, supporting V-Mount battery plate.

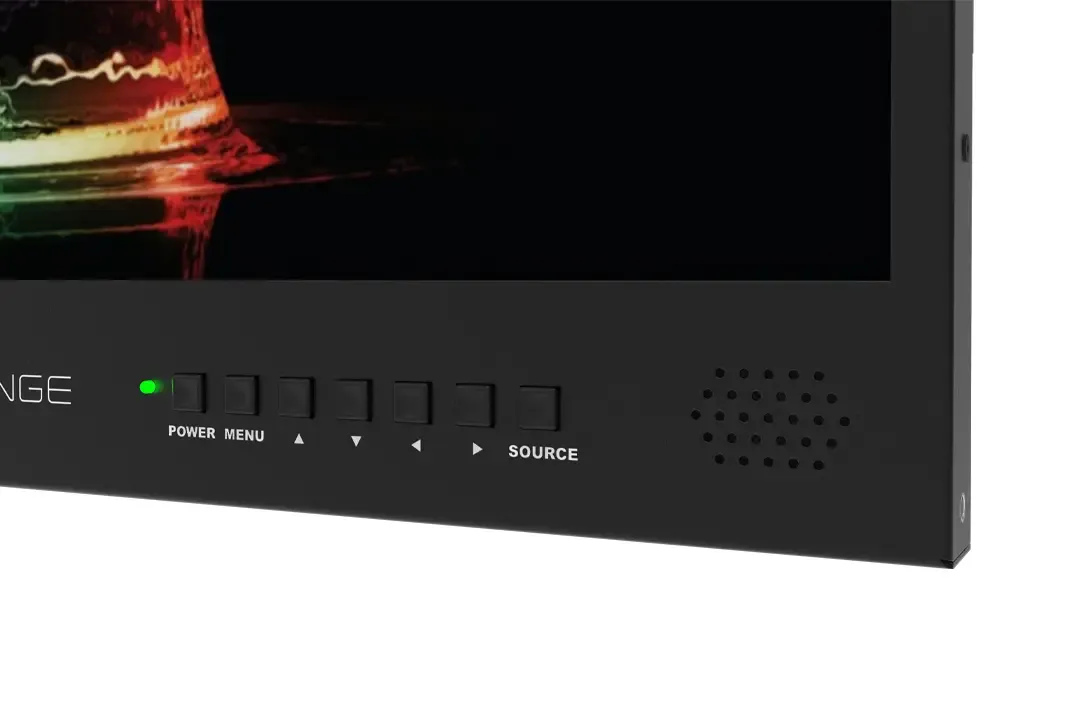

Ergonomic Design: Light-weight (5kg) with intuitive on-screen controls, it’s perfect for both fixed and mobile setups.
Reliability: Rigorously tested to meet the highest standards of durability and performance.
| General | |
|---|---|
| Screen Size | 21.5" (16:9) |
| Color Depth | 16.7M |
| Viewing Angle | 89/89 (L/R) 89/89 (U/D) |
| Brightness | 500cd/m² |
| Contrast Ratio | 1000:1 |
| Backlight | LED |
| Input Voltage | 12 VDC |
| Power Consumption | ≤36W |
| Working Temperature | -10°C ~ 50°C |
| Storage Temperature | -20°C ~ 60°C |
| Unit Size | 360 (W) x 500.4 (L) x 35.6 mm (H) |
| Unit Weight | 5 kg |
| Box Weight | 8 kg |
| Box Size | 50 cm (W) x 57 cm (L) x 21 cm (H) |
| INPUT | |
| 1 x BNC | 3G-SDI |
| 1 x HDMI | HDMI |
| 1 x RJ45 | RJ45 (Ethernet) |
| 1 x BNC | Video |
| OUTPUT | |
| 1 x BNC | 3G-SDI |
| Audio | |
| Stereo Headphone, Speaker | Audio Out |
| Supported Format | |
| SDI |
|
| HDMI |
|
| NDI |
|
| AV |
|
| VGA |
|
The PRO215 Monitor Series is your ultimate solution, combining advanced technology with unmatched reliability. Essential for TV productions, OB van setups, and outdoor broadcasting, the PRO215 offers crystal-clear visuals and seamless performance.
21.5” Full HD Display: Enjoy lifelike detail with a 1920 x 1080 resolution.
Versatile Inputs & Outputs: Easily integrate with your system using 3G-SDI, HDMI, DVI-I, and more.
Durable Build: Designed to withstand intensive studio work with an LED backlight and TFT-LCD panel.

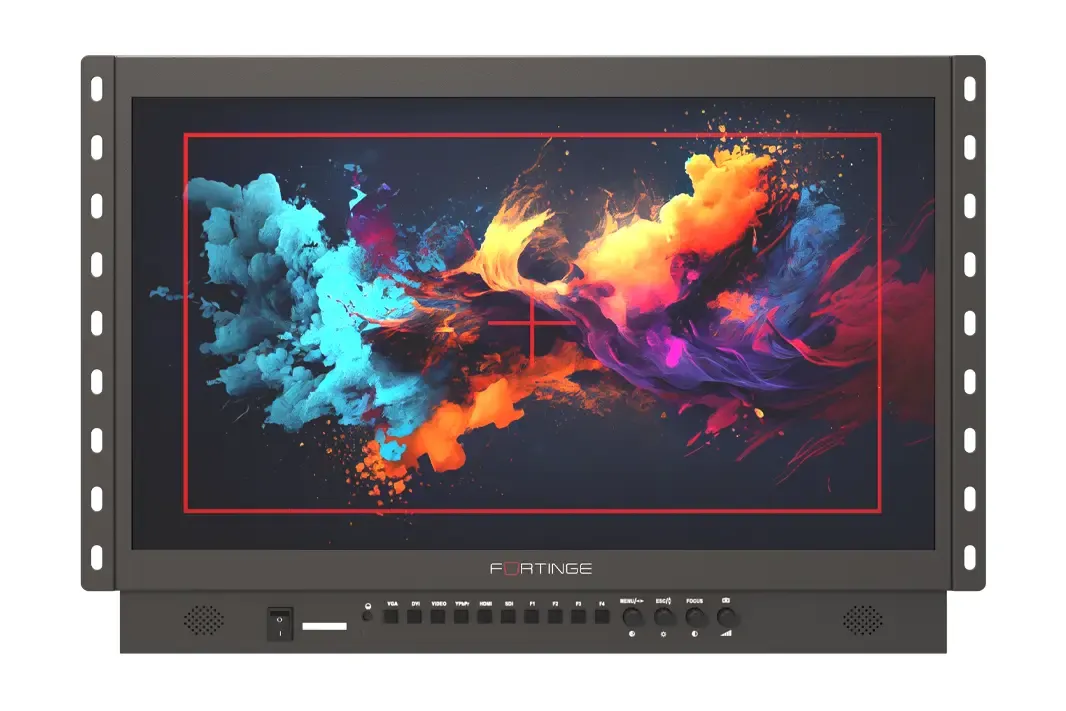

Precision Control: Take full command with adjustable settings like Center Marker, Safe Frames, and Zoom.
Easy Handling & Setup: Its compact and lightweight design makes setup and transport a breeze.
Power Flexibility: Equipped with supporting V-Mount battery plates for convenient power options during field operations.
Setting New Standards in Professional Monitoring: The PRO215 is crafted with expert feedback to deliver ergonomic design and exceptional functionality. Customizable function keys (F1-F4) and advanced focus adjustment help you achieve perfection in every shot.
Take Your Production to the Next Level Whether in the studio or on location, trust the PRO215 Monitor Series for unparalleled image quality and reliability. Elevate your broadcasts with a monitor that matches the professionalism and flexibility your production demands.
| General | |
|---|---|
| Screen Size | 21.5" (16:9) |
| Color Depth | 16.7M |
| Viewing Angle | 89/89 (L/R) 89/89 (U/D) |
| Brightness | 500cd/m² |
| Contrast Ratio | 1000:1 |
| Backlight | LED |
| Input Voltage | 12 VDC |
| Power Consumption | ≤36W |
| Working Temperature | -10°C ~ 50°C |
| Storage Temperature | -20°C ~ 60°C |
| Unit Size | 360 (W) x 500.4 (L) x 35.6 mm (H) |
| Unit Weight | 4.7 kg |
| Box Size | 50 cm (W) x 57 cm (L) x 21 cm (H) |
| Input | |
| 1 x BNC | 3G-SDI |
| 1 x HDMI | HDMI |
| 3 x BNC | YPbPr |
| 1 x DVI-I | DVI-I |
| 1 x BNC | Video |
| 2 x RCA | Audio (L/R) |
| Output | |
| 1 x BNC | 3G-SDI |
| 1 x HDMI | HDMI |
| 3 x BNC | YPbPr |
| 1 x BNC | Video |
| Audio | |
| Stereo Headphone, Speaker | Audio Out |
| Supported Format | |
| SDI |
|
| HDMI |
|
| Advanced Features |
|

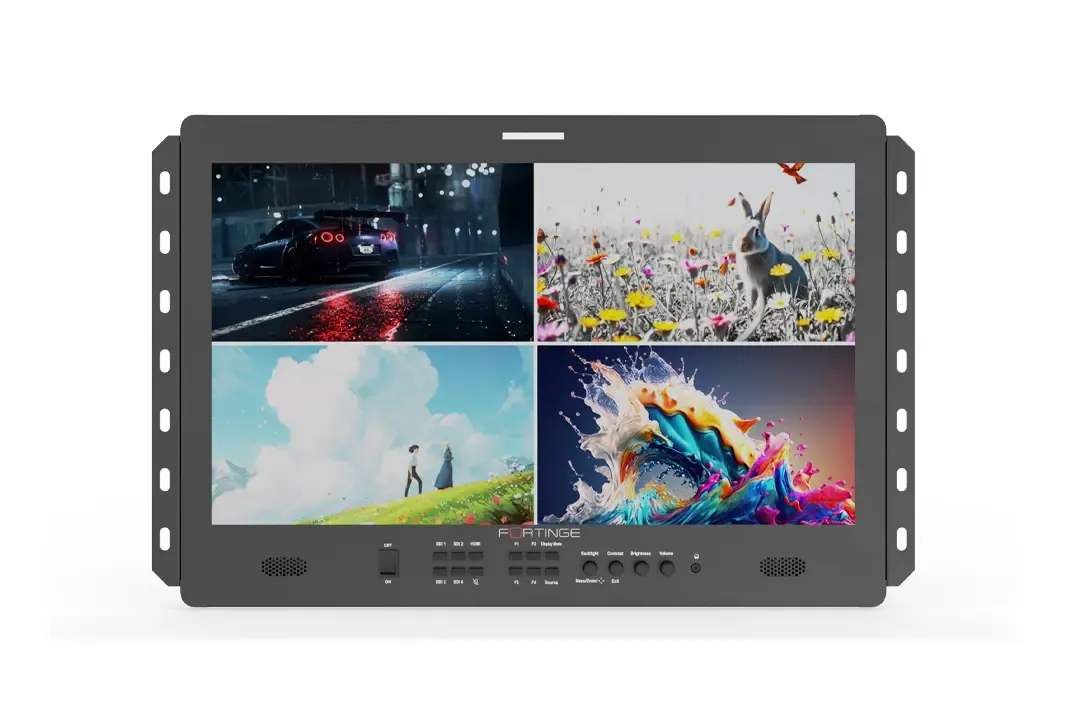

Experience unique clarity and functionality with the FORTINGE PRO 215-Q Monitor, designed to elevate your on-set performance. Featuring a 21.5-inch full HD screen with a crystal-clear resolution of 1920×1080, this monitor is your ultimate companion for professional location filming, outdoor and studio production.
Key Features That Redefine Excellence:

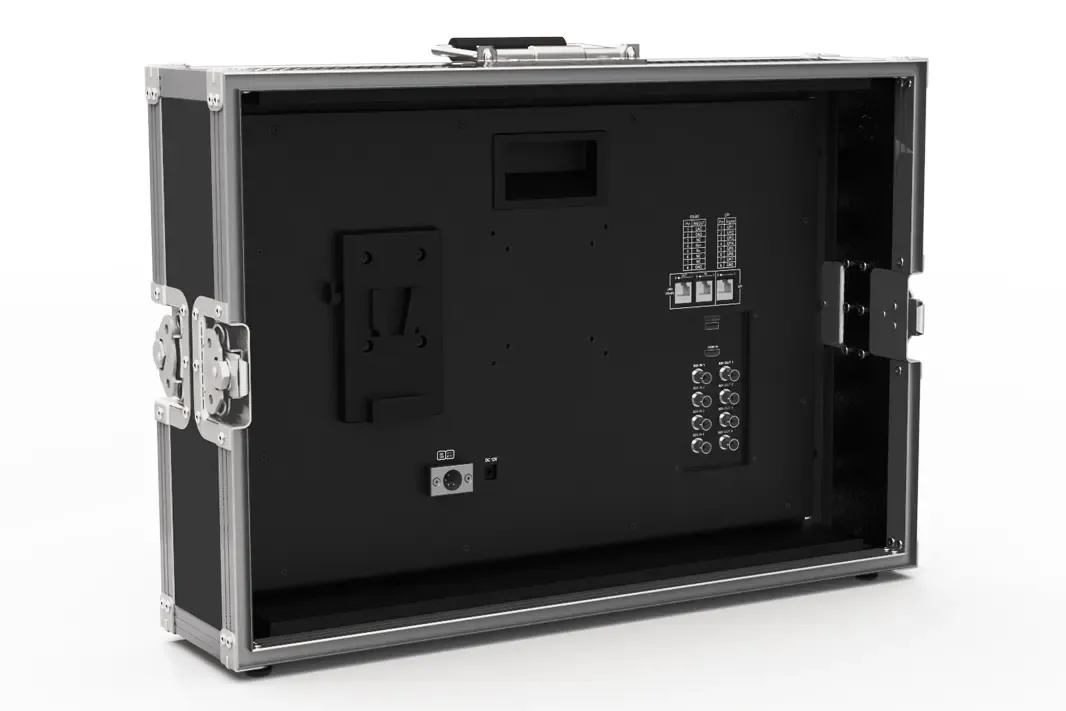

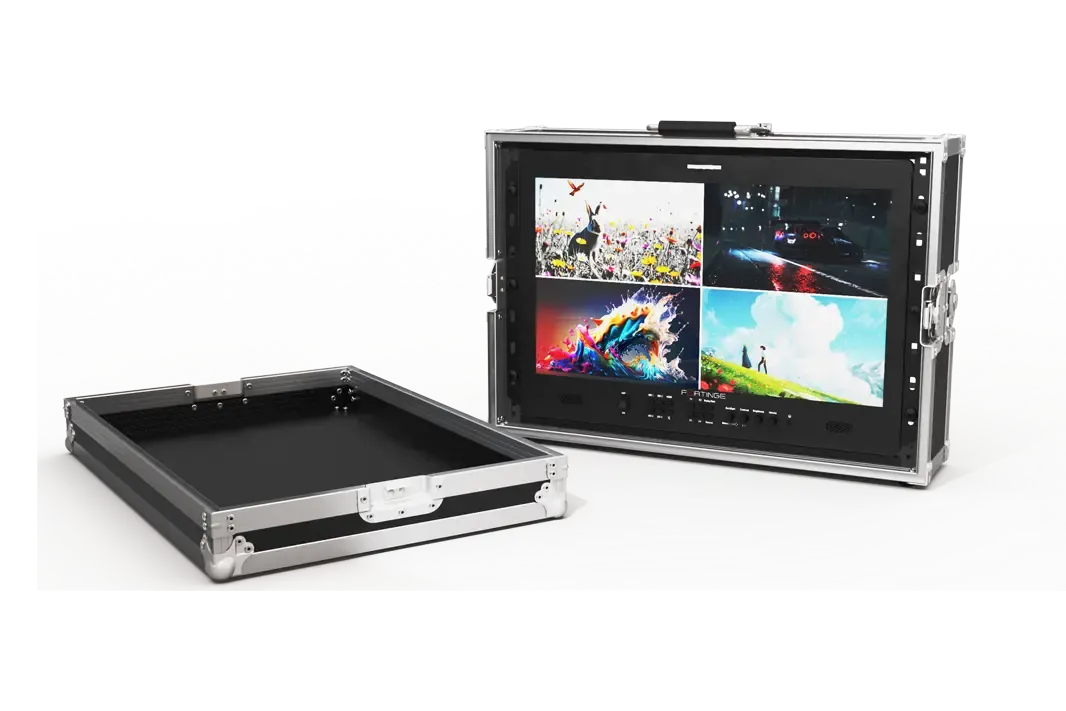

Portable and Durable: Comes with a carry-on aluminum case, making it the perfect choice for shooting on the go.

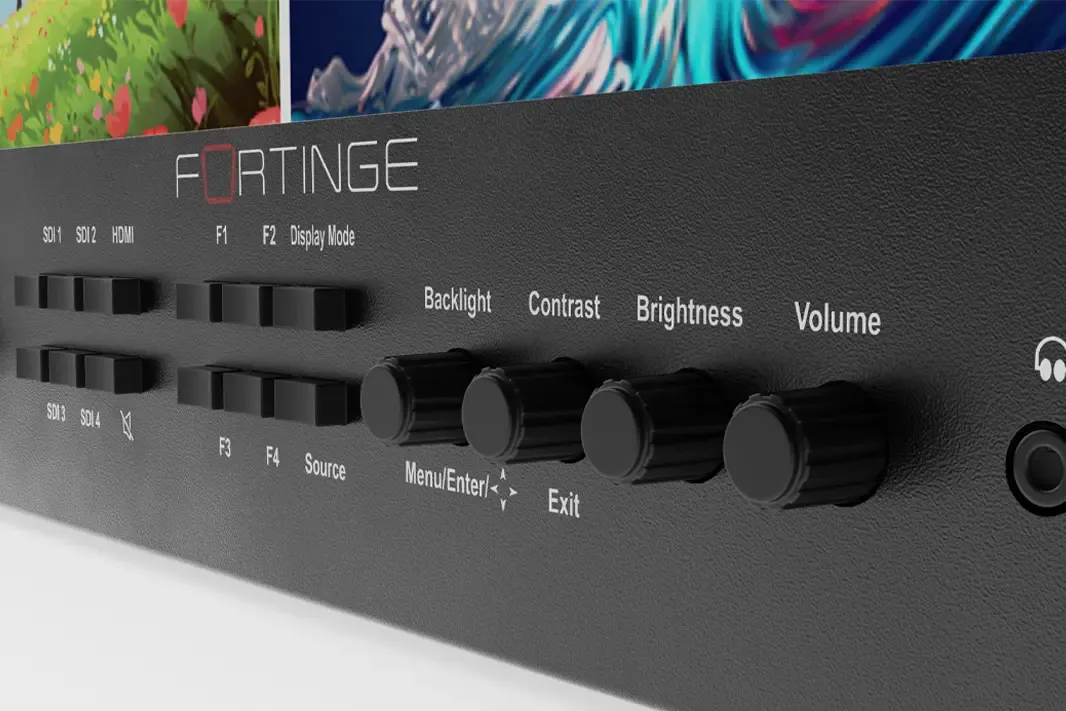

Effortless Operation: Enjoy intuitive button controls, ensuring ease of use for any operator.
Multiple Display Modes: Choose from Single, Picture-in-Picture (PIP), or Quad View to tailor your workflow.
Advanced Color Grading Tools: Supports 3D LUT Log to REC.709 conversion and allows user 3D LUT uploads (up to 36), empowering you to craft visually stunning outputs.
Pro-Grade Monitoring: Equipped with Waveform, Vectorscope, RGB Histogram, Focus Assist, and Monochrome functions for pinpoint accuracy in exposure and focus.
Comprehensive Connectivity: Offers a wide range of interfaces, including 4x 3G-SDI inputs/outputs, 1x HDMI input, RS485, and GPI, ensuring compatibility with diverse systems.
Audio Monitoring: Features a stereo earphone output, enabling precise sound monitoring.
Battery Plate System: It offers flexible power solutions, supporting V-Mount battery plate.
Functional Highlights for Professionals:
Focus Assist: Choose from five highlight colors (Yellow, Red, Green, Blue, White) to nail focus with precision.
3D LUT & HDR Support: Achieve cinematic-quality color accuracy and dynamic range.
Markers & Aspect Control: Customize your frame with a wide range of safety markers, aspect ratios, and center markers for any format.
Advanced Scopes: Utilize All Waves, Parade, Vector, and RGB Histograms for detailed signal analysis.
Anamorphic Mode & Zoom: Unlock creative freedom with multiple anamorphic modes and zoom levels (4x, 9x, 16x).
Versatile Display Modes: Switch seamlessly between full screen, PIP, or Quad View for unmatched flexibility.
With its focus on precision tools and adaptability, the FORTINGE PRO 215-Q Monitor is more than just a screen – it’s your trusted partner in every creative endeavor. Whether you’re filming on location or crafting perfection in the studio, this monitor ensures you stay ahead of the curve.
| General | |
|---|---|
| Screen Size | 21.5" (16:9) |
| Color Depth | 16.7M |
| Viewing Angle | 89/89 (L/R) 89/89 (U/D) |
| Brightness | 500cd/m² |
| Contrast Ratio | 1000:1 |
| Backlight | LED |
| Input Voltage | 12 VDC |
| Power Consumption | ≤36W |
| Working Temperature | -10°C ~ 50°C |
| Storage Temperature | -20°C ~ 60°C |
| Unit Size | 365 mm (W) x 523.5 mm (L) x 37.2 mm (H) |
| Unit Weight | 4.7 kg |
| Input | |
| 4 x BNC | 3G-SDI (support 2K) |
| 1 x HDMI | HDMI (support 1080P) |
| 1 x RS485 | RS485 |
| 1 x GPI | GPI |
| 1 x USB | USB (upgrade and LUT import) |
| Output | |
| 4 x BNC | 3G-SDI (support 2K) |
| 1 x RS485 | RS485 |
| 3 x BNC | YPbPr |
| 1 x BNC | Video |
| Audio | |
| Stereo Headphone, Speaker | Audio Out |
| Supported Format | |
| SDI |
|
| HDMI |
|
| Advanced Features |
|
Elevate your visuals with the PRO173-T Broadcasting Monitor, designed to deliver exceptional performance in any setting. Featuring tempered glass, it’s built to withstand the demands of outdoor production and resist impacts, ensuring unmatched durability and reliability for professionals who demand the best.
Key Features
Flexible Video Input/Output Options – It has the inputs and outputs necessary for video production.
Peaking Focus Assist & Check Field – Achieve precise focus with our Peaking Assist and mono/primary color options for uncompromised color accuracy.
Pixel-to-Pixel Display Mode – See your content as it was meant to be seen, with pixel-perfect detail.
Customizable Functionality – Four user-defined buttons allow instant access to your most-used functions, giving you control that fits your workflow.
Image Adjustments – From Screen Markers and Image Flip options to Aspect Ratio control and zoom features, every setting is yours to fine-tune.
Built-In Audio Output – Enjoy the convenience of a front-panel headphone jack and a built-in speaker for audio monitoring.
Designed for both carry-on and desktop use, the PRO173-T Broadcasting Monitor adapts to your on-set and studio environments. The optional hardcase provides an ideal solution especially for outdoor production use. Equipped with a battery plate system, it offers flexible power solutions, supporting V-Mount battery plate.
Get ready to redefine your visual standards with the PRO173-T Broadcasting Monitor. It’s more than a monitor – it’s your essential tool for outstanding visual performance and exceptional control.
| General | |
|---|---|
| Screen Size | 17.3" (16:9) |
| Resolution | 1024 × 768 |
| Viewing Angle | 80°/80° (L/R) 60°/80° (U/D) |
| Brightness | 400cd/m² |
| Contrast Ratio | 600:1 |
| Backlight | LED |
| Input Voltage | 9 ~ 24 VDC |
| Power Consumption | ≤26W |
| Working Temperature | -10°C ~ 50°C |
| Storage Temperature | -20°C ~ 60°C |
| Unit Size | 426 (L) × 297 (H) × 35.1 (D) mm |
| Unit Weight | 2.75 kg |
| Input | |
| 1 x BNC | 3G-SDI |
| 1 x HDMI | HDMI |
| 3 x BNC | YPbPr |
| 1 x DVI-I | DVI-I |
| 1 x BNC | Video |
| 2 x RCA | Audio (L/R) |
| Output | |
| 1 x BNC | 3G-SDI |
| 1 x HDMI | HDMI |
| 3 x BNC | YPbPr |
| 1 x BNC | Video |
| Audio | |
| Stereo Headphone, Speaker | Audio Out |
| Supported Format | |
| SDI |
|
| HDMI |
|
| Advanced Features |
|
