| JC1 Hand Controller | |
|---|---|
| Frequency | 433 MHz 15mW RF 50m (JC-1 with R100) |
| Operating Voltage |
1.8V-3.3V (at RF mode) 5V (at USB Mode) |
| Signal Length | 50m (JC1 with R100) |
| Power Requirements |
2x AAA battery (for RF Mode) USB connection (for USB Mode) |
| Battery Lifetime | 30 days |
| Number of Channels | 10 |
| Connection Type | Multiple connection JC1 to R100 at RF Mode |
| Light Indicator |
Red: Connection is not available Green: Connection is available |
| Rotary Button | Control for speed |
| Buttons |
Previous Button: First Press Stop, Second Press Previous Next Button: First Press Stop, Second Press Next Rotary Button: Forward, Backward, Pause |

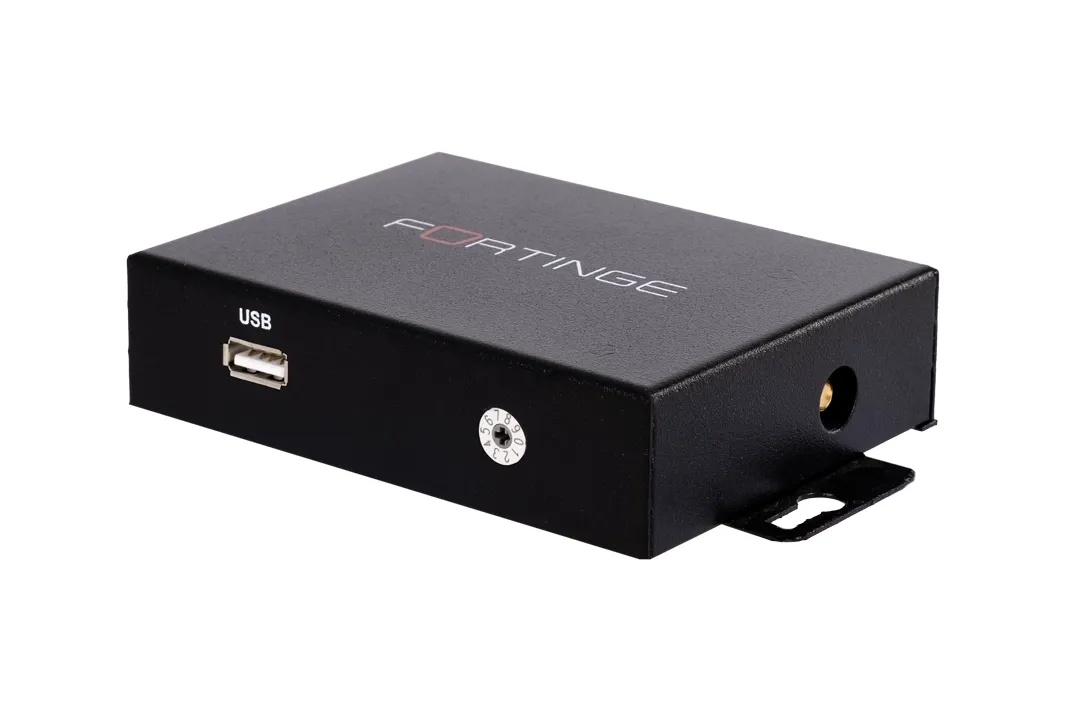

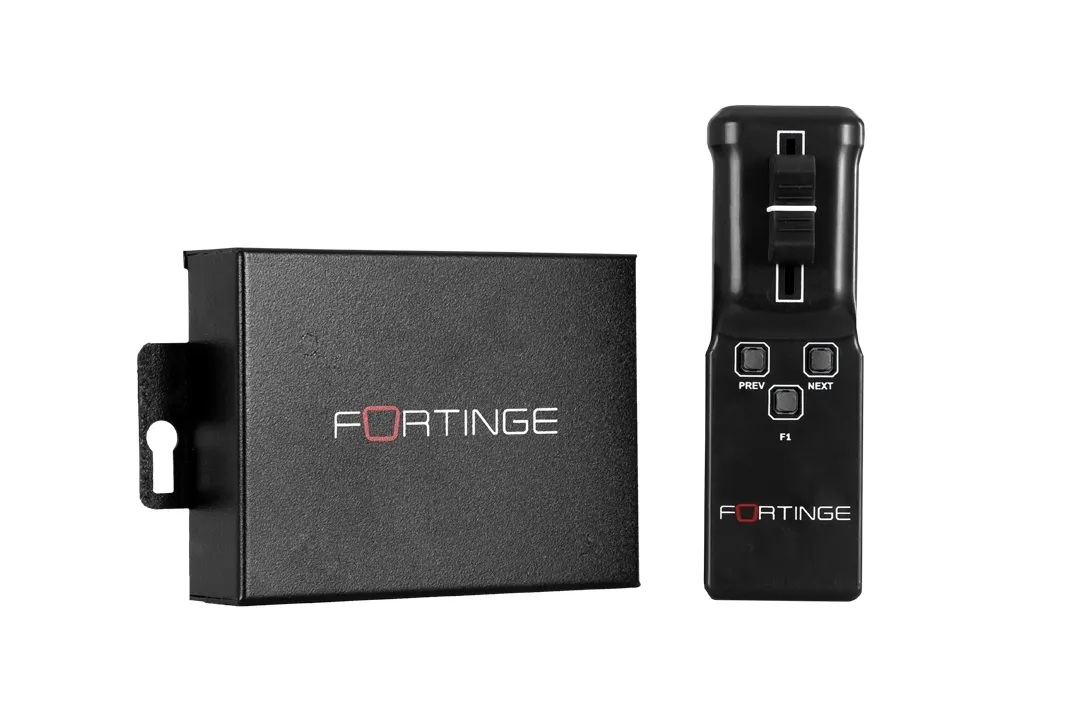

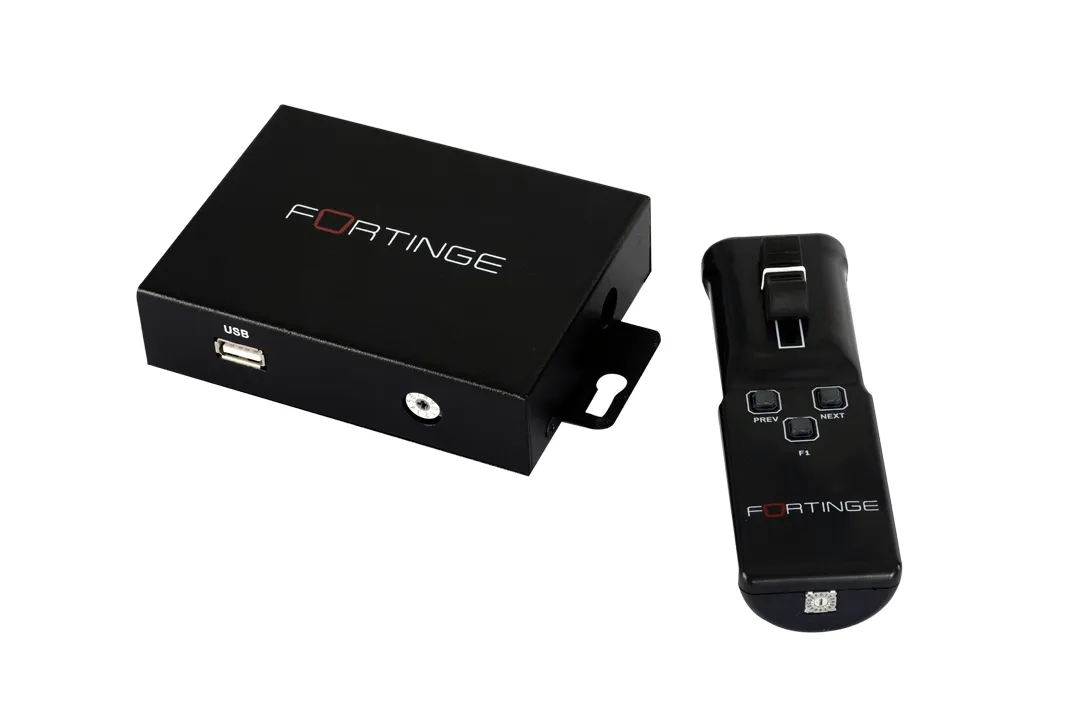

| RF Kit | |
|---|---|
| Frequency | 433 MHz 15mW RF |
| Operating Voltage (RF100) | 1.8V - 3.3VDC |
| Operating Voltage (R100) | 5VDC |
| Signal Length | 50m (RF100 - R100) |
| Number of Channels | 10 |
| Connection Type | Multiple connection RF100 to R100 |
| Power Requirement (RF100) | 2 x AAA battery |
| Power Requirement (R100) | USB connector |
| Battery Lifetime (RF100) | 50 days |
| Light Indicator (RF100) |
Red Color – Connection is not available Green Color – Connection is available |
| RF100 Slide Button | Control for speed |
| RF100 Buttons |
Previous Button (RF100) - First press Stop, Second press Previous Next Button (RF100) - First Press Stop, Second press Next F1 Button (RF100) - Play, Stop |
| BT-1 Bluetoth Controller | |
|---|---|
| Working Voltage | 3 VDC |
| Max Power Consumption | 1.2 mW |
| Bluetooth version | BLE 4.2 |
| Frequency | 2.4GHz / ISM Band (2.4 - 2.4835 GHz) |
| Battery | 2 x 1.5V AAA Batteries |
| Antenna Type | PCB antenna |
| Dimensions | 11.5 × 4.5 × 2.5 cm |
| Box Dimensions | 18 x 9 x 5 cm |
| Weight |
Net: 67 g Gross: 210 g |

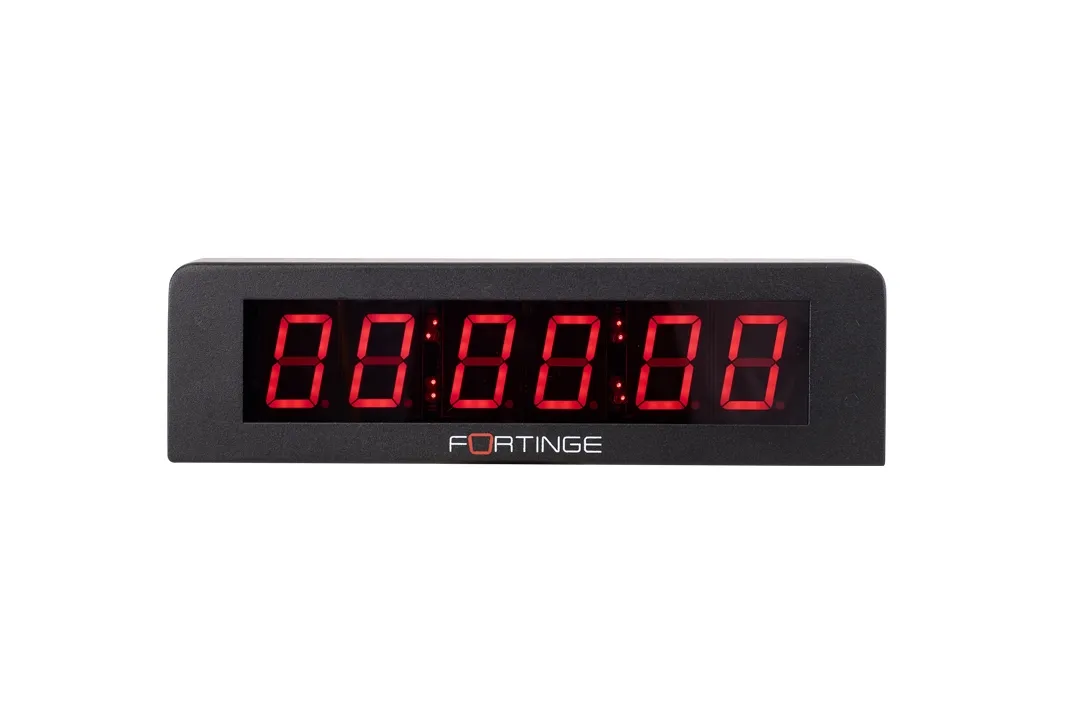

Pro Clock is one of the best solutions to use in MCR and studios for a better time synchronization with LTC input.

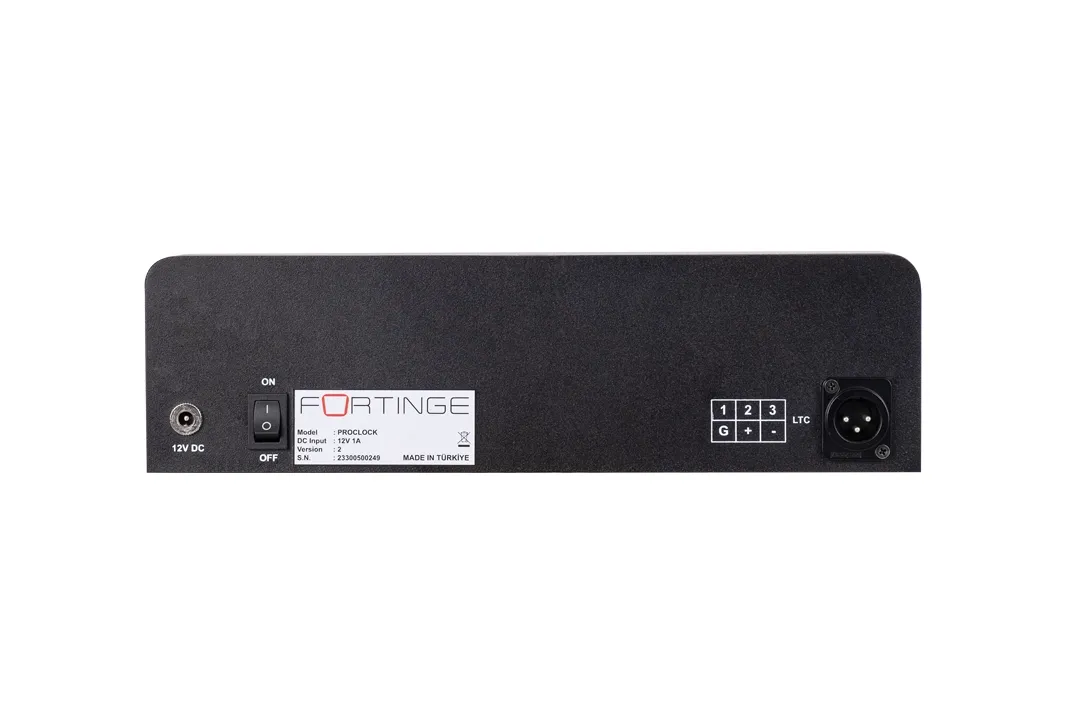

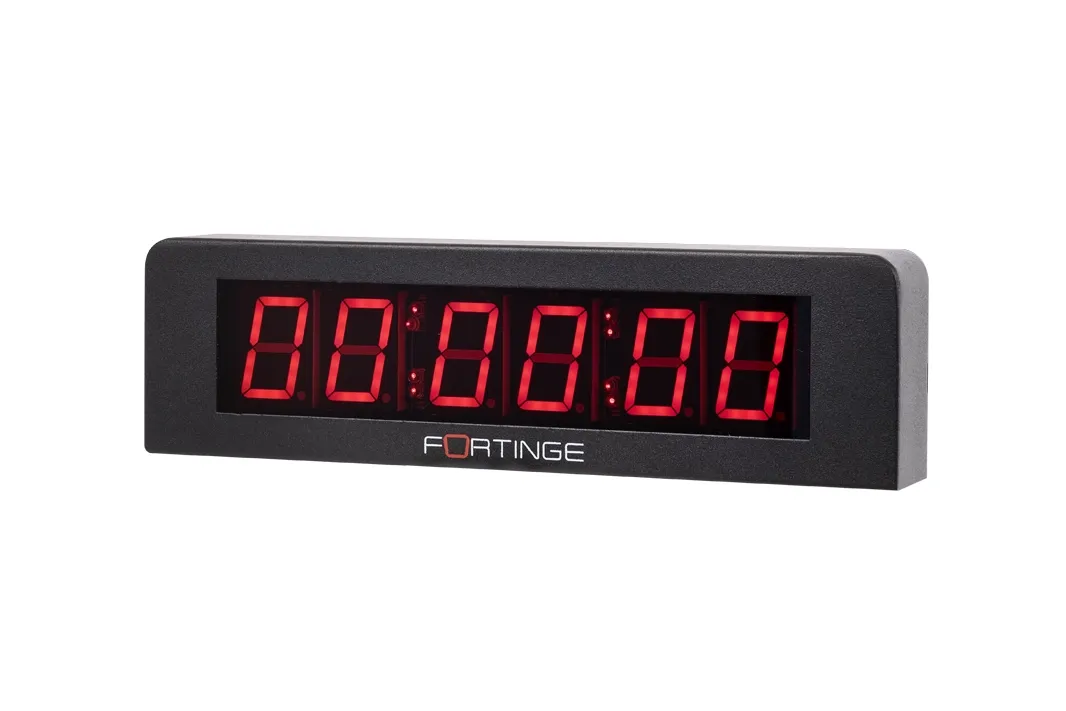

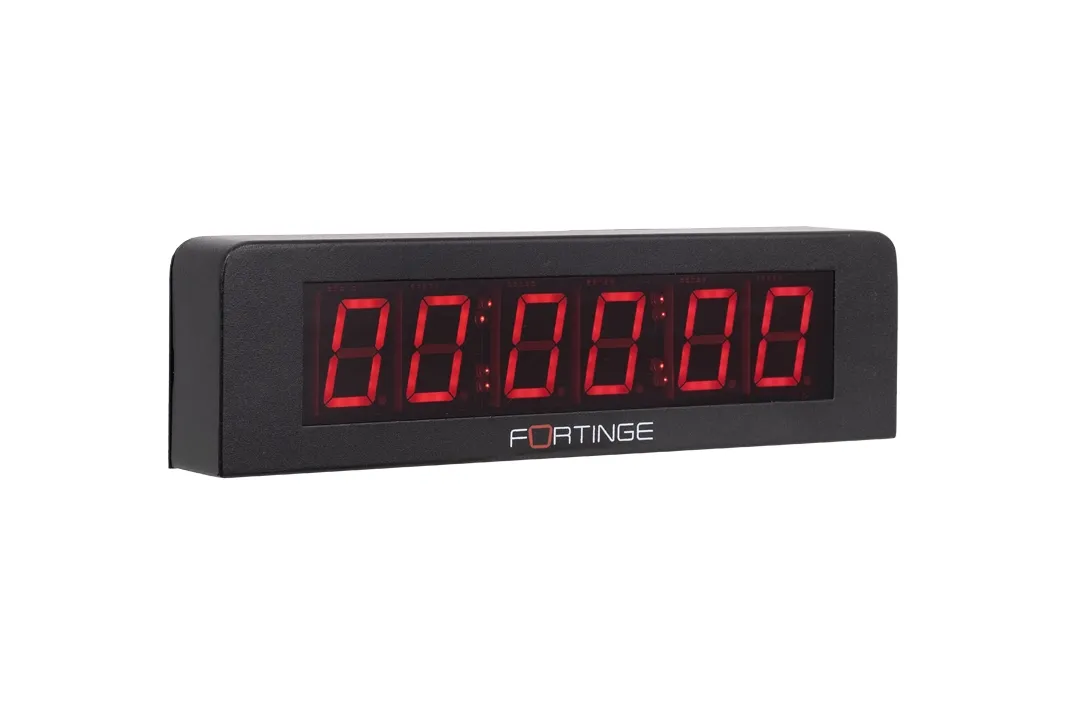

| Pro Clock | |
|---|---|
| Supply Voltage | 9 - 12V |
| Max Current | 1A |
| Dimension | 35cm × 11cm × 4cm |
| Input Signat Format | LTC SMPTE/EBU (balance input) |
| Display Type | 7 Segment 38 mm RED |
| Input Type | 3 Pin XLR |
| Weight | 1 kg |
FORTINGE offers the talent monitor for Studio Prompter to provide a complete system. It is totally compatible with the prompter monitor and offers an easy set up with angular option.
It enables the speaker to see both him/herself while on air and check the actual time from the timer located on it.
The talent monitor also provided seperately for a customised use.

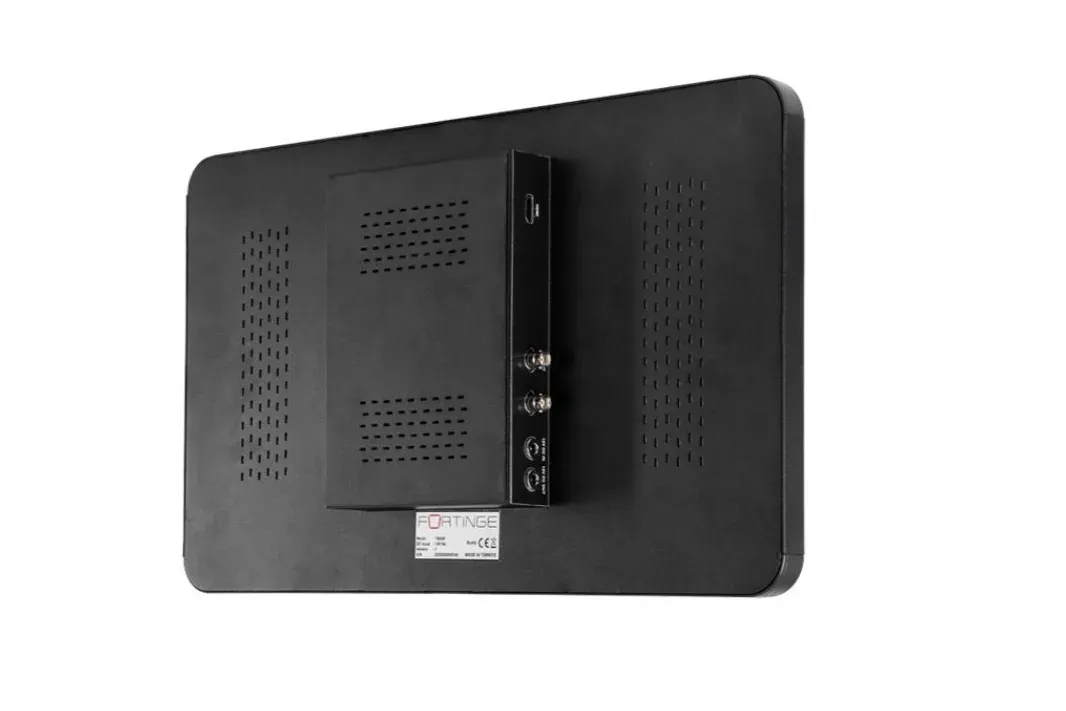

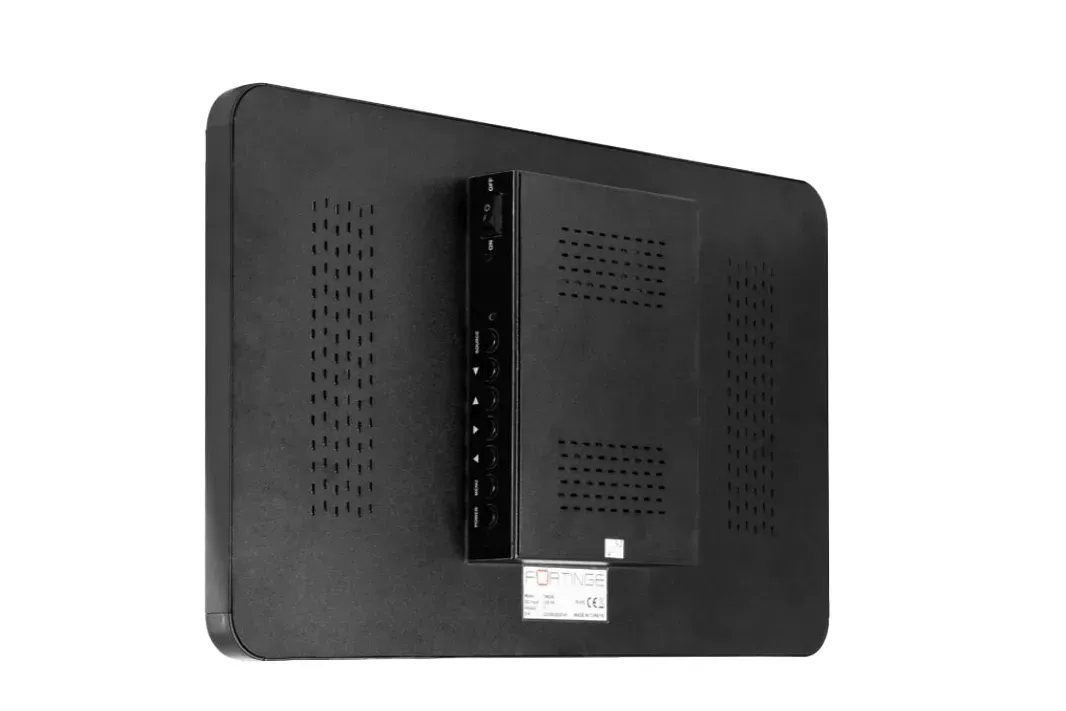

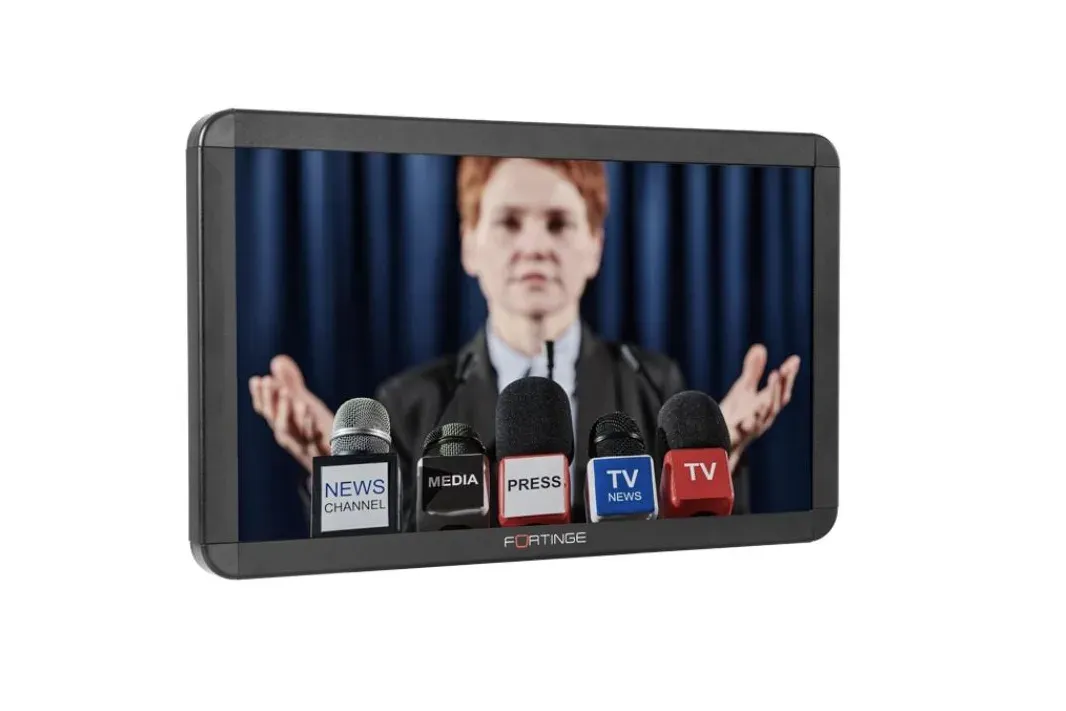

| TM173 Talent Monitor | |
|---|---|
| Screen Size | 17.3" (16:9) |
| Color Depth | 16.7M |
| Resolution | 1920 × 1080 |
| Brightness | 400 cd/m2 |
| Backlight | LED |
| Viewing Angle | 80°/80° (L/R) 60°/80° (U/D) |
| Input |
1 × HDMI 1 × SDI |
| Output | 1 × SDI |
| Rated Input Voltage | 12 VDC |
| Rated Input Power | 23W |
| Dimension | 26.6cm × 41cm × 7cm |
| Weight | 2.2kg |
FORTINGE offers the talent monitor for Studio Prompter to provide a complete system. It is totally compatible with the prompter monitor and offers an easy set up with angular option.
It enables the speaker to see both him/herself while on air and check the actual time from the timer located on it.
The talent monitor also provided seperately for a customised use.

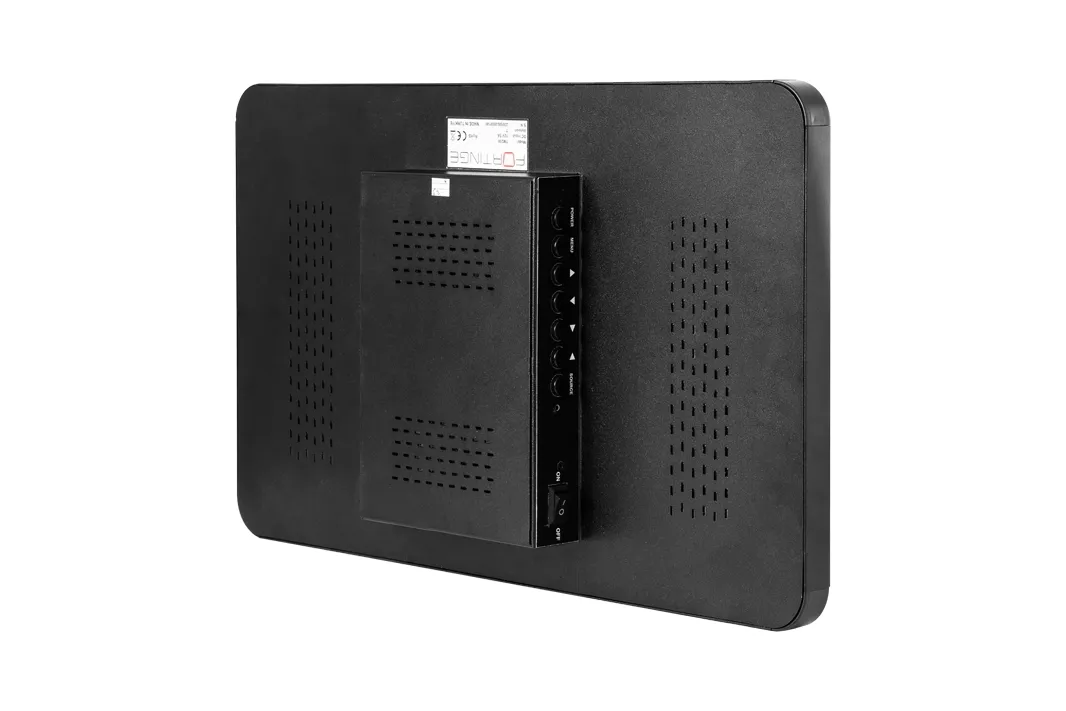

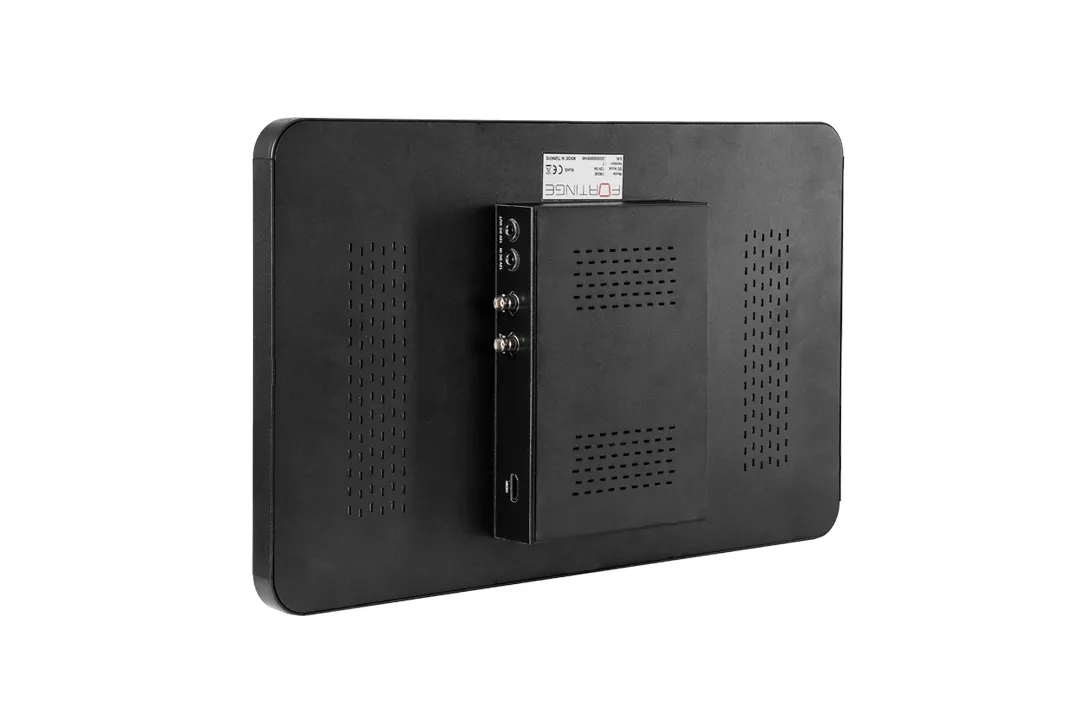

| TM200 Talent Monitor | |
|---|---|
| Screen Size | 19.5" (16:9) |
| Color Depth | 16.7M |
| Resolution | 1920 × 1080 |
| Brightness | 250 cd/m2 |
| Backlight | LED |
| Viewing Angle | 89°/ 89°/ 89°/ 89° ( L/R – U/D ) |
| Input |
1 × HDMI 1 × SDI 1 × LTC |
| Output | 1 × SDI |
| Rated Input Voltage | 12 VDC |
| Rated Input Power | 24W |
| Dimension | 46.5 cm × 41.5 cm × 7 cm |
| Weight | 3.5 kg |
