USB FUSION

Make your online lectures and virtual events more engaging. Our USB Fusion hardware lets you easily combine cameras, screenshares and media file sources into attractive live presentations for remote education, webinars, live streaming, video conferencing and more.

Capture and Combine Sources

USB Fusion lets producers and presenters switch between multiple live and file-based sources, or to combine two inputs simultaneously into one output (picture-in-picture or side-by-side) for capturing into popular software via its USB 3.0 interface. USB Fusion offers two 1080p60 HDMI inputs plus one USB webcam input. It also supports wireless sharing input protocols including AirPlay^®, Google Cast™ and Miracast™. Users can easily switch or combine sources via on-device buttons or the companion tablet app.

Engaging Presentations

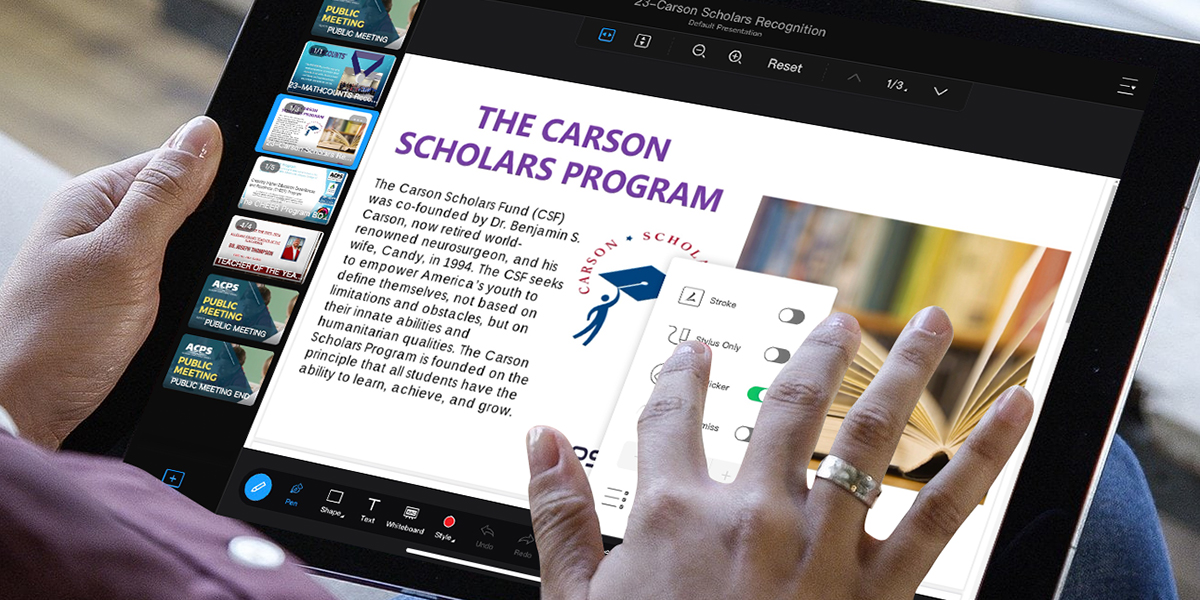

Using the USB Fusion companion app, teachers and event hosts can create presentation playlists in advance and incorporate pre-recorded audio and other media files into their sessions. The app’s annotation tools can be used to mark up presentation materials, and the annotations can be exported to a file for sharing after the class or event. Users can also draw on the video in real-time like a telestrator. Sessions can also be recorded through the app to the USB Fusion hardware’s built-in storage for subsequent playback.

Simple Setup for Easy Deployment

USB Fusion

Combines live video sources for a more engaging presentation

Supports two HDMI inputs and one USB webcam input up to 1080p at 60fps
Switches between sources or combines two simultaneously into one output
Companion tablet app for more advanced features

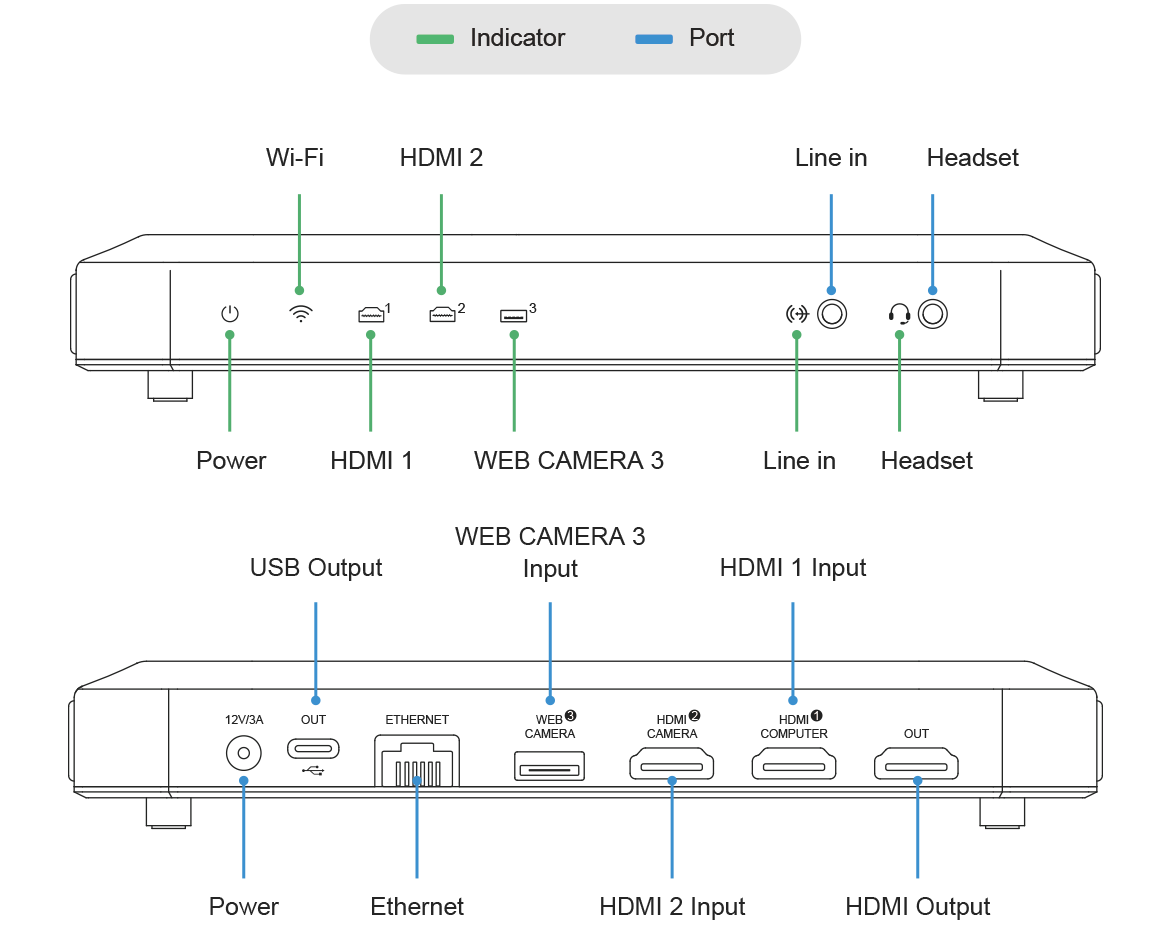

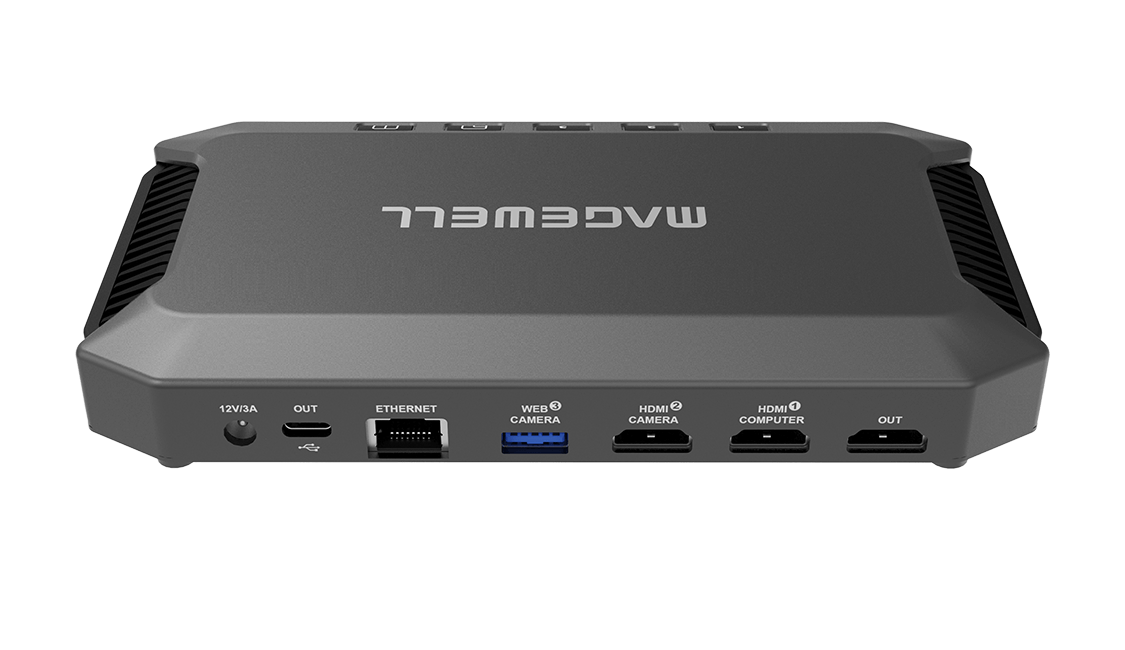

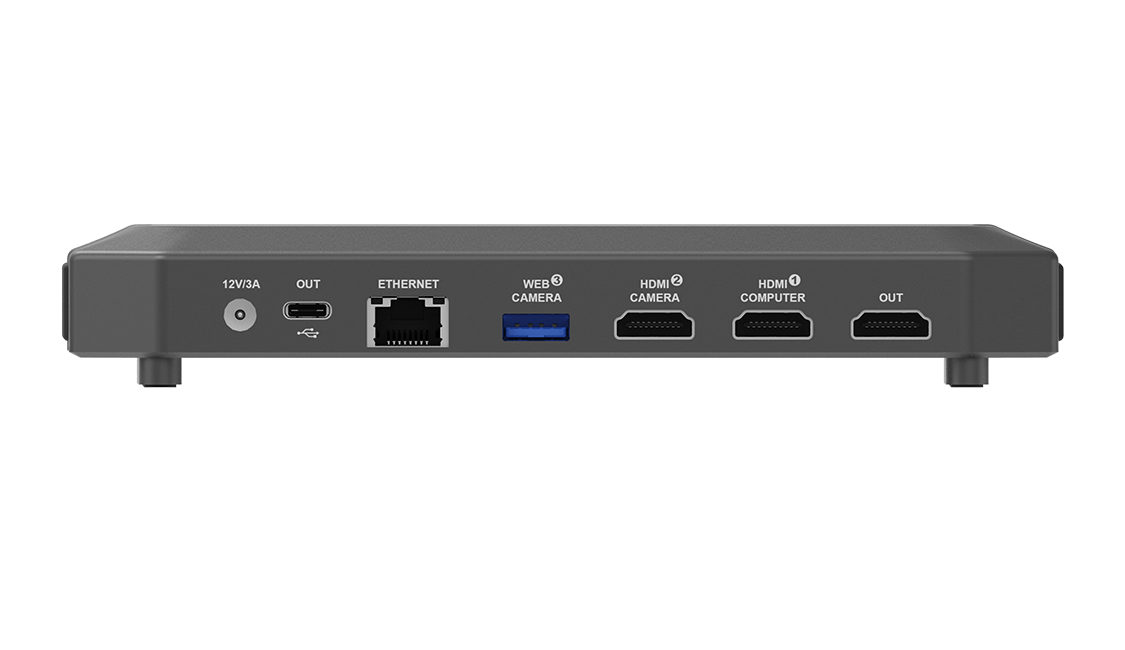

Interface

Specifications and Features

More info

Scene Input

HDMI

Port: 2x HDMI 1.4a Type-A port (HDMI 1 / HDMI 2)
Resolution/frame rate: up to 2048x1080p, 60fps
Color depth: 8-bit, 10-bit, 12-bit
Video sampling: RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2

USB

Port: 1x USB 3.0 Type-A port (WEB CAMERA 3)
Resolution/frame rate: up to 2040x1080p, 60fps
Codec: YUYV, H.264, MJPG, UYUV, NV12, etc.

Screencast

Protocols: AirPlay, Miracast, Google Cast
Supports up to 4 devices casting simultaneously

Imported files

Video file: MOV, MP4, MKV
Image file: JPEG, PNG, BMP
PDF file
Resolution: up to 4K, 8-bit
Codec: H.264, HEVC (H.265)

Web page

Transfer protocol: HTTP, HTTPS

Audio Input

Line in port: 1x 3.5mm jack, 2-channel, 48 KHz, 16-bit
Headset port: 1x 3.5mm jack (CTIA standard), 2-channel, 48 KHz, 16-bit
Up to 8-channel 24-bit HDMI-embedded audio at 192KHz
Audio from WEB CAMERA 3 port: Up to 4-channel 24-bit audio (The audio is disabled by default, and can be enabled on Web UI.)
Audio embedded in video files
Audio file: MP3, M4A, WAV
Audio of web pages
Audio of screencast sources

Video Output

USB OUT

Port: 1x USB 3.0 Type-C port
Resolution: 1920×1080, 1280×720, 640×480
Frame rate: 60fps, 30fps, 15fps
Video sampling: YUYV, NV12, ARGB

HDMI OUT

Port: 1x HDMI 1.4a Type-A port
Output image: HDMI 1, HDMI 2, or PROGRAM image
Output resolution: configurable, up to 2048×2048 (Actual resolution options can be limited by the negotiation result between the device and monitor.)

Streaming via RTMP:

Resolution: 1920×1080, 1280×720
Frame rate: 60fps, 30fps
Bitrate: up to 20 Mbps

Audio Output

1x 3.5mm jack: headset port
- Format: 2-channel, 48 KHz, 16-bit
- Standard: CTIA
Audio output via WEB CAMERA 3 port: 2-channel (The audio is disabled by default, and can be enabled on Web UI.)
Audio output via USB OUT port: 2-channel, 48 KHz, 16-bit
Audio output via HDMI OUT port: 2-channel, 48 KHz, 16-bit
Audio output via RTMP streaming: 2-channel, 48 KHz, 16-bit

Video Processing & Production

HDMI source
- Video/audio signal data: auto extracted
- Color space/quantization range: calibration supported
- De-interlacing: Bob, motion adaptive, motion compensated
- EDID: self-definition supported
USB source
- Format: selects according to the source
- Resolution/frame rate: selects according to the source
Screencast source
- Supports turning on/off screencast protocols on Web UI
- Supports secure screencast by using on-screen code or custom password
- Supports up to 4 simultaneous wireless sources combined into a screencast scene layout
- Supports single-view or multi-view display, with a dynamic layout for multi-view display
- Supports customizing background color
- Supports dynamically crop black bars of the screen for Android devices casting through Miracast
- Supports displaying the screencast device name, image size and frame rate
PDF source
- Supports turning pages, visiting hyperlinks, zooming in and out, etc.
Web page source
- Supports browsing web pages, visiting hyperlinks, zooming in and out, etc.
- Supports inputting information through the remote keyboard
Auto conversion of frame rate/color space
Source switching: auto, manual
Scene compositing: picture in picture, side by side
Scene editing: crop, mirror, scale, rotate, and more
Annotation: pens, shapes, text, and more, generated as notes for exporting
Presentation: supports creating, importing, exporting, managing presentations, etc.
GFX: supports adding and applying text or picture (JPG, JPEG and PNG) as GFX into the presentation
FTB: supports fading to black or image

Audio Processing & Production

Auto resampling
Auto audio de-embedding and embedding
Controls volume of audio output and each audio input
Supports microphone gain

Recording and Screenshot

Supports manual and schedule recording to local storage, with default format of 1080p60, H.264, MP4 (Recording parameters and schedule can be configured on Web UI )
Screenshot format: JPEG, 1920×1080 Storage space: 128 GB
Cloud backup: supports automatically or manually uploading recorded video and screenshots to Google Drive

Provided Software

USB Fusion App

Creates, edits and controls presentations
Supports HD, SD, Auto and customized preview quality
Provides USB Clicker to control the PowerPoint on the computer connected to the USB OUT port.
Supports PTZ control, applying to the VISCA compatible PTZ camera connected to the HDMI port
Takes and manages recordings and screenshots
Supports the Watcher mode, which allows up to two watchers viewing the scene and telestrating while one operator controlling the device.
OS version: iOS 12 and later, Android 7.0 and later

Web UI

Configures and manages the device
Creates, controls and manages presentations and media files
Configures recording parameters and sets schedule recording
- Source: supports ISO recording by selecting the source to record, and selecting whether to only record the image
- Encoder: sets resolution (up to 1080p60), bitrate mode (CBR or VBR), audio (up to 48Khz, aac, 256kbps), etc.
- Storage: supports local storing as MP4 or MOV files, and splitting files by time or size
- Schedule: sets recording schedule to implement recording automatically during the specified time period
Manages recordings and screenshots, and supports auto or manual backup to Google Drive
Configures RTMP server, and starts/stops streaming
Sets the login mode of the App to the device, including free login, password to login and pairing to login, and enables the Watcher mode to set the number and permissions of watcher
Customizes preview quality for the App
Sets sleep
Supports registering Magewell Control Hub for centralized management

Network

Ethernet: 1x RJ45 port, 10/100/1000 Mbps Base-T
Wi-Fi network: IEEE 802.11 a/ac/ax (only 5G supported), Station mode or AP mode supported
USB network: 1x USB OUT port

Compatible Software

Skype, Zoom, Microsoft Teams, Google Meet
Other UVC/UAC compliant, DirectShow/V4L2/AVFoundation compatible software

Compatible OS

Windows: Windows 7 and later, Server 2008 and later (x86 & x64)
Linux: Linux system with kernel 2.6.35 or later (x86, x64 & ARM)
Mac: OS X 10.9 and later, macOS 10.12 and later

System Requirement for Screencast*

AirPlay

iPhone/iPad: iOS 12.3 or later
Mac: macOS 10.14 or later

Miracast

Windows 10 or 11
Android 4.2 or later

Google Cast

Windows: Core i3 or equivalent, Windows 7 or later
Apple OS X: Macbook Pro 2010 or newer, Macbook Air 2011 or newer, OS X 10.9 or later
Chrome OS: All 2014 models and later, 2013 Haswell-based models, and Samsung Chromebook 2

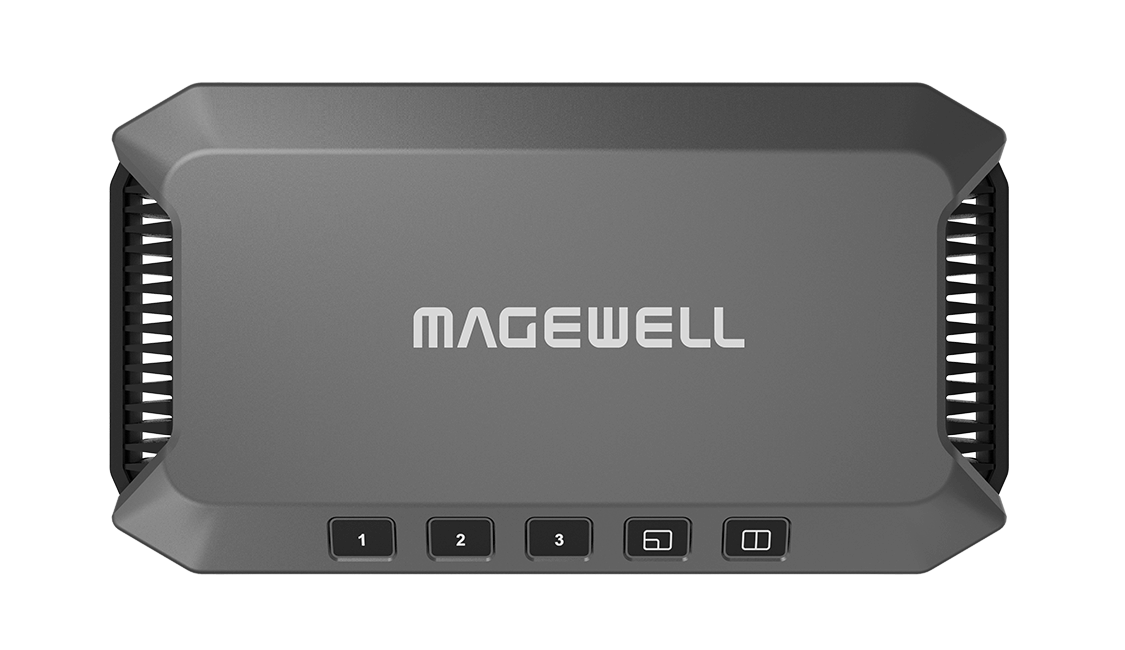

Buttons

Switches and composites sources
Switches screencast images and displays screencast guide
Starts or stops pairing for “Pairing to login” mode
Wakes up the device when it is sleeping
Supports customizing functions

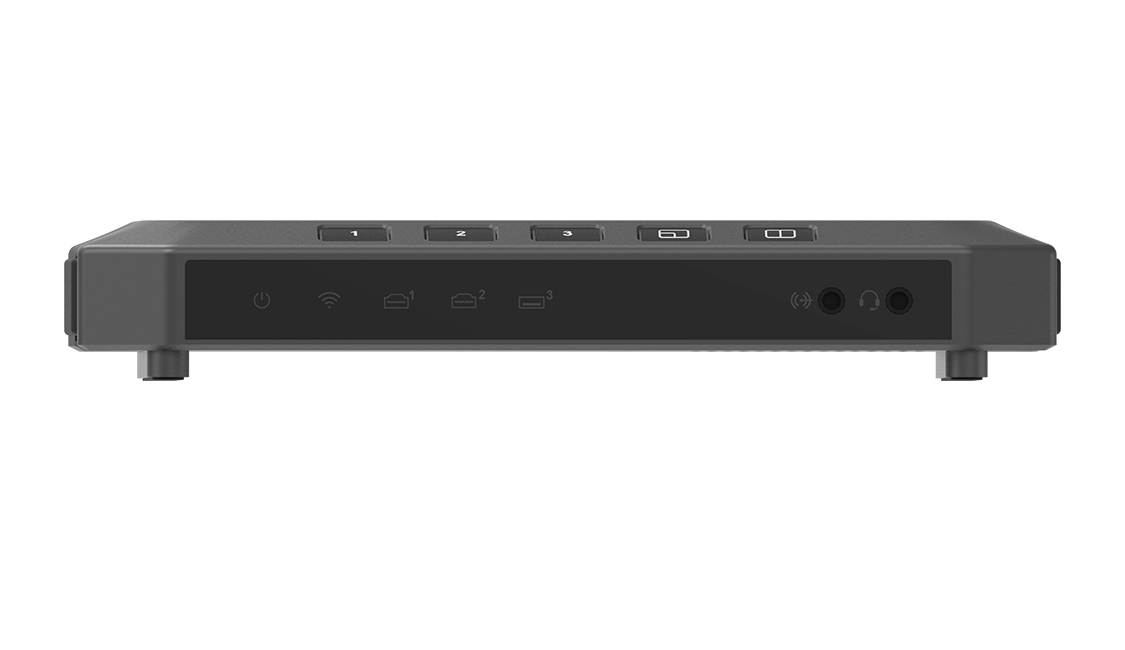

LED Indicators

Power

On: power on
Off: power off

Wi-Fi / HDMI 1 / HDMI 2 / WEB CAMERA 3

On: connected
Off: not connected

Line-in / Headset

On: connected
Pulsing: not connected

Power

Power port: 2.1mm x 5.5mm jack
Power input: 12V/3A

Power Consumption

Static working status: 10W
Full-load working status: 17.5W
Static sleeping status: 9.8–10w
Full-load sleeping status: 14.5–14.8W

Dimensions

186mm x 101.2mm x 30mm

Accessories

1x Power adapter

Output: 12.0V/3.33A

1x USB 3.0 cable

Working Environment

Operating temperature: 0 to 50 deg C
Storage temperature: –20 to 70 deg C
Relative humidity: 5% to 90% non-condensing

Accessory

Included

Power Adapter x1
Part number: ACC08019

USB 3.0 cable x1
Part number: ACC10007
