• Supports SD (ST 259)/HD (ST 292)/3Ga (ST 425)/3Gb (ST 425)/3Gb-DL(ST 425)/3Gb-DS (ST 425)/6G (ST 2081) standards
• Typical resolution/frame rate:



  • 4096x2160p 23.98/24/25/29.97/30
  • 2560x1440p/2048x1080p/2048x1080i 23.98/24/25/29.97/30/47.95/48/50/59.94/60
  • 1920x1080p/1920x1080i 23.98/24/25/29.97/30/47.95/48/50/59.94/60
  • 1280x720p 25/29.97/30/50/59.94/60
  • 720×576 25p/50i (PAL SD)
  • 720×480 29.97p/59.94i (NTSC SD)
• Color sampling: YCbCr 10-bit 4:2:2, YCbCr 10-bit 4:4:4:4, YCbCr 12-bit 4:2:2, YCbCr 12-bit 4:4:4

Audio

• SDI embedded audio: 16-Channel, 24-bit, 192kHz sample rate
• Audio from 3.5 mm LINE IN: 2-Channel, 24-bit, 192kHz sample rate

Video

• Bitrate:
  • NDI® HX3: up to 62.0Mbps, down to 1.5Mbps
  • Others: up to 32.0Mbps, down to 256kpbs
• Dual-stream encoding: main stream and sub stream
• Main stream
  • Resolution/frame rate:
    • 4096x2160p/3840x2160p 30/29.97/25/24/23.976/15/10/5
    • 2560x1440p/2048x1080p/1920x1200p 60/59.94/50/30/29.97/25/24/23.976/15/10/5
    • 1920x1080p/1920x720p 60/59.94/50/30/29.97/25/24/23.976/15/10/5
    • 1664x936p/1600x1200p/1600x900p 60/59.94/50/30/29.97/25/24/23.976/15/10/5
    • 1440x1080p/1440x900p 60/59.94/50/30/29.97/25/24/23.976/15/10/5
    • 1280x1024p/1280x960p/1280x800p/1280x720p 60/59.94/50/30/29.97/25/24/23.976/15/10/5
    • 1024x768p 60/59.94/50/30/29.97/25/24/23.976/15/10/5
    • 1024x576p 60/59.94/50/30/29.97/25/24/23.976/15/10/5
    • 960x540p/800x600p 60/59.94/50/30/29.97/25/24/23.976/15/10/5
    • 768x576p/720x576p/720x540p/720x480p 60/59.94/50/30/29.97/25/24/23.976/15/10/5
    • 640x480p/640x360p 60/59.94/50/30/29.97/25/24/23.976/15/10/5
    • 480x360p/480x270p 60/59.94/50/30/29.97/25/24/23.976/15/10/5
  • Native CEA–608/608 over 708 captions
• Sub stream
  • Supports enabling/disabling sub stream
  • Resolution/frame rate:
    • 1920x1080p/1920x720p 60/59.94/50/30/29.97/25/24/15/10/5
    • 1664x936p/1600x1200p/1600x900p 60/59.94/50/30/29.97/25/24/15/10/5
    • 1440x1080p/1440x900p 60/59.94/50/30/29.97/25/24/15/10/5
    • 1280x1024p/1280x960p/1280x800p/1280x720p 60/59.94/50/30/29.97/25/24/15/10/5
    • 1024x768p 60/59.94/50/30/29.97/25/24/15/10/5
    • 960x540p/800x600p 60/59.94/50/30/29.97/25/24/15/10/5
    • 768x576p/720x576p/720x540p/720x480p 60/59.94/50/30/29.97/25/24/15/10/5
    • 640x480p/640x360p 60/59.94/50/30/29.97/25/24/15/10/5
    • 480x360p/480x270p 60/59.94/50/30/29.97/25/24/15/10/5
• H.264/H.265 (HEVC) Codec:
  • System timecode or RP–188 standard timecode for SEI Message setting
  • H.265 (HEVC) SEI message supports carrying interlacing signal mark
  • Video aspect ratio conversion
  • Image rotation: 0°, 90°, 180°, 270°
  • Cropping
  • Output 3D video

Audio

• Encode up to 8 audio streams
  • Up to 8 channels can be selected for mapping when SDI input carries more than 8 audio channels
  • Supports mapping between source channels and encoded audio channels
  • Contains 1 x 8-channel stream and 7 x 2-channel streams
• Bitrate: 256/192/128/96/64/48/32/16 kbps
• Output source embedded audio and line in through LINE OUT

Natively supports streaming to:

• Twitch
• YouTube, publishing to timeline or a new event and setting “made for kids”.
• Facebook, enabling backup stream and publishing to timeline or a new event.
• WOWZA over RTMP, adding token and publishing to timeline or a new event.
• WOWZA over SRT, setting AES encryption (AES–128/192/256) and publishing to a channel or a new event.

Supports streaming protocols:

• RTSP
• RTMP/RTMPS
• SRT Caller/SRT Listener
• NDI®|HX2
• HLS
• TS over UDP/TS over RTP
• TVU ISSP

• Supports streaming to 6 destinations simultaneously, containing 1 session of RTSP/SRT Listener/HLS/ISSP (if included), or 2 NDI®|HX2 sessions (if included)
• Supports 1 NDI® HX3 sessions exclusively
• Supports specifying a video stream and an audio stream for each streaming session
• Supports live stream scheduler

• Supports setting and managing recording function and tasks
• Supports recording to local storage



  • Supports format and performance test
  • Automatically upload files to remote file storage platform including FTP server, Google Drive, and Dropbox
• Supports recording to external USB storage



  • Supported system format: FAT32, exFAT and NTFS
• Supports recording to network attached storage (NFS/CIFS)



  • Supported system format: NFS, CIFS
• Supports loop recording and normal recording
• Supports saving recording files in MP4, MOV or TS format
• Supports specifying a video stream and an audio stream for each recording task
• Supports customizing recording file name and prefix
• Supports splitting recording files by time



  • MP4, MOV: up to 4 hours
  • TS: no limit
• Supports exporting or downloading files through Web UI
• Supports recording scheduler

• • Access Web UI via PC and smartphone
  • View real-time device status
  • Preview encoded video
  • Set input sources
  • Customize encoding parameters
  • Manage streaming destinations, start/stop streaming, view streaming status
  • Set up to 8 overlays for each stream, including text, picture, and clock
  • Update firmware
  • Supports registering Magewell Control Hub for centralized management
  • Supports Microsoft Edge/Firefox/Chrome/Safari/Opera web browsers

• Ethernet: 1x RJ45 port, 10/100/1000 Mbps Base-T
• IEEE 802.3af PoE
• Wi-Fi: 802.11 a/b/g/n/ac, Station and AP modes supported
• 4G/5G USB modem (not supplied)
• USB Net

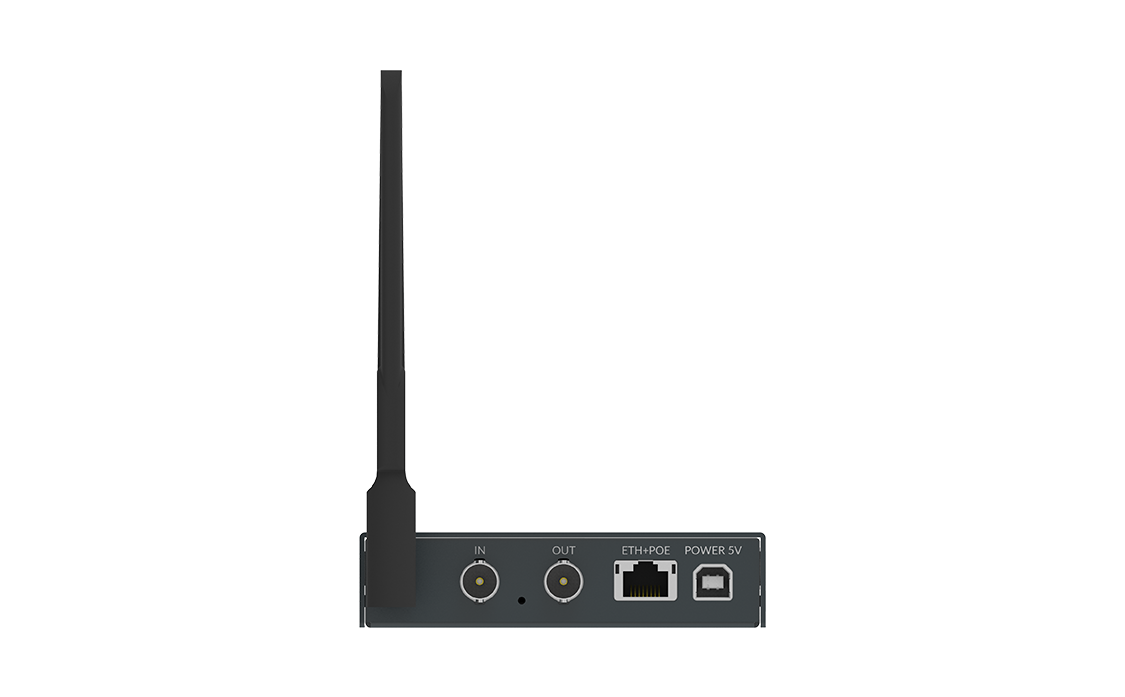

• 2 x SD/HD/3G BNC ports
  • 1 x Input
  • 1 x Loop-through

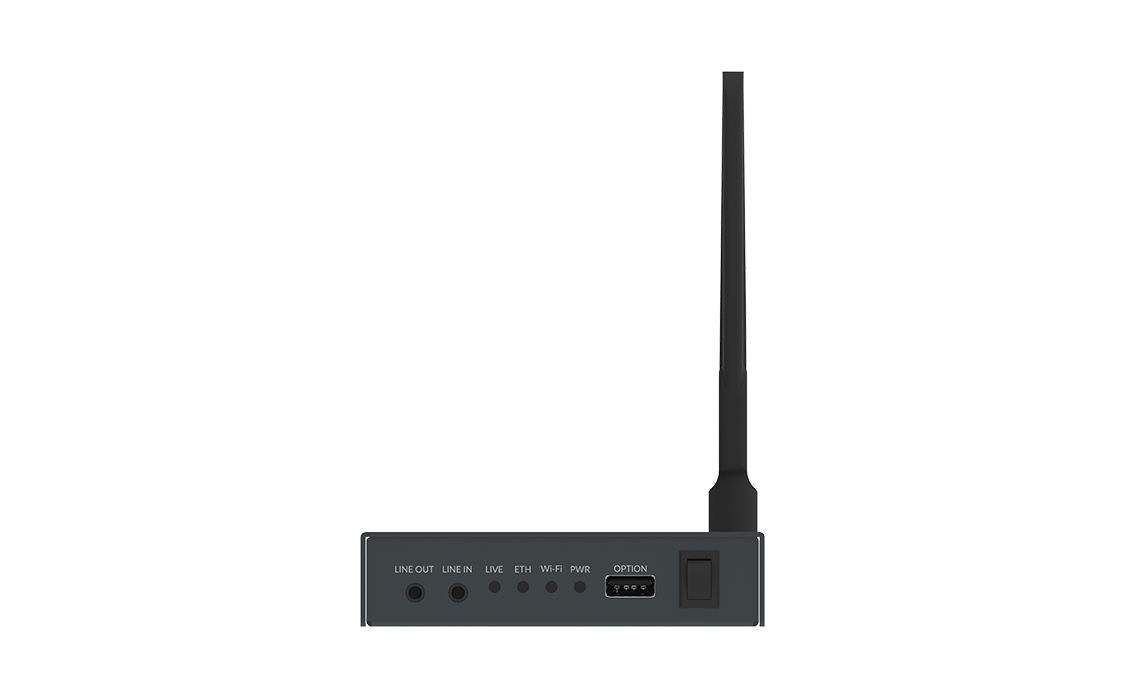

• 1 x 3.5mm LINE IN
• 1 x 3.5mm LINE OUT
• 2 x USB Type-A

• USB flash drive (not supplied): FAT32, NTFS, exFAT
• NAS (not supplied): NFS/CIFS

• LEDs indicating the status of power, input signal, streaming, Ethernet and Wi-Fi connection
• NDI tally lights (preview-green, program-red)

• DC 5V/3A
• Max power consumption: 8.72W

• 106.6mm x 106.2mm x 25mm

• 1 x 5V Power Adapter
• 1 x USB Type A to Type B cable
• 1 x Wi-Fi Antenna
• 1 x T-bracket

• Operating temperature: 0 to 40 deg C
• Storage temperature: –20 to 40 deg C
• Relative humidity: 5% to 90% non-condensing
